Description
Overview

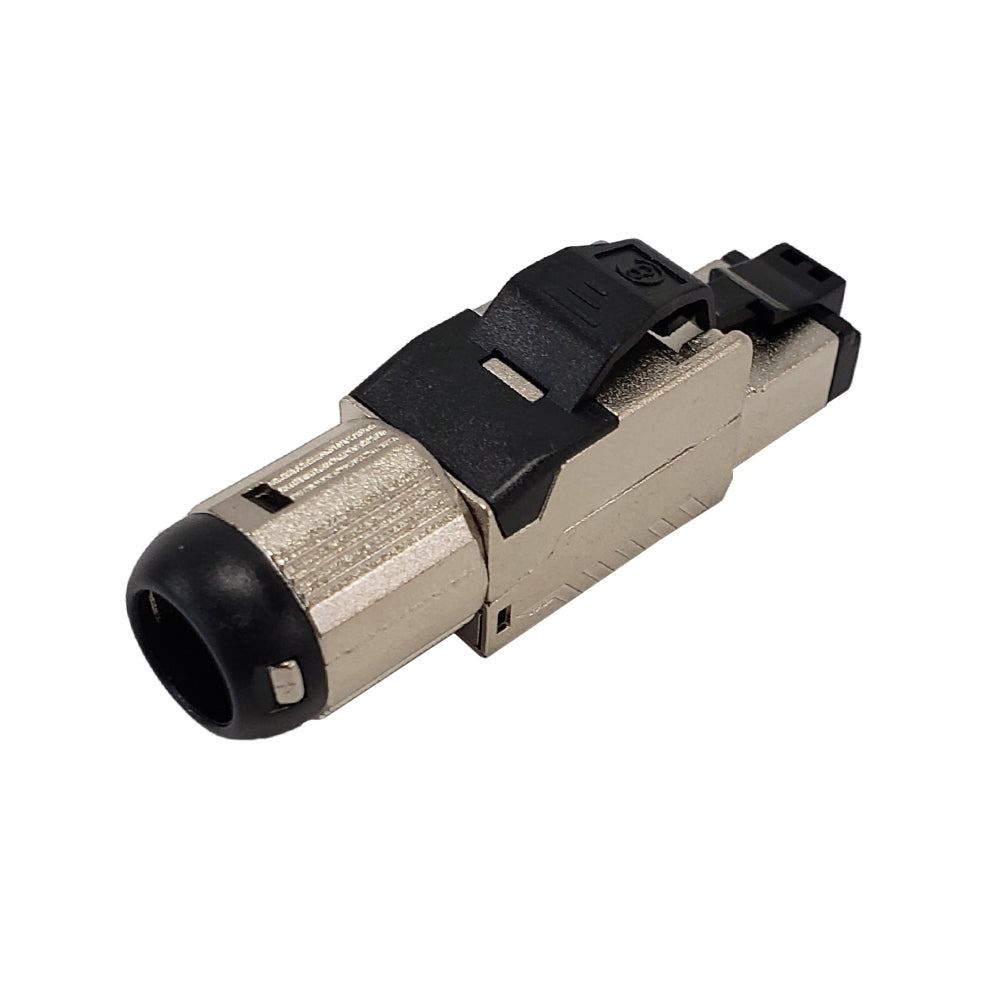

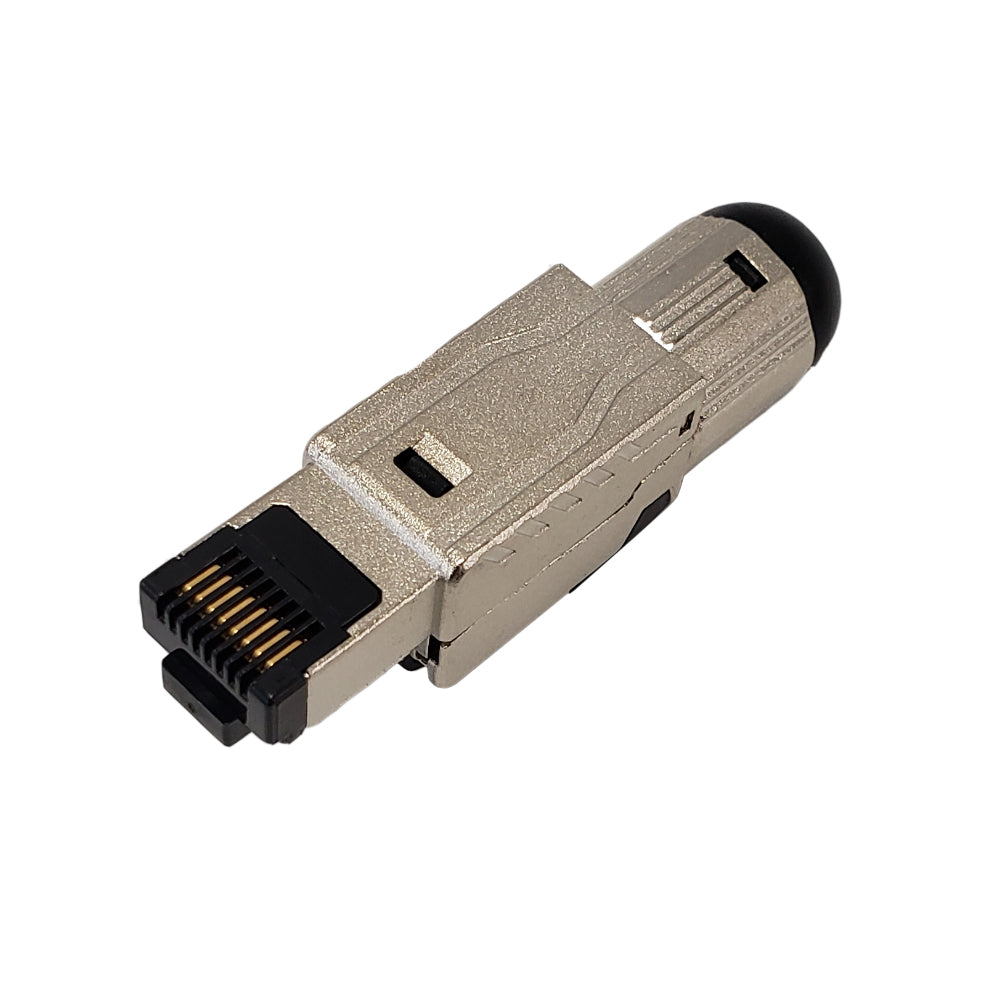

This modular IP20 rated field termination RJ45 Cat8 connector is an 8 position, 8 conductor plug. It is designed to terminate Cat8 cables (22AWG to 24AWG) with OD 7.0mm to 8.5mm quickly and easily on-site.
 |
Quick and Easy On-Site TerminationThis tool-less plug with Cat8 cable can be done quickly and easily without frustration. Robust Strain ReliefDurable strain relief relives any stress on the cable. Solid or Stranded CableThis plug can be used with solid or stranded cables with wire gauges 22 to 24 AWG.
|
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Nickel | |
| Material | Polycarbonate | |
| Contacts | Gold | |
| Shielded | Yes | |
| Cable Type | Cat8 | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| IP Rating | IP 20 - (Anti Dust) | |
| Connector(s) | ||
| RJ45 Cat8 (8P8C) | Male, 22 - 24 AWG Solid or Stranded Cable | |
| Environmental | ||
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 - Plug 1 - SR Boot 1 - RJ45 Cover 1 - Copper Foil Tape |
|
| Product Weight | 0.06 lbs | |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-FT-C8S-BK | 0.06 lb |
