Description
Overview

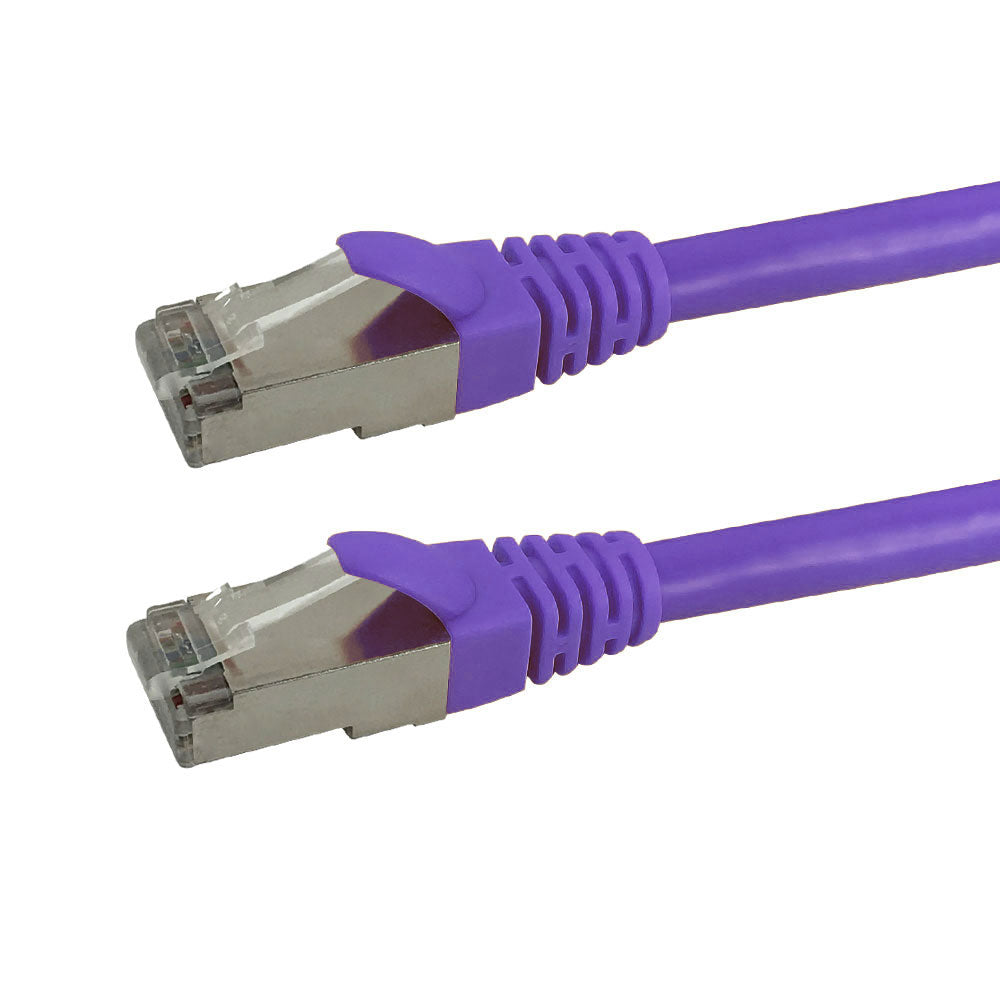

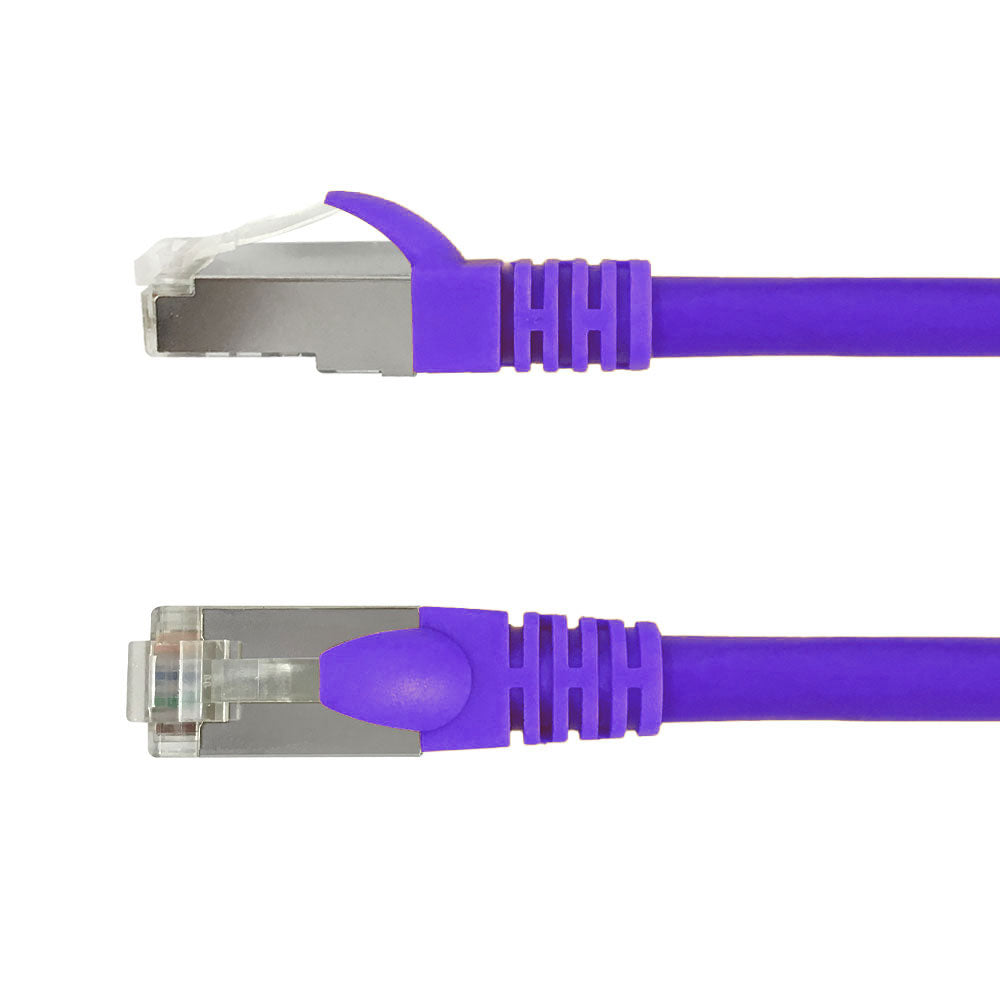

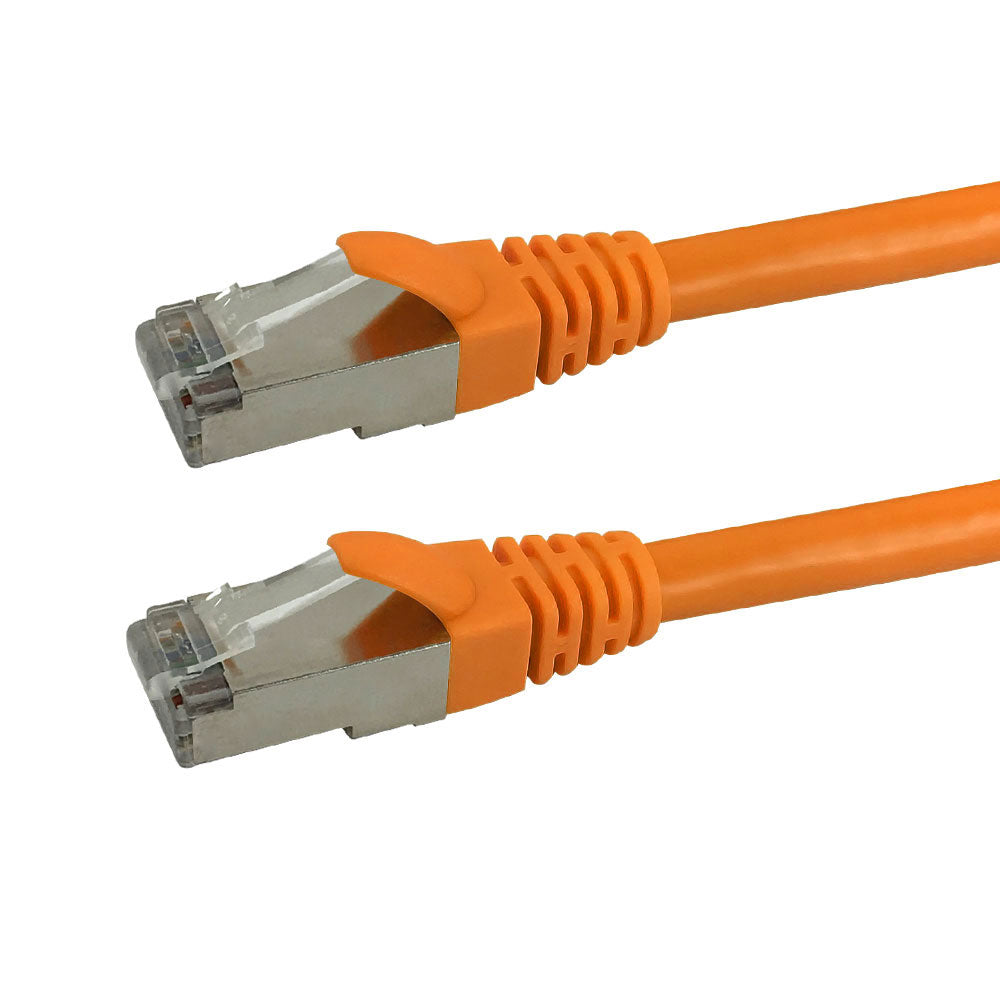

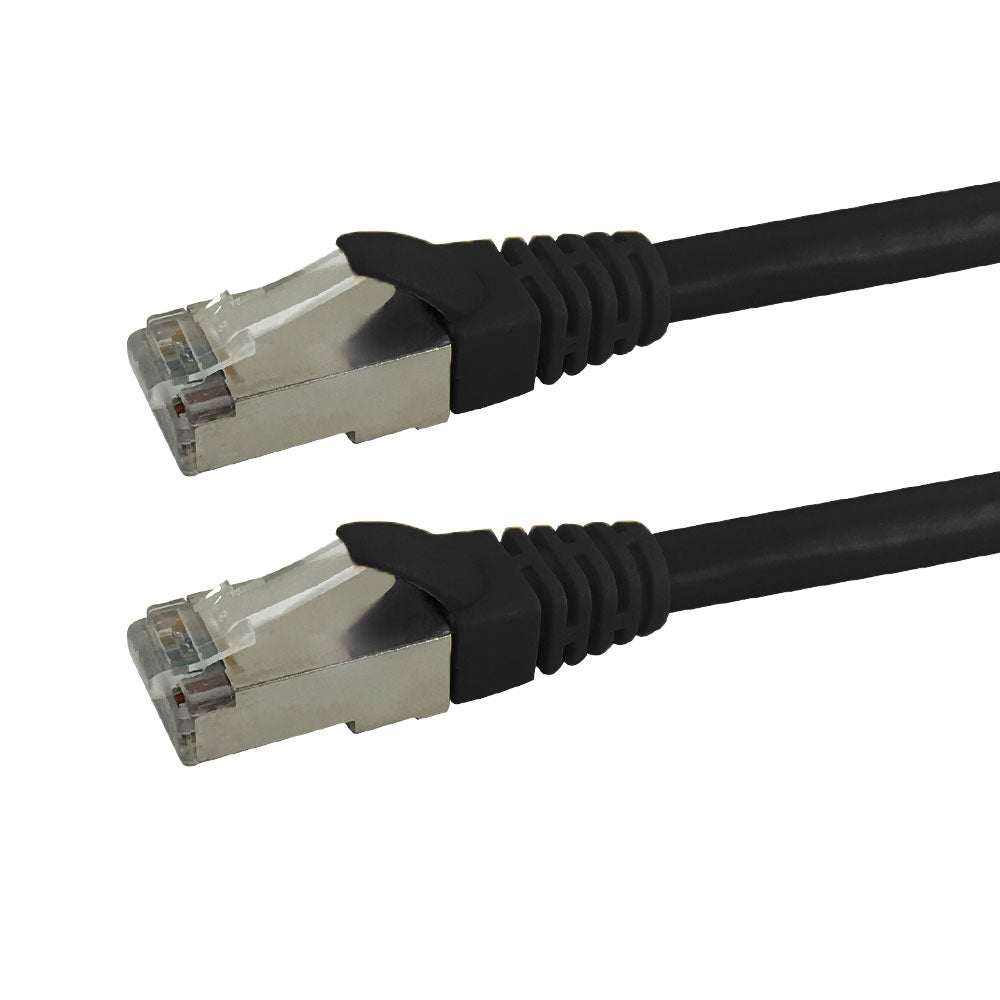

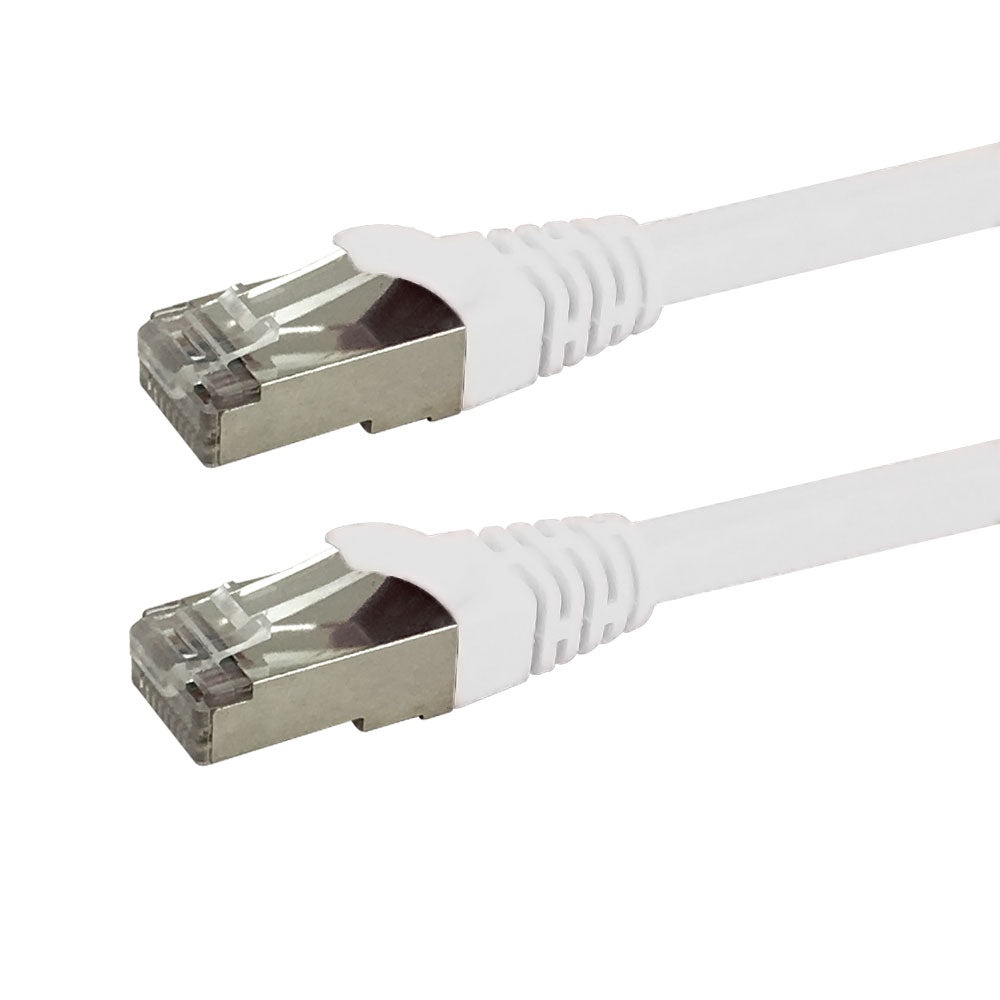

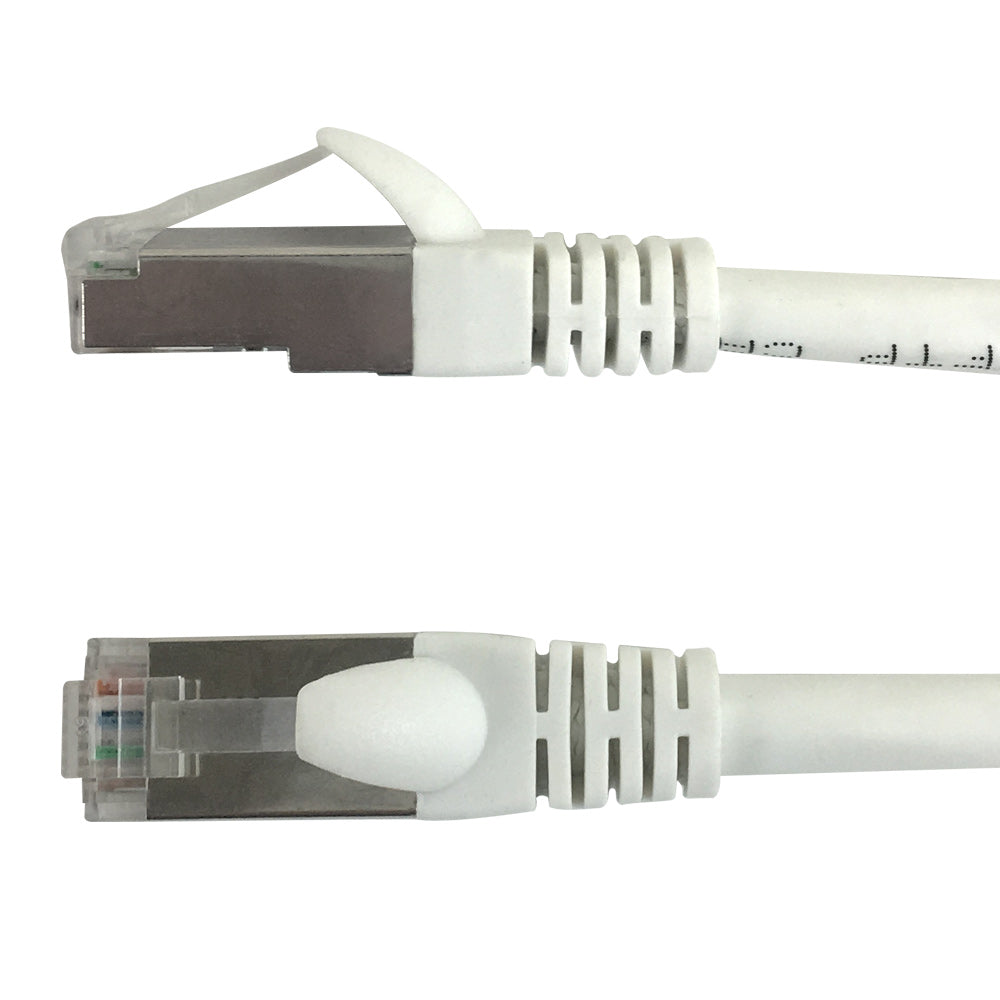

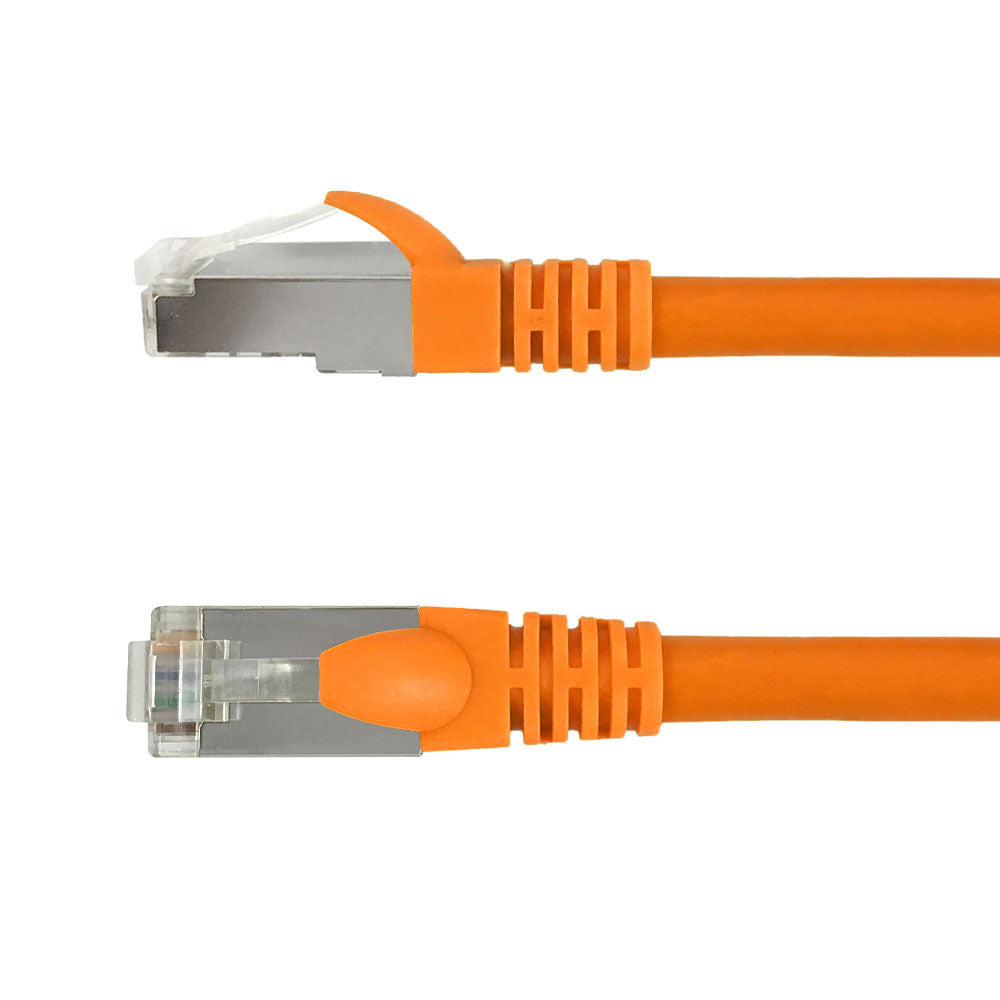

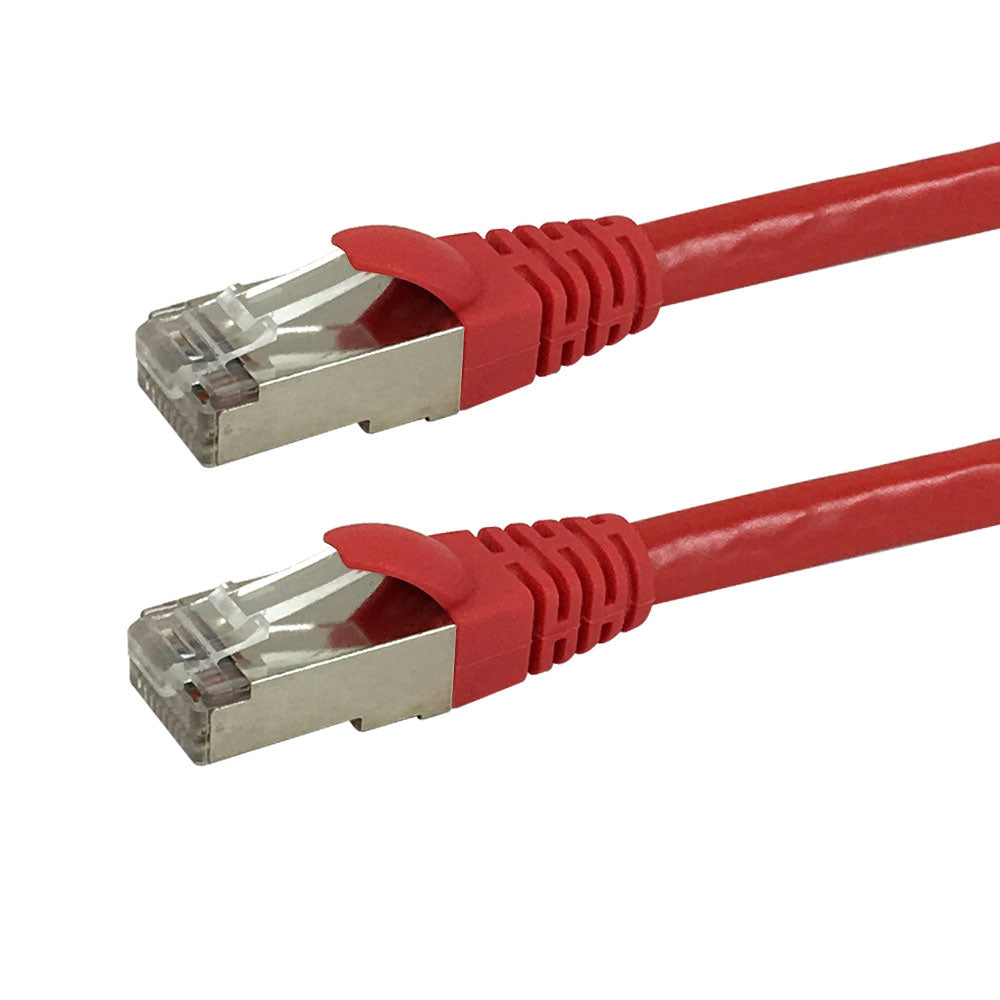

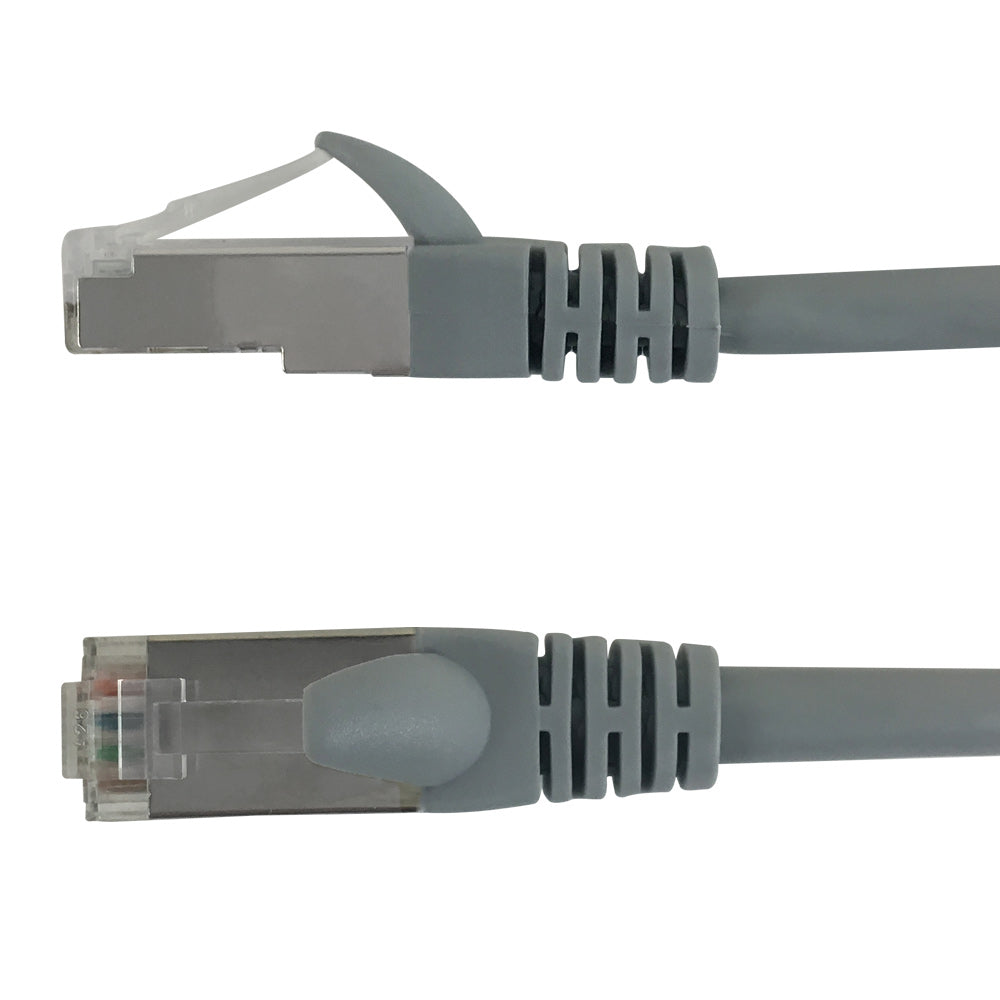

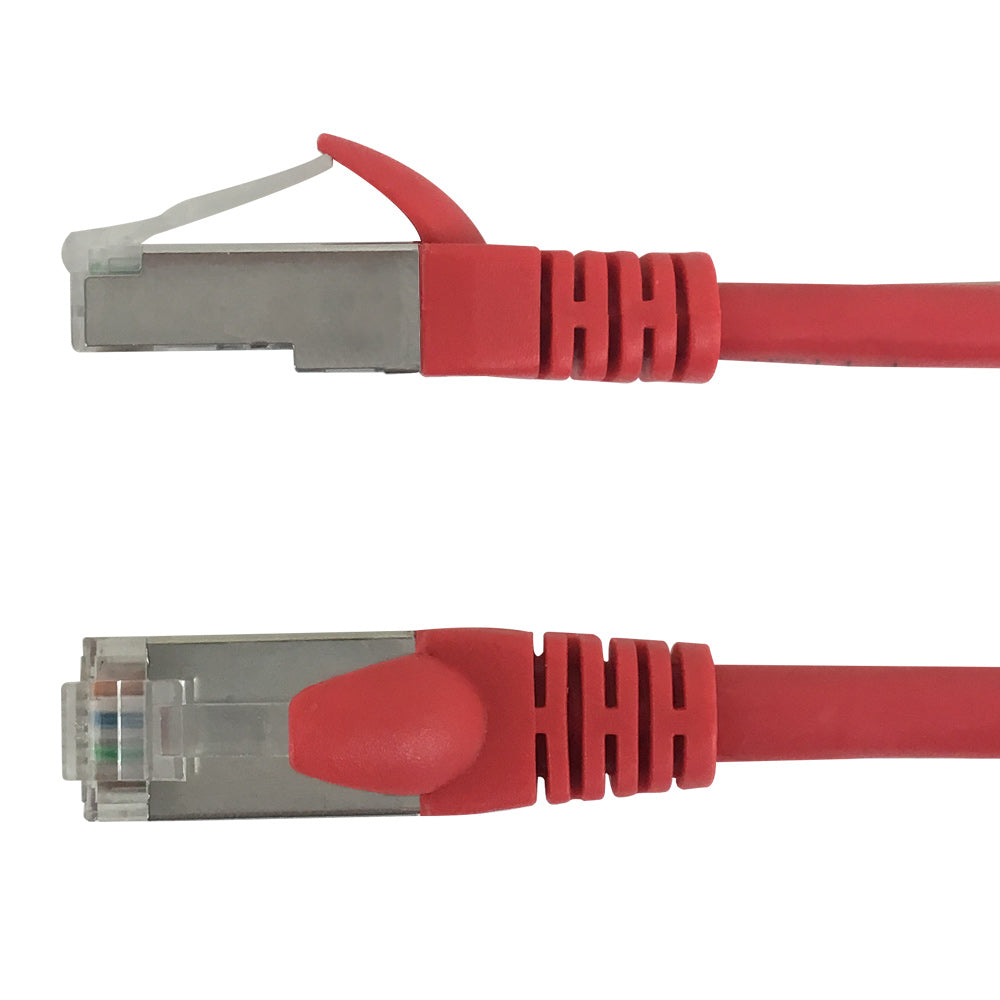

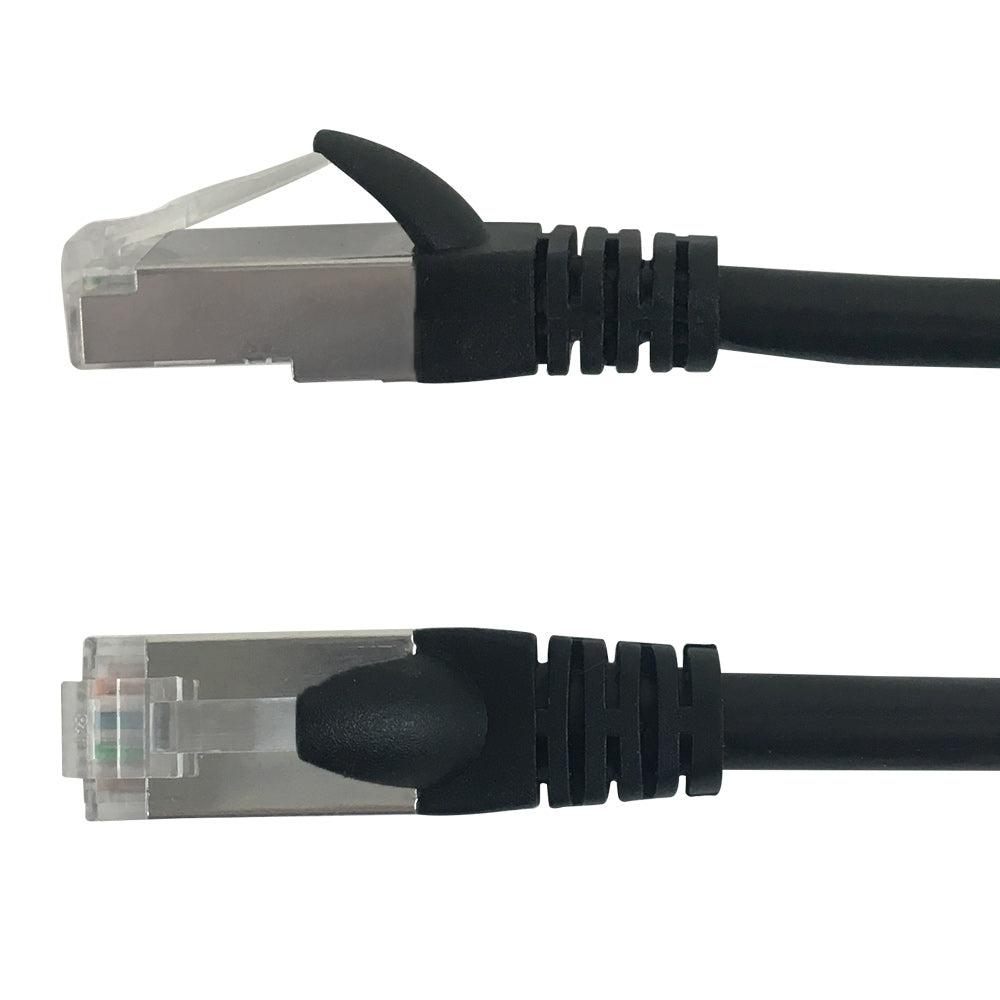

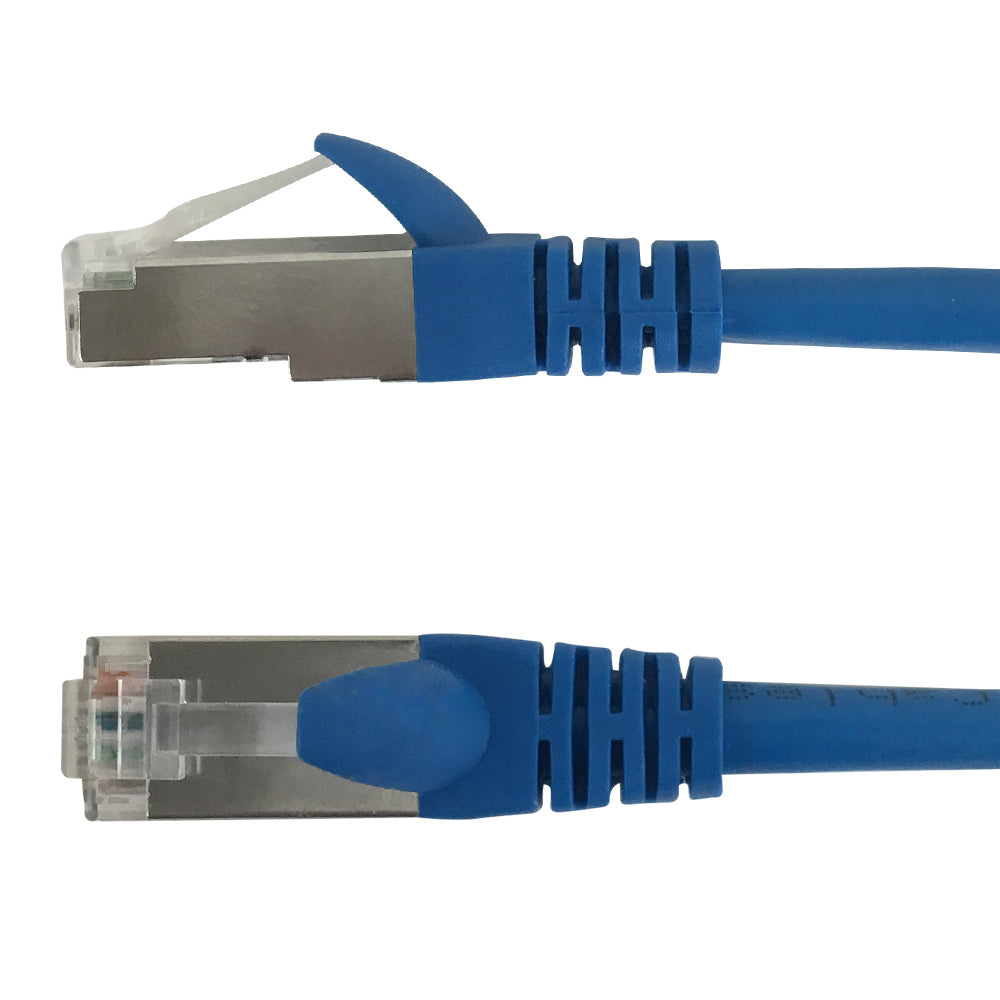

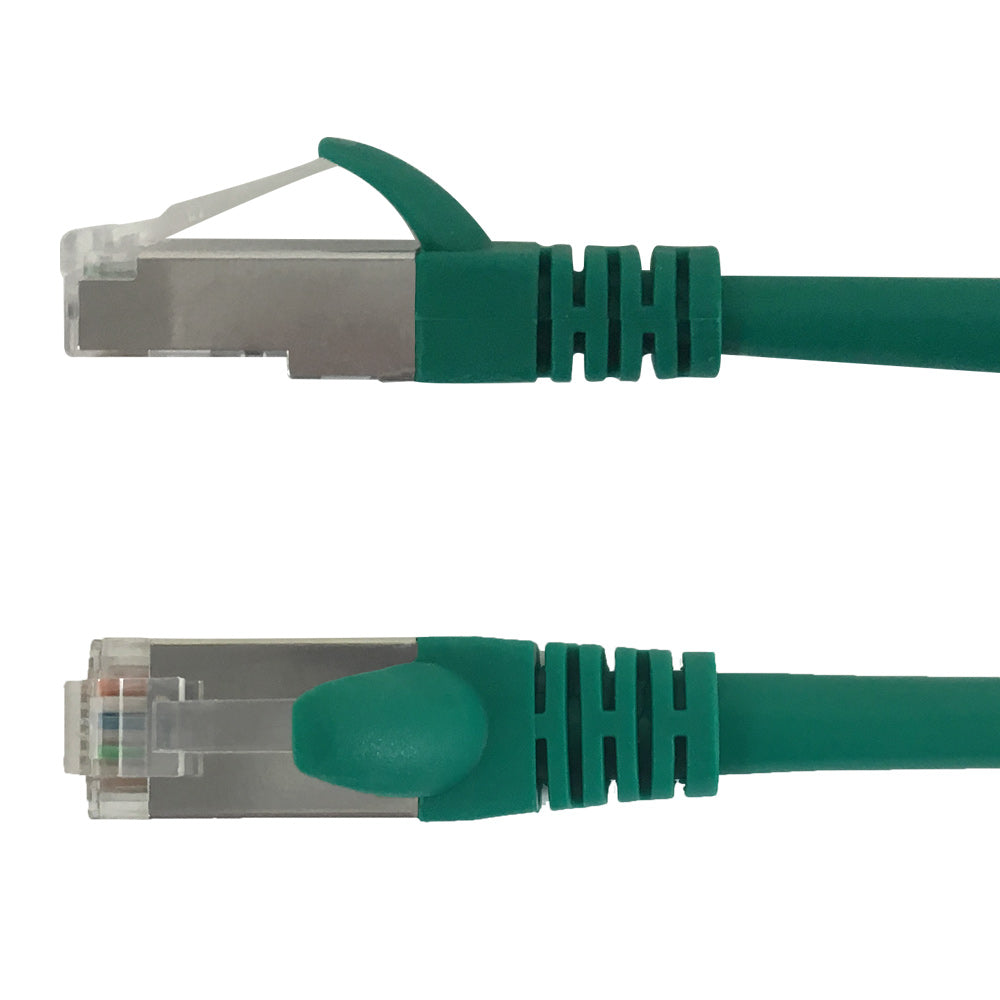

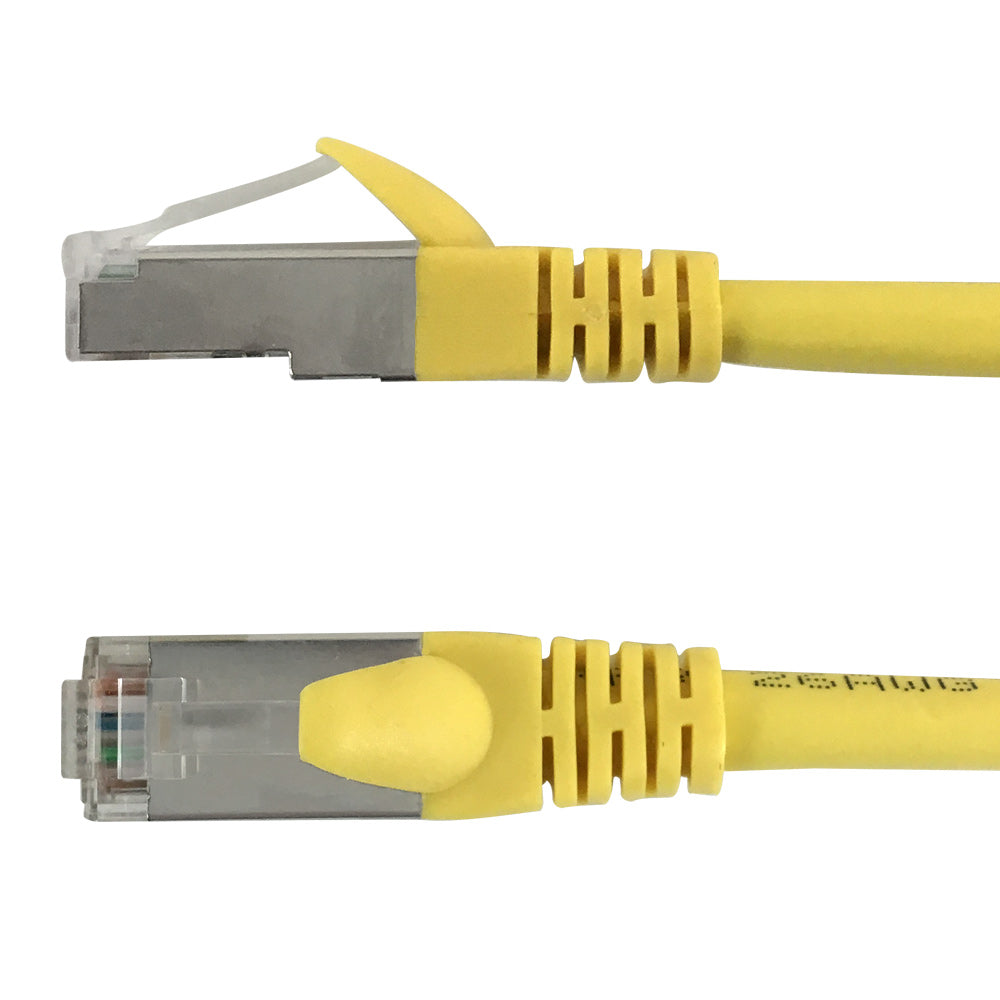

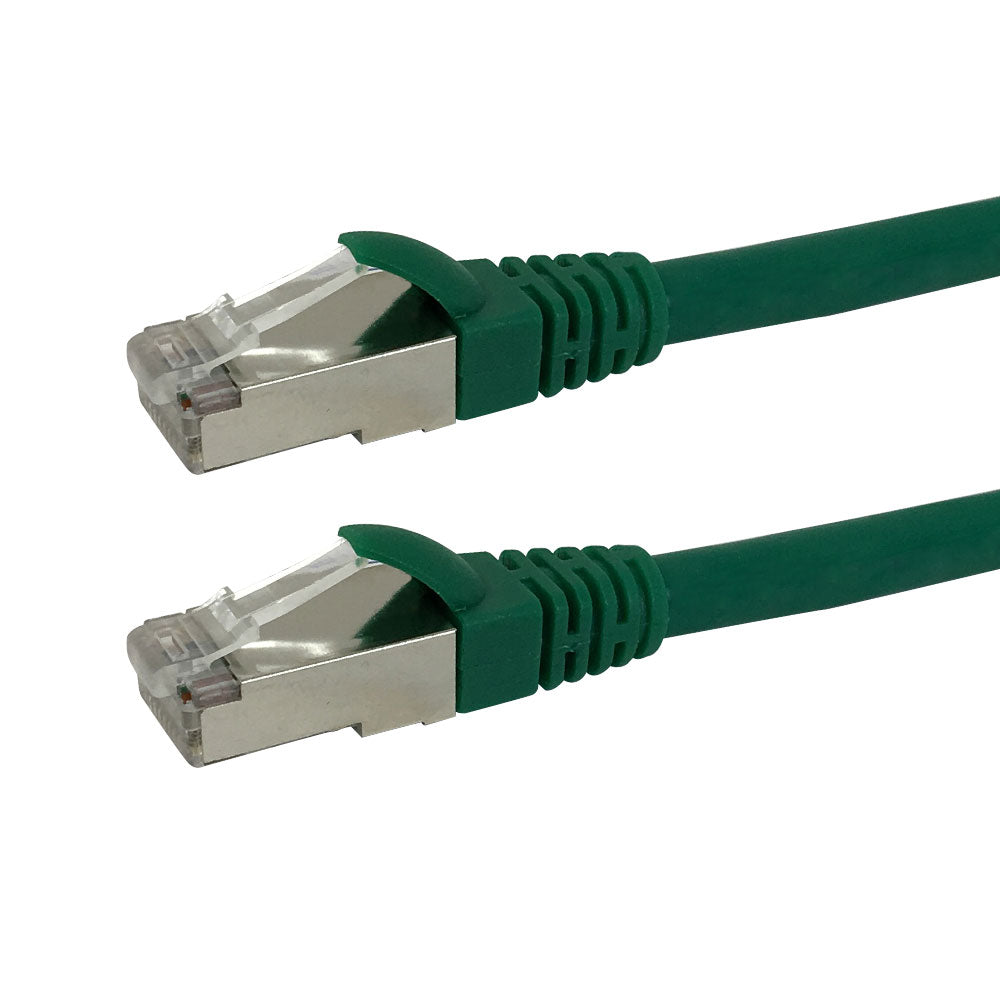

This Cat6a shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat6a patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Double ShieldedFoil shield on individual pairs plus overall braid is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6a patch cable test, and come w printed test report
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6mm |
| Wire Gauge | 26AWG Stranded |
| Shielding | SSTP - Foil shield on individual pairs plus overall braid |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Molding | Molded Tab Style Strain Relief |
| Jacket Type | PVC |
| Bend Radius | 24mm |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Speed | 10Gb |
| Approvals | |
| c(UL)us |
Yes - Cable |
| ISO/IEC 11801 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft | 65ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.30 lbs | 0.45 lbs | 0.60 lbs | 0.90 lbs | 1.15 lbs | 1.40 lbs | 1.75 lbs | 2.30 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT6AS-01BK | 1ft / Black | 0.07 lb |
| CAT6AS-02BK | 2ft / Black | 0.1 lb |
| CAT6AS-03BK | 3ft / Black | 0.15 lb |
| CAT6AS-05BK | 5ft / Black | 0.2 lb |
| CAT6AS-07BK | 7ft / Black | 0.24 lb |
| CAT6AS-10BK | 10ft / Black | 0.33 lb |
| CAT6AS-15BK | 15ft / Black | 0.5 lb |
| CAT6AS-25BK | 25ft / Black | 0.77 lb |
| CAT6AS-35BK | 35ft / Black | 1.1 lb |
| CAT6AS-50BK | 50ft / Black | 1.55 lb |
| CAT6AS-75BK | 75ft / Black | 2.26 lb |
| CAT6AS-100BK | 100ft / Black | 3.0 lb |
| CAT6AS-01BL | 1ft / Blue | 0.07 lb |
| CAT6AS-02BL | 2ft / Blue | 0.1 lb |
| CAT6AS-03BL | 3ft / Blue | 0.15 lb |
| CAT6AS-05BL | 5ft / Blue | 0.2 lb |
| CAT6AS-07BL | 7ft / Blue | 0.24 lb |
| CAT6AS-10BL | 10ft / Blue | 0.33 lb |
| CAT6AS-15BL | 15ft / Blue | 0.5 lb |
| CAT6AS-25BL | 25ft / Blue | 0.77 lb |
| CAT6AS-35BL | 35ft / Blue | 1.1 lb |
| CAT6AS-50BL | 50ft / Blue | 1.55 lb |
| CAT6AS-75BL | 75ft / Blue | 2.26 lb |
| CAT6AS-100BL | 100ft / Blue | 3.0 lb |
| CAT6AS-01GN | 1ft / Green | 0.07 lb |
| CAT6AS-02GN | 2ft / Green | 0.1 lb |
| CAT6AS-03GN | 3ft / Green | 0.15 lb |
| CAT6AS-05GN | 5ft / Green | 0.2 lb |
| CAT6AS-07GN | 7ft / Green | 0.24 lb |
| CAT6AS-10GN | 10ft / Green | 0.33 lb |
| CAT6AS-15GN | 15ft / Green | 0.5 lb |
| CAT6AS-25GN | 25ft / Green | 0.77 lb |
| CAT6AS-35GN | 35ft / Green | 1.1 lb |
| CAT6AS-50GN | 50ft / Green | 1.55 lb |
| CAT6AS-75GN | 75ft / Green | 2.26 lb |
| CAT6AS-100GN | 100ft / Green | 3.0 lb |
| CAT6AS-01GY | 1ft / Grey | 0.07 lb |
| CAT6AS-02GY | 2ft / Grey | 0.1 lb |
| CAT6AS-03GY | 3ft / Grey | 0.15 lb |
| CAT6AS-05GY | 5ft / Grey | 0.2 lb |
| CAT6AS-07GY | 7ft / Grey | 0.24 lb |
| CAT6AS-10GY | 10ft / Grey | 0.33 lb |
| CAT6AS-15GY | 15ft / Grey | 0.5 lb |
| CAT6AS-25GY | 25ft / Grey | 0.77 lb |
| CAT6AS-35GY | 35ft / Grey | 1.1 lb |
| CAT6AS-50GY | 50ft / Grey | 1.55 lb |
| CAT6AS-75GY | 75ft / Grey | 2.26 lb |
| CAT6AS-100GY | 100ft / Grey | 3.0 lb |
| CAT6AS-01RD | 1ft / Red | 0.07 lb |
| CAT6AS-02RD | 2ft / Red | 0.1 lb |
| CAT6AS-03RD | 3ft / Red | 0.15 lb |
| CAT6AS-05RD | 5ft / Red | 0.2 lb |
| CAT6AS-07RD | 7ft / Red | 0.24 lb |
| CAT6AS-10RD | 10ft / Red | 0.33 lb |
| CAT6AS-15RD | 15ft / Red | 0.5 lb |
| CAT6AS-25RD | 25ft / Red | 0.77 lb |
| CAT6AS-35RD | 35ft / Red | 1.1 lb |
| CAT6AS-50RD | 50ft / Red | 1.55 lb |
| CAT6AS-75RD | 75ft / Red | 2.26 lb |
| CAT6AS-100RD | 100ft / Red | 3.0 lb |
| CAT6AS-01WH | 1ft / White | 0.07 lb |
| CAT6AS-02WH | 2ft / White | 0.1 lb |
| CAT6AS-03WH | 3ft / White | 0.15 lb |
| CAT6AS-05WH | 5ft / White | 0.2 lb |
| CAT6AS-07WH | 7ft / White | 0.24 lb |
| CAT6AS-10WH | 10ft / White | 0.33 lb |
| CAT6AS-15WH | 15ft / White | 0.5 lb |
| CAT6AS-25WH | 25ft / White | 0.77 lb |
| CAT6AS-35WH | 35ft / White | 1.1 lb |
| CAT6AS-50WH | 50ft / White | 1.55 lb |
| CAT6AS-75WH | 75ft / White | 2.26 lb |
| CAT6AS-65BK | 65ft / Black | 1.4 lb |
| CAT6AS-100WH | 100ft / White | 3.0 lb |
| CAT6AS-65BL | 65ft / Blue | 1.4 lb |
| CAT6AS-01YL | 1ft / Yellow | 0.07 lb |
| CAT6AS-65GN | 65ft / Green | 1.4 lb |
| CAT6AS-02YL | 2ft / Yellow | 0.1 lb |
| CAT6AS-65GY | 65ft / Grey | 1.4 lb |
| CAT6AS-03YL | 3ft / Yellow | 0.15 lb |
| CAT6AS-65RD | 65ft / Red | 1.4 lb |
| CAT6AS-05YL | 5ft / Yellow | 0.2 lb |
| CAT6AS-65WH | 65ft / White | 1.4 lb |
| CAT6AS-07YL | 7ft / Yellow | 0.24 lb |
| CAT6AS-65YL | 65ft / Yellow | 1.4 lb |
| CAT6AS-10YL | 10ft / Yellow | 0.33 lb |
| CAT6AS-15YL | 15ft / Yellow | 0.5 lb |
| CAT6AS-25YL | 25ft / Yellow | 0.77 lb |
| CAT6AS-35YL | 35ft / Yellow | 1.1 lb |
| CAT6AS-50YL | 50ft / Yellow | 1.55 lb |
| CAT6AS-75YL | 75ft / Yellow | 2.26 lb |
| CAT6AS-100YL | 100ft / Yellow | 3.0 lb |
