Description
Overview

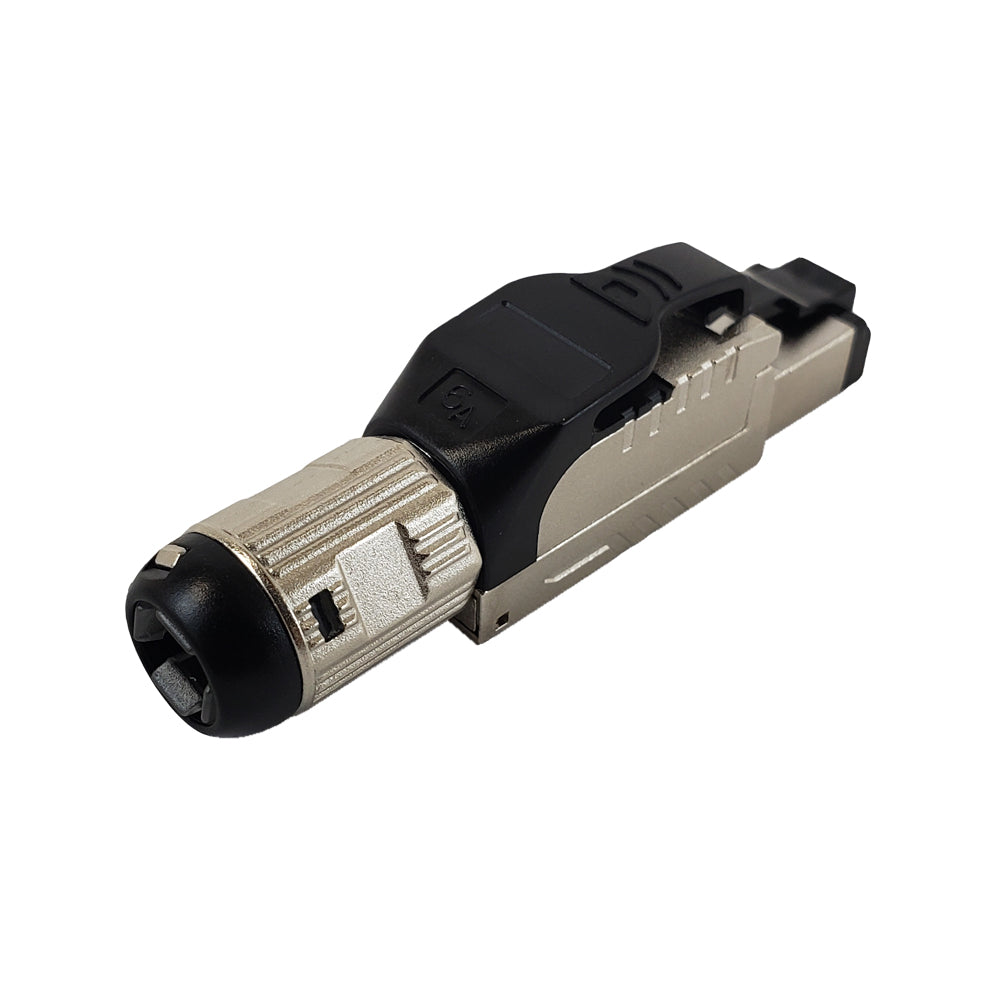

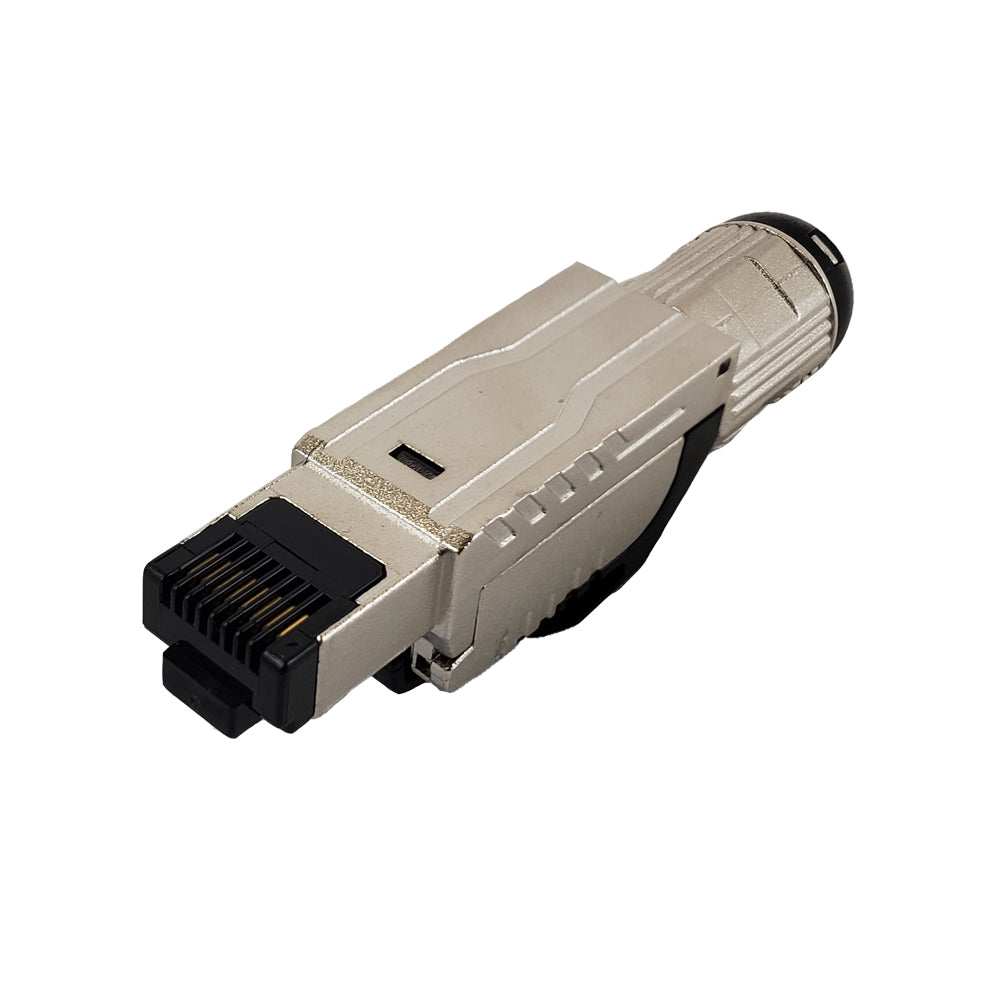

This modular IP20 rated field termination RJ45 Cat6a connector is an 8position, 8 conductor plug. It is designed to terminate Cat6a cables (23AWG to 26AWG) with OD 6.0 to 7.5mm quickly and easily on-site.
 |
Quick and Easy On-Site TerminationThis tool-less plug with Cat8 cable can be done quickly and easily without frustration. Robust Strain ReliefDurable strain relief relives any stress on the cable. Solid or Stranded CableThis plug can be used with solid or stranded cables with wire gauges 23 to 26 AWG.
|
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Nickel | |
| Material | Polycarbonate | |
| Contacts | Gold | |
| Shielded | Yes | |
| Cable Type | Cat8 | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| IP Rating | IP 20 - (Anti Dust) | |
| Connector(s) | ||
| RJ45 Cat8 (8P8C) | Male, 23 - 26 AWG Solid or Stranded Cable | |
| Environmental | ||
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 - Plug 1 - SR Boot 1 - RJ45 Cover 1 - Copper Foil Tape |
|
| Product Weight | 0.06 lbs | |
Video
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-FT-C6AS-BK | 0.06 lb |
