Description

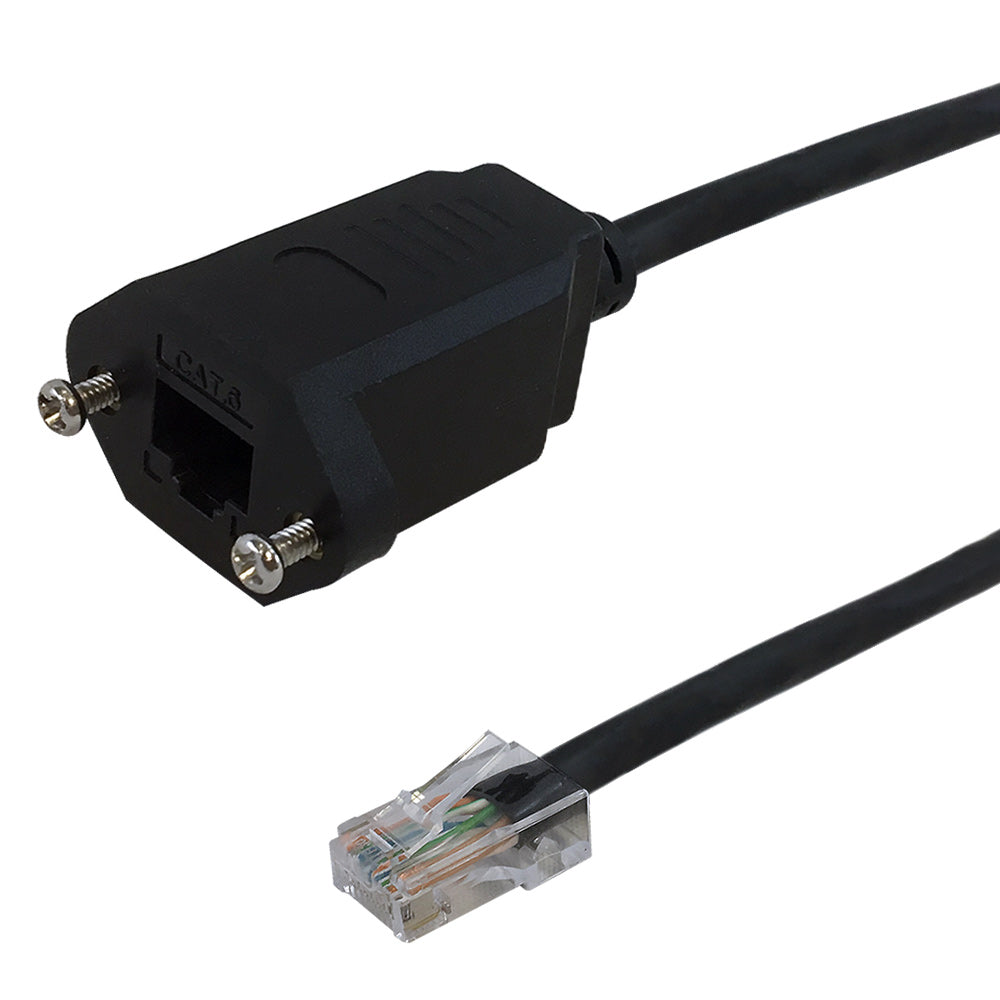

This Cat6 Ethernet cable consists of a RJ45 male on one end and a RJ45 female on the other. It is typically used to extend an Ethernet networking cable. The female end has panel mount ears in the instance that the cable needs to be secured to a wall plate or panel. It can be mounted in one of our DB9 size cut-out such as on one of our stainless steel wall plates. (This item may not fit a standard DB9 size cut-out, it is designed to fit our DB9 size opening)
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Female Panel Mount |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us |
Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 7ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.09 lbs | 0.17 lbs | 0.33 lbs | 0.65 lbs | 1.05 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT6MFP-01BK | 1ft | 0.07 lb |
| CAT6MFP-03BK | 3ft | 0.15 lb |
| CAT6MFP-07BK | 7ft | 0.24 lb |
| CAT6MFP-15BK | 15ft | 0.5 lb |
| CAT6MFP-25BK | 25ft | 0.77 lb |
