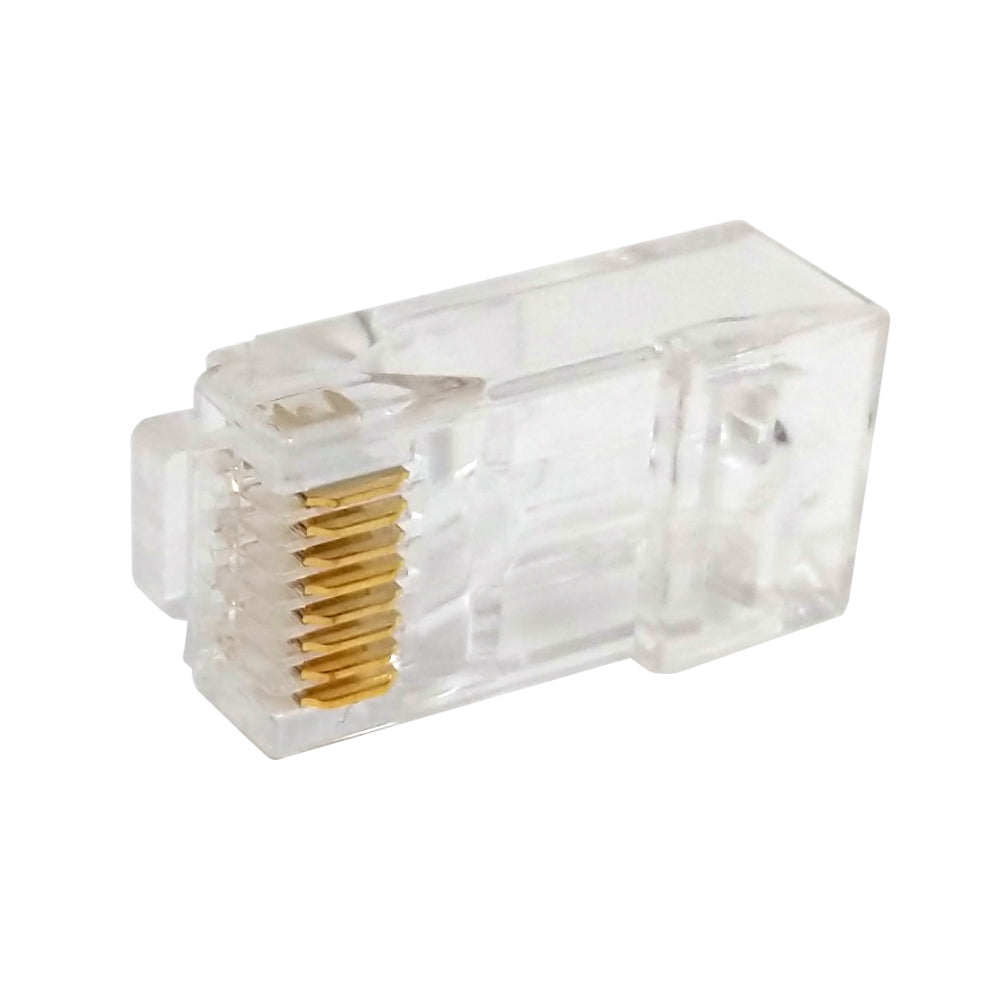

This modular RJ45 staggered Cat6 connector is a pass through style, 8 position, 8 conductor plug. It's typically terminated on 4 pair solid or stranded round Cat6 cable. It's pass through style design makes the wire insertion process simple and quick.
NOTE: Not recommended for POE applications. Please use any of our standard RJ45 connectors when installing into POE switches and devices.
Easy to Use
This connector has an open end at the front which allows cable wires to be easily fed through. This allows you to arrange the wires easily and visually confirm that the wiring is correct before crimping.
Wire twists can be better maintained since the plug can be seated tightly close to the cable jacket. This ensures optimal cable performance.
|Housing Material||Polycarbonate UL 94V-2|
|Contact Plating||50 micron Gold plating|
|Contact Type||3 prong|
|Cable Type||Round, UTP|
|Number of Contacts||8|
|Number of Positions||8|
|Connector||RJ45 Male (8P8C)|
|Conductor Type||Solid or Stranded Cable|
|Conductor Opening Diameter||1.2mm|
|Wire Gauge Accepted||23AWG to 26AWG (With a Conductor Insulation < 1.2mm)|
|Product Weight||0.16 lbs [0.07 kg]|
|Included in Package||1 - Pack of 50 Connectors|
