Description
Overview

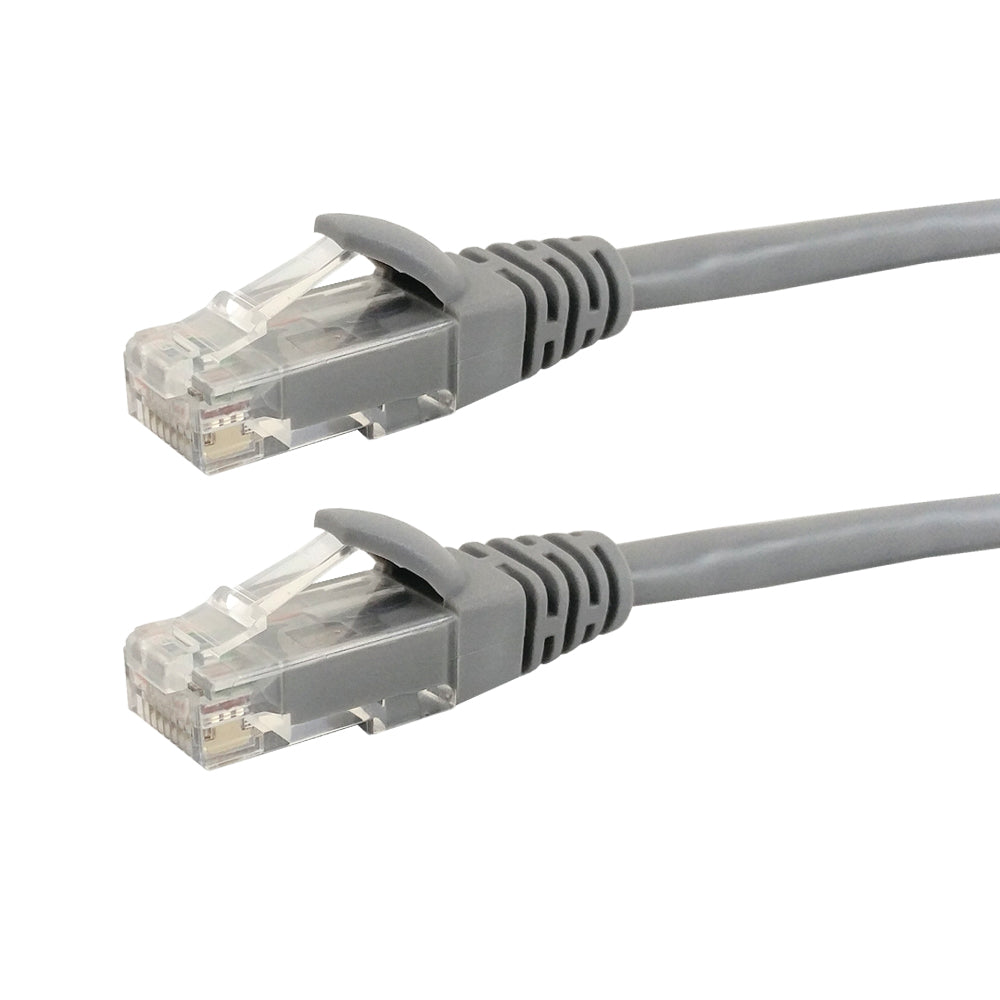

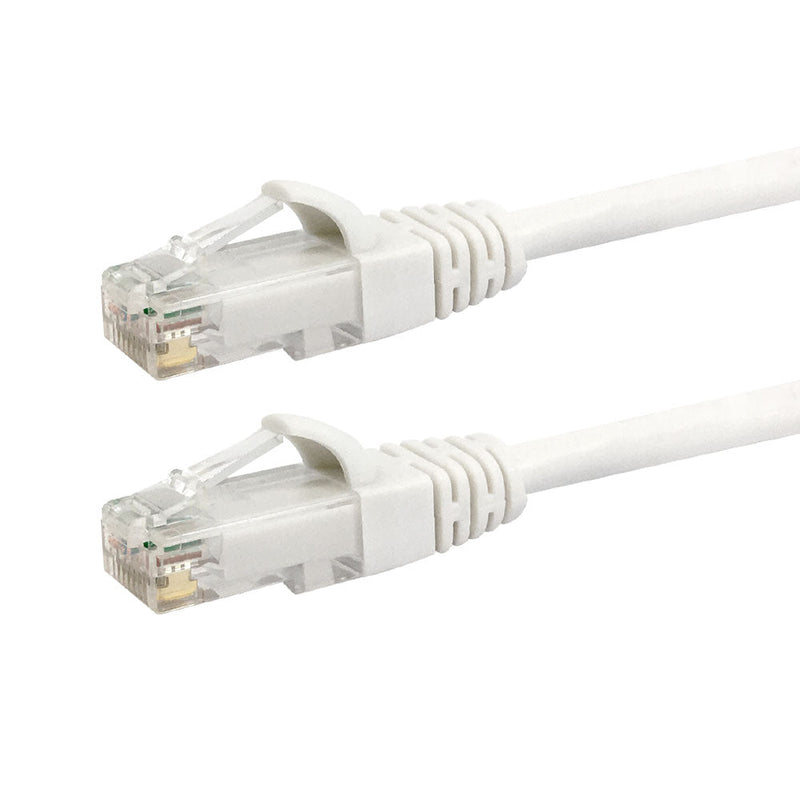

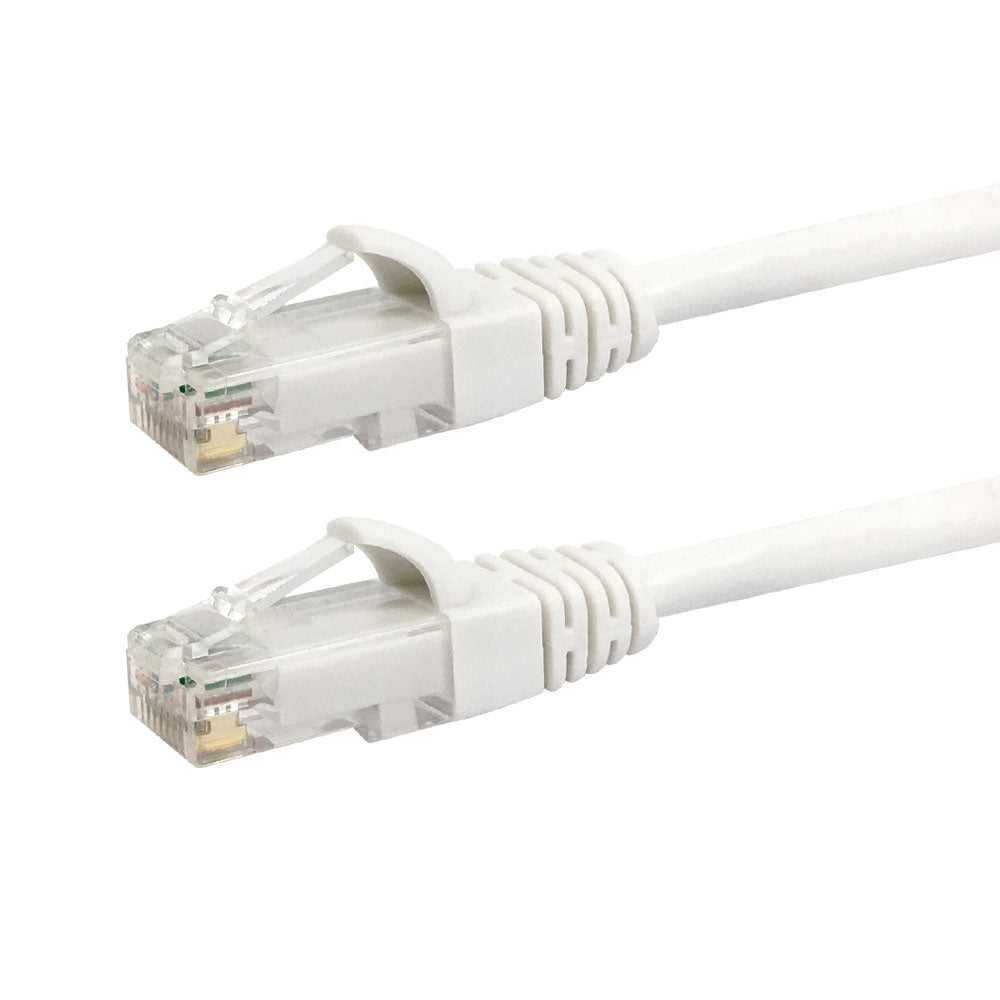

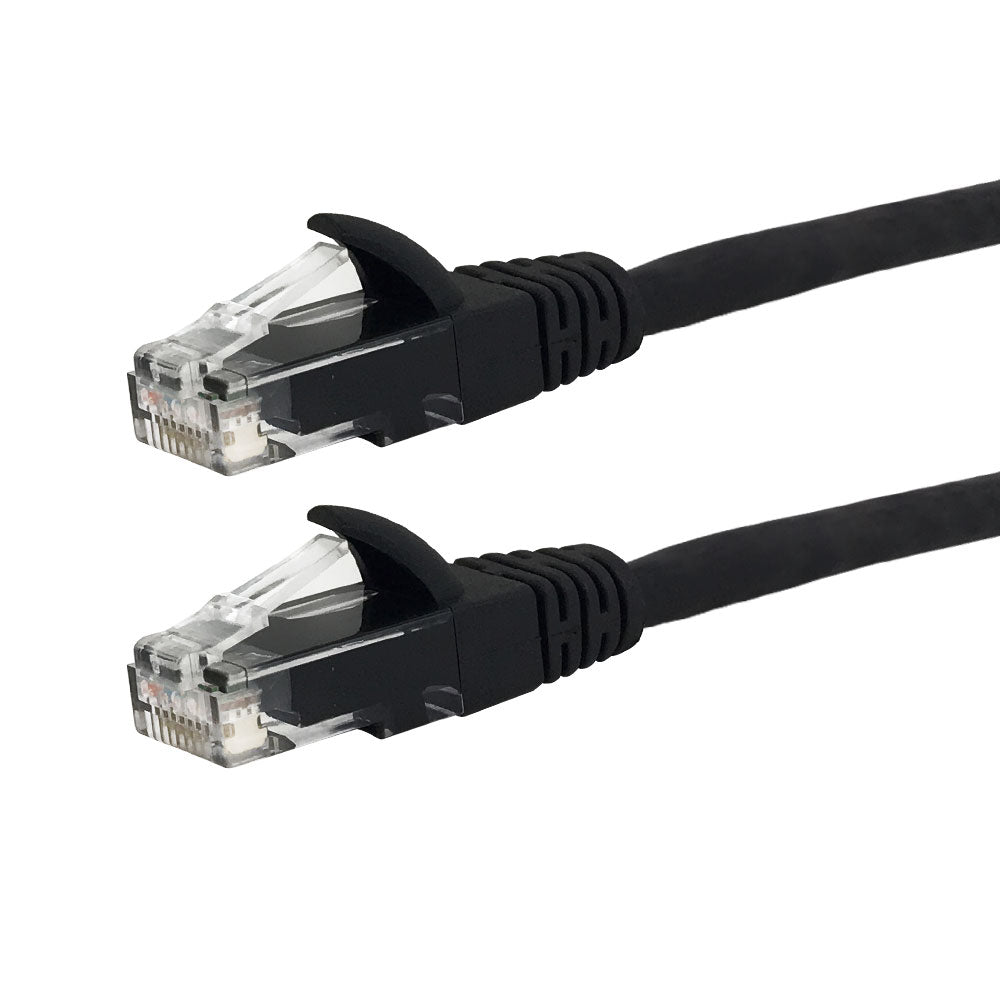

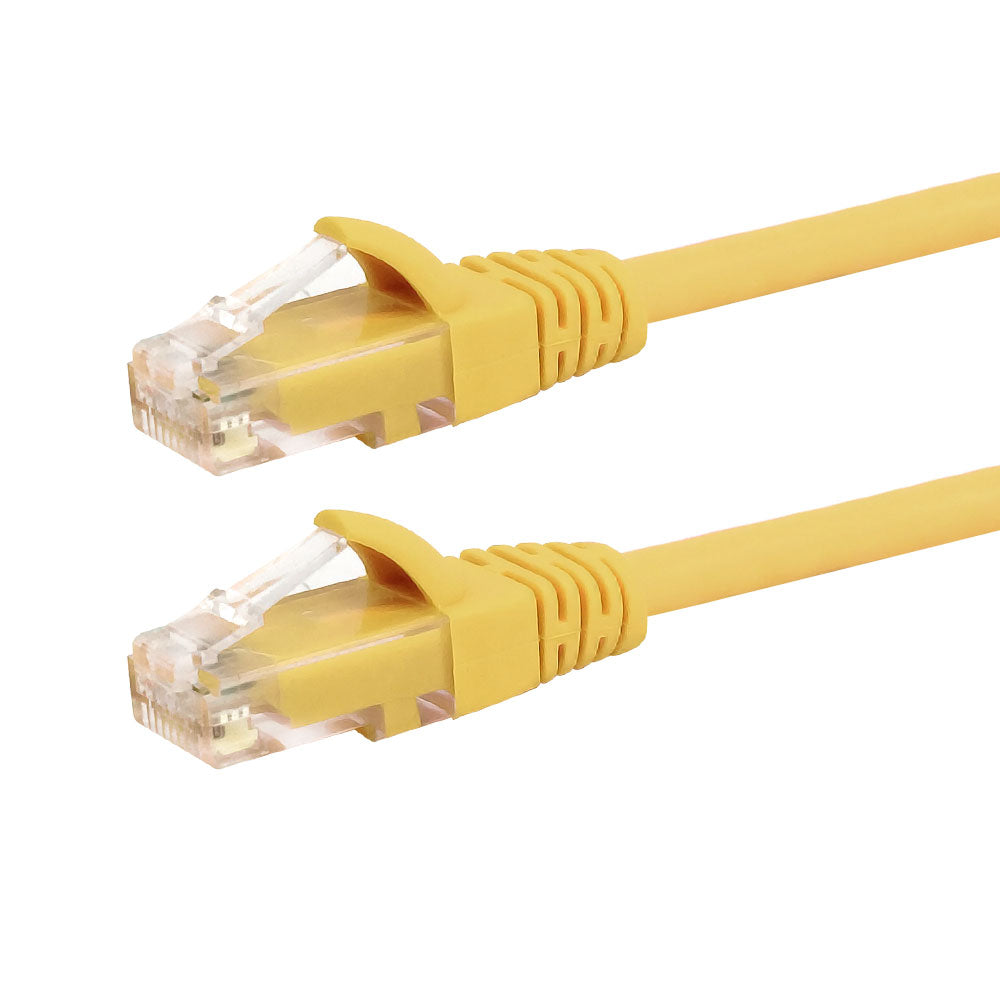

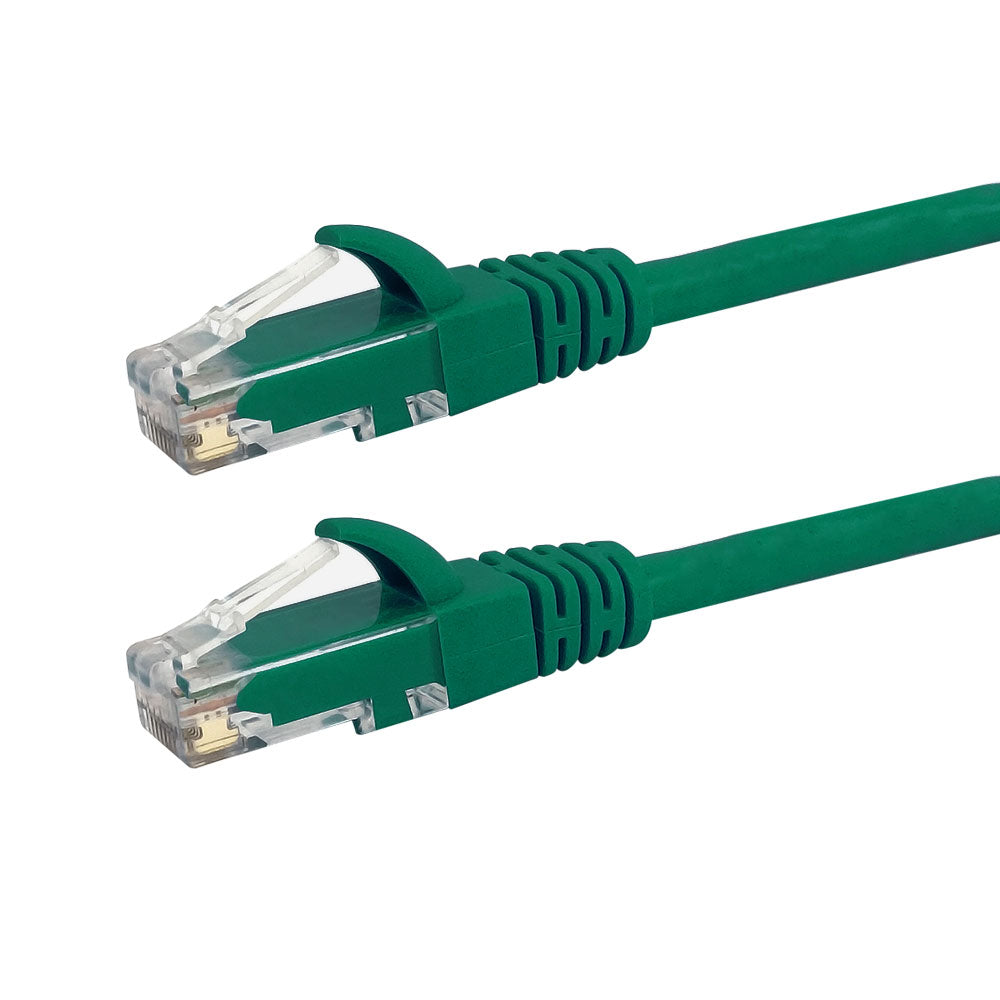

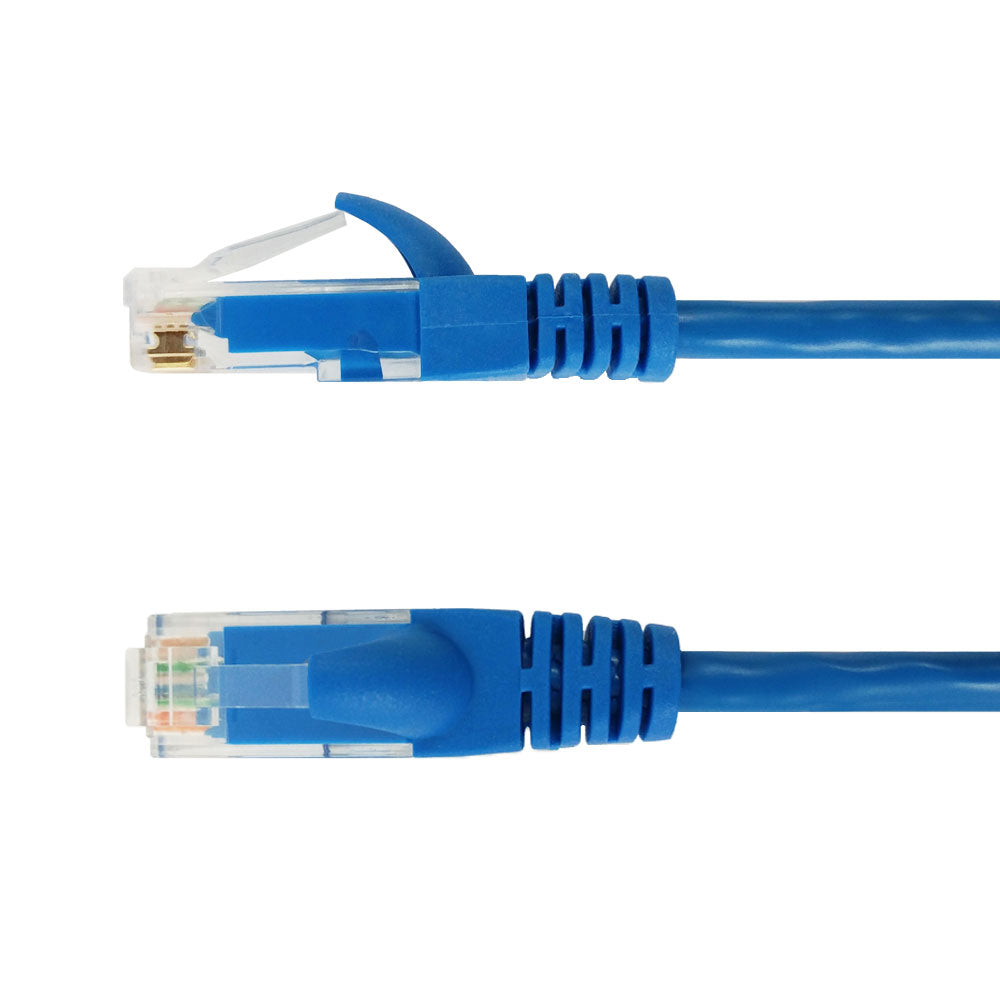

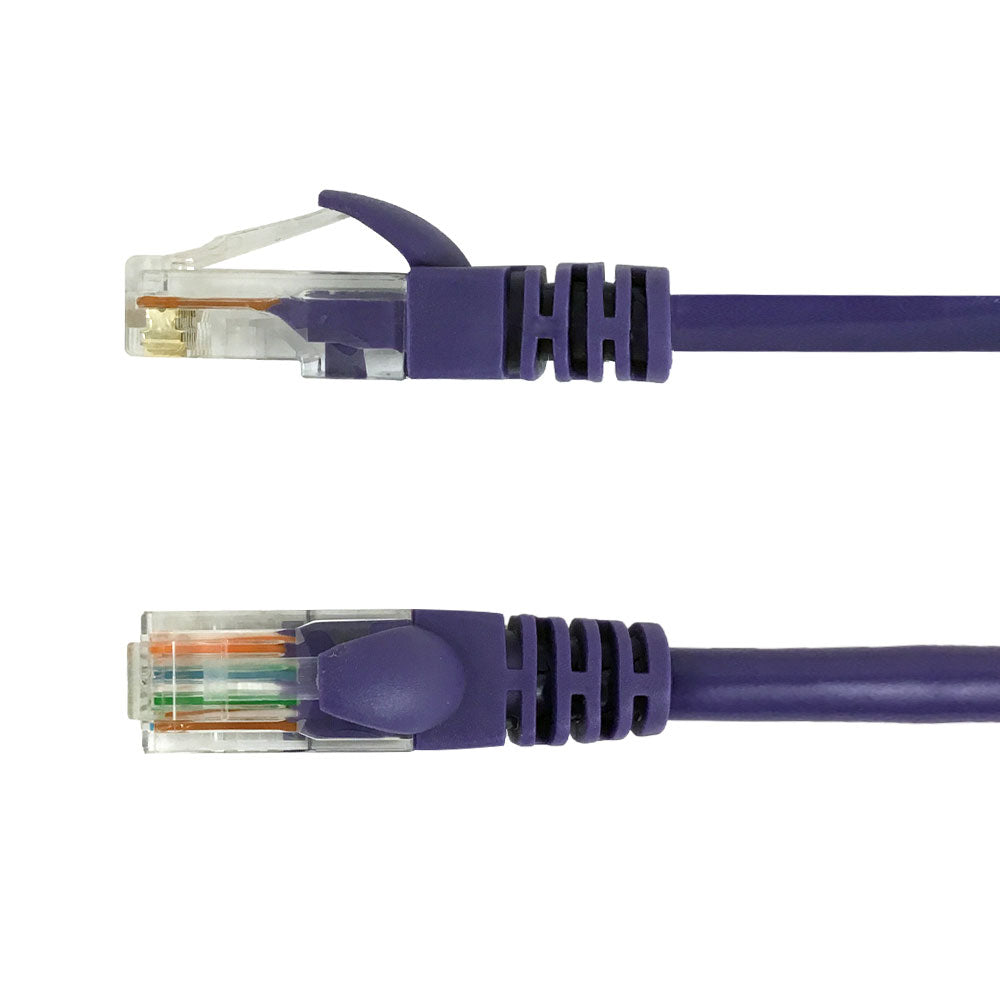

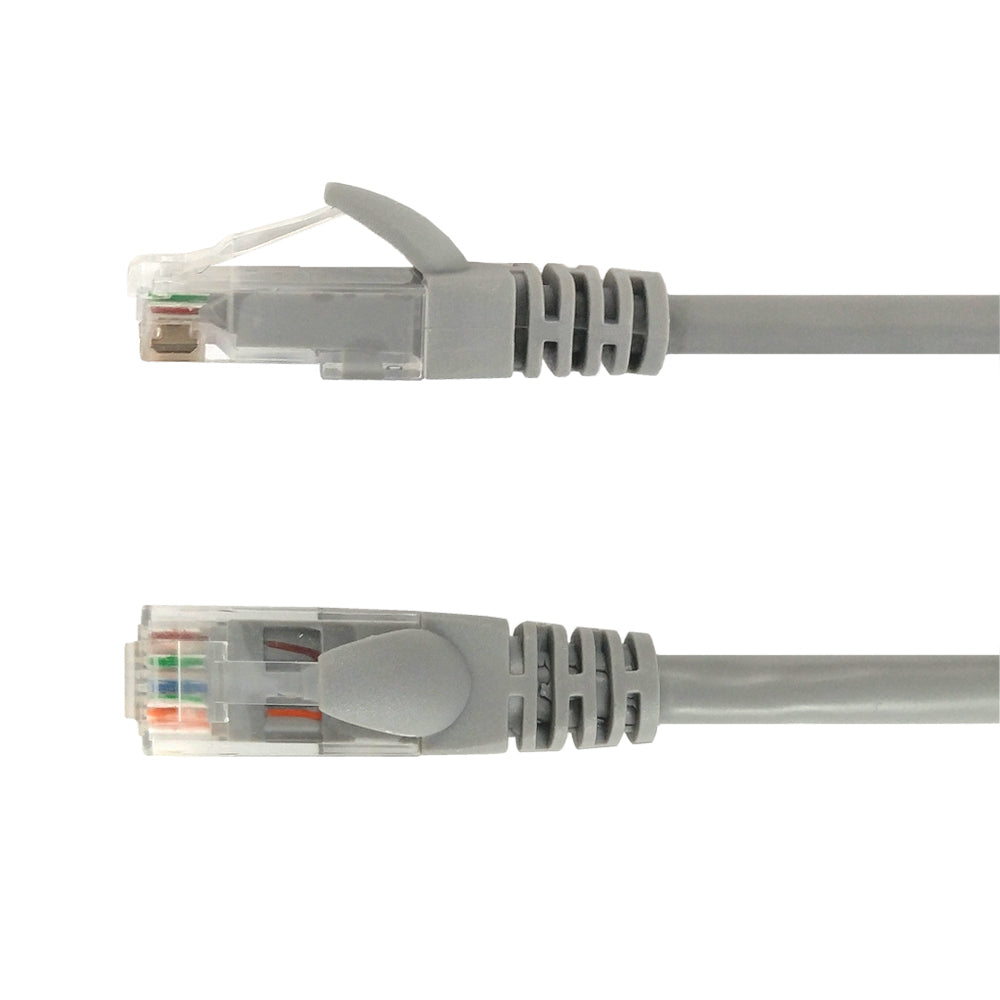

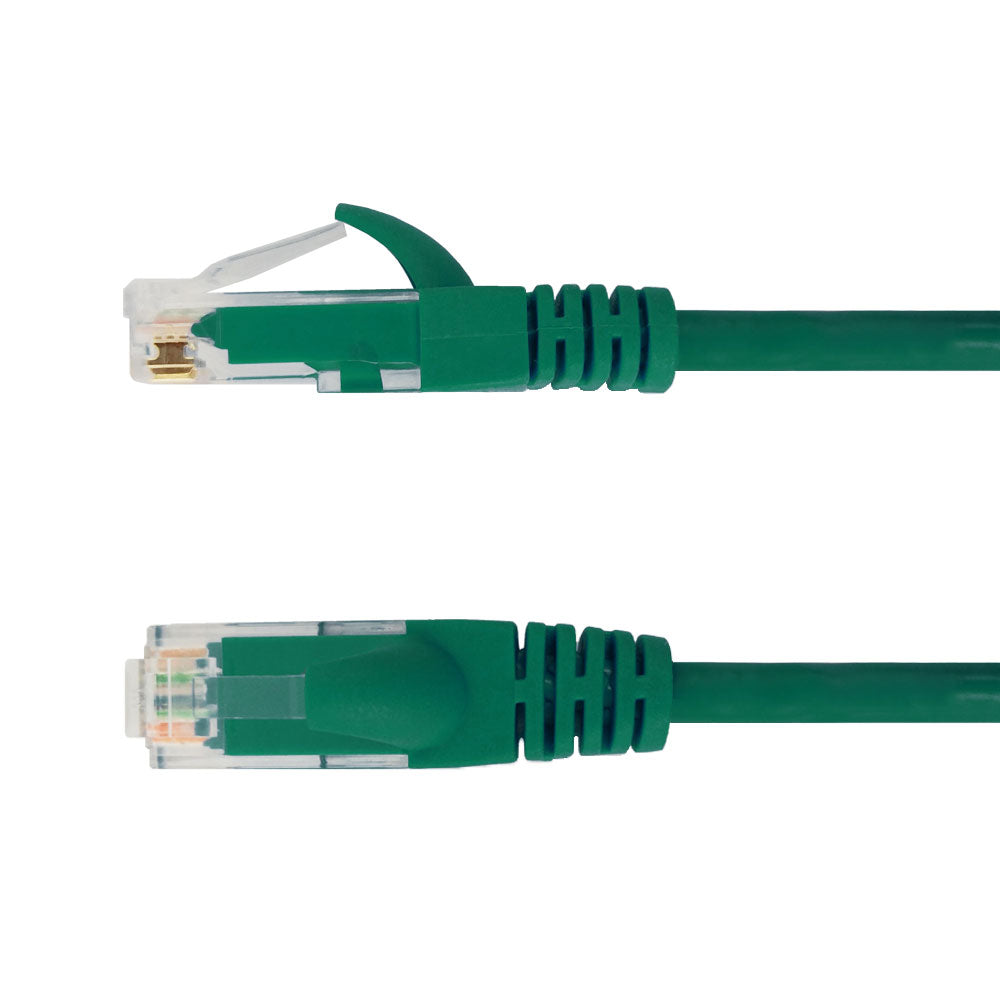

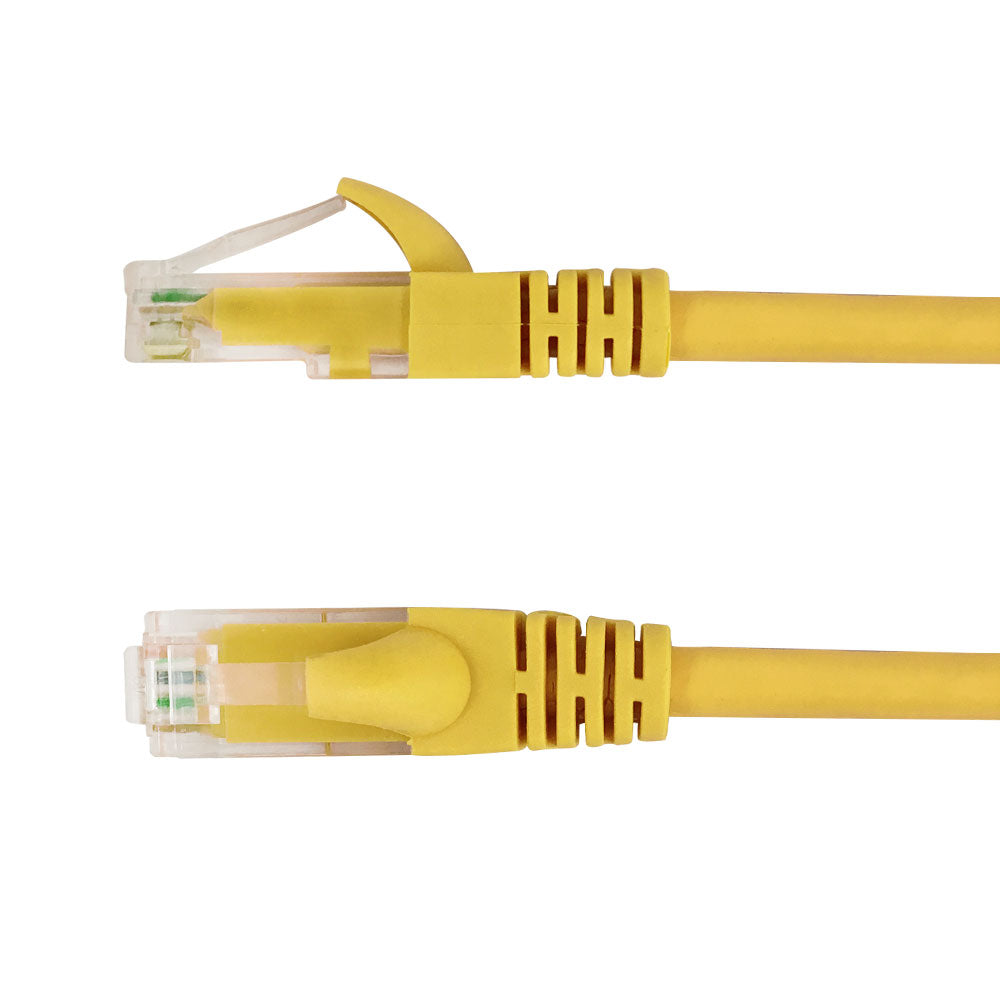

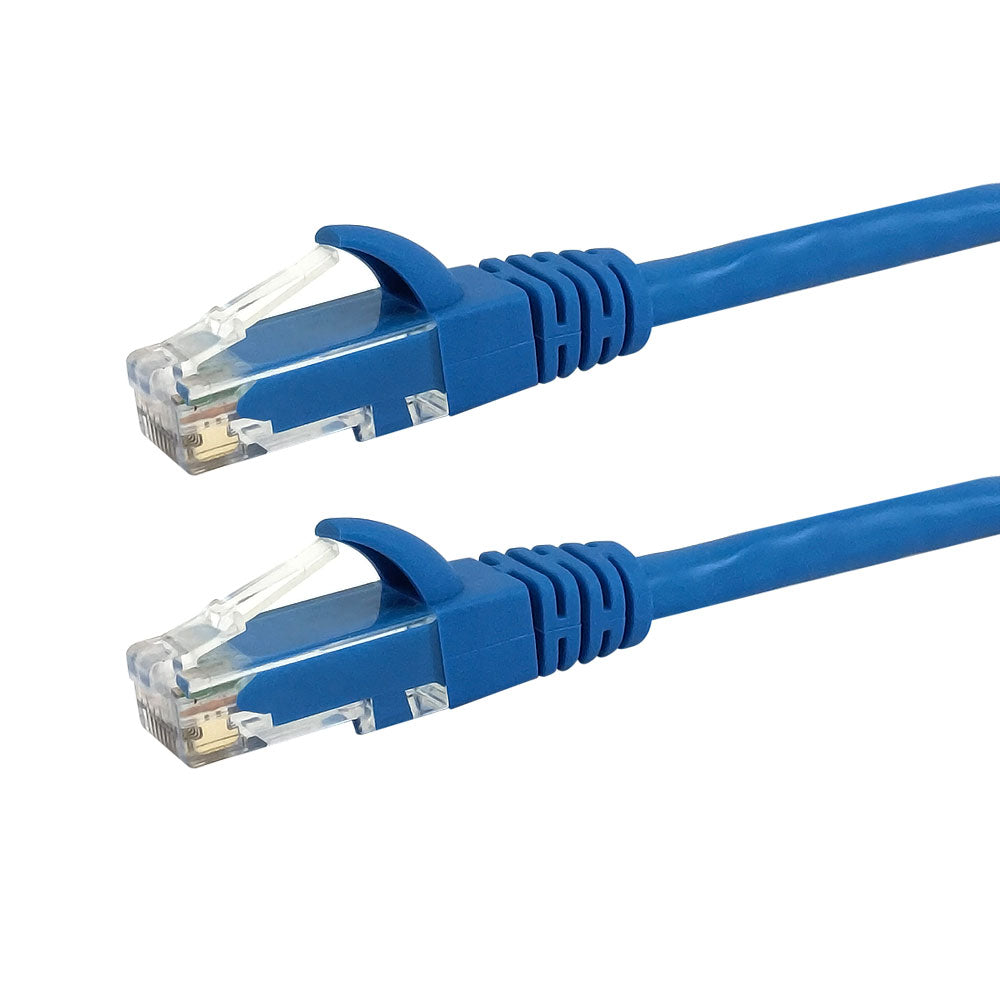

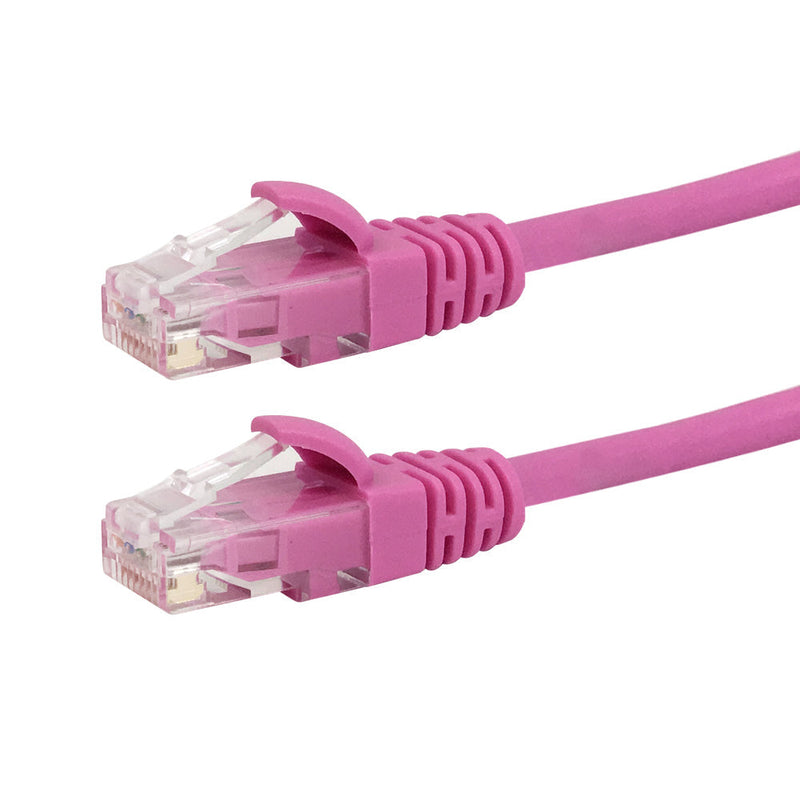

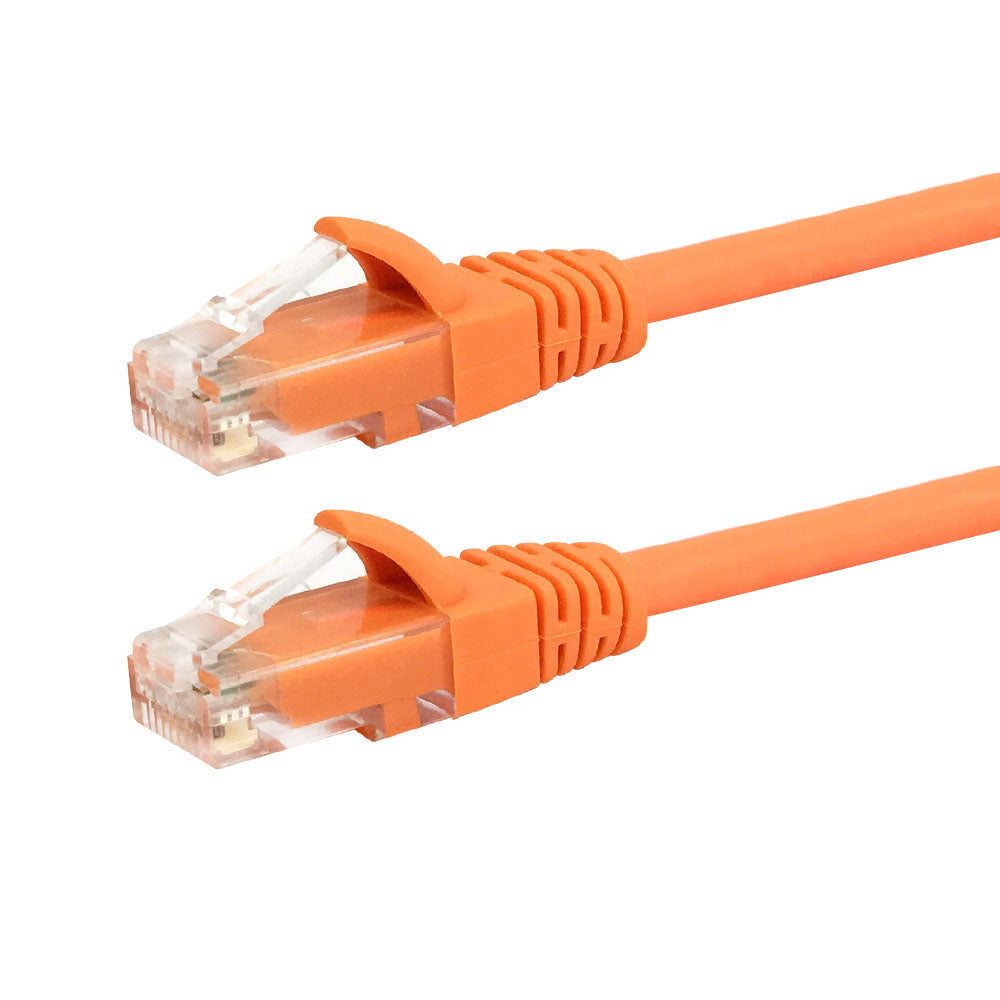

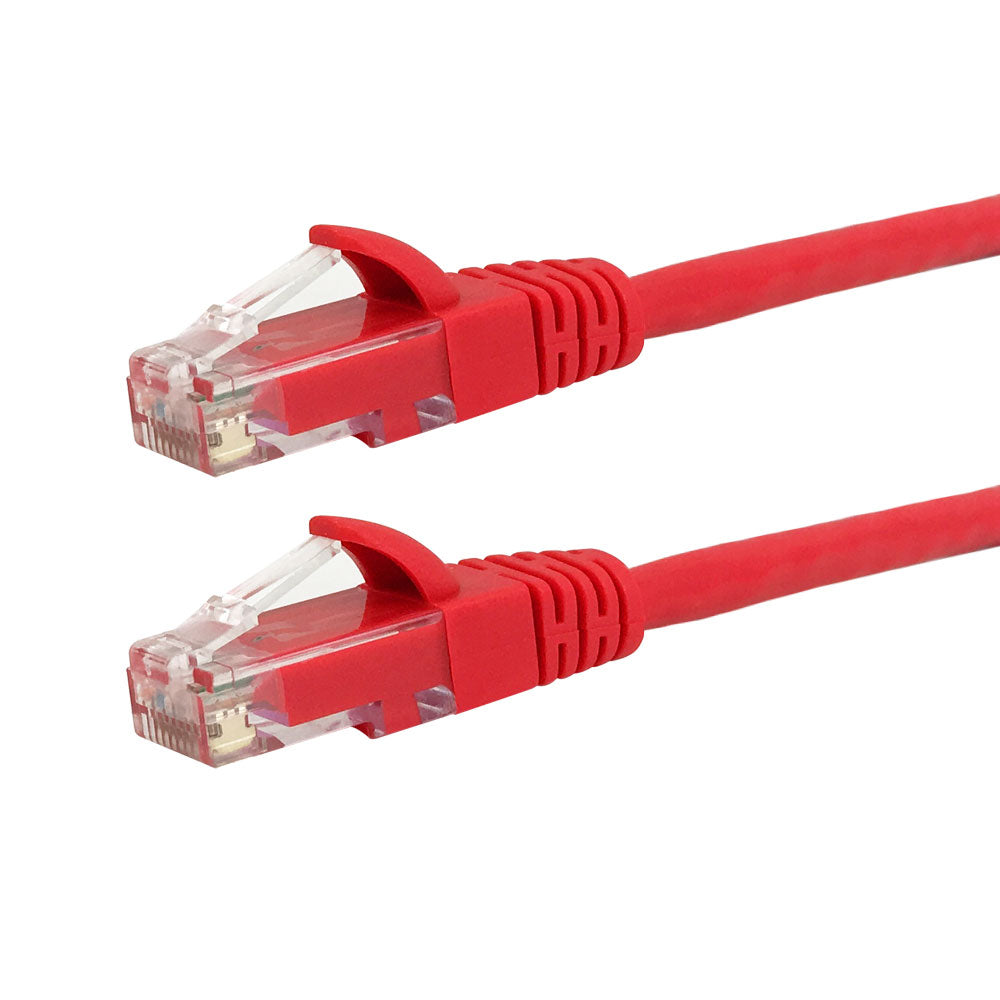

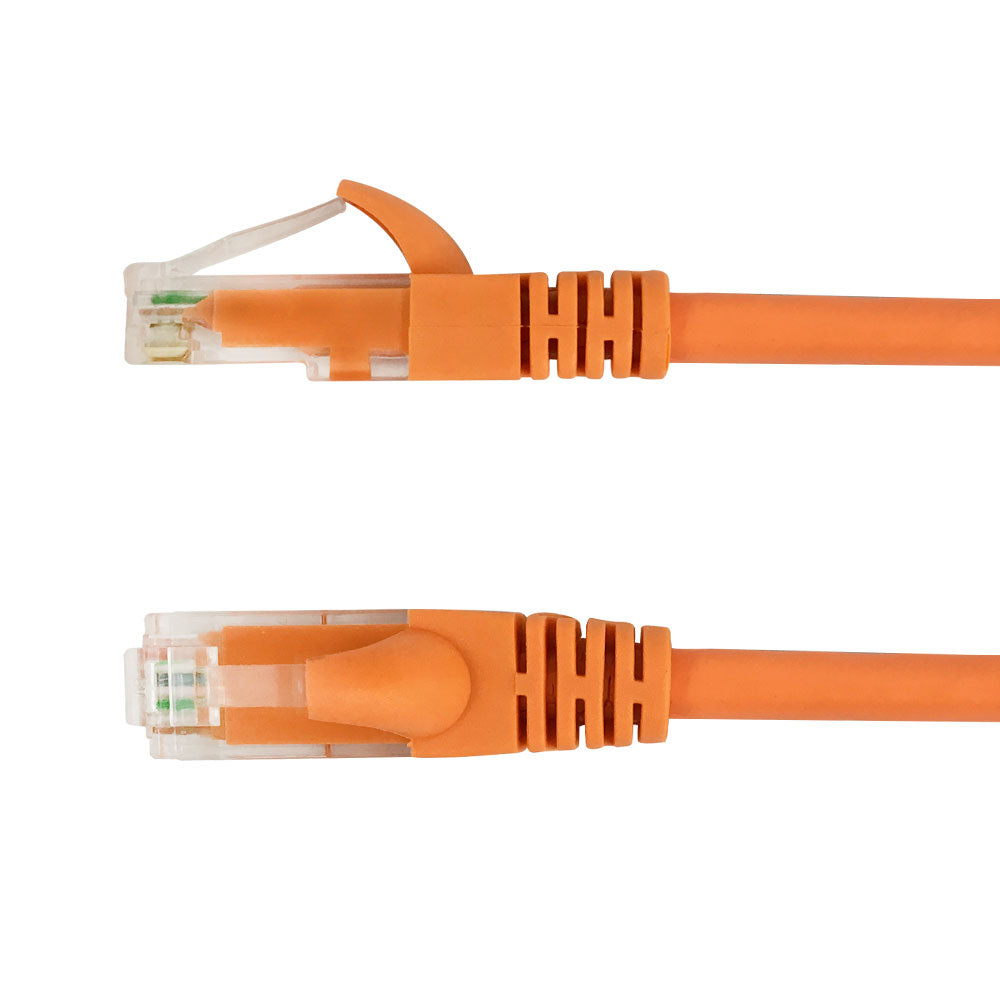

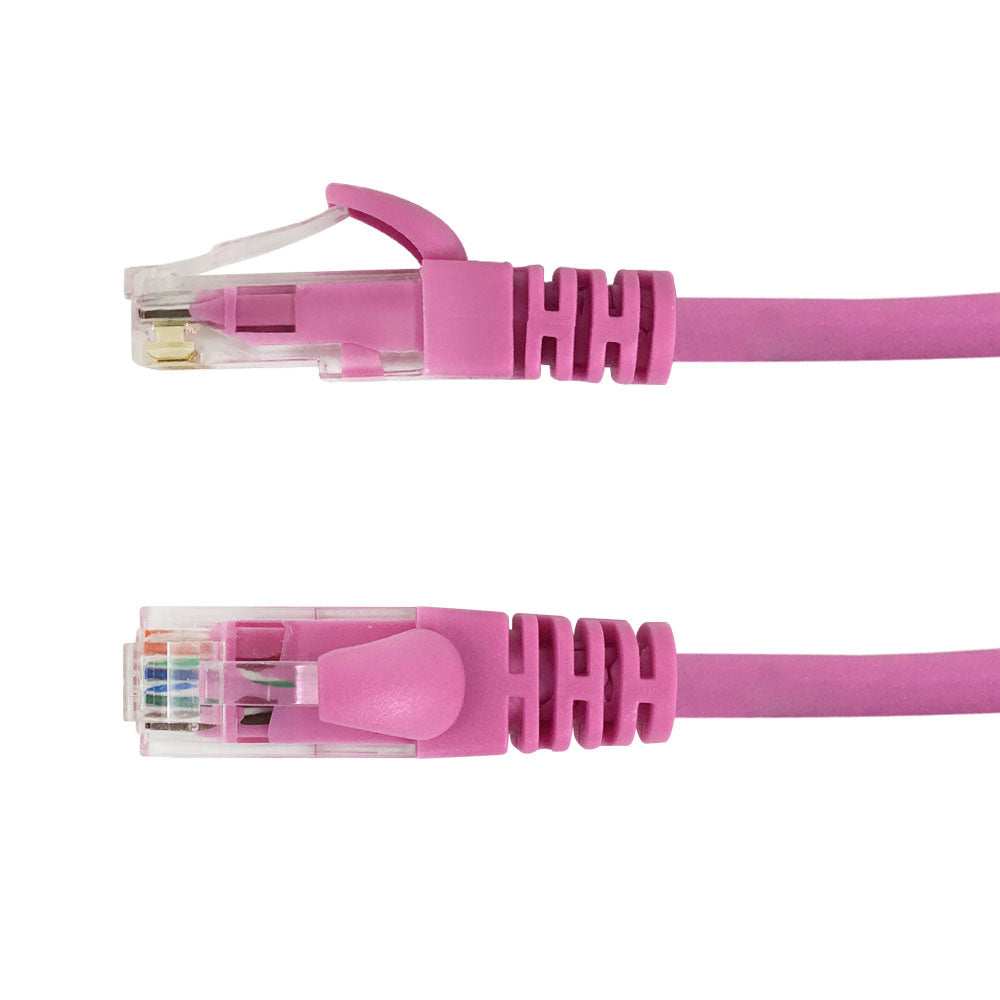

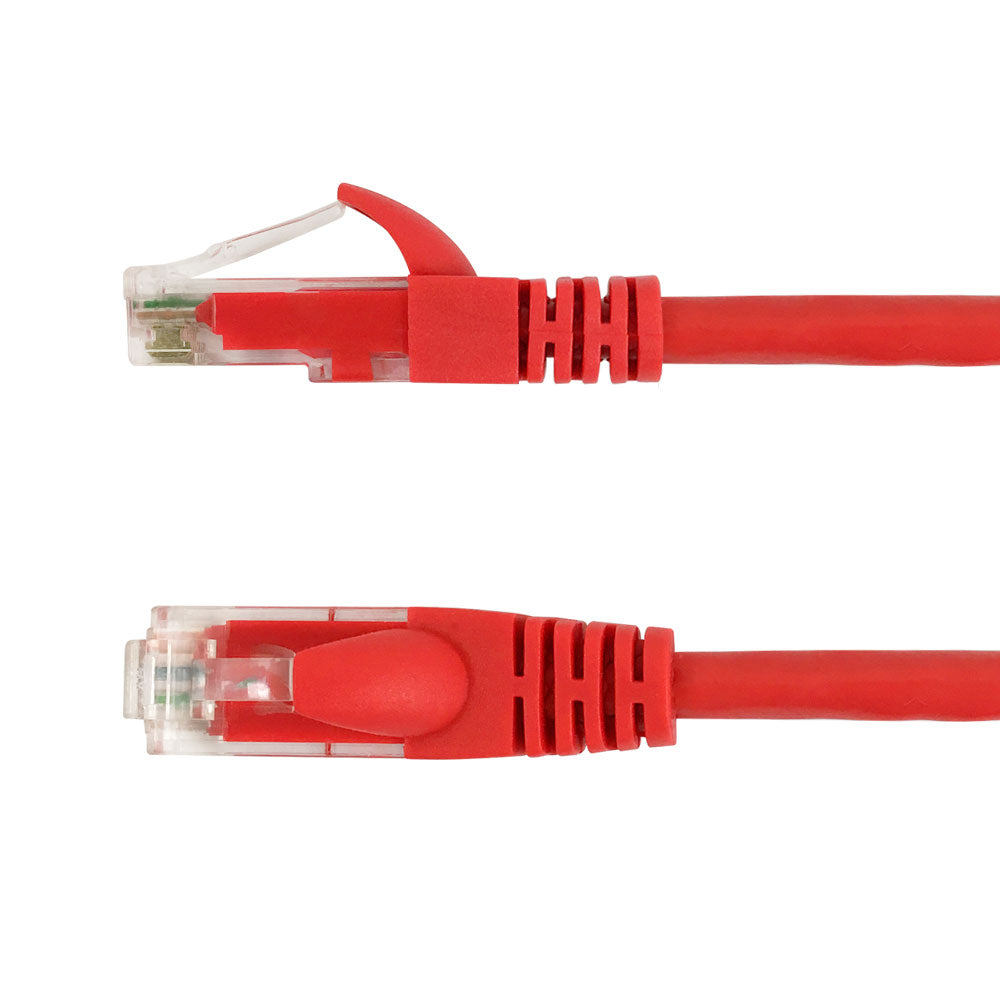

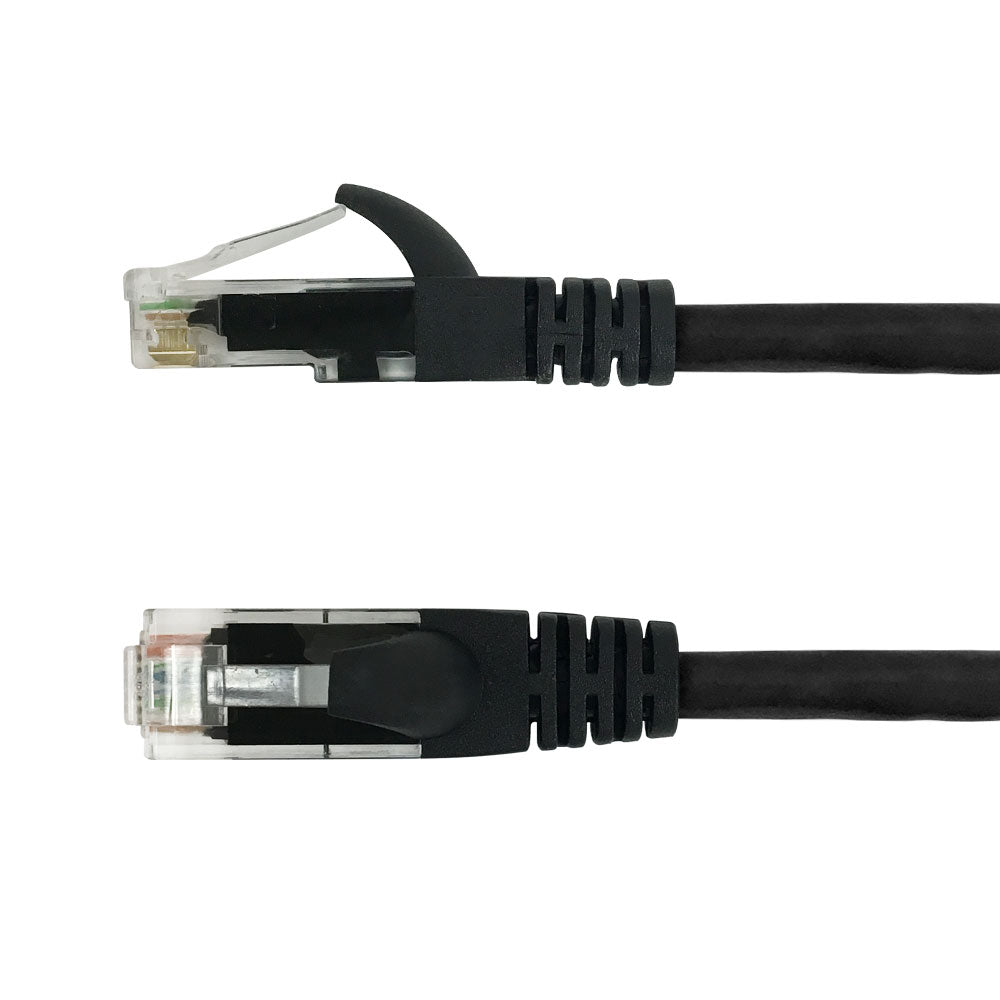

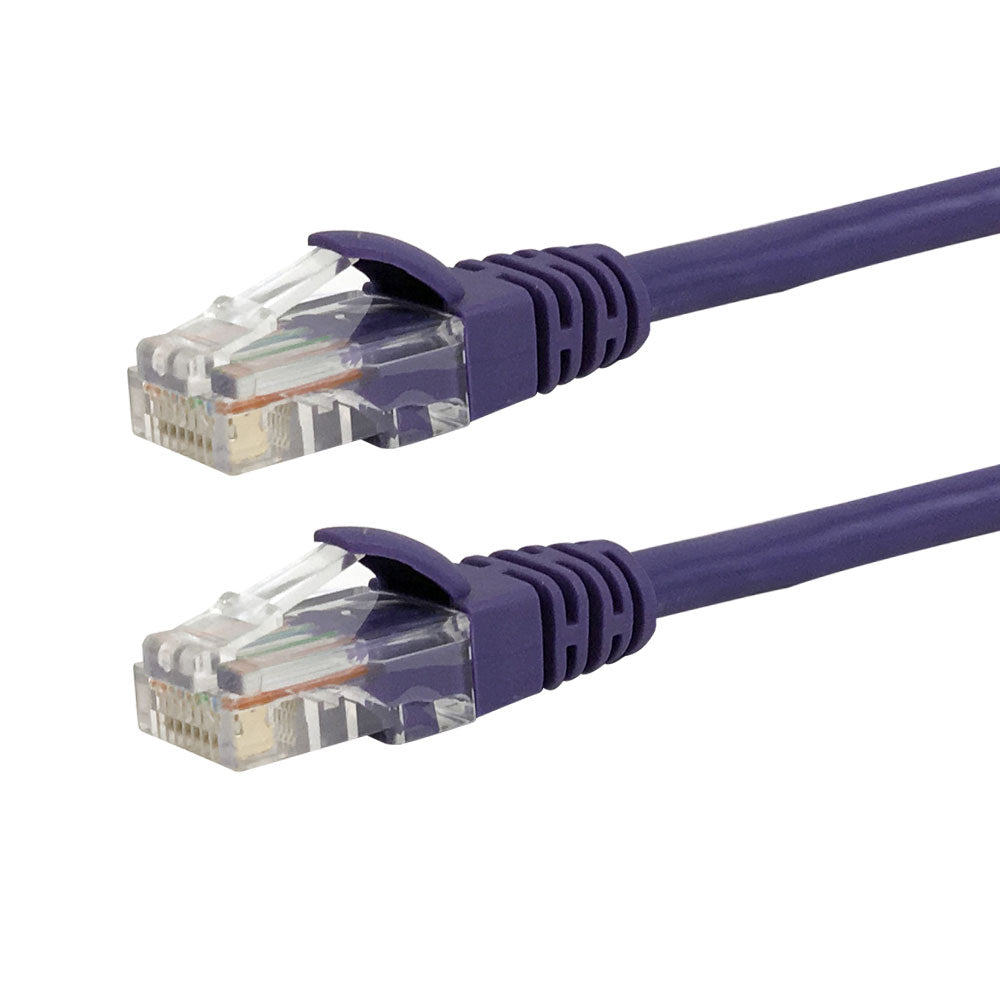

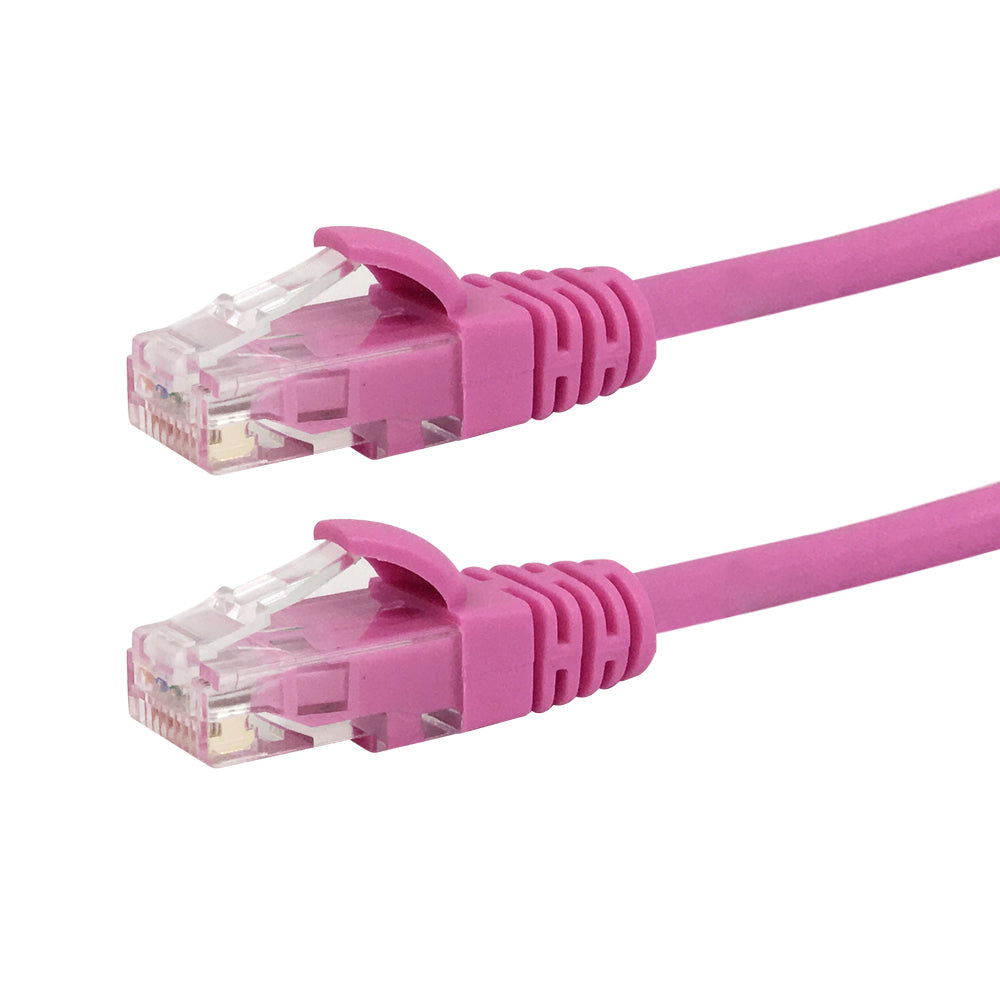

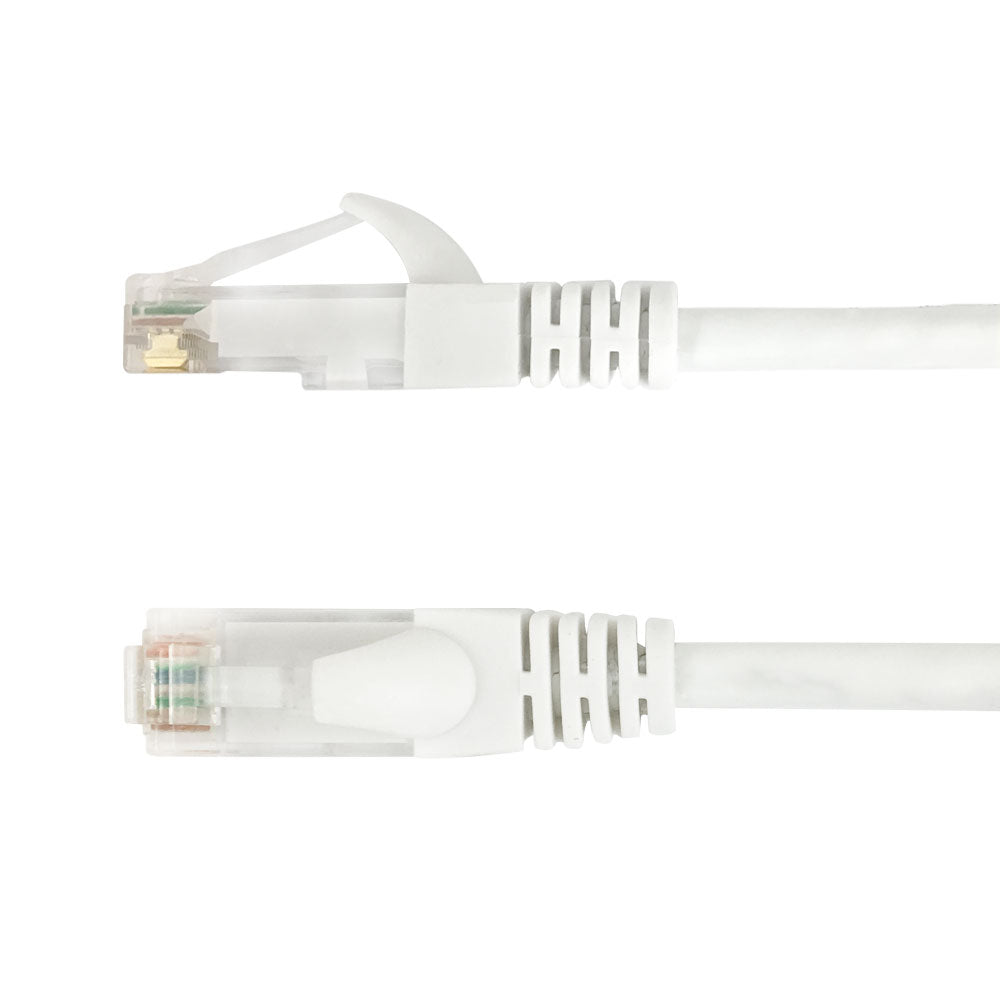

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6 patch cable certified. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6 patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10C to +75C |
| Jacket Type | PVC |
| Bend Radius | 24mm |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT6 Patch Cable Test | Compliant |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us |
Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.8ft | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 10ft | 12ft | 14ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.21 lbs | 0.24 lbs | 0.26 lbs | 0.33 lbs | 0.38 lbs | 0.46 lbs | 0.50 lbs | 0.63 lbs | 0.77 lbs | 0.95 lbs | 1.10 lbs | 1.55 lbs | 2.26 lbs | 3.0 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT6-0.8BK | 8 inch / Black | 0.05 lb |
| CAT6-0.8BL | 8 inch / Blue | 0.05 lb |
| CAT6-0.8GN | 8 inch / Green | 0.05 lb |
| CAT6-0.8GY | 8 inch / Grey | 0.05 lb |
| CAT6-0.8OR | 8 inch / Orange | 0.05 lb |
| CAT6-0.8PR | 8 inch / Purple | 0.05 lb |
| CAT6-0.8RD | 8 inch / Red | 0.05 lb |
| CAT6-0.8WH | 8 inch / White | 0.05 lb |
| CAT6-0.8YL | 8 inch / Yellow | 0.05 lb |
| CAT6-01BK | 1ft / Black | 0.07 lb |
| CAT6-01BL | 1ft / Blue | 0.07 lb |
| CAT6-01GN | 1ft / Green | 0.07 lb |
| CAT6-01GY | 1ft / Grey | 0.07 lb |
| CAT6-01OR | 1ft / Orange | 0.07 lb |
| CAT6-01PK | 1ft / Pink | 0.07 lb |
| CAT6-01PR | 1ft / Purple | 0.07 lb |
| CAT6-01RD | 1ft / Red | 0.07 lb |
| CAT6-01WH | 1ft / White | 0.07 lb |
| CAT6-01YL | 1ft / Yellow | 0.07 lb |
| CAT6-02BK | 2ft / Black | 0.1 lb |
| CAT6-02BL | 2ft / Blue | 0.1 lb |
| CAT6-02GN | 2ft / Green | 0.1 lb |
| CAT6-02GY | 2ft / Grey | 0.1 lb |
| CAT6-02OR | 2ft / Orange | 0.1 lb |
| CAT6-02PK | 2ft / Pink | 0.1 lb |
| CAT6-02PR | 2ft / Purple | 0.1 lb |
| CAT6-02RD | 2ft / Red | 0.1 lb |
| CAT6-02WH | 2ft / White | 0.1 lb |
| CAT6-02YL | 2ft / Yellow | 0.1 lb |
| CAT6-03BK | 3ft / Black | 0.15 lb |
| CAT6-03BL | 3ft / Blue | 0.15 lb |
| CAT6-03GN | 3ft / Green | 0.15 lb |
| CAT6-03GY | 3ft / Grey | 0.15 lb |
| CAT6-03OR | 3ft / Orange | 0.15 lb |
| CAT6-03PK | 3ft / Pink | 0.15 lb |
| CAT6-03PR | 3ft / Purple | 0.15 lb |
| CAT6-03RD | 3ft / Red | 0.15 lb |
| CAT6-03WH | 3ft / White | 0.15 lb |
| CAT6-03YL | 3ft / Yellow | 0.15 lb |
| CAT6-04BK | 4ft / Black | 0.17 lb |
| CAT6-04BL | 4ft / Blue | 0.17 lb |
| CAT6-04GN | 4ft / Green | 0.17 lb |
| CAT6-04GY | 4ft / Grey | 0.17 lb |
| CAT6-04OR | 4ft / Orange | 0.17 lb |
| CAT6-04PK | 4ft / Pink | 0.17 lb |
| CAT6-04PR | 4ft / Purple | 0.17 lb |
| CAT6-04RD | 4ft / Red | 0.17 lb |
| CAT6-04WH | 4ft / White | 0.17 lb |
| CAT6-04YL | 4ft / Yellow | 0.17 lb |
| CAT6-05BK | 5ft / Black | 0.2 lb |
| CAT6-05BL | 5ft / Blue | 0.2 lb |
| CAT6-05GN | 5ft / Green | 0.2 lb |
| CAT6-05GY | 5ft / Grey | 0.2 lb |
| CAT6-05OR | 5ft / Orange | 0.2 lb |
| CAT6-05PK | 5ft / Pink | 0.2 lb |
| CAT6-05PR | 5ft / Purple | 0.2 lb |
| CAT6-05RD | 5ft / Red | 0.2 lb |
| CAT6-05WH | 5ft / White | 0.2 lb |
| CAT6-05YL | 5ft / Yellow | 0.2 lb |
| CAT6-06BK | 6ft / Black | 0.21 lb |
| CAT6-06BL | 6ft / Blue | 0.21 lb |
| CAT6-06GN | 6ft / Green | 0.21 lb |
| CAT6-06GY | 6ft / Grey | 0.21 lb |
| CAT6-06OR | 6ft / Orange | 0.21 lb |
| CAT6-06PK | 6ft / Pink | 0.21 lb |
| CAT6-06PR | 6ft / Purple | 0.21 lb |
| CAT6-06RD | 6ft / Red | 0.21 lb |
| CAT6-06WH | 6ft / White | 0.21 lb |
| CAT6-06YL | 6ft / Yellow | 0.21 lb |
| CAT6-07BK | 7ft / Black | 0.24 lb |
| CAT6-07BL | 7ft / Blue | 0.24 lb |
| CAT6-07GN | 7ft / Green | 0.24 lb |
| CAT6-07GY | 7ft / Grey | 0.24 lb |
| CAT6-07OR | 7ft / Orange | 0.24 lb |
| CAT6-07PK | 7ft / Pink | 0.24 lb |
| CAT6-07PR | 7ft / Purple | 0.24 lb |
| CAT6-07RD | 7ft / Red | 0.24 lb |
| CAT6-07WH | 7ft / White | 0.24 lb |
| CAT6-07YL | 7ft / Yellow | 0.24 lb |
| CAT6-08BK | 8ft / Black | 0.26 lb |
| CAT6-08BL | 8ft / Blue | 0.26 lb |
| CAT6-08GN | 8ft / Green | 0.26 lb |
| CAT6-08GY | 8ft / Grey | 0.26 lb |
| CAT6-08OR | 8ft / Orange | 0.26 lb |
| CAT6-08PK | 8ft / Pink | 0.26 lb |
| CAT6-08PR | 8ft / Purple | 0.26 lb |
| CAT6-08RD | 8ft / Red | 0.26 lb |
| CAT6-08WH | 8ft / White | 0.26 lb |
| CAT6-08YL | 8ft / Yellow | 0.26 lb |
| CAT6-10BK | 10ft / Black | 0.33 lb |
| CAT6-10BL | 10ft / Blue | 0.33 lb |
| CAT6-10GN | 10ft / Green | 0.33 lb |
| CAT6-10GY | 10ft / Grey | 0.33 lb |
| CAT6-10OR | 10ft / Orange | 0.33 lb |
| CAT6-10PK | 10ft / Pink | 0.33 lb |
| CAT6-10PR | 10ft / Purple | 0.33 lb |
| CAT6-10RD | 10ft / Red | 0.33 lb |
| CAT6-10WH | 10ft / White | 0.33 lb |
| CAT6-10YL | 10ft / Yellow | 0.33 lb |
| CAT6-12BK | 12ft / Black | 0.38 lb |
| CAT6-12BL | 12ft / Blue | 0.38 lb |
| CAT6-12GN | 12ft / Green | 0.38 lb |
| CAT6-12GY | 12ft / Grey | 0.38 lb |
| CAT6-12OR | 12ft / Orange | 0.38 lb |
| CAT6-12PK | 12ft / Pink | 0.38 lb |
| CAT6-12PR | 12ft / Purple | 0.38 lb |
| CAT6-12RD | 12ft / Red | 0.38 lb |
| CAT6-12WH | 12ft / White | 0.38 lb |
| CAT6-12YL | 12ft / Yellow | 0.38 lb |
| CAT6-14BK | 14ft / Black | 0.46 lb |
| CAT6-14BL | 14ft / Blue | 0.46 lb |
| CAT6-14GN | 14ft / Green | 0.46 lb |
| CAT6-14GY | 14ft / Grey | 0.46 lb |
| CAT6-14OR | 14ft / Orange | 0.46 lb |
| CAT6-14PK | 14ft / Pink | 0.46 lb |
| CAT6-14PR | 14ft / Purple | 0.46 lb |
| CAT6-14RD | 14ft / Red | 0.46 lb |
| CAT6-14WH | 14ft / White | 0.46 lb |
| CAT6-14YL | 14ft / Yellow | 0.46 lb |
| CAT6-15BK | 15ft / Black | 0.5 lb |
| CAT6-15BL | 15ft / Blue | 0.5 lb |
| CAT6-15GN | 15ft / Green | 0.5 lb |
| CAT6-15GY | 15ft / Grey | 0.5 lb |
| CAT6-15OR | 15ft / Orange | 0.5 lb |
| CAT6-15PK | 15ft / Pink | 0.5 lb |
| CAT6-15PR | 15ft / Purple | 0.5 lb |
| CAT6-15RD | 15ft / Red | 0.5 lb |
| CAT6-15WH | 15ft / White | 0.5 lb |
| CAT6-15YL | 15ft / Yellow | 0.5 lb |
| CAT6-20BK | 20ft / Black | 0.63 lb |
| CAT6-20BL | 20ft / Blue | 0.63 lb |
| CAT6-20GN | 20ft / Green | 0.63 lb |
| CAT6-20GY | 20ft / Grey | 0.63 lb |
| CAT6-20OR | 20ft / Orange | 0.63 lb |
| CAT6-20PK | 20ft / Pink | 0.63 lb |
| CAT6-20PR | 20ft / Purple | 0.63 lb |
| CAT6-20RD | 20ft / Red | 0.63 lb |
| CAT6-20WH | 20ft / White | 0.63 lb |
| CAT6-20YL | 20ft / Yellow | 0.63 lb |
| CAT6-25BK | 25ft / Black | 0.77 lb |
| CAT6-25BL | 25ft / Blue | 0.77 lb |
| CAT6-25GN | 25ft / Green | 0.77 lb |
| CAT6-25GY | 25ft / Grey | 0.77 lb |
| CAT6-25OR | 25ft / Orange | 0.77 lb |
| CAT6-25PK | 25ft / Pink | 0.77 lb |
| CAT6-25PR | 25ft / Purple | 0.77 lb |
| CAT6-25RD | 25ft / Red | 0.77 lb |
| CAT6-25WH | 25ft / White | 0.77 lb |
| CAT6-25YL | 25ft / Yellow | 0.77 lb |
| CAT6-30BK | 30ft / Black | 0.95 lb |
| CAT6-30BL | 30ft / Blue | 0.95 lb |
| CAT6-30GN | 30ft / Green | 0.95 lb |
| CAT6-30GY | 30ft / Grey | 0.95 lb |
| CAT6-30OR | 30ft / Orange | 0.95 lb |
| CAT6-30PK | 30ft / Pink | 0.95 lb |
| CAT6-30PR | 30ft / Purple | 0.95 lb |
| CAT6-30RD | 30ft / Red | 0.95 lb |
| CAT6-30WH | 30ft / White | 0.95 lb |
| CAT6-30YL | 30ft / Yellow | 0.95 lb |
| CAT6-35BK | 35ft / Black | 1.1 lb |
| CAT6-35BL | 35ft / Blue | 1.1 lb |
| CAT6-35GN | 35ft / Green | 1.1 lb |
| CAT6-35GY | 35ft / Grey | 1.1 lb |
| CAT6-35OR | 35ft / Orange | 1.1 lb |
| CAT6-35PK | 35ft / Pink | 1.1 lb |
| CAT6-35PR | 35ft / Purple | 1.1 lb |
| CAT6-35RD | 35ft / Red | 1.1 lb |
| CAT6-35WH | 35ft / White | 1.1 lb |
| CAT6-35YL | 35ft / Yellow | 1.1 lb |
| CAT6-50BK | 50ft / Black | 1.55 lb |
| CAT6-50BL | 50ft / Blue | 1.55 lb |
| CAT6-50GN | 50ft / Green | 1.55 lb |
| CAT6-50GY | 50ft / Grey | 1.55 lb |
| CAT6-50OR | 50ft / Orange | 1.55 lb |
| CAT6-50PK | 50ft / Pink | 1.55 lb |
| CAT6-50PR | 50ft / Purple | 1.55 lb |
| CAT6-50RD | 50ft / Red | 1.55 lb |
| CAT6-50WH | 50ft / White | 1.55 lb |
| CAT6-50YL | 50ft / Yellow | 1.55 lb |
| CAT6-75BK | 75ft / Black | 2.26 lb |
| CAT6-75BL | 75ft / Blue | 2.26 lb |
| CAT6-75GN | 75ft / Green | 2.26 lb |
| CAT6-75GY | 75ft / Grey | 2.26 lb |
| CAT6-75OR | 75ft / Orange | 2.26 lb |
| CAT6-75PK | 75ft / Pink | 2.26 lb |
| CAT6-75PR | 75ft / Purple | 2.26 lb |
| CAT6-75RD | 75ft / Red | 2.26 lb |
| CAT6-75WH | 75ft / White | 2.26 lb |
| CAT6-75YL | 75ft / Yellow | 2.26 lb |
| CAT6-100BK | 100ft / Black | 3.0 lb |
| CAT6-100BL | 100ft / Blue | 3.0 lb |
| CAT6-100GN | 100ft / Green | 3.0 lb |
| CAT6-100GY | 100ft / Grey | 3.0 lb |
| CAT6-100OR | 100ft / Orange | 3.0 lb |
| CAT6-100PK | 100ft / Pink | 3.0 lb |
| CAT6-100PR | 100ft / Purple | 3.0 lb |
| CAT6-100RD | 100ft / Red | 3.0 lb |
| CAT6-100WH | 100ft / White | 3.0 lb |
| CAT6-100YL | 100ft / Yellow | 3.0 lb |
