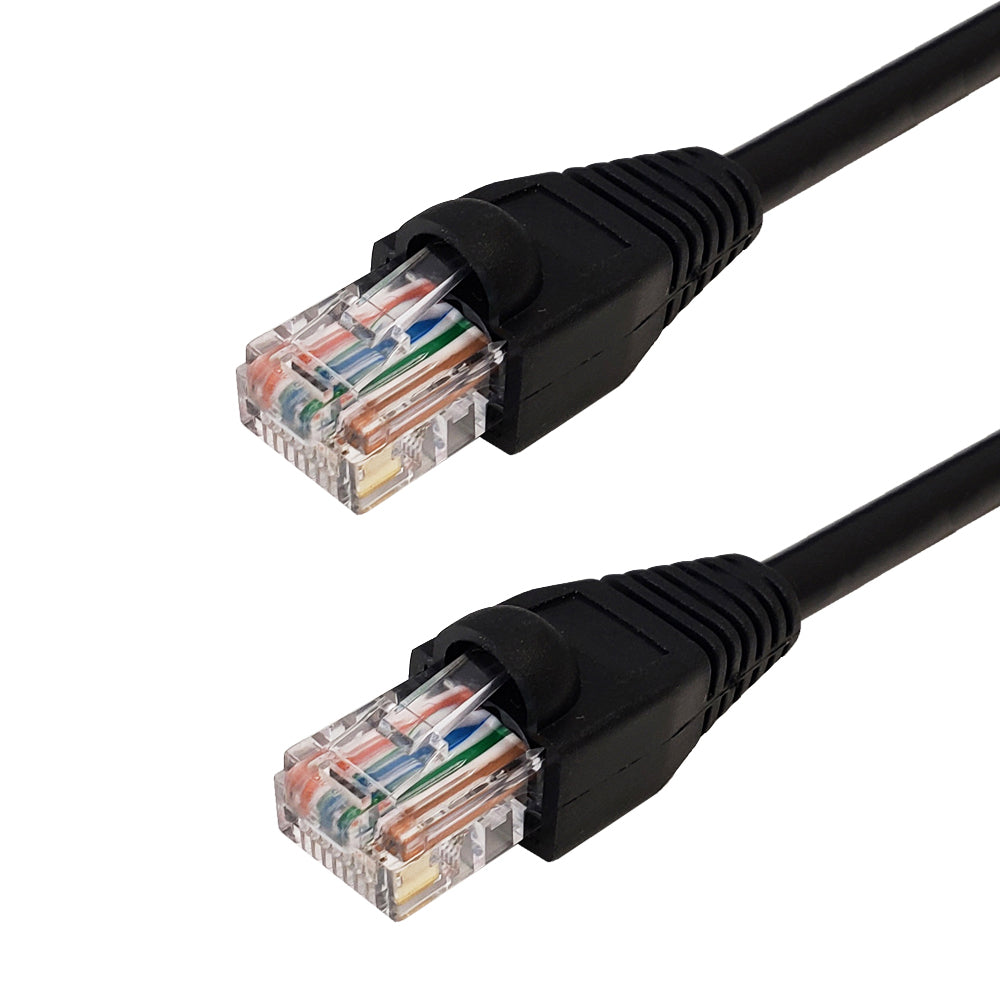

This Cat5e UTP outdoor UV direct burial ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
These
cables are made to order. Most orders ship out same day or next day depending
on the quantity. Please
contact us for more
details.
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Outdoor Rated CableIdeal for use in cable runs that
are located above or below ground as premise wiring to connect network devices.
|
Physical Characteristics | |
---|---|
Connector Plating | Gold Plated 50 Micron |
Conductor Material | 100% Bare Copper |
Cable Diameter | 5.10 mm |
Wire Gauge | 24AWG Solid |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Temperature Rating | -40ā to +75ā |
Strain
Relief
|
Bubble Boot Strain Relief |
Jacket Rating | Direct Burial / UV |
Jacket Material | LLDPE |
UV | Yes |
Connectors | |
Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Environmental | |
RoHS | Yes |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.05 lbs | 0.08 lbs | 0.10 lbs | 0.13 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.24 lbs | 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.37 lbs | 0.40 lbs | 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 3.75 lbs | 4.50 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
