Overview

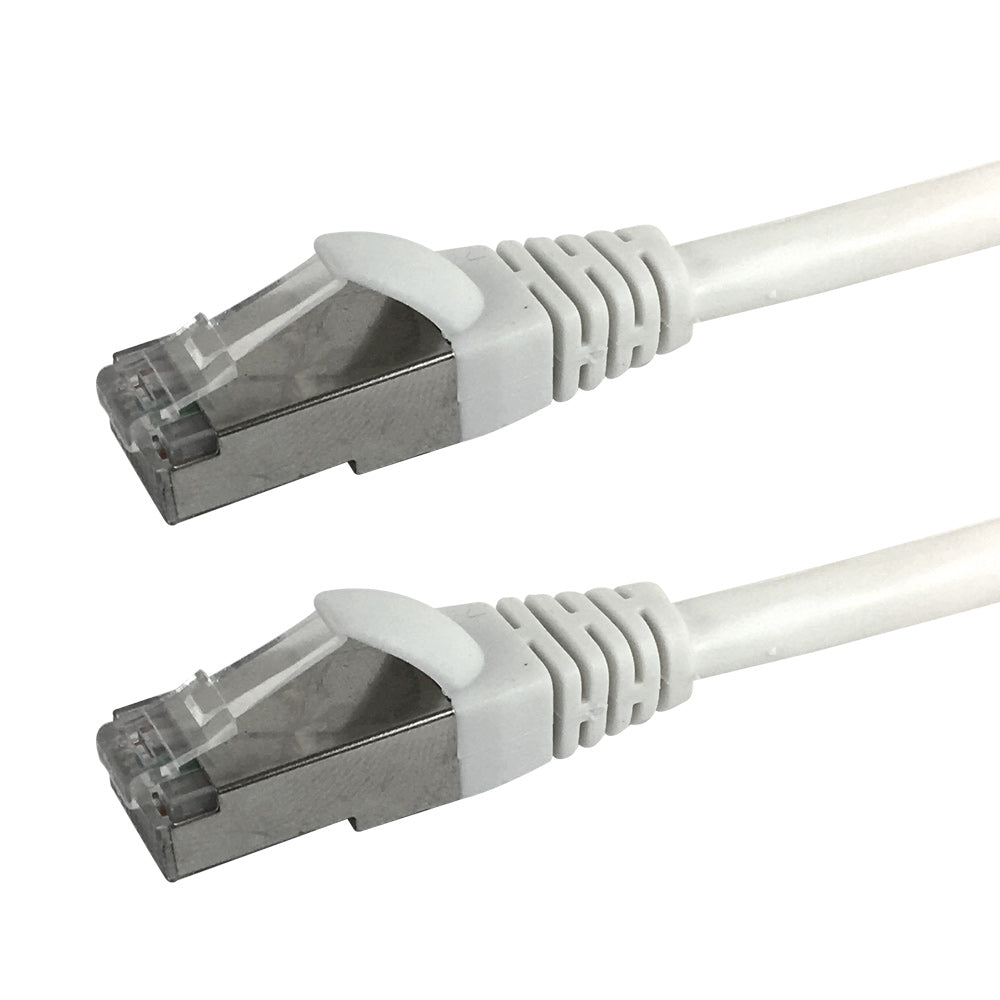

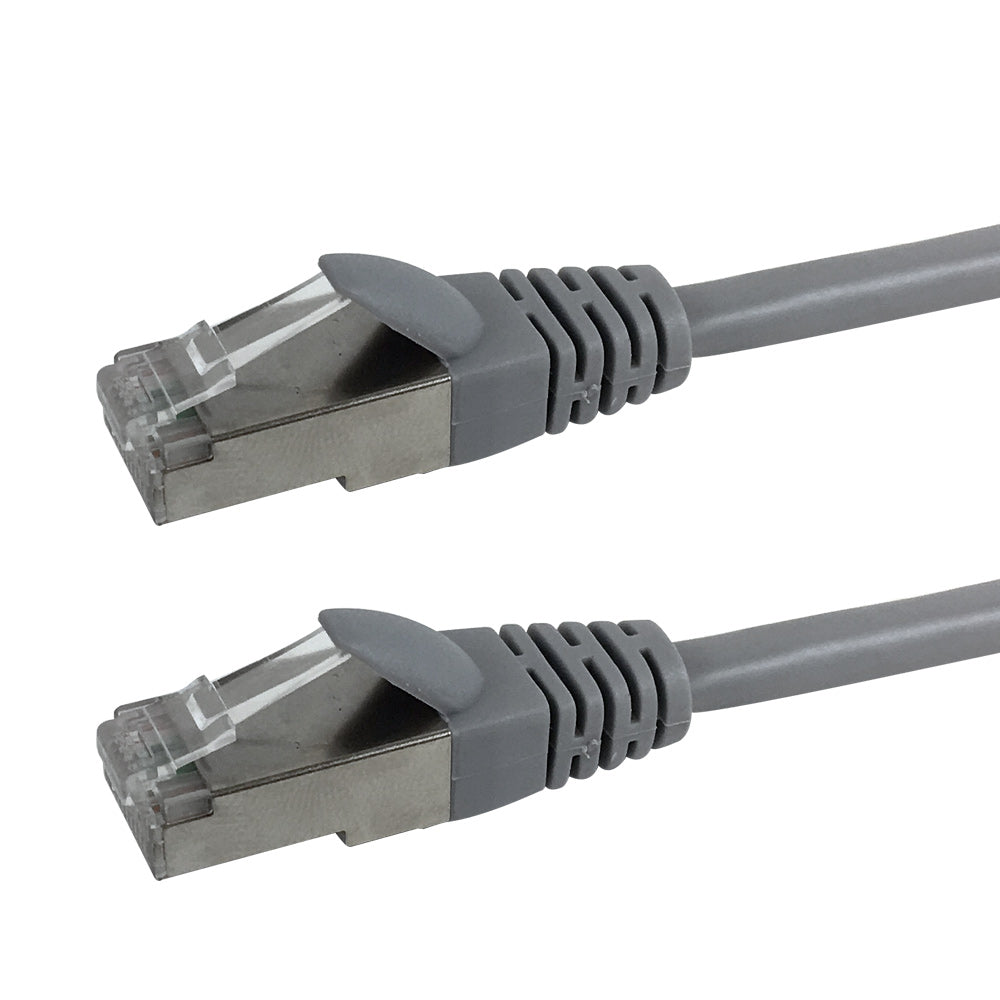

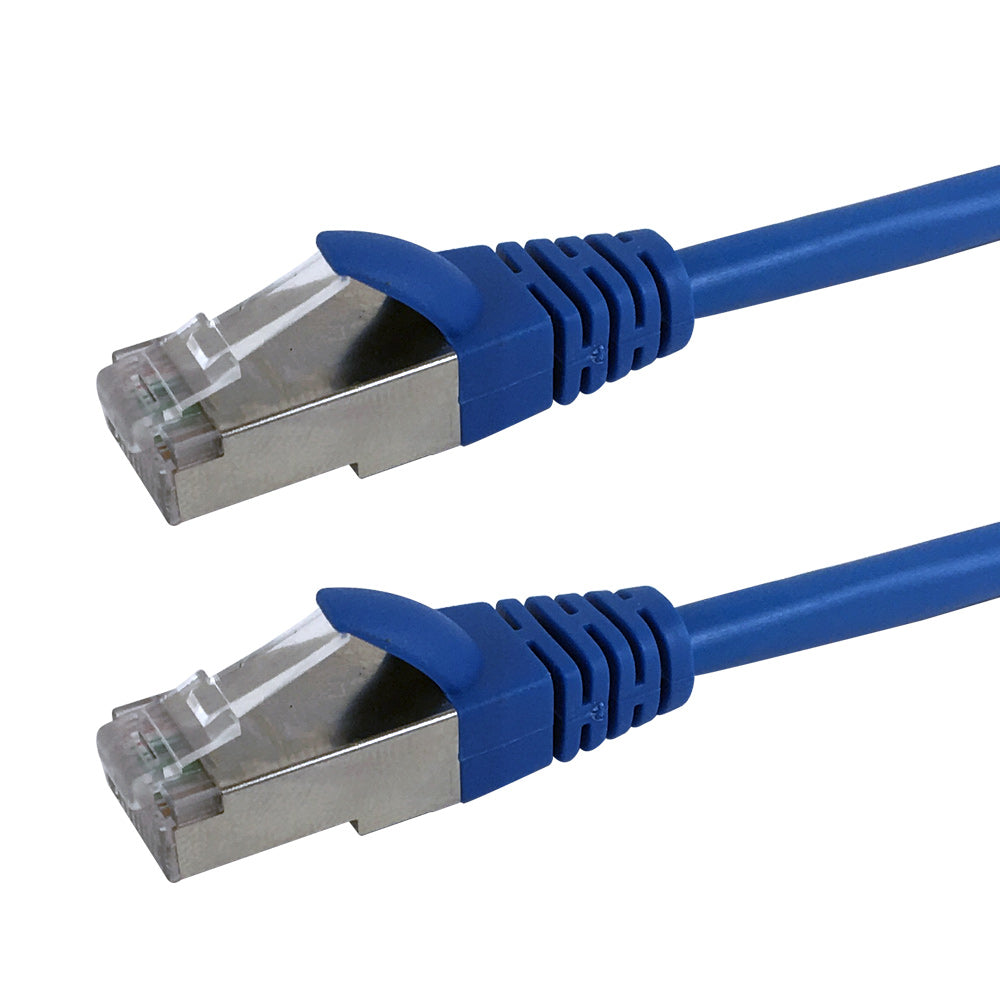

This Cat5e shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat5e patch cable certified. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Double Shielded100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT5e patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 26AWG Stranded |
| Shielding | F/UTP (100% Overall Mylar Foil Shield) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Molding | Assembled Tab Style Strain Relief |
| Temperature Rating | 75℃ |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Shielded Long Body Male |
| Connector B | RJ45 Shielded Long Body Male |
| Performance | |
| Fluke® CAT5E Patch Cable Test | Yes |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 lbs | 0.06 lbs | 0.09 lbs | 0.15 lbs | 0.25 lbs | 0.30 lbs | 0.45 lbs | 0.75 lbs | 1.05 lbs | 1.50 lbs | 2.25 lbs | 3.00 lbs |
| SKU | Options | Weight |
| CAT5ESM-01BK | 1ft / Black | 0.07 lb |
| CAT5ESM-02BK | 2ft / Black | 0.1 lb |
| CAT5ESM-03BK | 3ft / Black | 0.15 lb |
| CAT5ESM-05BK | 5ft / Black | 0.2 lb |
| CAT5ESM-07BK | 7ft / Black | 0.24 lb |
| CAT5ESM-10BK | 10ft / Black | 0.33 lb |
| CAT5ESM-15BK | 15ft / Black | 0.5 lb |
| CAT5ESM-25BK | 25ft / Black | 0.77 lb |
| CAT5ESM-35BK | 35ft / Black | 1.1 lb |
| CAT5ESM-50BK | 50ft / Black | 1.55 lb |
| CAT5ESM-75BK | 75ft / Black | 2.26 lb |
| CAT5ESM-100BK | 100ft / Black | 3.0 lb |
| CAT5ESM-01BL | 1ft / Blue | 0.07 lb |
| CAT5ESM-02BL | 2ft / Blue | 0.1 lb |
| CAT5ESM-03BL | 3ft / Blue | 0.15 lb |
| CAT5ESM-05BL | 5ft / Blue | 0.2 lb |
| CAT5ESM-07BL | 7ft / Blue | 0.24 lb |
| CAT5ESM-10BL | 10ft / Blue | 0.33 lb |
| CAT5ESM-15BL | 15ft / Blue | 0.5 lb |
| CAT5ESM-25BL | 25ft / Blue | 0.77 lb |
| CAT5ESM-35BL | 35ft / Blue | 1.1 lb |
| CAT5ESM-50BL | 50ft / Blue | 1.55 lb |
| CAT5ESM-75BL | 75ft / Blue | 2.26 lb |
| CAT5ESM-100BL | 100ft / Blue | 3.0 lb |
| CAT5ESM-01GY | 1ft / Grey | 0.07 lb |
| CAT5ESM-02GY | 2ft / Grey | 0.1 lb |
| CAT5ESM-03GY | 3ft / Grey | 0.15 lb |
| CAT5ESM-05GY | 5ft / Grey | 0.2 lb |
| CAT5ESM-07GY | 7ft / Grey | 0.24 lb |
| CAT5ESM-10GY | 10ft / Grey | 0.33 lb |
| CAT5ESM-15GY | 15ft / Grey | 0.5 lb |
| CAT5ESM-25GY | 25ft / Grey | 0.77 lb |
| CAT5ESM-35GY | 35ft / Grey | 1.1 lb |
| CAT5ESM-50GY | 50ft / Grey | 1.55 lb |
| CAT5ESM-75GY | 75ft / Grey | 2.26 lb |
| CAT5ESM-100GY | 100ft / Grey | 3.0 lb |
| CAT5ESM-01WH | 1ft / White | 0.07 lb |
| CAT5ESM-02WH | 2ft / White | 0.1 lb |
| CAT5ESM-03WH | 3ft / White | 0.15 lb |
| CAT5ESM-05WH | 5ft / White | 0.2 lb |
| CAT5ESM-07WH | 7ft / White | 0.24 lb |
| CAT5ESM-10WH | 10ft / White | 0.33 lb |
| CAT5ESM-15WH | 15ft / White | 0.5 lb |
| CAT5ESM-25WH | 25ft / White | 0.77 lb |
| CAT5ESM-35WH | 35ft / White | 1.1 lb |
| CAT5ESM-50WH | 50ft / White | 1.55 lb |
| CAT5ESM-75WH | 75ft / White | 2.26 lb |
| CAT5ESM-100WH | 100ft / White | 3.0 lb |
