Description

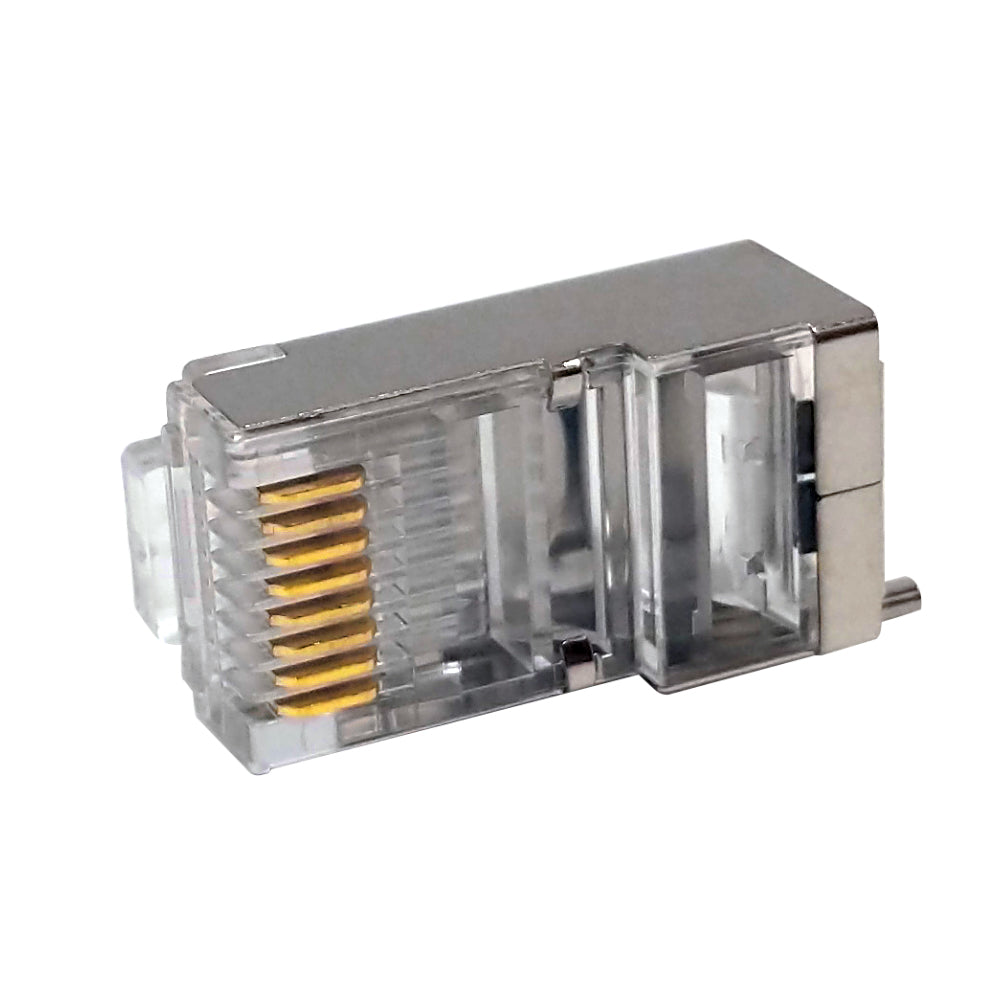

This modular RJ45 Cat5e shielded connector is an 8 position, 8 conductor plug with an external ground crimp. The plug is typically used to terminate shielded CAT5e round cable.
| Physical Characteristics | ||
|---|---|---|
| Color | Transparent, Nickel | |
| Material | Polycarbonate | |
| Contacts | Gold | |
| Shielded | Compliant | |
| Cable Type | Round | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| Conductor Type | Solid or Stranded Cable | |
| Connector(s) | ||
| RJ45 Cat 5e (8P8C) | Male, 23 - 24 AWG Round Stranded Cable | |
| Associated Products | ||
| CN-FOIL-TAPE | 50m Roll of Adhesive Mylar Foil Tape (6mm Width) | |
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 Pack of 50 Connectors | |
| Product Weight | 0.20 lbs | |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-RJ45SC-50 | 0.24 lb |
