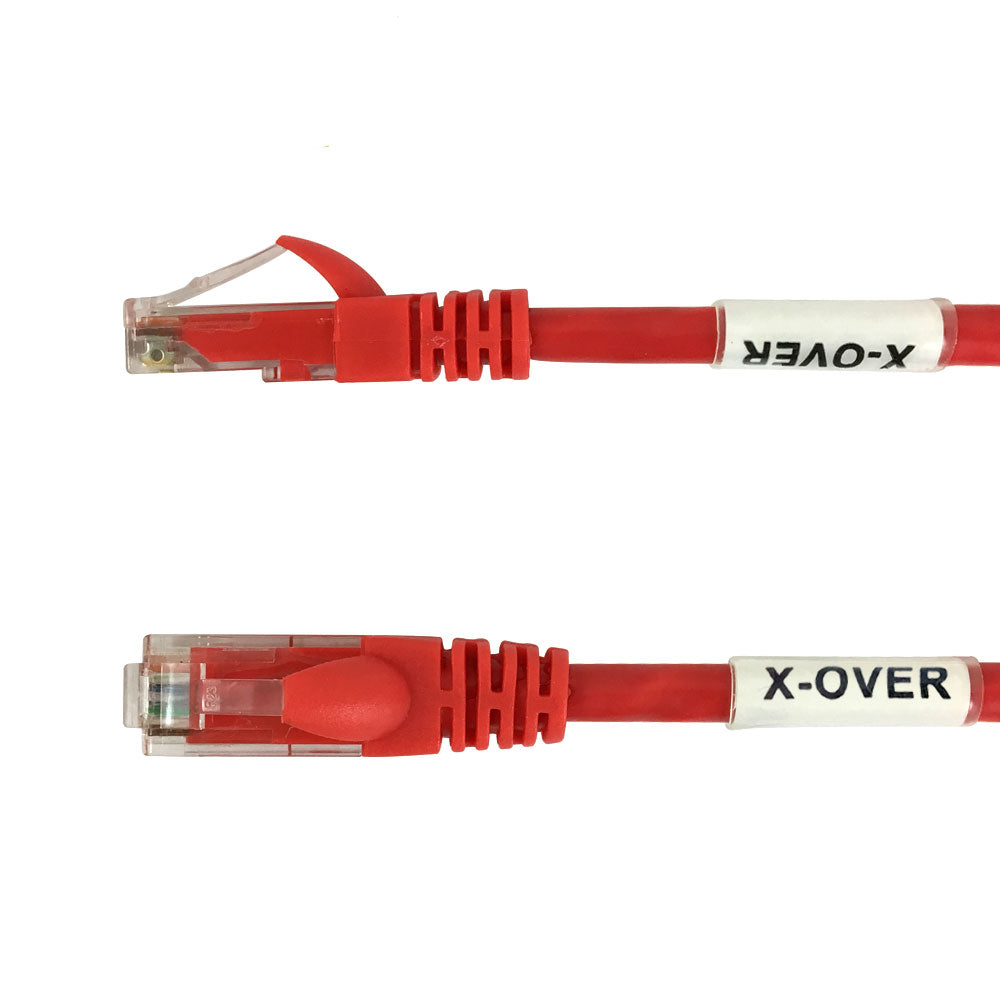

RJ45 Cat5e Cross-Wired Patch Cable

CAT5E Patch CablesSKU: CAT5EX-03RD

Length: 3ft
Price:
Sale price$1.64 USD
Stock:
In stock

Description

This Cat5e cross-over ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used to directly connect PCs without the use of a switch or a hub.

Physical Characteristics
Connector Plating Gold Plated 50 Micron
Cable Diameter 5.5mm
Wire Gauge 24AWG Stranded
Shielding UTP (Unshielded)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Molding Molded Tab Style Strain Relief
Temperature Rating 75 C
Jacket Type PVC
Connectors
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male
Performance
Frequency 350 MHz
Approvals
c(UL)us
Yes - Cable
ETL Verified Yes
ANSI/TIA - 568 - C.2 Yes
ISO/IEC 11801 Yes
EN 50173-1 Yes
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 5ft 7ft 10ft 14ft 25ft 50ft
0.10 lbs 0.15 lbs 0.20 lbs 0.25 lbs 0.40 lbs 0.60 lbs 1.10 lbs
SKU Options Weight
CAT5EX-03RD 3ft 0.15 lb
CAT5EX-05RD 5ft 0.2 lb
CAT5EX-07RD 7ft 0.24 lb
CAT5EX-10RD 10ft 0.33 lb
CAT5EX-14RD 14ft 0.46 lb
CAT5EX-25RD 25ft 0.77 lb
CAT5EX-50RD 50ft 1.55 lb
