Description

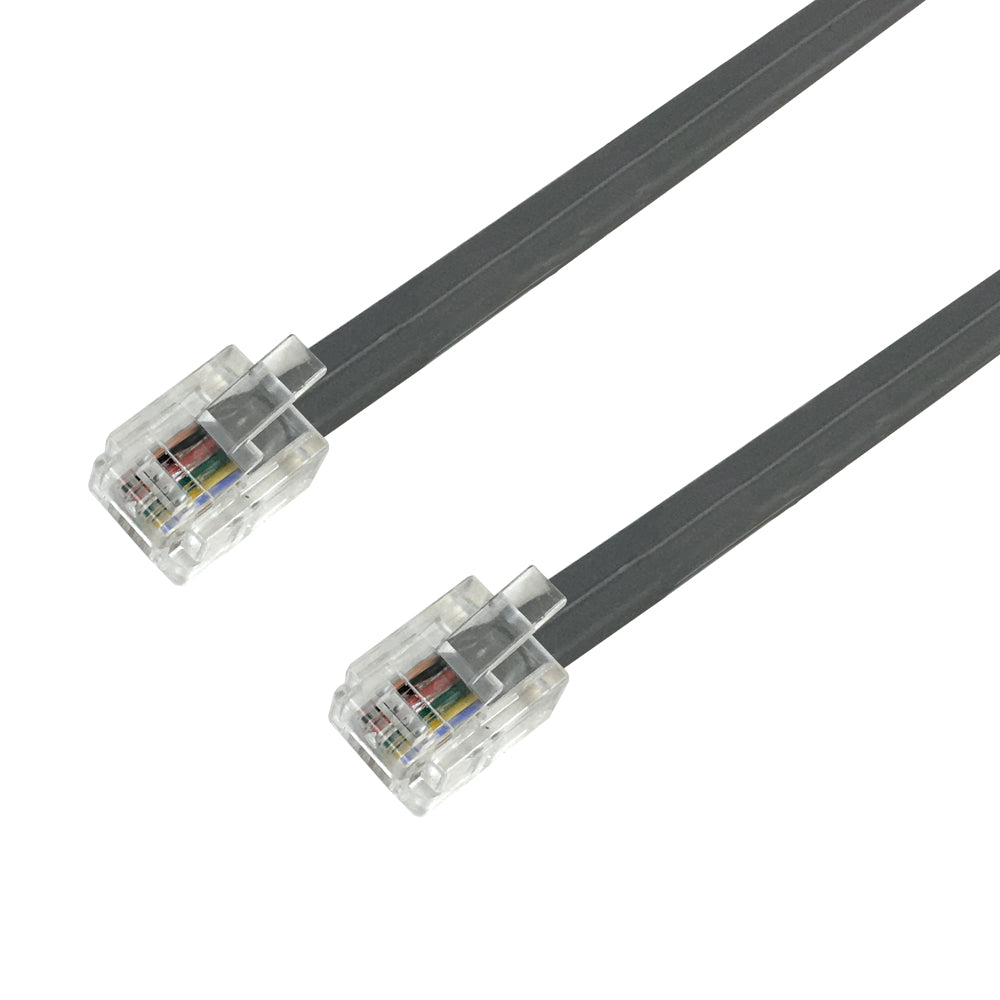

This modular flat phone cable consists of a RJ12 (6P6C) male plug on both ends and has straight through wiring. It is typically used in data applications such as connecting a modem to a ADSL filter.
| Physical Characteristics | |
|---|---|
| Color | Black/Silver Satin |
| Contact Plating | Gold |
| Cable Diameter | 6.85mm x 2.5mm |
| Wire Gauge | 26AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | VW-1 |
| Temperature Rating | 60ā |
| Cable Voltage Rating | 150V |
| Wiring | Straight Through (1-1, 2-2, 3-3, 4-4, 5-5, 6-6) |
| Connector(s) | |
| Connector A | RJ12 (6P6C) Male |
| Connector B | RJ12 (6P6C) Male |
| Approvals | |
| UL | Yes - Cable |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.01 lbs [0.005kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| PH-110-01BK | 1ft / Black | 0.07 lb |
| PH-110-01SL | 1ft / Silver | 0.07 lb |
| PH-110-03BK | 3ft / Black | 0.15 lb |
| PH-110-03SL | 3ft / Silver | 0.15 lb |
| PH-110-05BK | 5ft / Black | 0.2 lb |
| PH-110-05SL | 5ft / Silver | 0.2 lb |
| PH-110-07BK | 7ft / Black | 0.24 lb |
| PH-110-07SL | 7ft / Silver | 0.24 lb |
| PH-110-10BK | 10ft / Black | 0.33 lb |
| PH-110-10SL | 10ft / Silver | 0.33 lb |
| PH-110-15BK | 15ft / Black | 0.5 lb |
| PH-110-15SL | 15ft / Silver | 0.5 lb |
| PH-110-25BK | 25ft / Black | 0.77 lb |
| PH-110-25SL | 25ft / Silver | 0.77 lb |
| PH-110-35BK | 35ft / Black | 1.1 lb |
| PH-110-35SL | 35ft / Silver | 1.1 lb |
| PH-110-50BK | 50ft / Black | 1.55 lb |
| PH-110-50SL | 50ft / Silver | 1.55 lb |
| PH-110-75BK | 75ft / Black | 2.26 lb |
| PH-110-75SL | 75ft / Silver | 2.26 lb |
| PH-110-100BK | 100ft / Black | 3.0 lb |
| PH-110-100SL | 100ft / Silver | 3.0 lb |
| PH-110-125BK | 125ft / Black | 5.0 lb |
| PH-110-125SL | 125ft / Silver | 5.0 lb |
| PH-110-150BK | 150ft / Black | 6.2 lb |
| PH-110-150SL | 150ft / Silver | 6.2 lb |
