Description

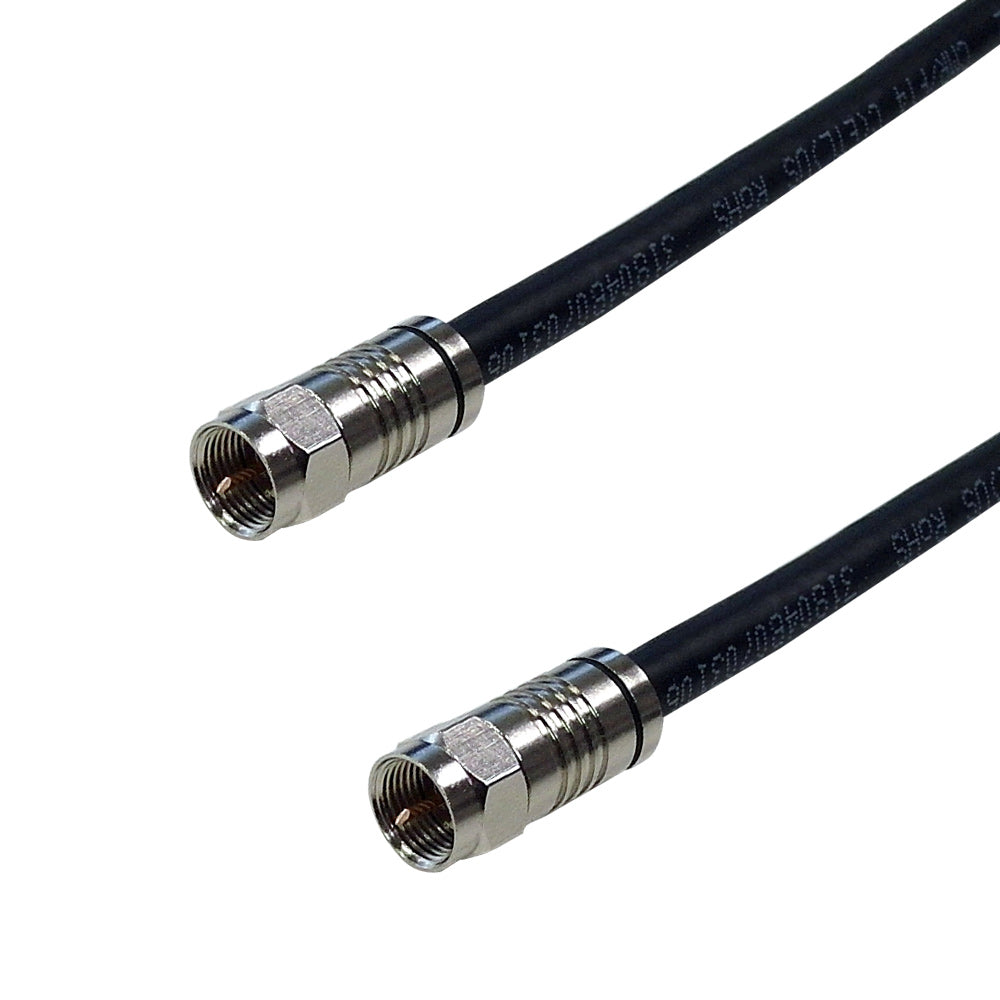

This coax cable consists of a F-Type male connector on both ends. It is typically used to connect a set-top box to a satellite dish or cable providers main feed.
- Constructed of pure copper, 75 ohm RG6 solid 18 AWG cable
- Dual shielding includes a 100% aluminum/mylar foil, plus a 60% braid
- Heavy duty connectors optimizes connectivity and maintains a clear signal integrity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 6.9 mm |
| Wire Gauge | 18AWG Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | FT4 - Riser |
| Cable Shielding | 60% Braid + 100% Bonded Aluminum Foil |
| Strain Relief | Compression Fit |
| Connector(s) | |
| Connector A | F-Type Male |
| Connector B | F-Type Male |
| Performance | |
| Impedance | 75ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| c(CE)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 10ft | 12ft | 15ft | 20ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.10 lbs | 0.10 lbs | 0.10 lbs | 0.20 lbs | 0.35 lbs | 0.35 lbs | 0.65 lbs | 0.65 lbs | 0.65 lbs | 0.65 lbs | 1.40 lbs | 1.90 lbs | 3.15 lbs | 3.15 lbs | 3.15 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TVF-01BK | 1ft | 0.11 lb |
| TVF-02BK | 2ft | 0.15 lb |
| TVF-03BK | 3ft | 0.19 lb |
| TVF-06BK | 6ft | 0.34 lb |
| TVF-10BK | 10ft | 0.53 lb |
| TVF-12BK | 12ft | 0.38 lb |
| TVF-15BK | 15ft | 0.77 lb |
| TVF-20BK | 20ft | 0.63 lb |
| TVF-25BK | 25ft | 1.25 lb |
| TVF-35BK | 35ft | 1.73 lb |
| TVF-50BK | 50ft | 2.45 lb |
| TVF-75BK | 75ft | 3.65 lb |
| TVF-100BK | 100ft | 4.85 lb |
| TVF-125BK | 125ft | 6.05 lb |
| TVF-150BK | 150ft | 7.25 lb |
