Description

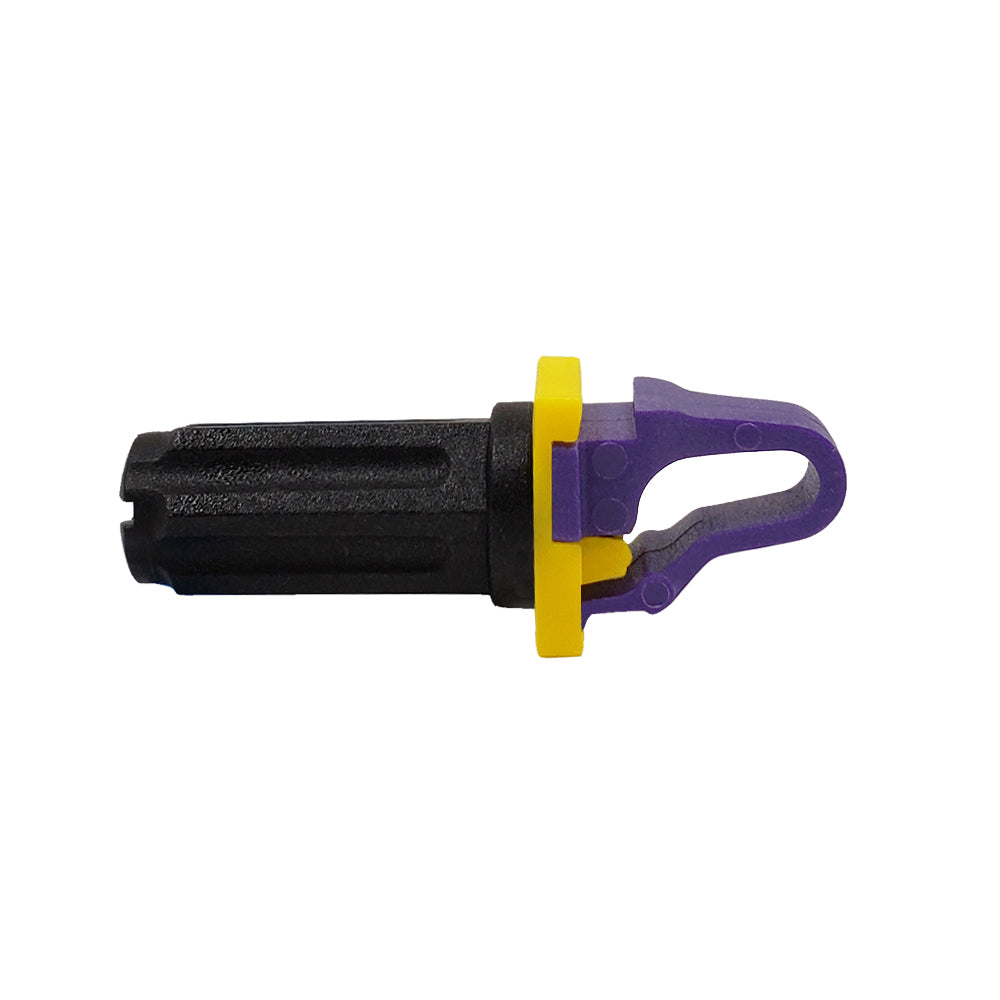

This Rackstud is designed to fit square hole server rails with a thickness of 2.7mm to 3.2mm. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.Ā
Features:
- Redesigned nut with screwdriver slot
- Longer threads makes hanging gear easier
- Improved leverage strength up >30%
- Fits even thicker rails
- Now even easier to insert
| Physical Characteristics | |
|---|---|

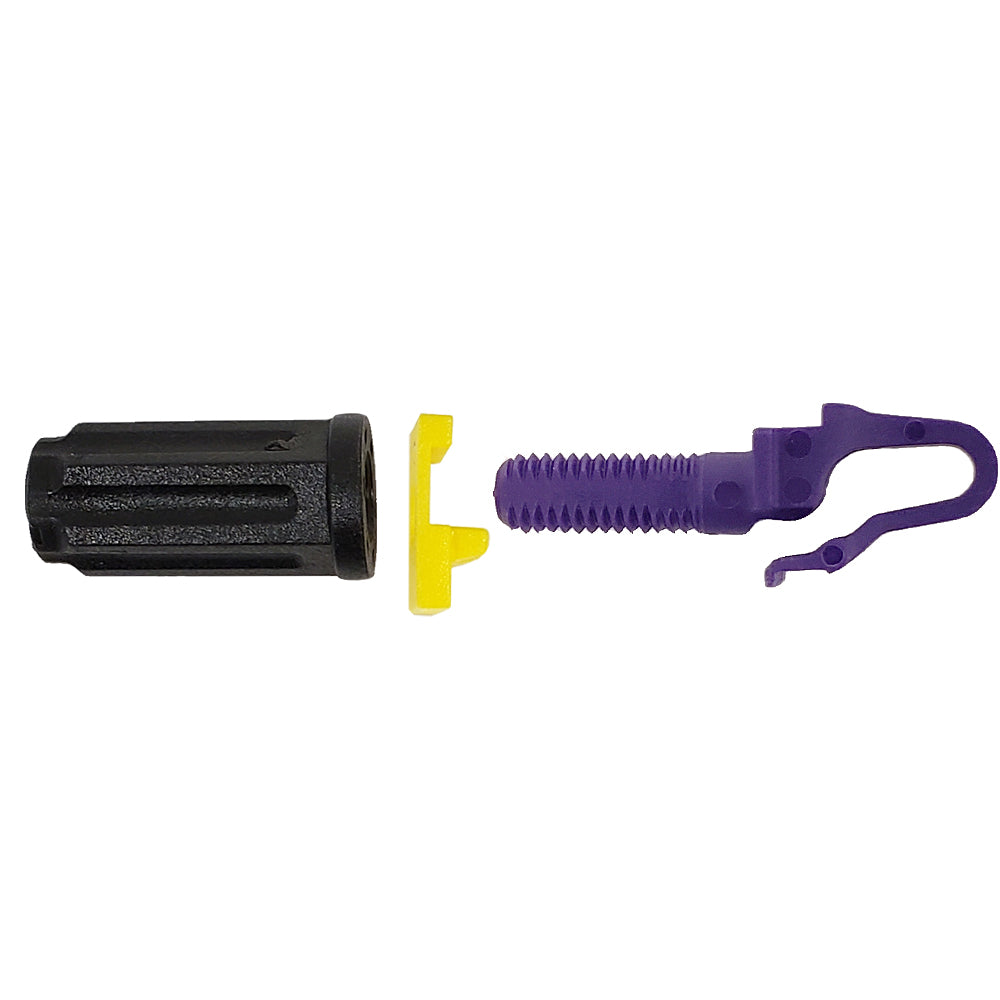

| Color | Purple Stud, Yellow Lock Washer, Black Nut |
| Stud Material | Grivory |
| Washer Material | PP |
| Nut Material | Glass Filled Nylon |
| Vertical Rail Hole | 9.2 to 9.89mm (0.362" to 0.389") |
| Vertical Rail Thickness | 2.7mm to 3.2mm (0.106" to 0.126") |
| Maximum Equipment Weight | 20kg (44lbs) |
| Push-In Force | 46kgs/101lbs |
| Pull-Out Force | 92kgs/202lbs |
| Shear Strength | 156kg/343lbs |
| Approvals | |
| SGS Labs | Yes |
| RoHS |
Yes |
| Reach |
Yes |
| Packaging Information | |

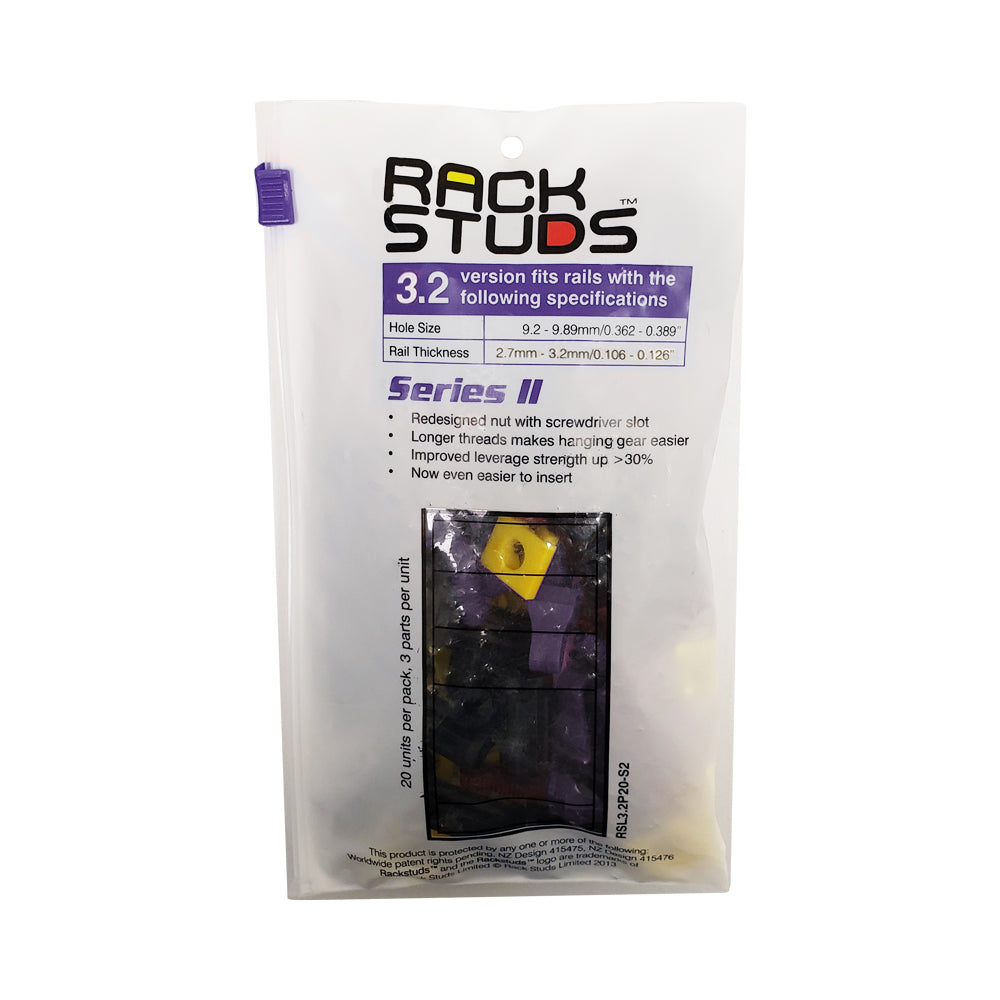

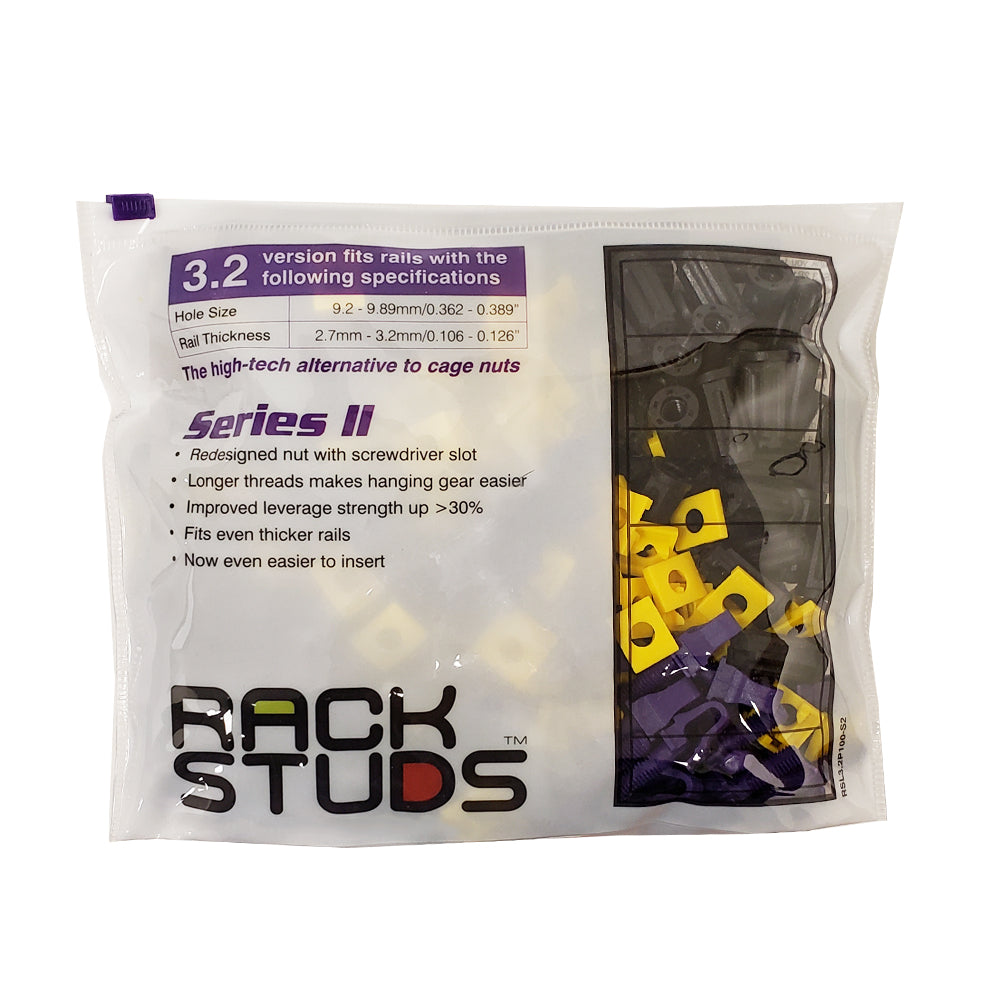

| Package Quantity | 20, 100 |
| Product Weight | 20 pack - 0.16 lbs [0.07 kg] 100 pack - 0.78 lbs [0.36 kg] |
Video
Product Weights
| SKU | Options | Weight |
| RM-RSL3.2P100-S2 | 100/Pack | 0.42 lb |
| RM-RSL3.2P20-S2 | 20/Pack | 0.16 lb |
