Premium Ultra-Thin LCD SVGA + 3.5mm Audio Cable HD15 Male to Male CL2/FT4 Rated

VGA CablesSKU: SVGA1A-03UT
Length: 3ft
Price:
$5.41 USD
Stock:
In stock

Description

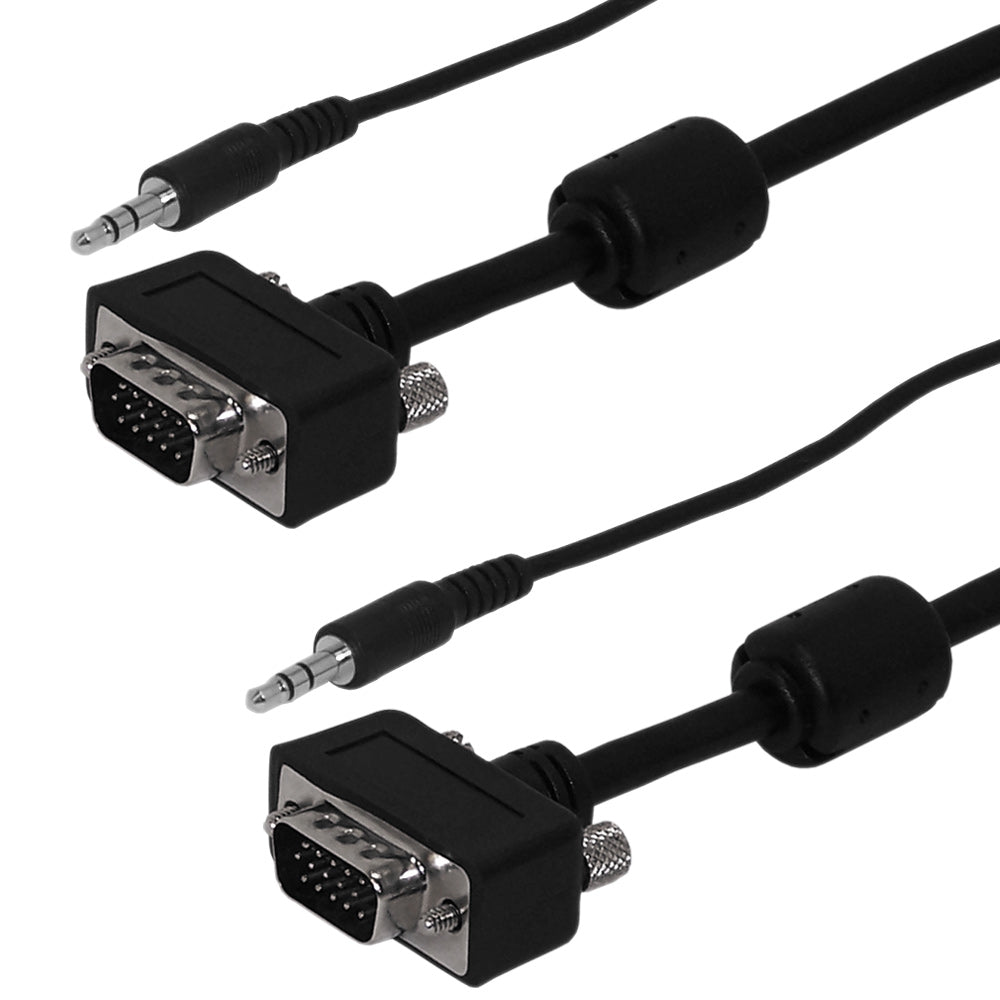

This ultra-thin SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA flat panel monitors.

  • Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
  • This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
  • Ferrite cores placed at either end of the cable further enhance the video quality
  • Fully CL2/FT4 fire rated for in-wall use

Physical Characteristics
Color Black
Connector Plating Nickel
Wire Gauge - Coax 3 - 30AWG Mini-Coax
Wire Gauge - Conductors 9 - 30AWG Conductors
Wire Gauge - Audio 2C - 30AWG Conductors
Cable Diameter 6.50 mm
Shielding AEB Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Connector A 1 - SVGA HD15 Male
1 - 3.5mm Stereo Male
Connector B 1 - SVGA HD15 Male
1 - 3.5mm Stereo Male
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Approvals
c(UL)us Approved Cable
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1 Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.25 lbs 0.40 lbs 0.55 lbs 0.70 lbs 1.05 lbs 1.40 lbs 1.90 lbs 2.70 lbs 3.50 lbs

Download attachment

REACH Certificate

RoHS Certificate

SKU Options Weight
SVGA1A-03UT 3ft 0.15 lb
SVGA1A-06UT 6ft 0.21 lb
SVGA1A-10UT 10ft 0.33 lb
SVGA1A-15UT 15ft 0.5 lb
SVGA1A-25UT 25ft 0.77 lb
SVGA1A-35UT 35ft 1.1 lb
SVGA1A-50UT 50ft 1.55 lb
SVGA1A-75UT 75ft 2.26 lb
SVGA1A-100UT 100ft 3.0 lb
