Description

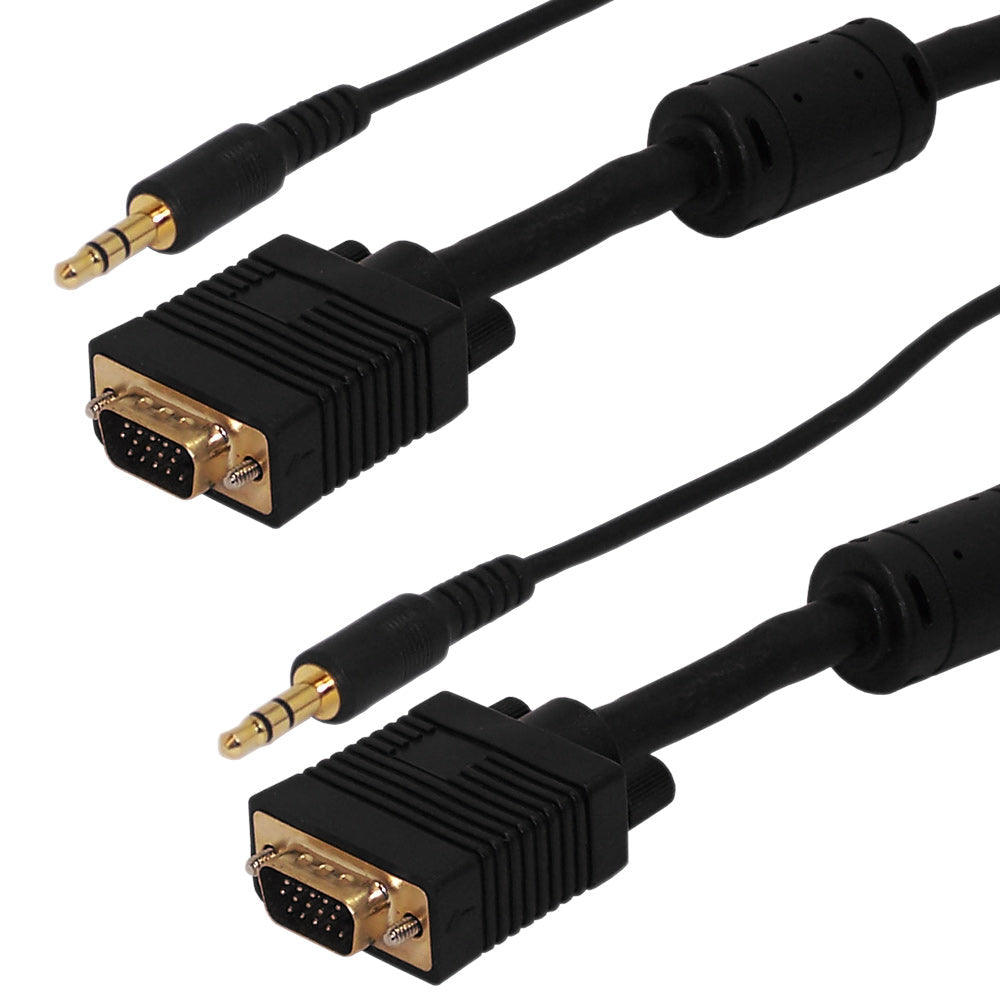

This SVGA cable consists of a HD15 male plus 3.5mm male on one end and a HD15 male plus 3.5mm male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as a VGA monitor.
- Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
- Fully CL2/FT4 fire rated for in-wall use
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors | 4.5 - 24AWG Pairs |
| Wire Gauge - Audio | 2C - 24AWG Conductors |
| Cable Diameter | 9.0 mm |
| Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | 1 - SVGA HD15 Male 1 - 3.5mm Male |
| Connector B | 1 - SVGA HD15 Male 1 - 3.5mm Male |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.15 lbs | 0.55 lbs | 0.75 lbs | 1.05 lbs | 1.45 lbs | 2.00 lbs | 2.15 lbs | 3.00 lbs | 3.50 lbs | 4.05 lbs | 6.00 lbs | 7.50 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| SVGA1A-01 | 1ft | 0.07 lb |
| SVGA1A-03 | 3ft | 0.15 lb |
| SVGA1A-06 | 6ft | 0.21 lb |
| SVGA1A-10 | 10ft | 0.33 lb |
| SVGA1A-15 | 15ft | 0.5 lb |
| SVGA1A-20 | 20ft | 0.63 lb |
| SVGA1A-25 | 25ft | 0.77 lb |
| SVGA1A-30 | 30ft | 0.95 lb |
| SVGA1A-35 | 35ft | 1.1 lb |
| SVGA1A-50 | 50ft | 1.55 lb |
| SVGA1A-75 | 75ft | 2.26 lb |
| SVGA1A-100 | 100ft | 3.0 lb |
