Description

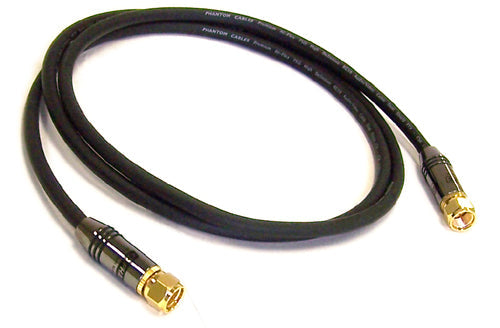

This premium coax cable consists of a F-Type male connector on both ends. It is typically used to connect a set-top box to a satellite dish or cable providers main feed.
- Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Durable cable jacket is ultra flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 6.15 mm |
| Wire Gauge | 22AWG Stranded Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | FT4 - Riser |
| Cable Shielding | 100% aluminum/mylar foil, plus a 95% tinned copper braid |
| Strain Relief | Compression Fit |
| Connector(s) | |
| Connector A | F-Type Male |
| Connector B | F-Type Male |
| Performance | |
| Impedance | 75ohm |
| Capacitance | 18.6 PF/FT |
| Velocity of Propagation | 78% |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs |
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TVCPH-03 | 3ft | 0.19 lb |
| TVCPH-06 | 6ft | 0.34 lb |
| TVCPH-10 | 10ft | 0.53 lb |
| TVCPH-15 | 15ft | 0.77 lb |
| TVCPH-25 | 25ft | 1.25 lb |
| TVCPH-35 | 35ft | 1.73 lb |
| TVCPH-50 | 50ft | 2.45 lb |
| TVCPH-75 | 75ft | 3.65 lb |
| TVCPH-100 | 100ft | 4.85 lb |
