Premium Phantom Cables Hi-Flex Double Shielded RG59 Composite BNC Cable Male to Female FT4
Premium Phantom Cables Hi-Flex Double Shielded RG59 Composite BNC Cable Male to Female FT4

Premium Phantom Cables Hi-Flex Double Shielded RG59 Composite BNC Cable Male to Female FT4

BNC CablesSKU: BNC1PH3-03
Length: 3ft
Price:
$13.00 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com For a more detailed lead-time, please contact us via phone 1-866-207-6442 or email sales@infinitecables.com.

Description

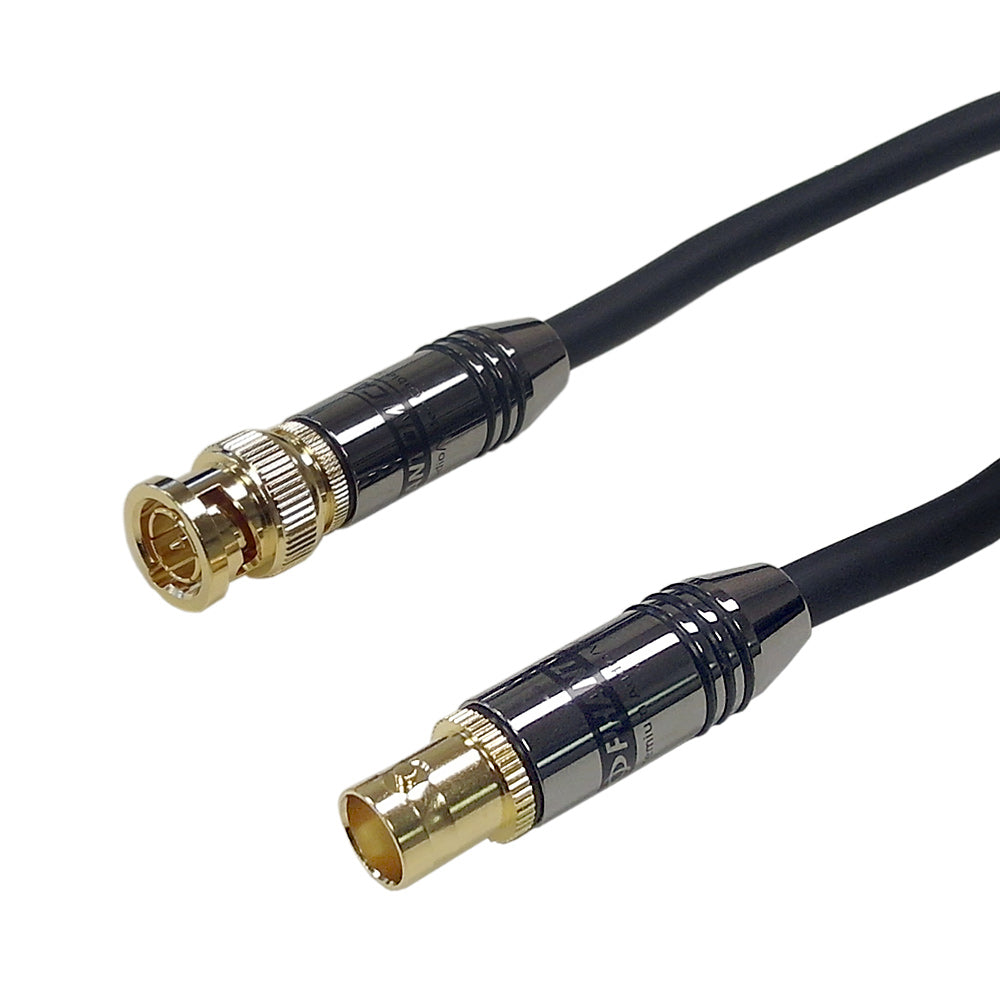

This premium hi-flex double shielded RG59 cable consists of a BNC male connector on one end and a BNC female on the other end. It is typically used to extend a composite video cable.

  • Constructed of low-loss, High Definition 75 ohm RG59 stranded cable
  • Gas injected dielectric insulation allows for a stable velocity of propagation (82%) therefore minimizing possible timing delays
  • Cables nominal capacitance is an exceptional 16.2 pf/ft (53.1 pf/m) and has a nominal attenuation of 3.00 dB/100ft
  • The cable also boasts a conductor resistance of 14.8 Ohms/1000ft
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • High quality, gold plated, soldered connectors optimizes connectivity and maintains a clear signal integrity
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity

Physical Characteristics
Color Black
Connector Plating Gold
Cable Diameter 22AWG Stranded
Cable Type RG59
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 95% Bare Copper Braid, 100% Aluminum Mylar Foil
Insulation Foam Polyethylene
Strain Relief Metal Shell
Performance
Impedance 75 Ohm
Velocity of Propagation 78%
Capacitance 18.6 PF/FT
Connector(s)
Connector A 1 - BNC Male
Connector B 1 - BNC Female
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Packaging Information
Package Quantity 1 - Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.40 lbs 0.55 lbs 0.75 lbs 1.00 lbs 1.50 lbs 2.00 lbs 2.75 lbs 4.00 lbs 5.25 lbs

Download attachmen

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@phantomcables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
BNC1PH3-03 3ft 0.19 lb
BNC1PH3-06 6ft 0.34 lb
BNC1PH3-10 10ft 0.53 lb
BNC1PH3-15 15ft 0.77 lb
BNC1PH3-25 25ft 1.25 lb
BNC1PH3-35 35ft 1.73 lb
BNC1PH3-50 50ft 2.45 lb
BNC1PH3-75 75ft 3.65 lb
BNC1PH3-100 100ft 4.85 lb
