Description

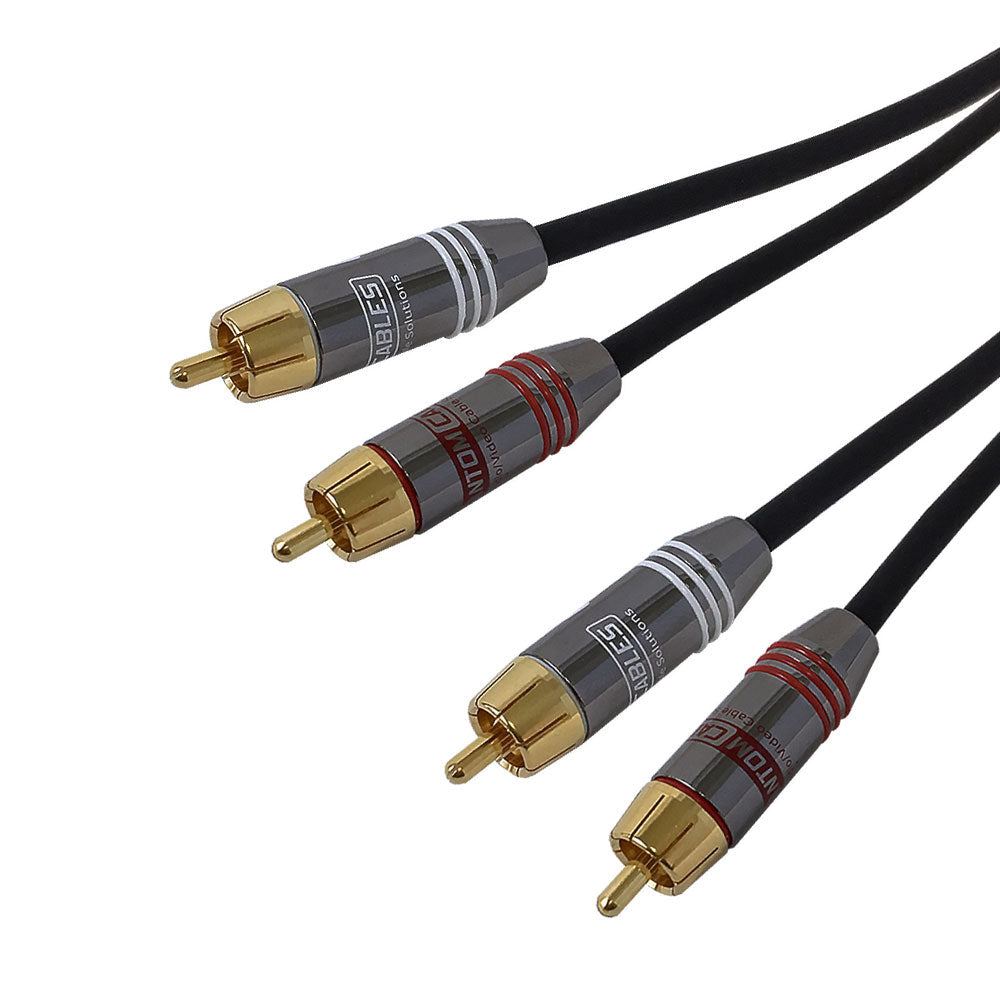

This cable has RCA red and white male connectors on each end. It is typically used to connect left/right analog audio channels from a source to an output speaker.
- 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
- Constructed of "Siamese" cable for easy installation of left and right audio
- Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethylene insulation around center conductors
- 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors allows for extra flexible cables
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Red/White |
| Connector Plating | Gold |
| Cable Diameter | 5.00mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | RCA Red/White Male |
| Connector B | RCA Red/White Male |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.45 lbs | 0.5 lbs | 0.80 lbs | 1.00 lbs | 1.35 lbs | 2.00 lbs | 2.65 lbs | 3.65 lbs | 5.30 lbs | 7.00 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| RCA2-01.5 | 1.5ft | 0.11 lb |
| RCA2-03 | 3ft | 0.5 lb |
| RCA2-06 | 6ft | 0.34 lb |
| RCA2-10 | 10ft | 0.53 lb |
| RCA2-15 | 15ft | 0.77 lb |
| RCA2-25 | 25ft | 1.25 lb |
| RCA2-35 | 35ft | 1.73 lb |
| RCA2-50 | 50ft | 2.45 lb |
| RCA2-75 | 75ft | 3.65 lb |
| RCA2-100 | 100ft | 4.85 lb |
