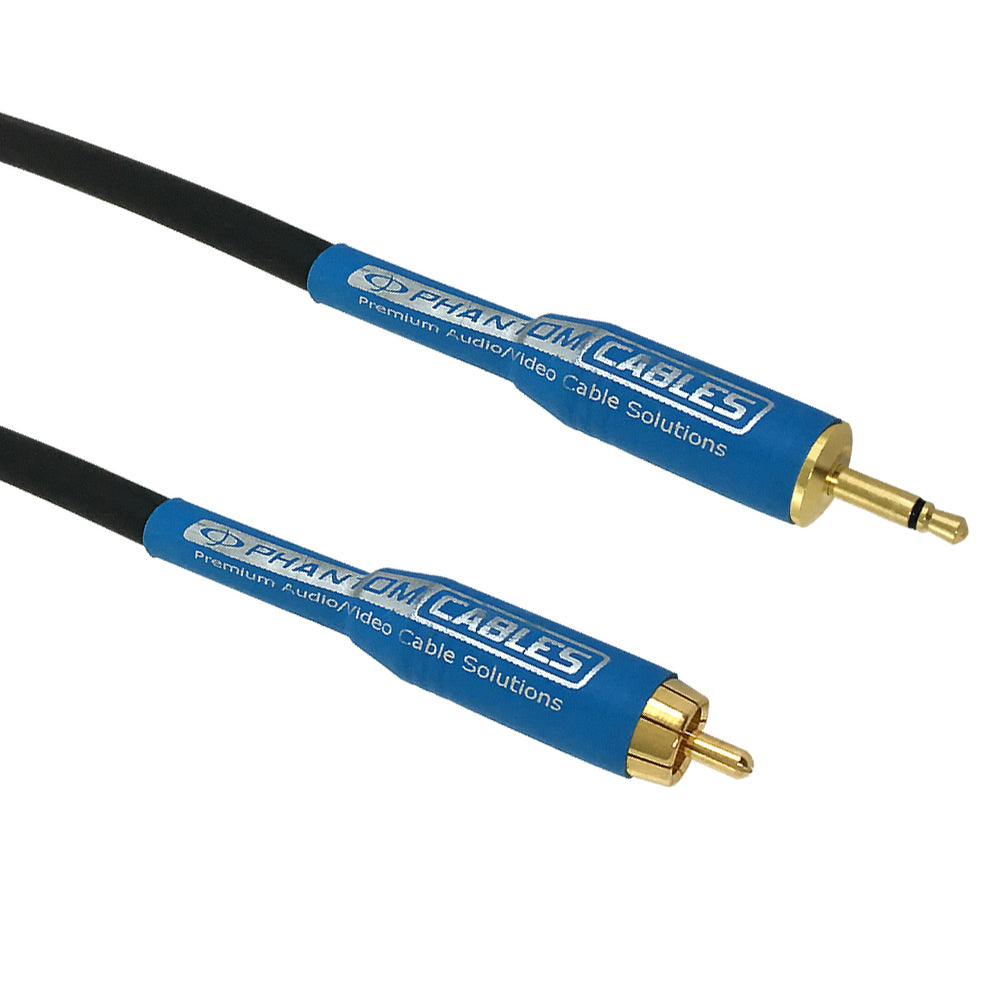

Premium Phantom Cables Digital Coax RCA To 3.5mm Male Cable 18AWG FT4
Premium Phantom Cables Digital Coax RCA To 3.5mm Male Cable 18AWG FT4

Premium Phantom Cables Digital Coax RCA Male To 3.5mm Male Cable 18AWG FT4

Digital Coax CablesSKU: DIG-35MM-01.5
Length: 1.5ft
Price:
$10.96 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities ship out same day or next day. Contact us for details: sales@infinitecables.com For a more detailed lead-time, please contact us via phone 1-866-207-6442 or email sales@infinitecables.com.

Description

This digital audio cable has a RCA male on one end and a 3.5mm mono male on the other. It is typically used to connect a 3.5mm digital audio output of a PC to digital coax RCA input of surround sound system.

  • Constructed of double shielded, 75 ohm, RG6, 18 awg, digital coax cable for ultra crisp sounding digital audio
  • FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
  • High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
  • The connector backshells are made of a durable, zinc plated metal alloy
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Connector Plating Gold
Cable Type RG6
Cable Diameter 6.86mm
Wire Gauge 18AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding Dual Shielding 100% Aluminum/Mylar Foil, Plus a 95% Tinned Copper Braid
Connectors
Connector A RCA Male
Connector B 3.5mm Mono Male
Connector A Diameter 12.7 mm
Connector B Diameter 12.7 mm
Approvals
cUL Yes - Cable
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1.5ft 3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.35 lbs 0.40 lbs 0.55 lbs 0.75 lbs 1.00 lbs 1.50 lbs 2.00 lbs 2.75 lbs 4.00 lbs 5.25 lbs

Download attachment

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@phantomcables.com. One of our sales reps will be able to provide an accurate lead-time.

Product Weight

1.5ft
DIG-35MM-01.5
0.11 lb
3ft
DIG-35MM-03
0.19 lb
6ft
DIG-35MM-06
0.34 lb
10ft
DIG-35MM-10
0.53 lb
15ft
DIG-35MM-15
0.77 lb
25ft
DIG-35MM-25
1.25 lb
35ft
DIG-35MM-35
1.73 lb
50ft
DIG-35MM-50
2.45 lb
75ft
DIG-35MM-75
3.65 lb
100ft
DIG-35MM-100
4.85 lb
