Premium Phantom Cables 3-Pin XLR DMX Male To Male Cable

DMX Lighting CablesSKU: DMX-3MM-01.5
Length: 1.5ft
Price:
$10.37 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com For a more detailed lead-time, please contact us via phone 1-866-207-6442 or email sales@infinitecables.com.

Description

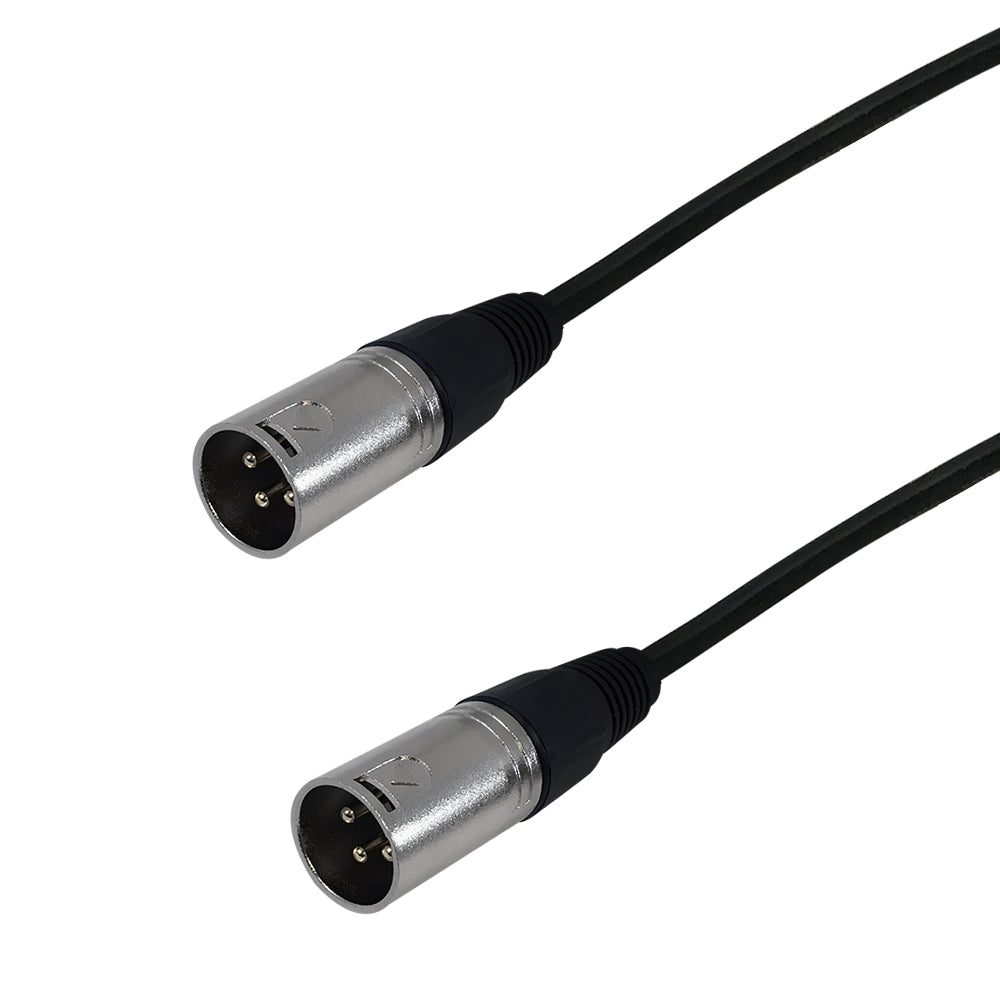

This premium 3-pin DMX lighting cable has a 3-pin XLR male on one end and a 3-pin XLR male on the other. It is typically used to control stage lighting and effects.

  • Constructed true 110 ohm cable for quick response time movement
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • 100% aluminum/mylar foil shield for superior EMI and RFI rejection
  • High quality, heavy duty premium strain relief connectors optimizes connectivity and maintains a clear signal integrity
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
  • Standard Color Kinetics Color BlastĀ® pinout.
Physical Characteristics
Shielded 100% aluminum/mylar foil shield, 85% Braid
Color Black Cable, Nickel Plated Connectors, Gold Plated Pins
Cable Diameter 7.1mm
Cable Temperature Rating -30 deg C to 75 deg C
Performance
Impedance 110 Ohms
Connectors
Connector A 3-pin XLR Male
Connector B 3-pin XLR Female
Packaging Information
Packaging Quantity 1 Cable
Warranty Information
Warranty Lifetime Limited
Cable Weights
1.5ft 3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.30 lbs 0.35 lbs 0.45 lbs 0.55 lbs 0.70 lbs 1.00 lbs 1.30 lbs 1.75 lbs 2.75 lbs 3.52 lbs

Download attachment

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@phantomcables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
DMX-3MM-01.5 1.5ft 0.11 lb
DMX-3MM-03 3ft 0.19 lb
DMX-3MM-06 6ft 0.34 lb
DMX-3MM-10 10ft 0.53 lb
DMX-3MM-15 15ft 0.77 lb
DMX-3MM-25 25ft 1.25 lb
DMX-3MM-35 35ft 1.73 lb
DMX-3MM-50 50ft 2.45 lb
DMX-3MM-75 75ft 3.65 lb
DMX-3MM-100 100ft 4.85 lb
