Description

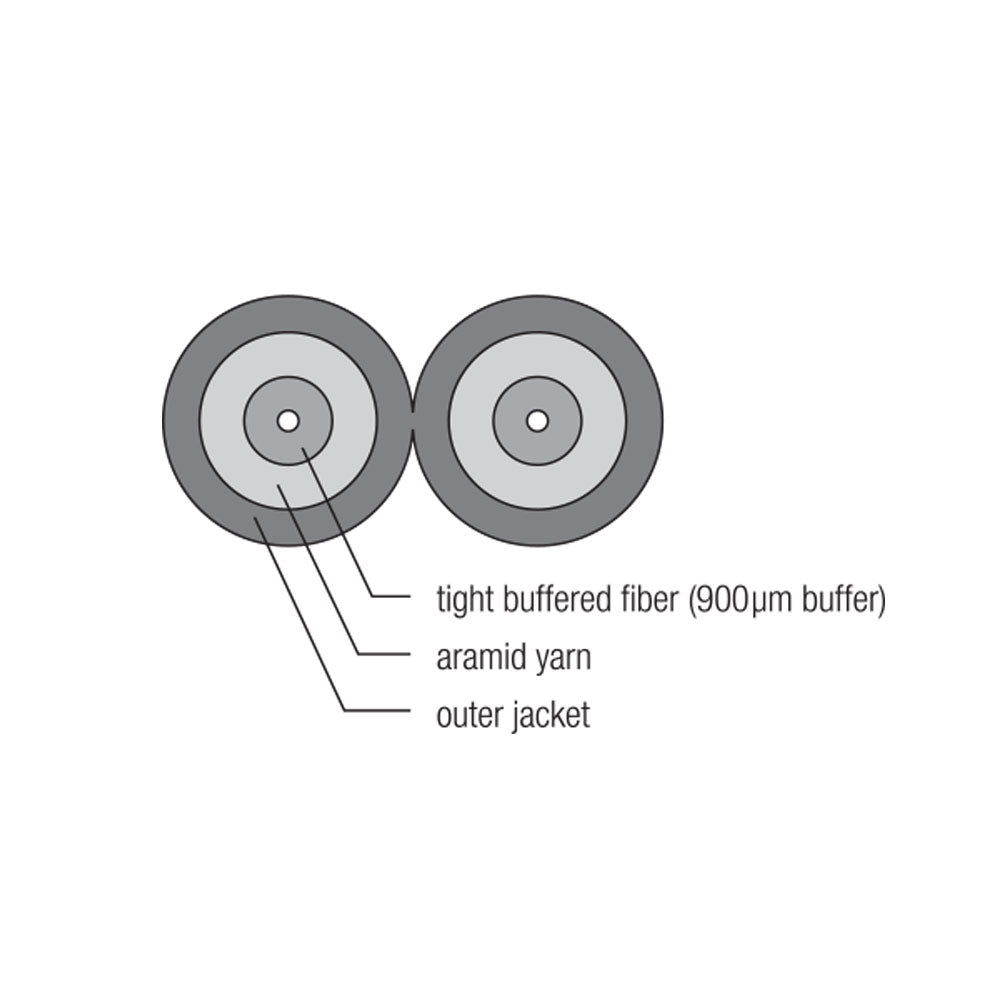

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | Zipcord 3.0 Multimode 62.5/125 micron |
| Fiber Core Diameter | 62.5 micron Ā± 3.0 micron |
| Bandwidth Range | @850 > 160 MHz/km @1310 > 500 MHz/km |
| Attenuation Range | @850nm 3.0dB/km @1310nm 1.0dB/km |
| Maximum Tensile Load | Short Term, N 500 Long Term, N 300 |
| Minimum Bending Radius | Load 50mm Unload 30mm |
| Fiber Count | 2C |
| Tight Buffer Diameter | 0.9 micron Ā±0.05 |
| Cable Diameter | 3mm |
| Fire Rating | LSZH jacket meet IEC 60332-3C and OFNR |
| Uniformly Distributed | Kevlar |
| Operating Temperature | -20 ā ~ +60 ā |
| Environmental | |
| RoHS | Compliant |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F2Z-OM1C-LR | 0.03 lb |
