Description
- Description
- Spec Sheets
- Lead-time
- Product Weights

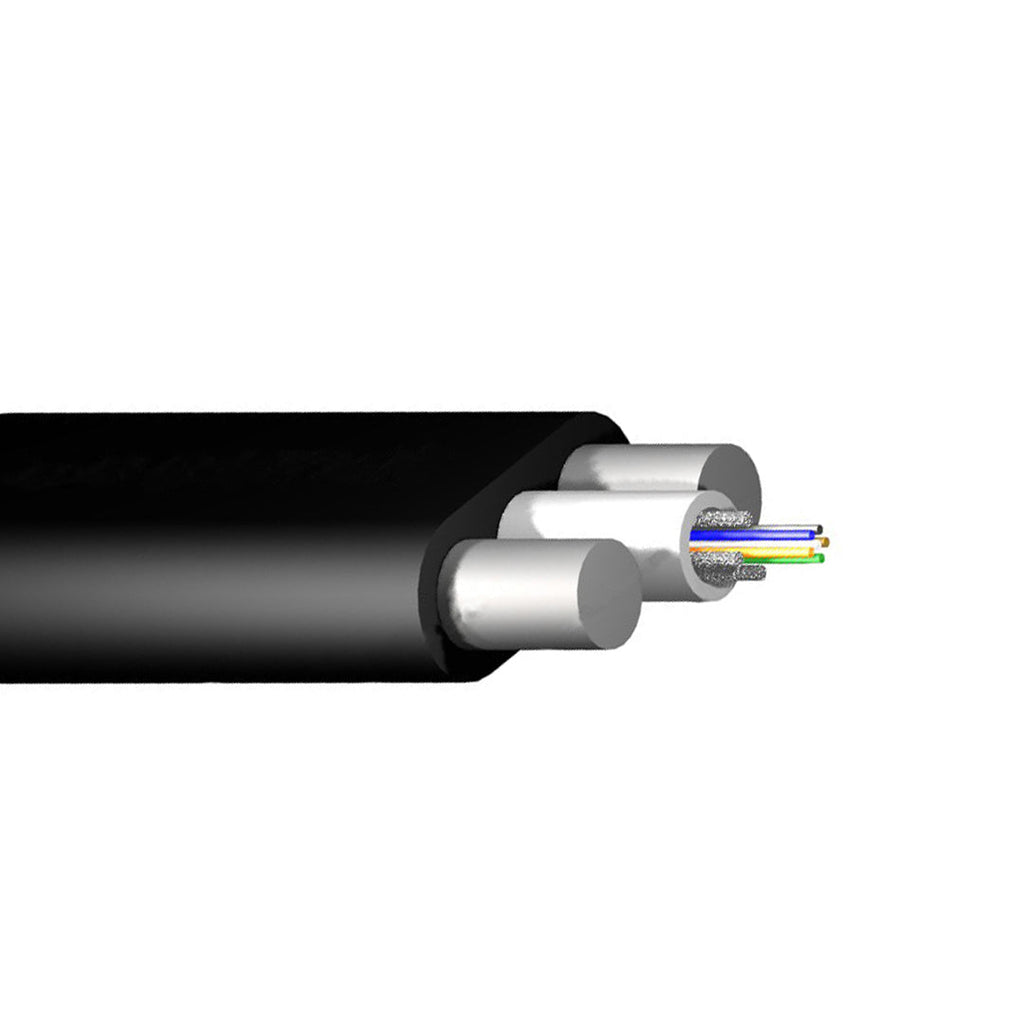

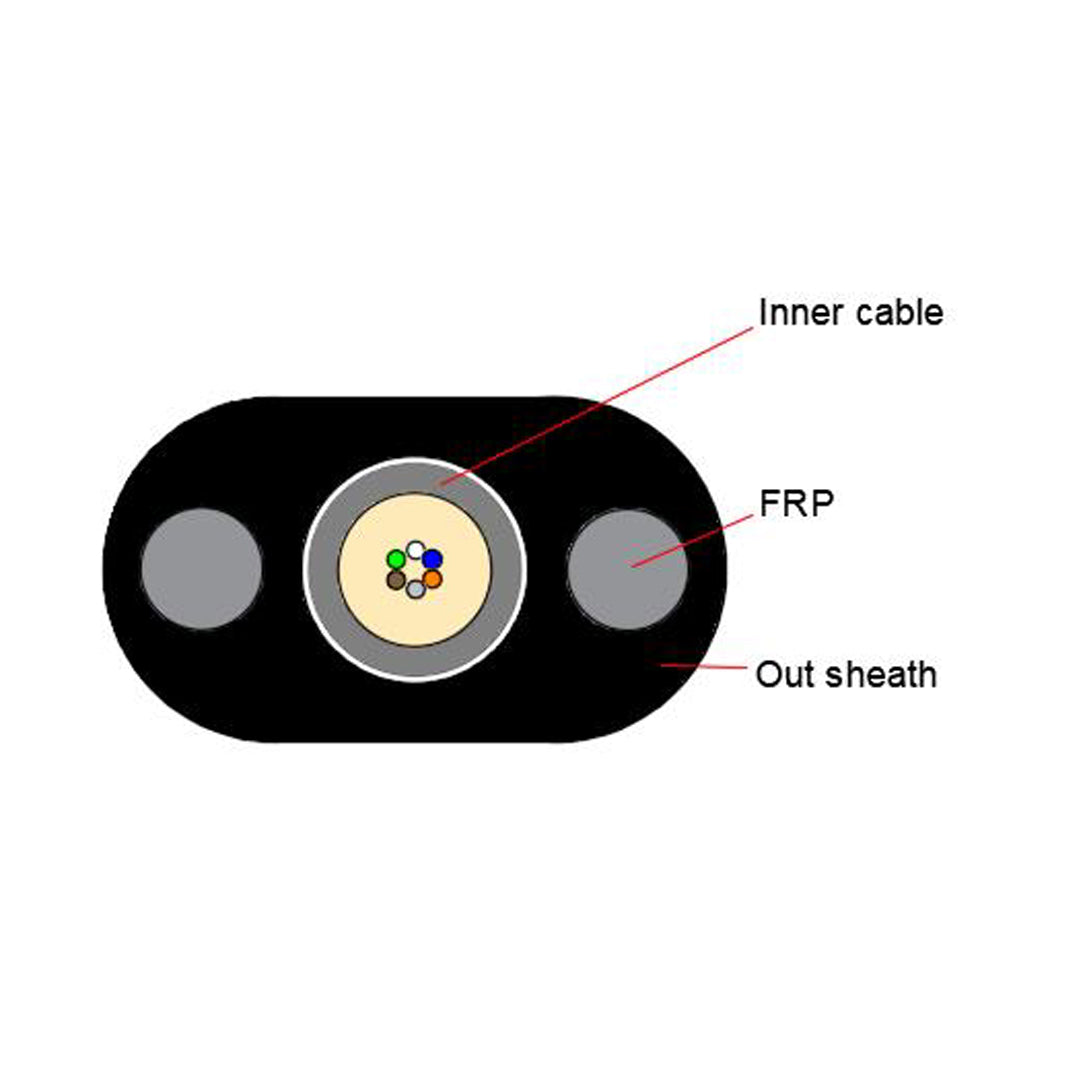

This bulk OS2 singlemode fiber cable is outside plant drop cable with a polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self-supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 Singlemode 9 Micron Outdoor Dielectric Dry Flat Drop Cable |
| Fiber Count | 1-Strand/2-Strand/6-Strand |
| Glass Fiber |
Corning G657A1 |
| Outer Jacket Material |
PE |
| Dielectric Strength Member |
Fiberglass Reinforced Plastic (FRP) Diameter: 1.6mm |
| Central Tube |
Low Smoke Zero Halogen (LSZH) Diameter : 2.5mm |
| Nominal Diameter |
8.0/4.5mm |
| Bend Radius |
Installation : 15D |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Crush | 3000N/100mm |
| Performance | |
| Attenuation (Maximum) | 0.4dB/km @1550nm |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
| SKU | Options | Weight |
| BK-F1FD-SM | 1-Strand | 0.08 lb |
| BK-F2FD-SM | 2-Strand | 0.08 lb |
| BK-F6FD-SM | 6-Strand | 0.08 lb |
