Description

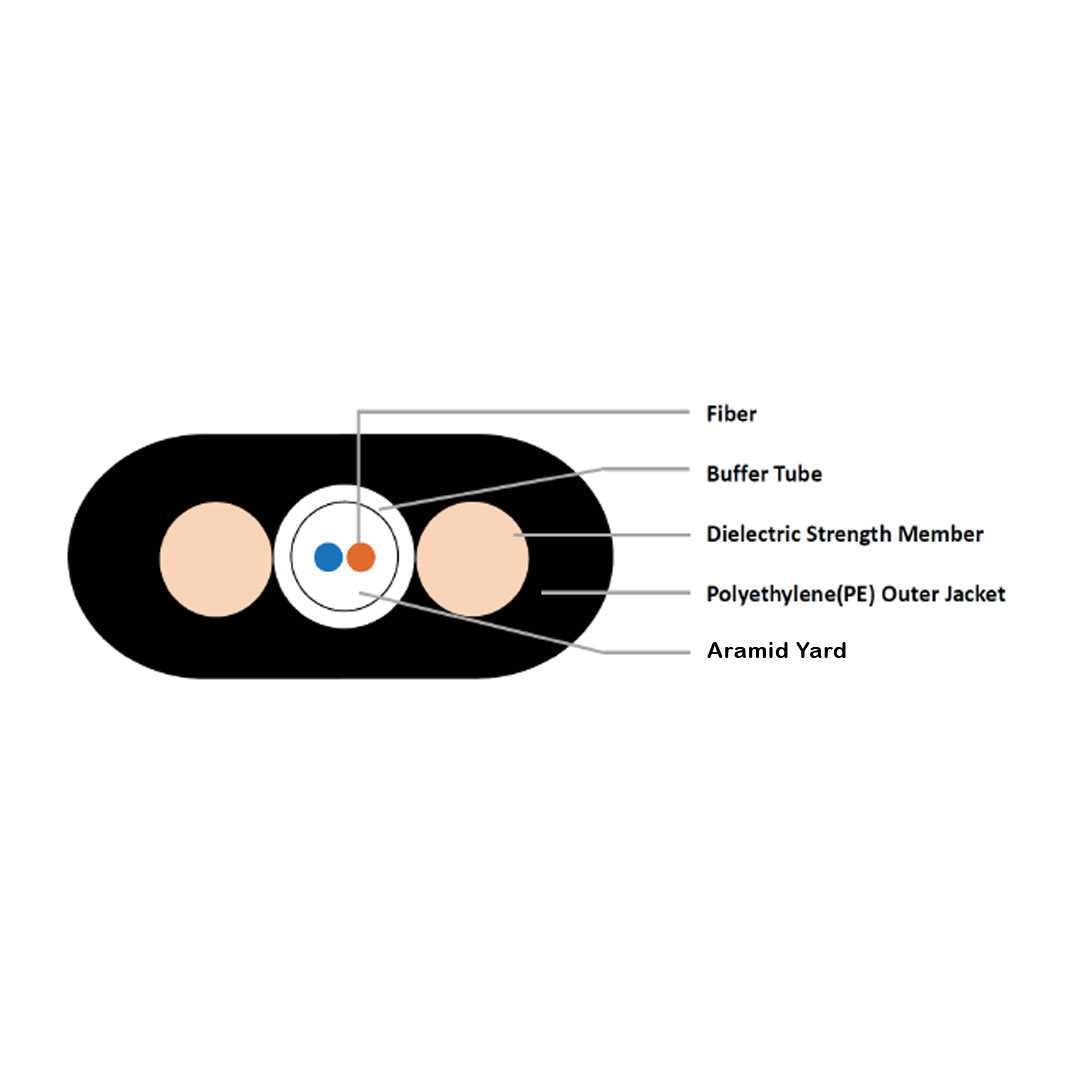

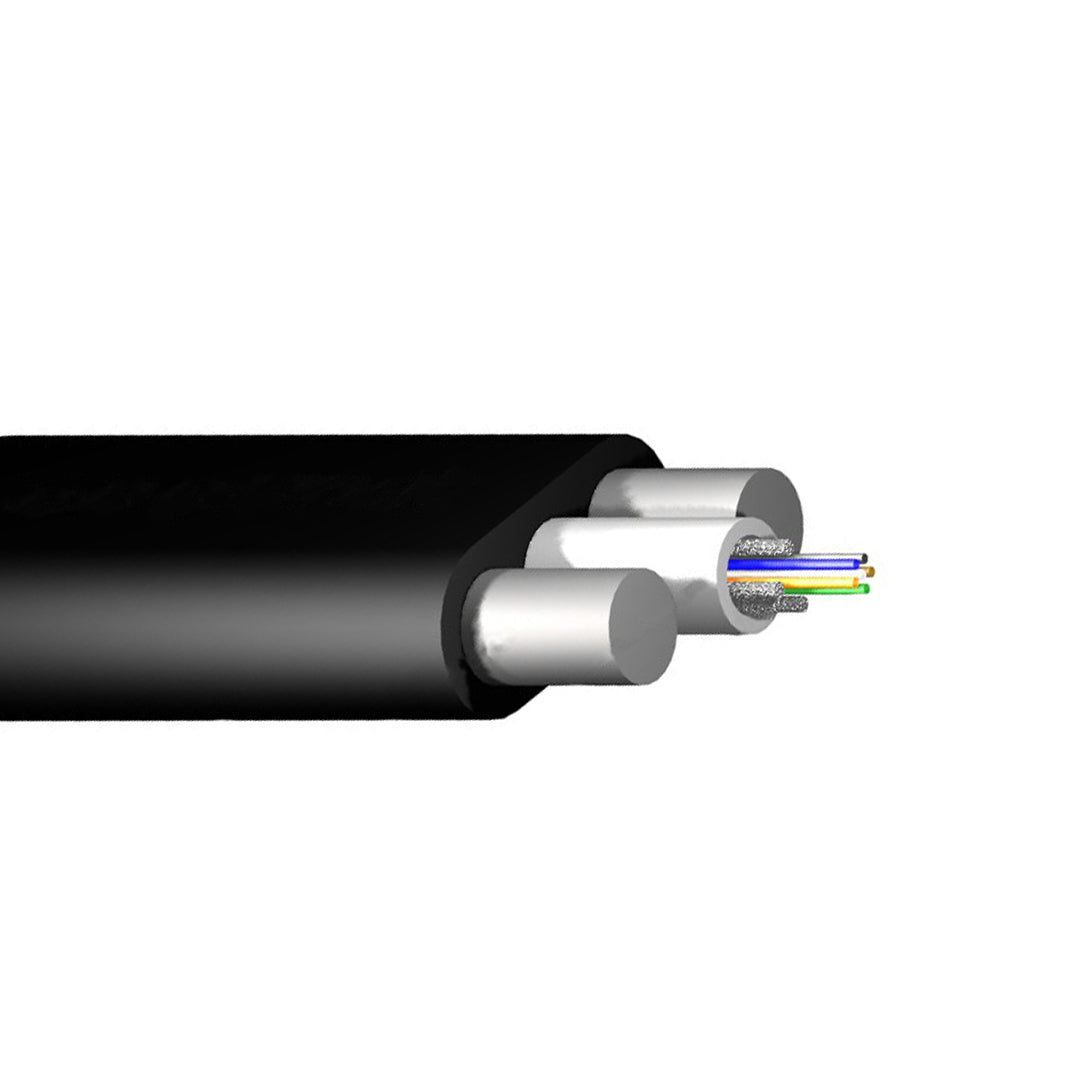

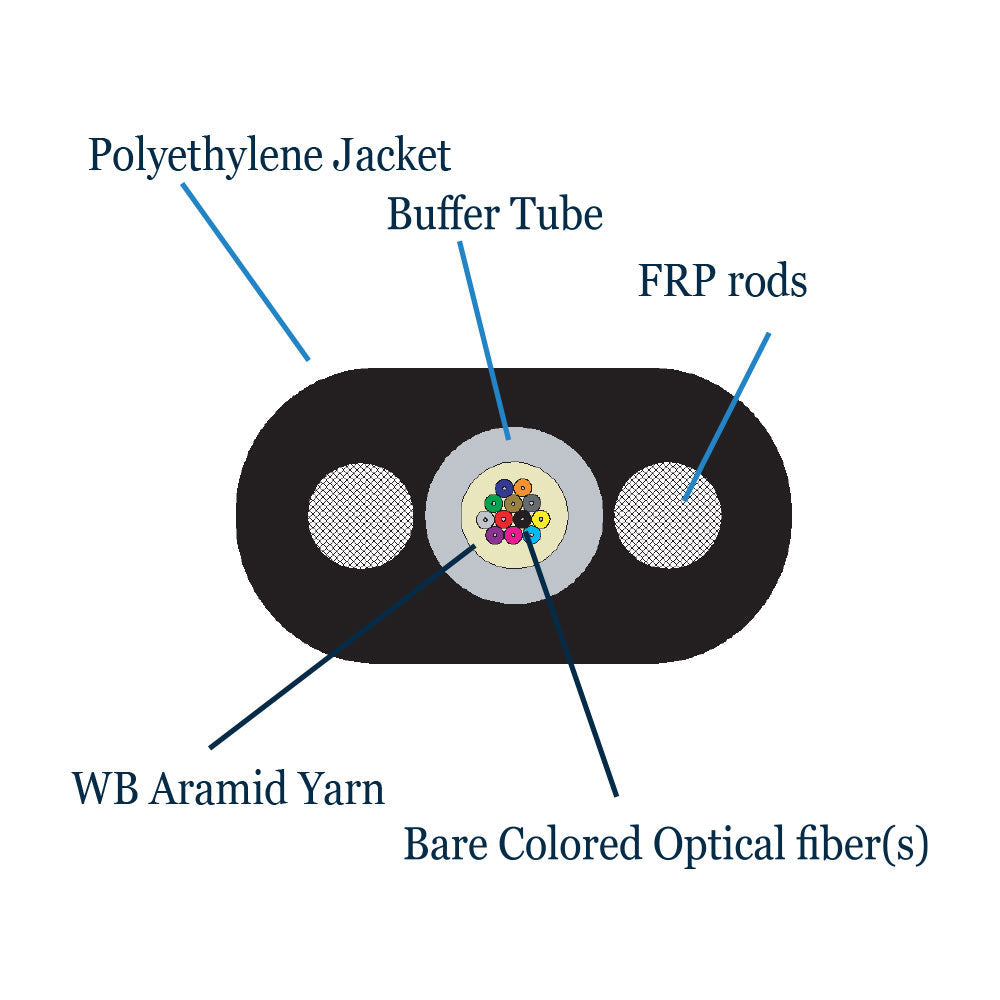

This bulk OS2 singlemode fiber cable is outside plant drop cable with a UV resistant polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self-supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 Singlemode 9 Micron Outdoor Dielectric Dry Flat Drop Cable |
| Fiber Count | 1-Strand |
| Glass Fiber |
Corning |
| Outer Jacket Material |
UV Resistant Polyethylene |
| Dielectric Strength Member |
Fiberglass Reinforced Plastic (FRP) Diameter: 1.5mm x 2 |
| Central Tube |
Polybutylene Terephthalate (PBT) Diameter : 2.5mm |
| Nominal Diameter |
8.0/4.5mm (1-Strand) |
| Bend Radius |
16cm (1-Strand) |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Pull strength (operational) | 300lbs |
| Pull strength (installation) | 1000lbs |
| Maximum unsupported span | 124ft with 1% sag in heavy load zone |
| Performance | |
| Attenuation (Maximum) | 0.4dB/km @1550nm |
| Numerical Aperture |
0.14 |
| Mode-Field Diameter[1310/1550nm] |
9.2/10.4um |
| Certification(s) | |
| EU |
Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F1FD-SM-T | 0.08 lb |
