Description
This bulk OS2 singlemode fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside/outside plant environments.
Features
- 900µm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNP rated construction
- Exclusive use of Corning® optical fibers
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 9 micron Singlemode Plenum Indoor/Outdoor Tight Buffered Cable |

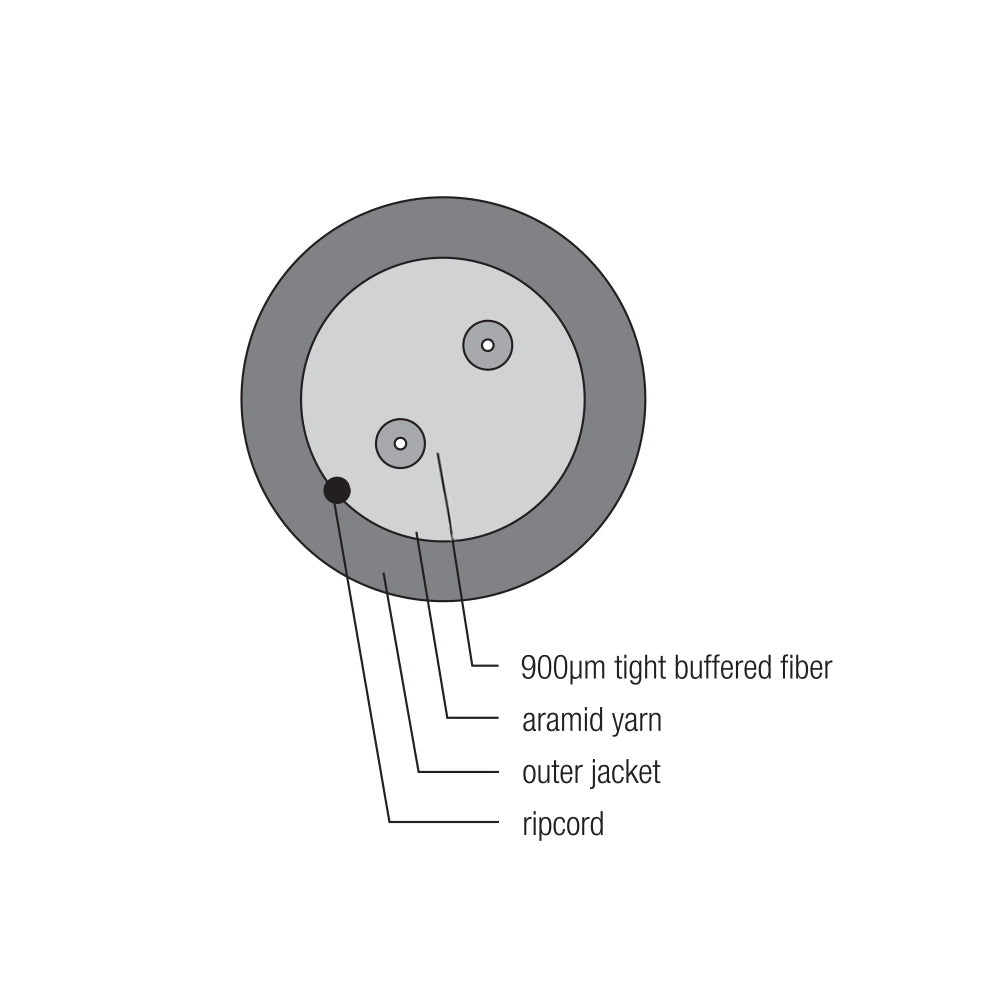

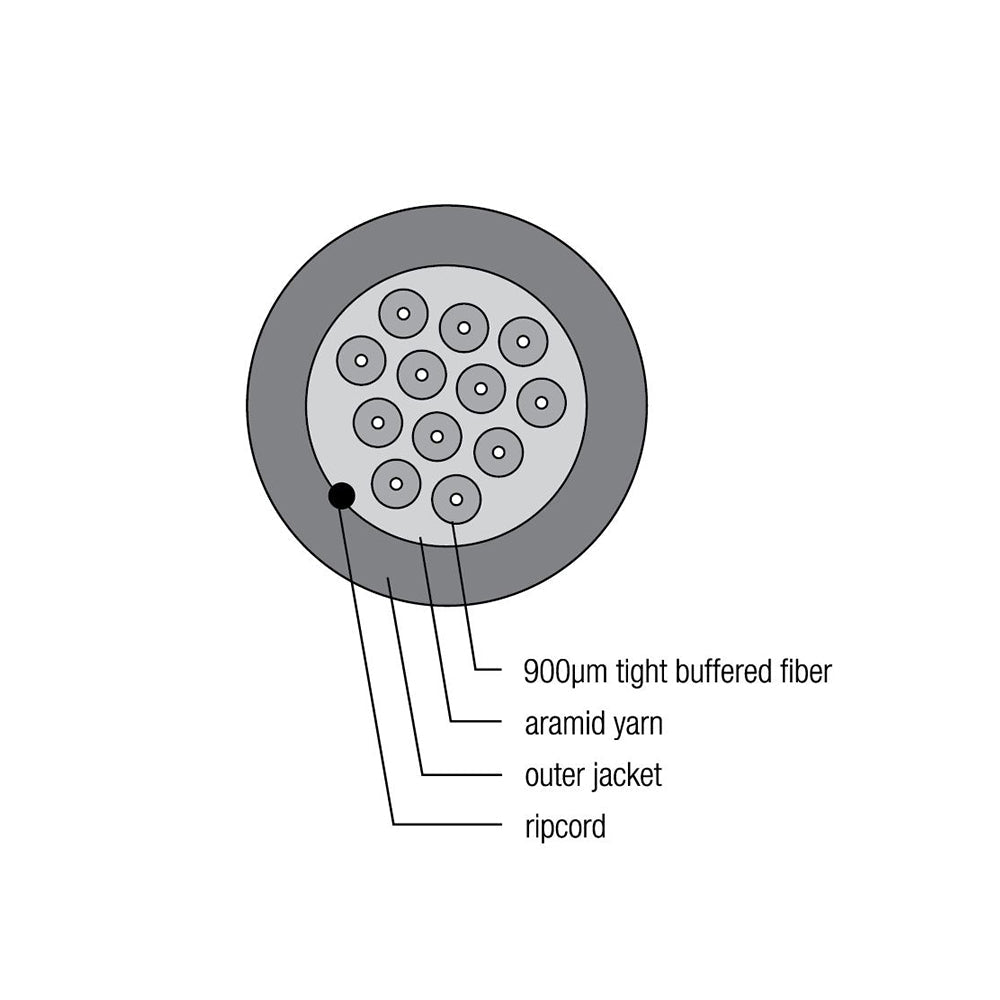

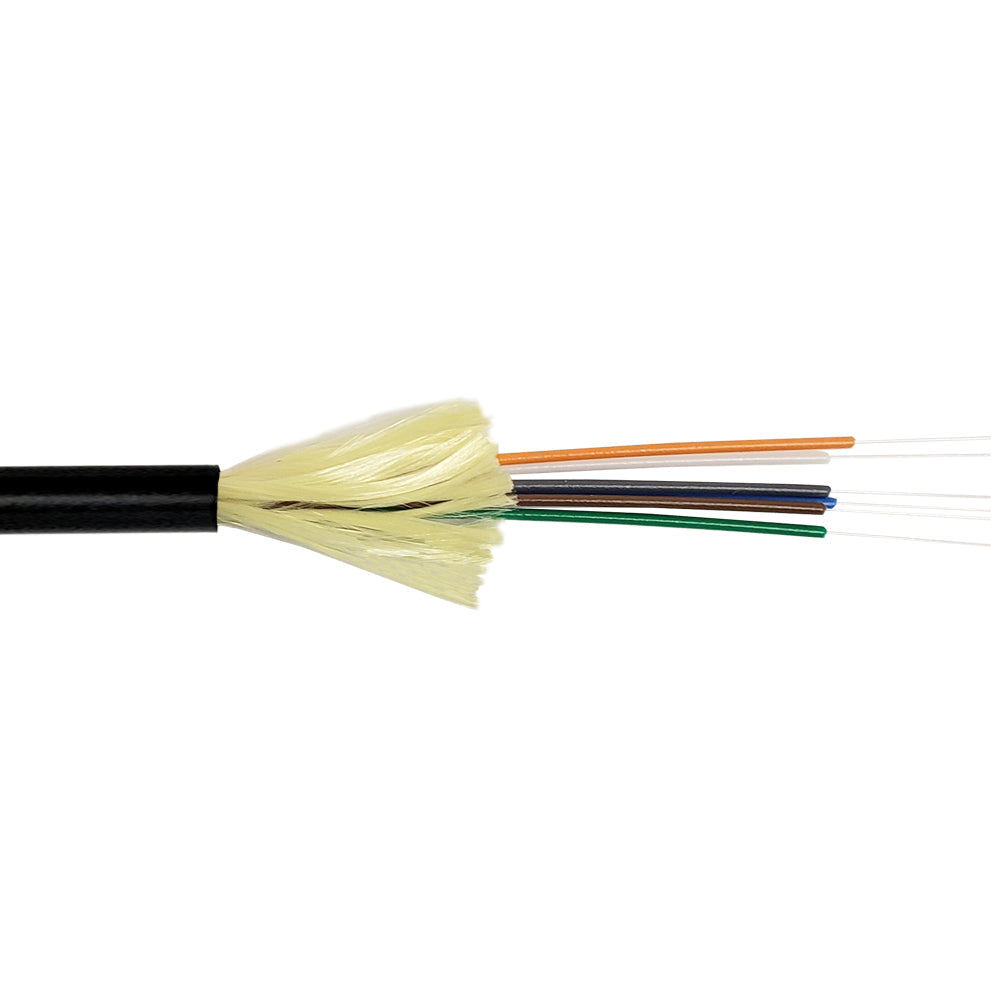

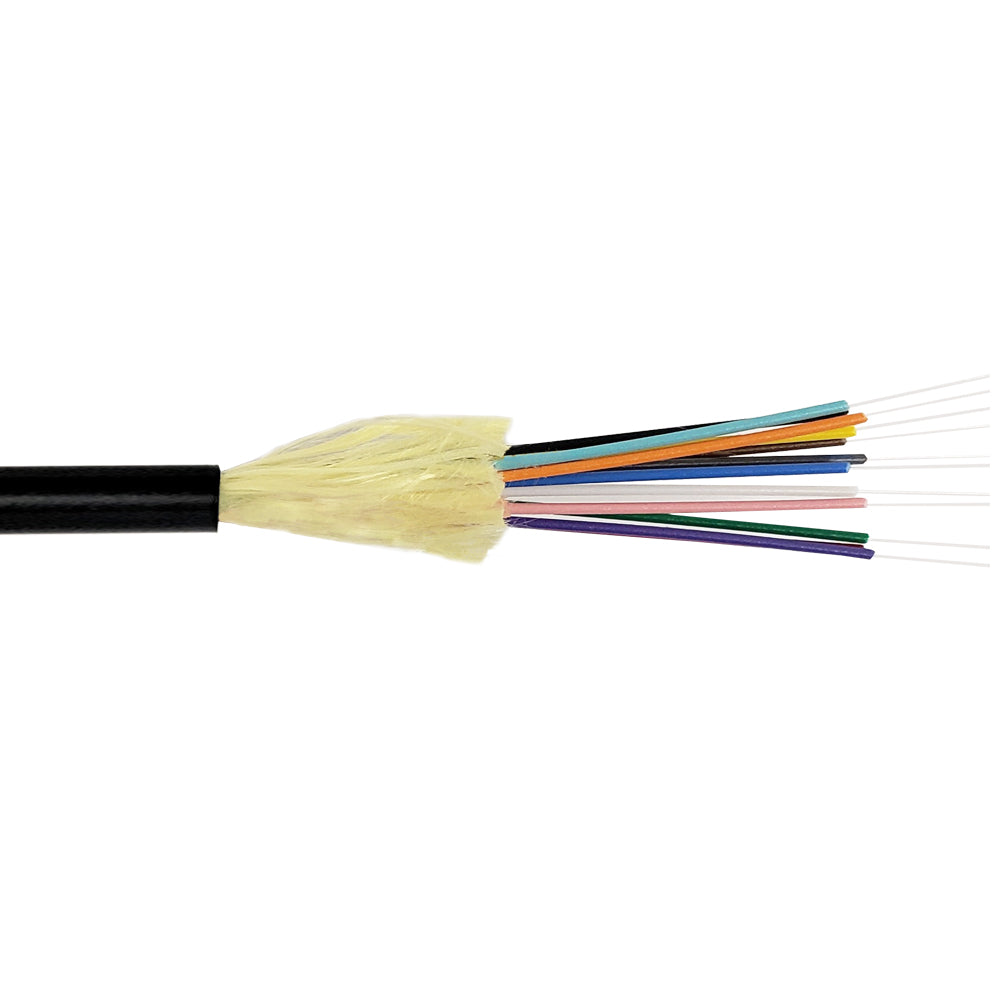

| Fiber Count | 2-Strand / 6-Strand / 12-Strand |
| Glass Fiber |
Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Outer Jacket Material |
Flame Retardant PVC, UV Resistant |
| Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Nominal Diameter |
4.4mm (2-Strand) 4.8mm (6-Strand) 5.8mm (12-Strand) |
| Minimum Bend Radius Installation |
6.6cm (2-Strand) 7.2cm (6-Strand) 8.7cm (12-Strand) |
| Minimum Bend Radius Operation |
4.4cm (2-Strand) 4.8cm (6-Strand) 5.8cm (12-Strand) |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Performance | |
| Wavelength | 1310 / 1550nm |
| Max Attenuation | 0.5 / 0.4 dB/km |
| Fire Rating | OFNP Plenum, FT6 |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Options | Weight |
| BK-F2IO-SM-P-T | 2-Strand | 0.04 lb |
| BK-F6IO-SM-P-T | 6-Strand | 0.05 lb |
| BK-F12IO-SM-P-T | 12-Strand | 0.08 lb |
