Description

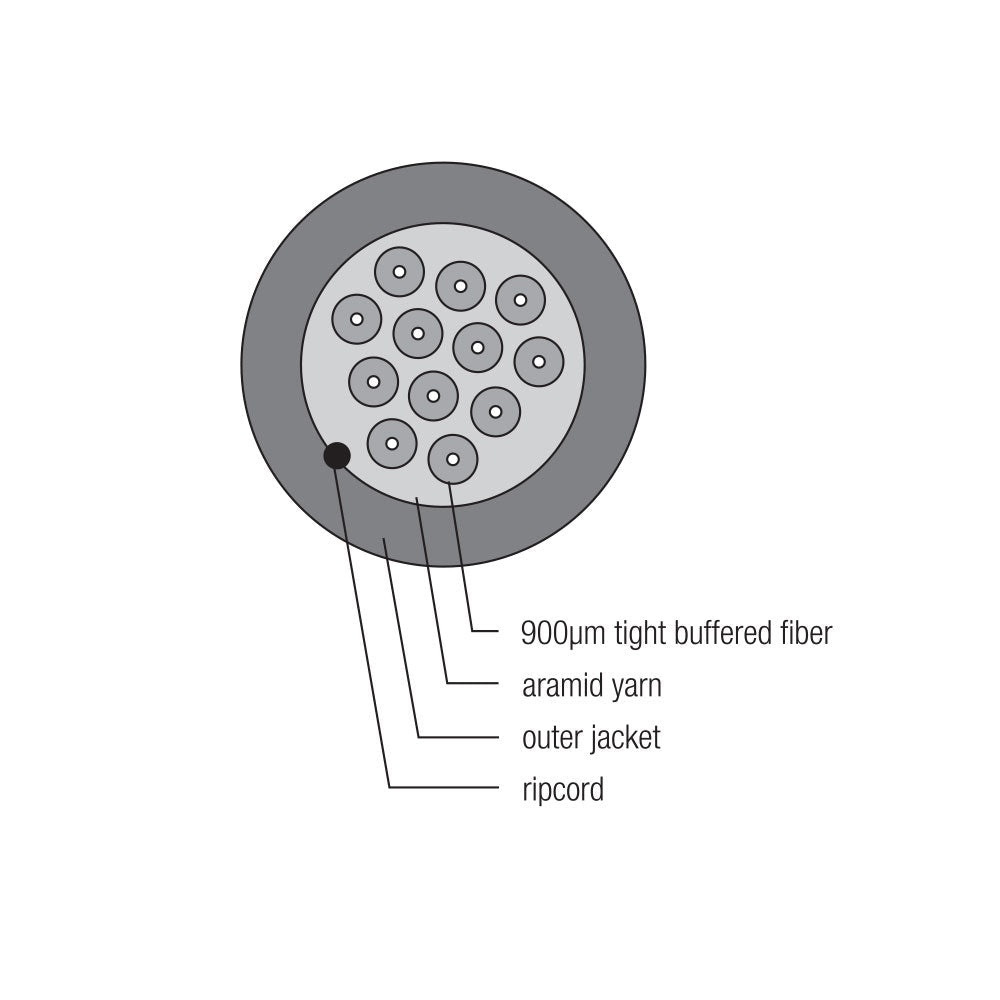

This bulk OS2 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments.
Features
- Tested to meet or exceed ICEA-S-83-596, GR-409-I2, CSA 22.2#232, UL 1666.
- ITU-T G.652.D compliant and fully backwards compatible.
- Exceeds the ITU-T Recommendation G.657.A1 standard.
- Applications include: riser, general inside plant, routing between communications closets and equipment rooms, intra-building backbones.
- Compliant to Directive 2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9 micron Singlemode Riser Indoor Tight Buffered Cable |
| Fiber Count | 6-Strand/12-Strand/24-Strand |
| Glass Fiber | Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.8mm (6-Strand) 5.8mm (12-Strand) 7.8mm (24-Strand) |
| Bending Radius(Installation) | 7.2cm (6-Strand) 8.7cm (12-Strand) 11.8mm (24-Strand) |
| Bending Radius(Long Term) | 4.8cm (6-Strand) 5.8cm (12-Strand) 7.8mm (24-Strand) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Attenuation Range | @1310nm 0.5dB/km @1550nm 0.4dB/km |
| Gigabit Ethernet Min. Link Distance | 1300nm = 5000 |
| 10 Gigabit Ethernet Min. Link Distance | 1310nm = 10000 1550nm = 5000 |
| Fire Rating | OFNR, FT4 |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Certification(s) | |
| UL | Compliant |
| REACH | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Options | Weight |
| BK-F12CP-SM-R-T | 12-Strand | 0.28 lb |
| BK-F6CP-SM-R-T | 6-Strand | 0.11 lb |
| BK-F24CP-SM-R-T | 24-Strand | 0.56 lb |
