Description

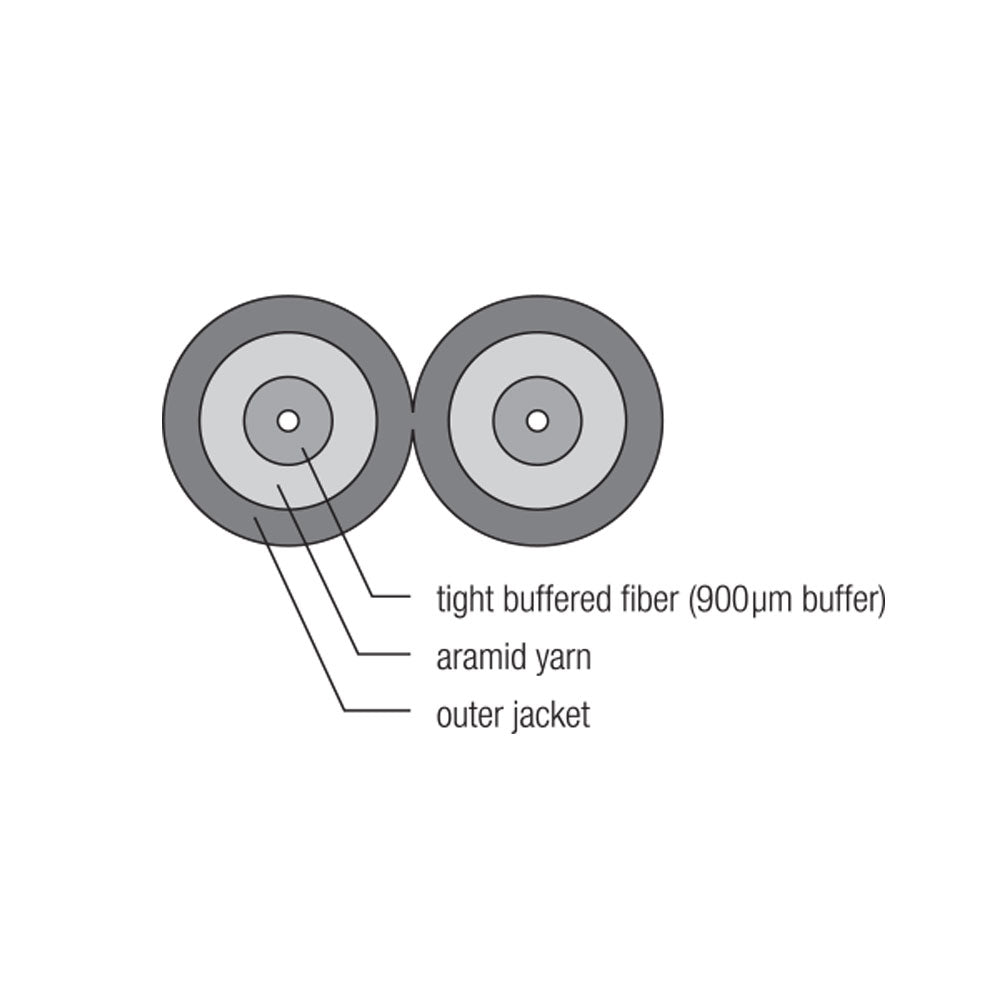

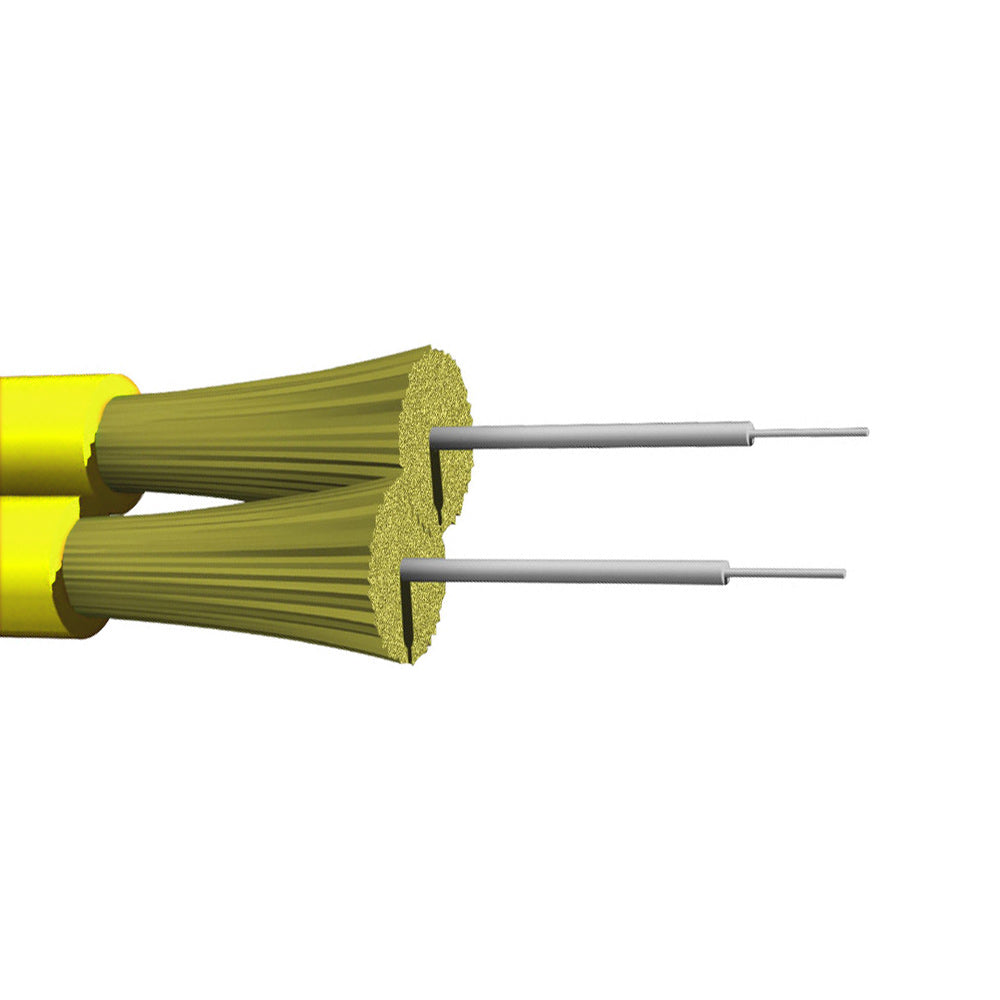

This bulk fiber optic cable is a singlemode duplex 9 micron plenum zip cord 1.6mm jacket OFNP. This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | Plenum Zipcord 1.6 Singlemode Duplex 9/125 micron |
| Fiber Core Diameter | 9 micron ± 2.5 micron |
| Nominal Diameter | 1.6mm x 3.4mm |
| Tension(Installation) | 27 lbs |
| Tension(Long Term) | 13.5 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.0cm |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Maximum Attenuation |
0.4dB/km @1310nm ~ 1625mm 0.4dB/km @1550nm |
| Macro-Bending Loss Radius: 20mm,1 Circle |
≤0.75dB @1550nm ≤1.5dB @1625nm |
| Cable Cut-off Wavelength | ≤1260nm |
| Max. Crush Resistance | 1000 N/100mm2 |
| Fire Rating | OFNP |
| Certification(s) | |
| c(UL)us | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | China |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F2Z-SMA-P | 0.03 lb |
