Description

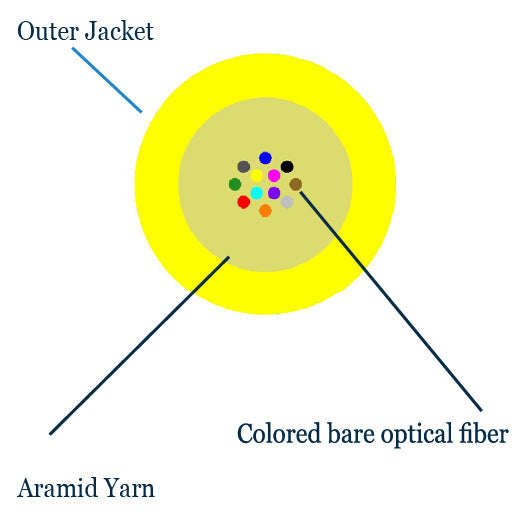

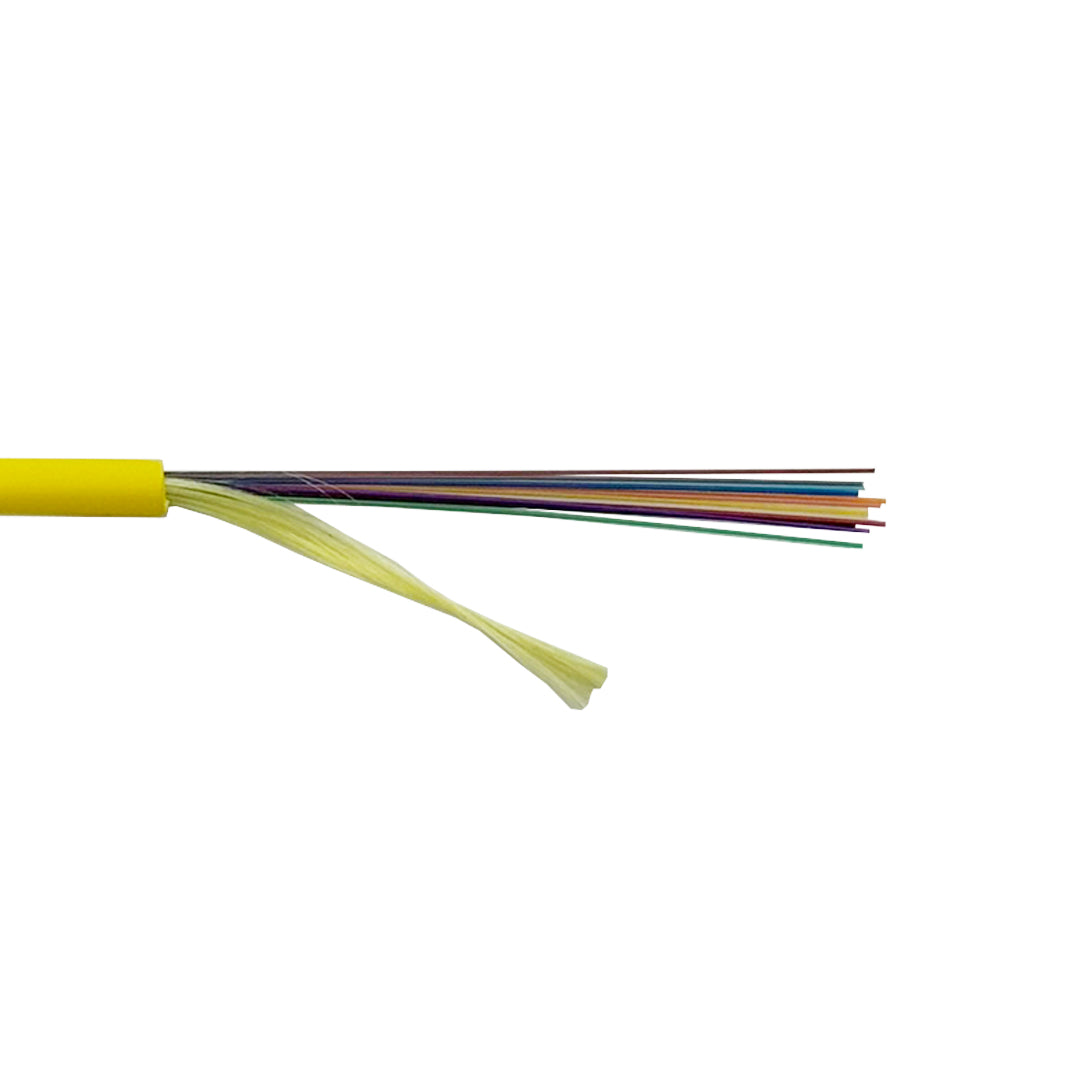

This bulk OS2 fiber cable is indoor plenum rated and combination of high fiber counts with a compact, space saving design. It is OFNP rated for plenum and general inside terminating MPO cables typically.
Features
- Micro-Distribution OFNP rated construction
- 250µm colored bare fibers
- Corning ClearCurve OS2 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Small O.D. for tight spaces
- Meets the application requirement of National Electric Code (NEC) Article 770
Specifications
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9 micron Multimode OFNP Plenum Indoor Micro-Distribution Cable |
| Fiber Count | 12-Strand |
| Glass Fiber |
Corning ClearCurve |
| Nominal Diameter | 2.95mm |
| Bending Radius (Installation) |
4.45cm |
| Bending Radius (Operation) |
2.95cm |
| Pulling tension |
300lbs |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Performance | |
| Wavelength | 1310nm / 1550nm |
| Attenuation Max. | 0.5dB/km @1310nm 0.4dB/km @1550nm |
| Link Length |
10000m @1310nm |
| Fire Rating | OFNP Plenum |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS, REACH | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F12MD3-SM-P-T | 0.12 lb |
