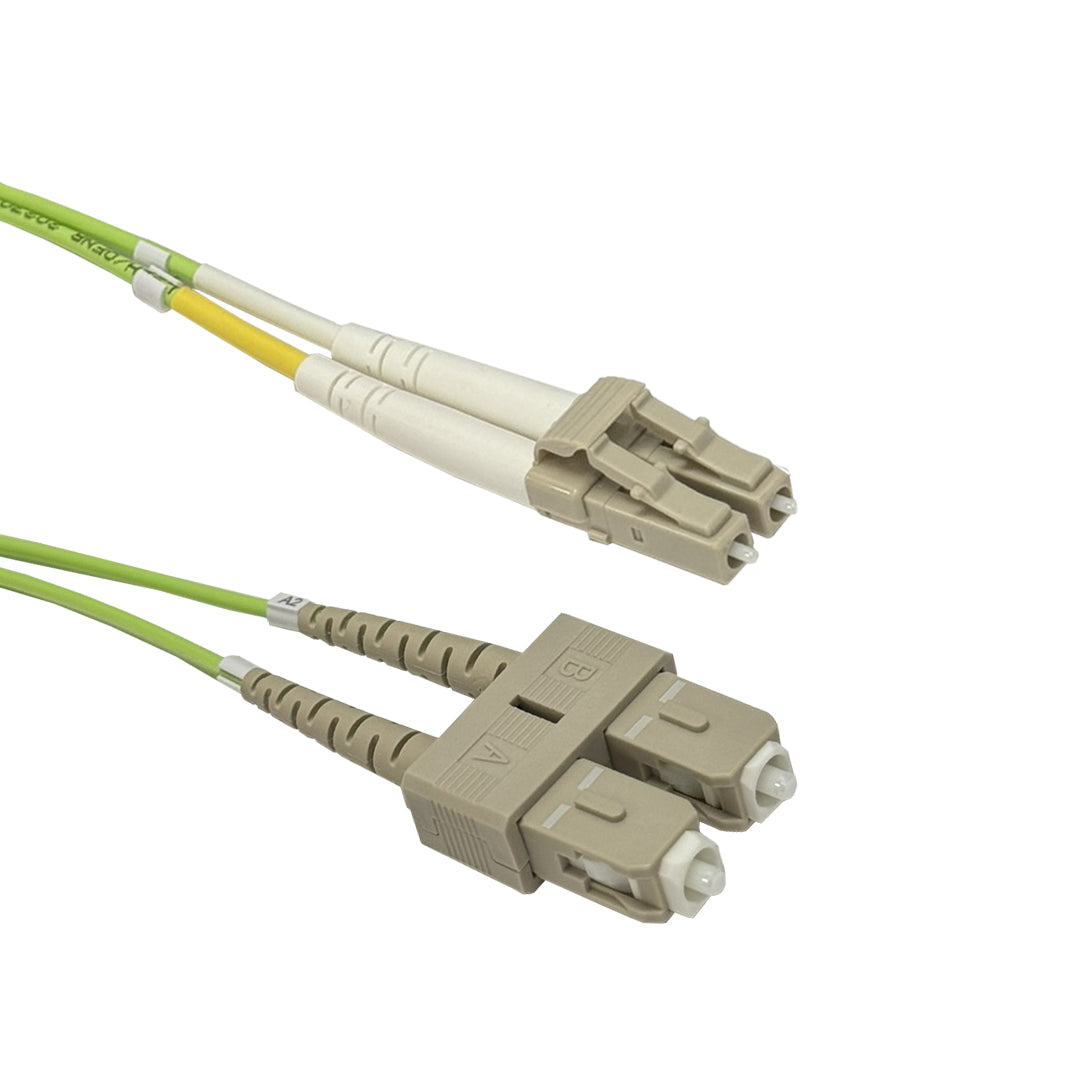

OM5 Multimode Duplex LC/SC 50 Micron - Fiber Optic Patch Cable - 2mm Jacket - LSZH/OFNR

OM5 MultimodeSKU: FOC-559B-01.5

Length: 0.5m
Price:
Sale price$5.78 USD
Stock:
In stock

Description

Overview

This 50 micron (OM5) laser optimized fiber optic cable is made with Corning glass fiber. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with CorningĀ® Glass Fibers

All of our multimode fiber cables are made with CorningĀ® ClearCurve glass for optimal performance and quality.

Individually Serialized Cables

Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.

Dual Rated LSZH/OFNR Rated Jacket

These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.

Bend Insensitive Fibers

Our multimode fiber cables are designed with CorningĀ® ClearCurve glass which can withstand tighter bends than traditional multimode fiber.

Ceramic Ferrule

All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.

3D Interferometer Tested

Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.

Certifications

Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.

100% Fully IL Tested

Our multimode cables are 100% tested for insertion loss to stringent parameters and come with a test report.

Lifetime Warranty

Our cables come with a limited lifetime warranty against manufacturing defects.

Application

Specifications

Physical Characteristics
Color Lime Green
Cable Diameter 2mm
Fiber Size 50/125 micron - Laser Optimized
Fiber Type Multimode
Glass Manufacturer Corning Glass
Connector Ferrules Ceramic
Fiber Classification OM5
Jacket Rating Low Smoke Zero Halogen (LSZH) & Riser (OFNR)
Operating Temperature -10 Ā°C ~ +70 Ā°C
Connector(s)
Connector A LC Duplex Male
Connector B SC Duplex Male
Performance
Insertion Loss <0.3db @ 1300nm
Speed 10Gbps, 40Gbps, 100Gbps and Higher
Interferometer Tested 100% Tested
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
1.5ft - 0.5m 3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 30ft - 10m 40ft - 12m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m
0.05 lbs 0.08 lbs 0.09 lbs 0.13 lbs 0.23 lbs 0.29 lbs 0.30 lbs 0.44 lbs 0.52 lbs 0.71 lbs 0.86 lbs 1.03 lbs

Product Weight

0.5m
FOC-559B-01.5
0.05 lb
1m
FOC-559B-03
0.07 lb
2m
FOC-559B-06
0.1 lb
3m
FOC-559B-10
0.15 lb
5m
FOC-559B-15
0.2 lb
7m
FOC-559B-23
0.24 lb
10m
FOC-559B-30
0.33 lb
12m
FOC-559B-40
0.38 lb
15m
FOC-559B-50
0.5 lb
20m
FOC-559B-65
0.63 lb
25m
FOC-559B-80
0.77 lb
30m
FOC-559B-100
0.95 lb
