Description

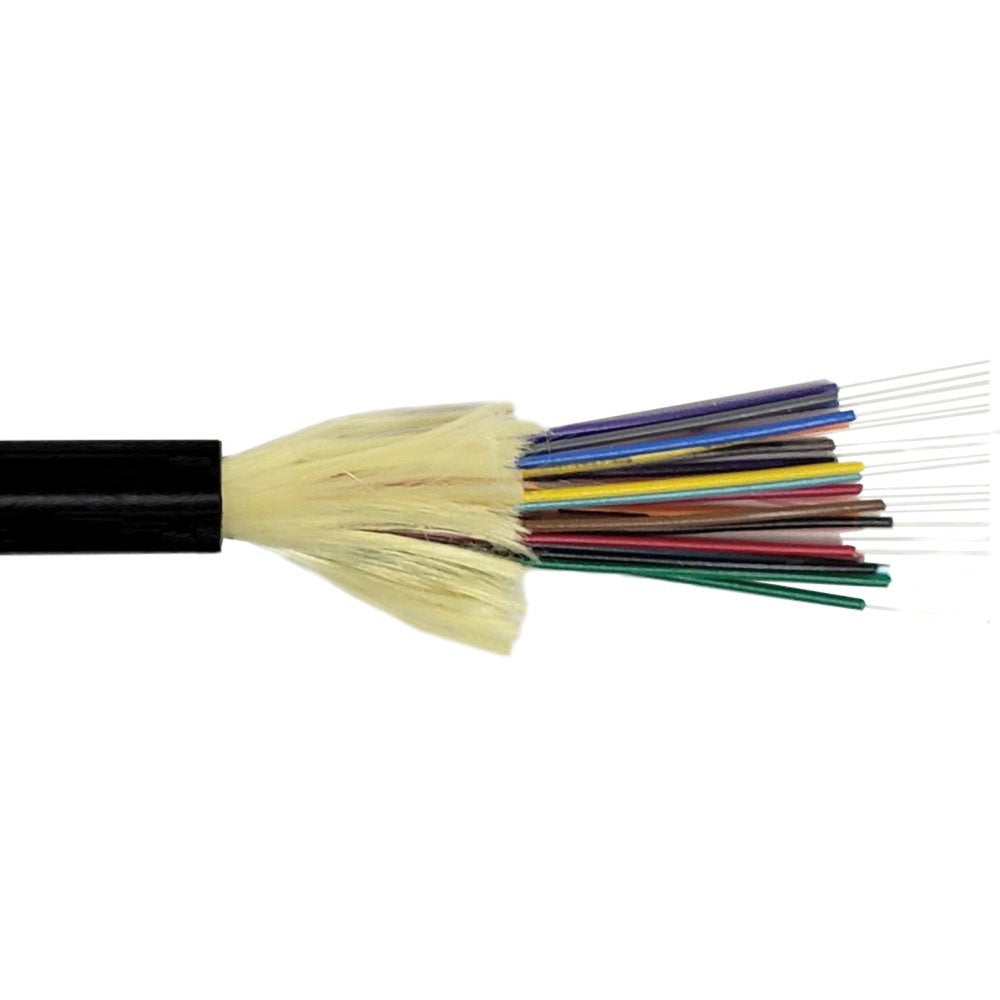

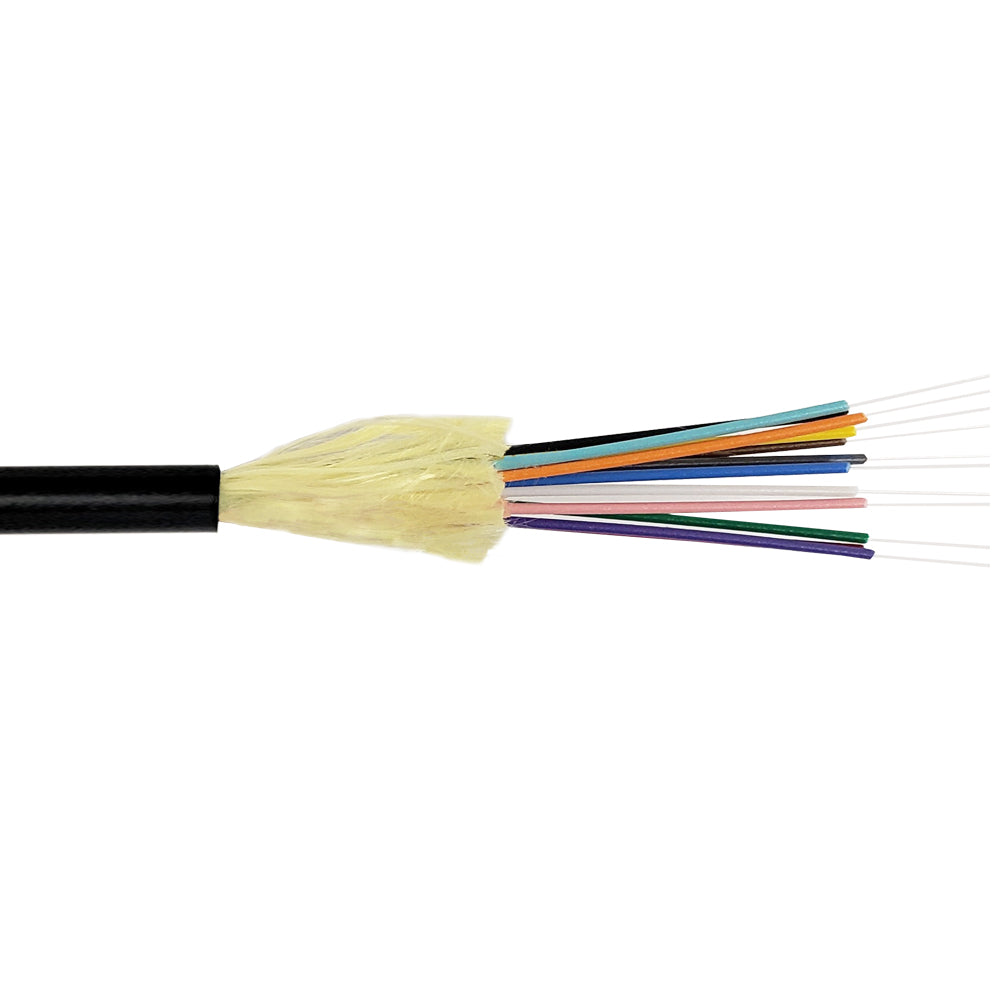

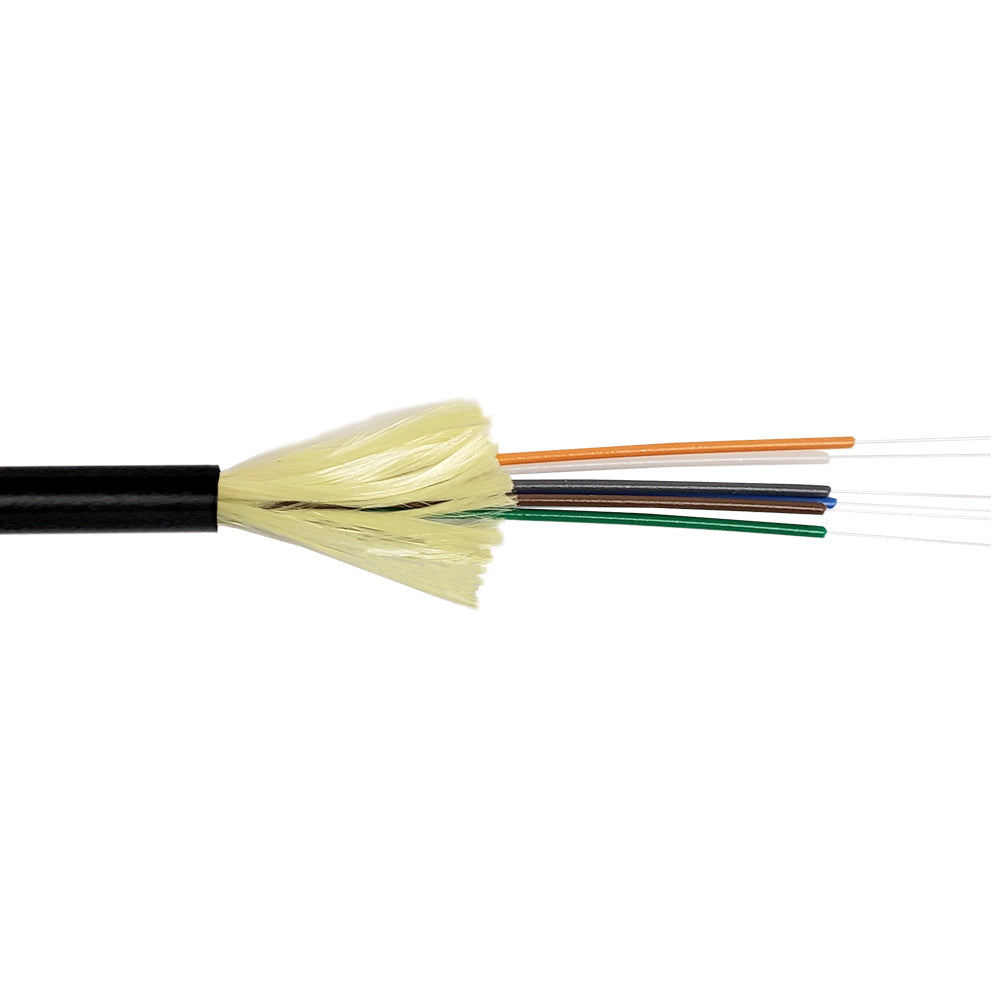

This bulk OM4 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun.
Features

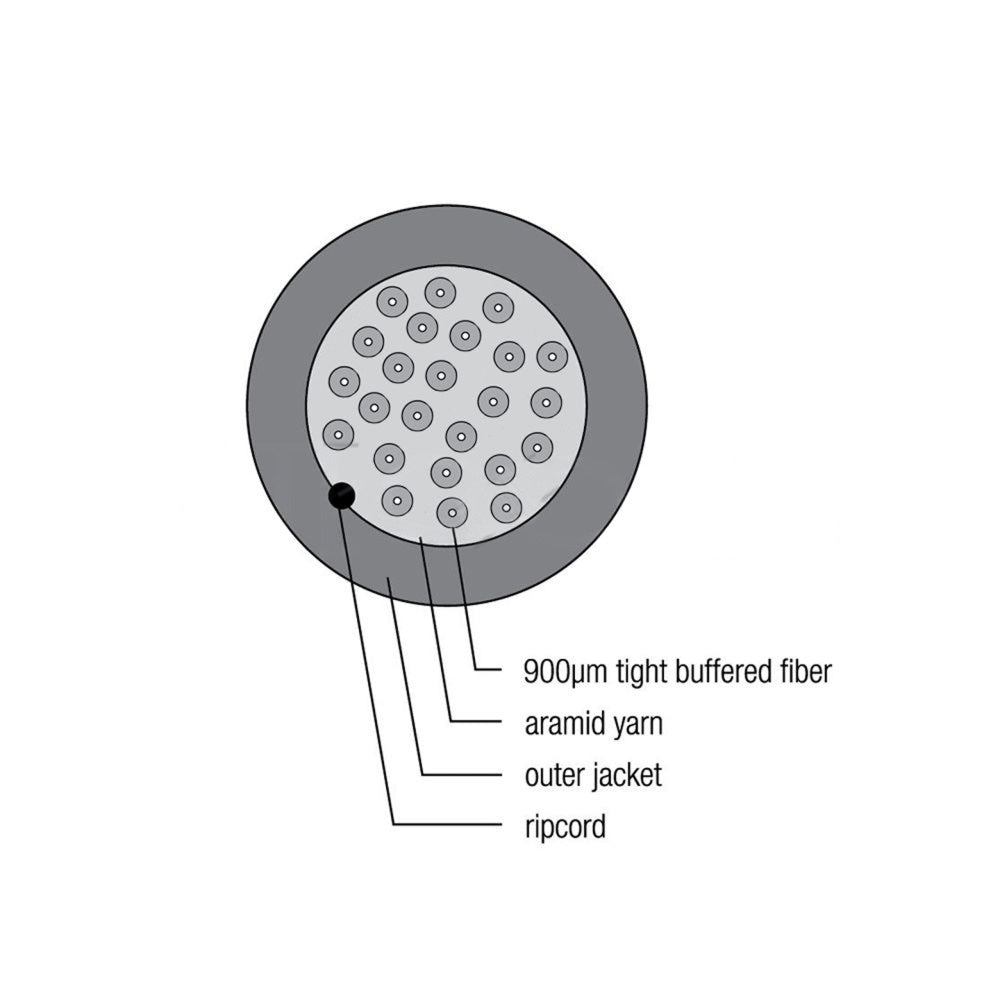

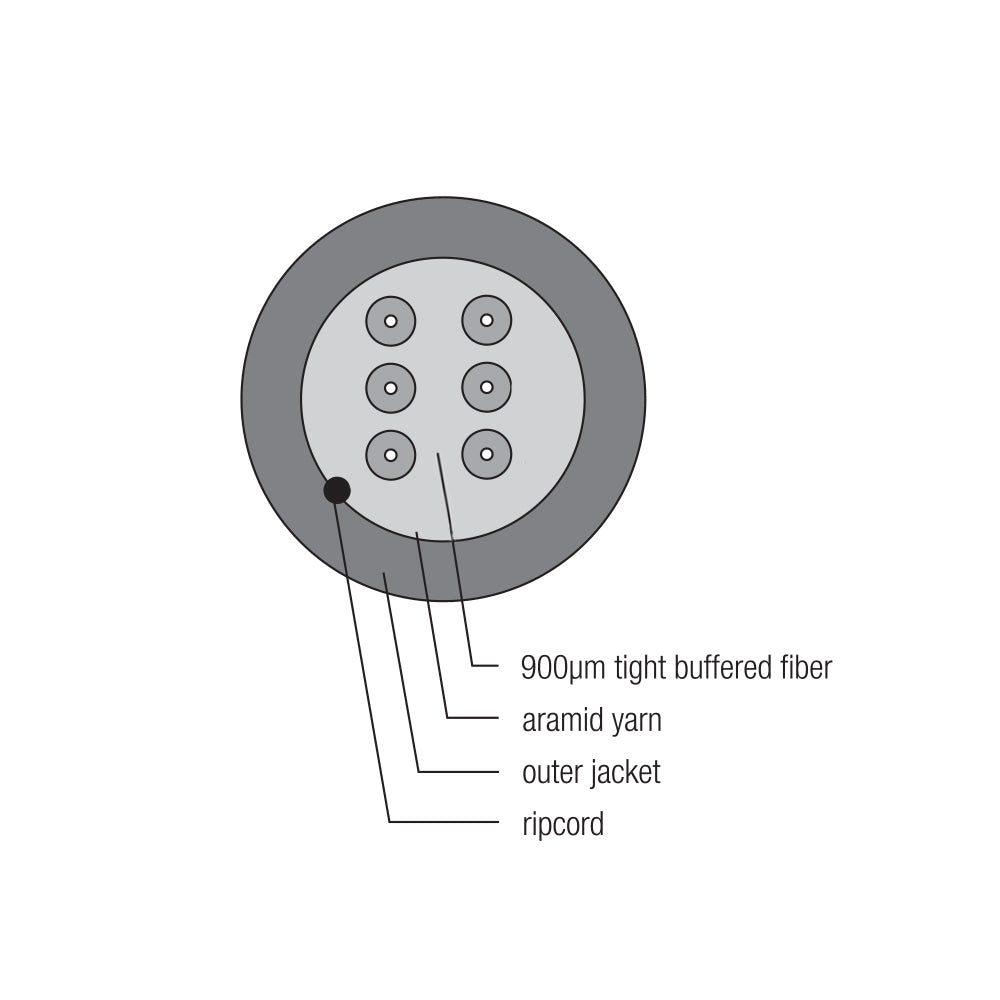

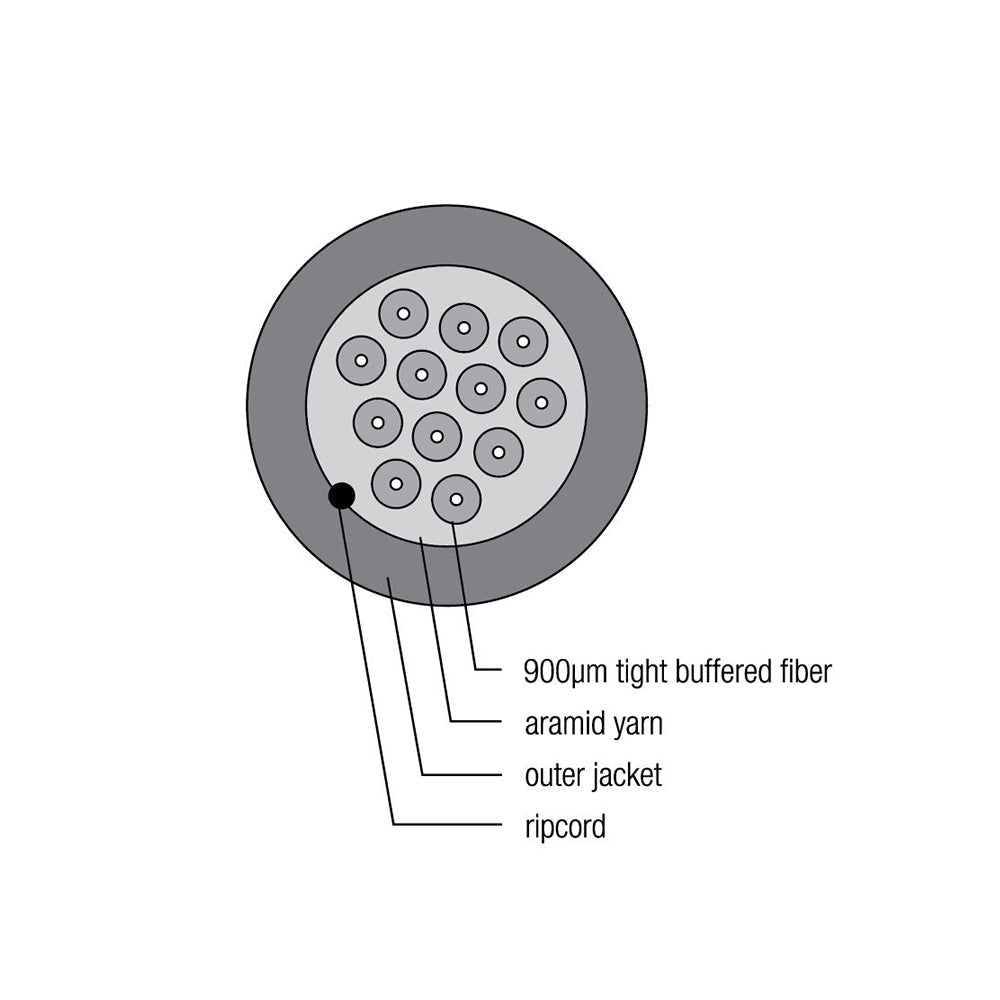

- 900µm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNR rated construction
- Corning ClearCurve OM4 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM4 50 micron Multimode OFNR Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand/12-Strand/ 24-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.8mm (6-Strand) 5.8mm (12-Strand) 7.8mm (24-Strand) |
| Bending Radius (Installation) | 72mm (6-Strand) 87mm (12-Strand) 117mm (24-Strand) |
| Bending Radius (Operation) | 48mm (6-Strand) 58mm (12-Strand) 78mm (24-Strand) |
| Pulling tension | 300lbs |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Performance | |
| Wavelength | 850nm / 1300nm |
| Attenuation Max. | 3.0dB/km @850nm 1.0dB/km @1300nm |
| Link Length |
550m (10Gbps @850nm) |
| Bandwidth (EMB High Performance) | 4700MHz.km @850nm |
| Fire Rating | OFNR Riser |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-F6IO-OM4-R-T | 6-Strand | 0.12 lb |
| BK-F12IO-OM4-R-T | 12-Strand | 0.12 lb |
| BK-F24IO-OM4-R-T | 24-Strand | 0.12 lb |
