Description
This bulk OM4 fiber cable is indoor/outdoorĀ plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun.
Features
- 900Āµm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNP rated construction
- Corning ClearCurve OM4 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM4 50 micron Multimode OFNP Plenum Indoor/Outdoor Tight Buffered Cable |

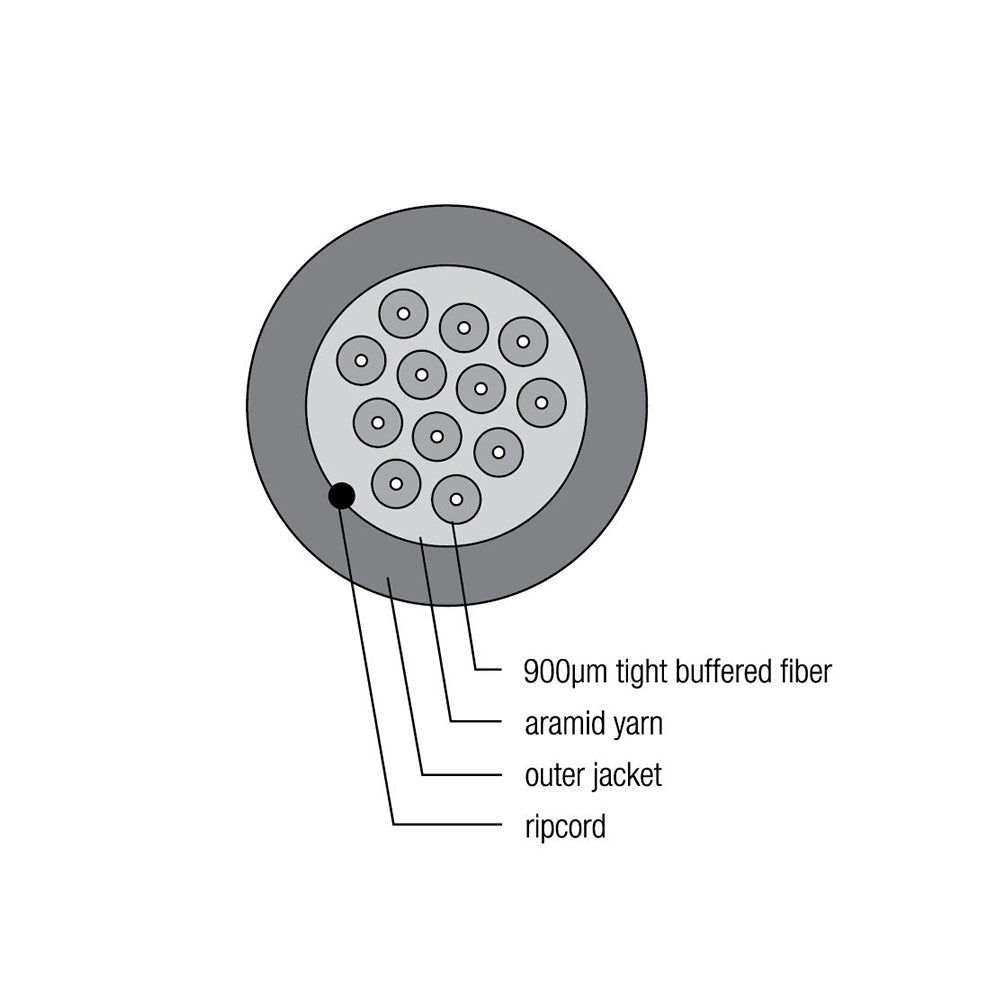

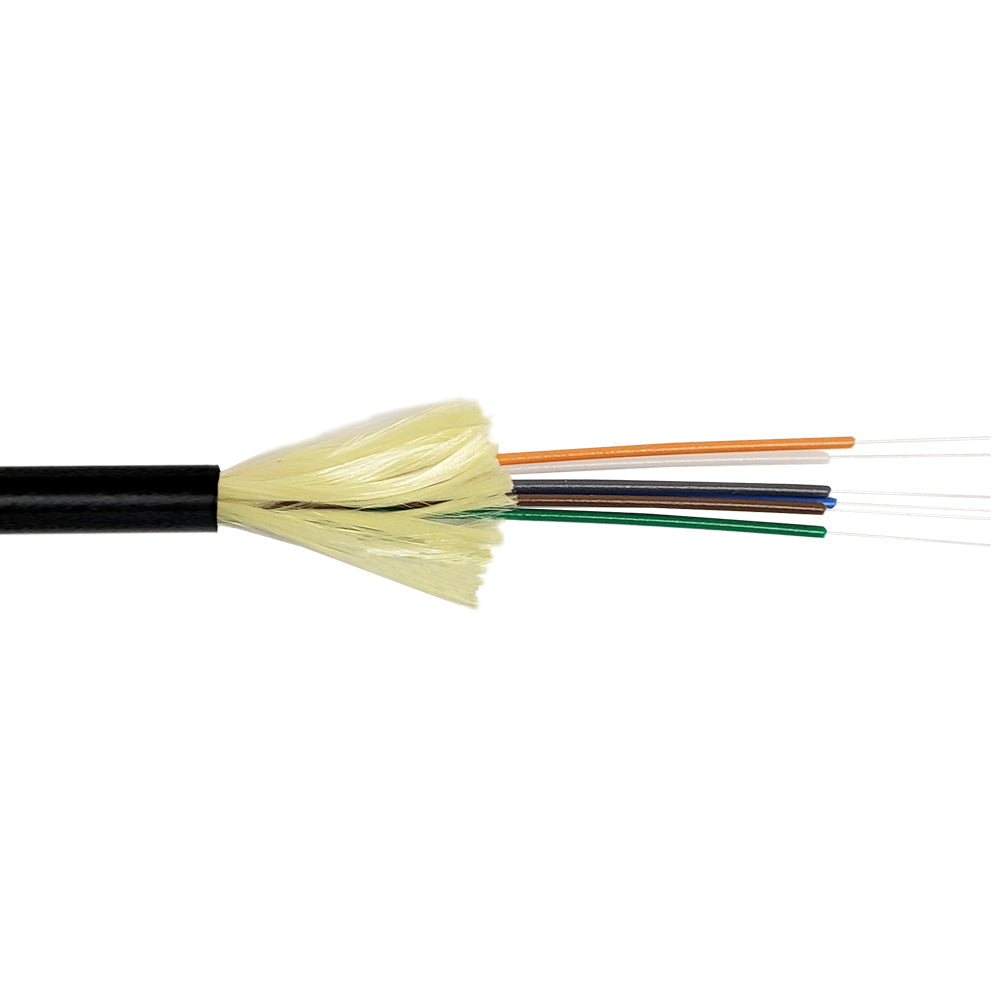

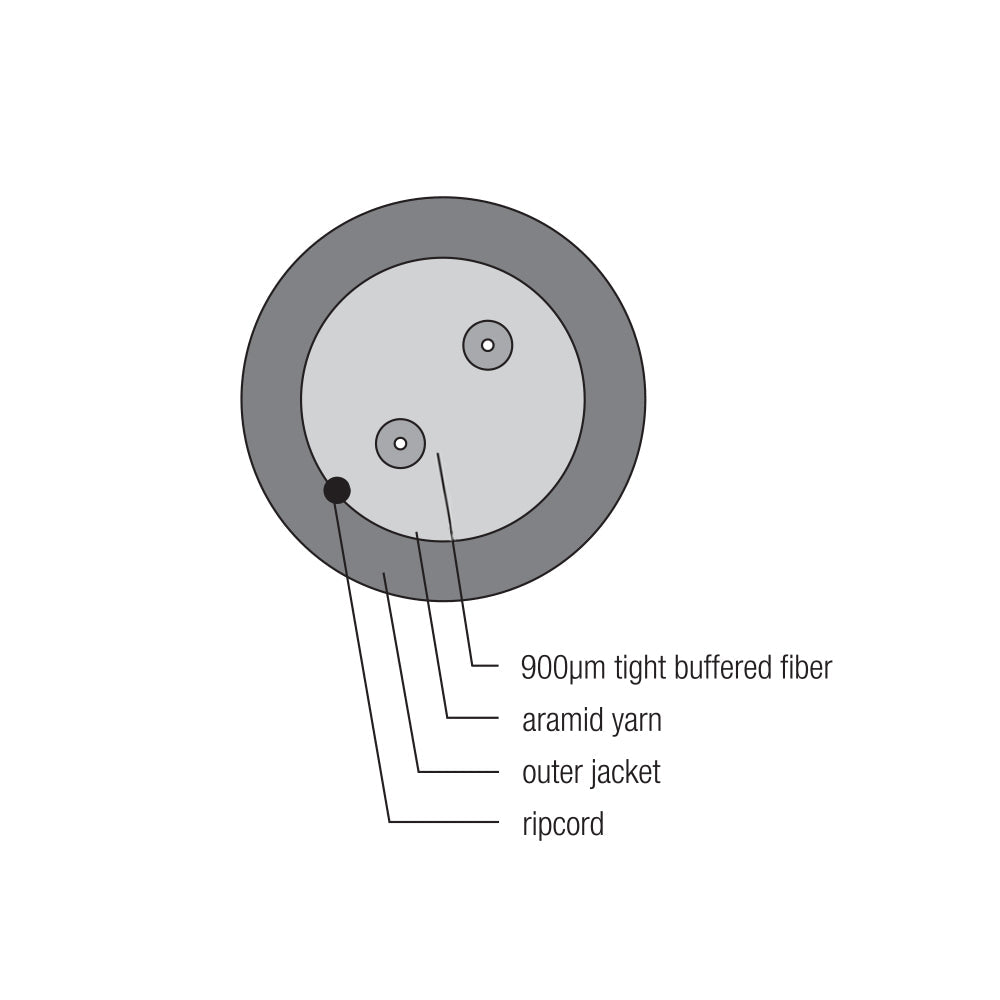

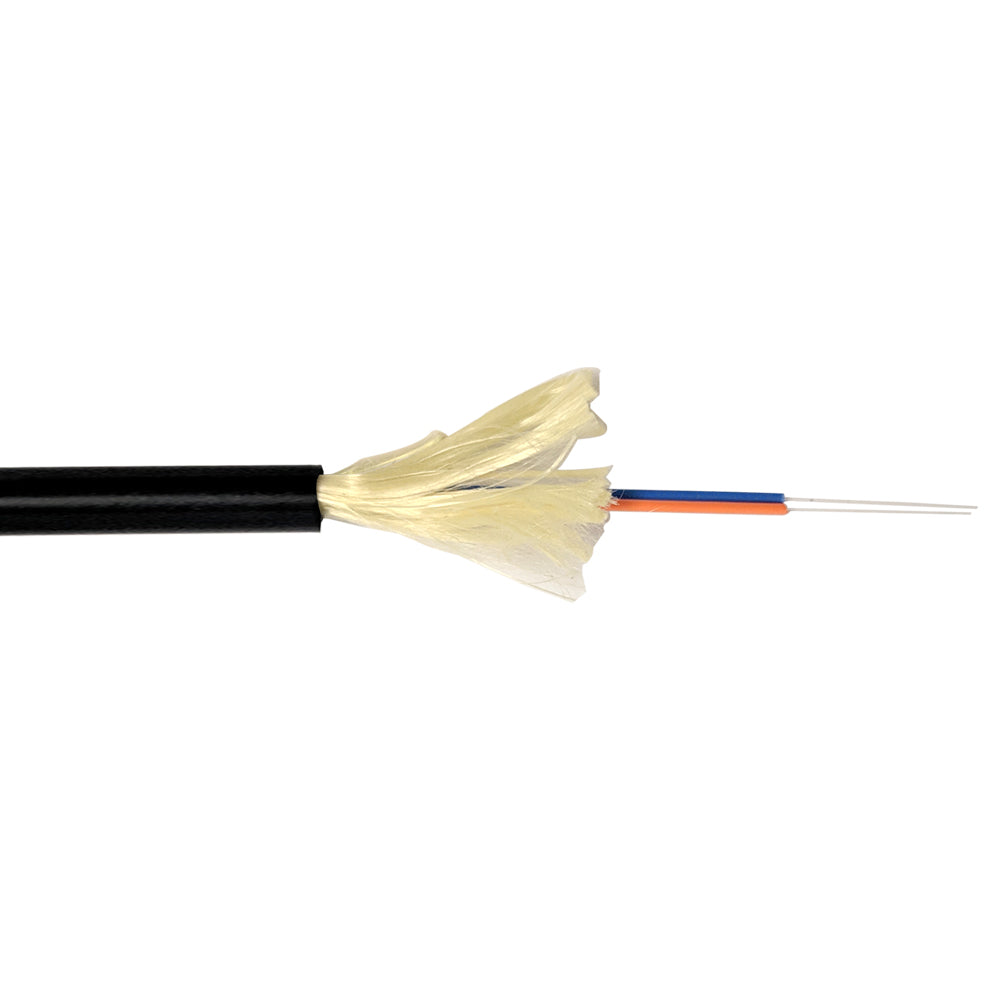

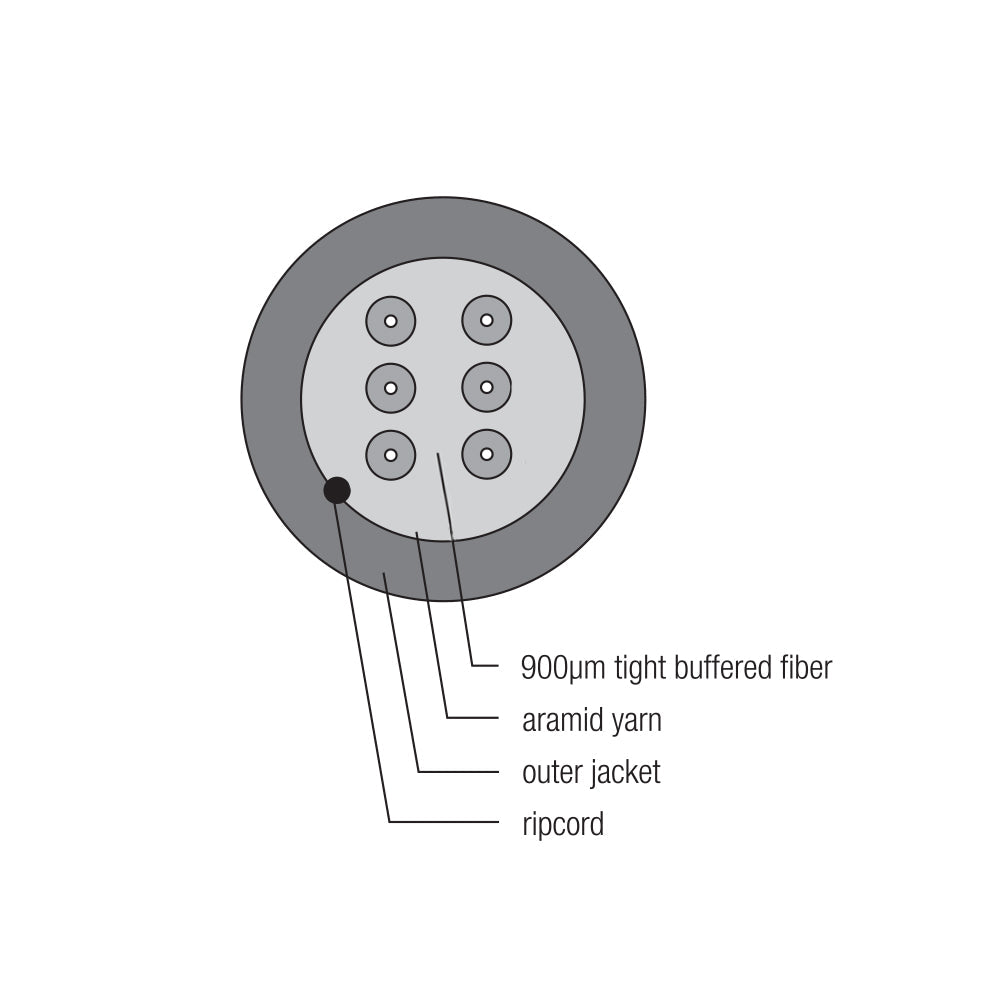

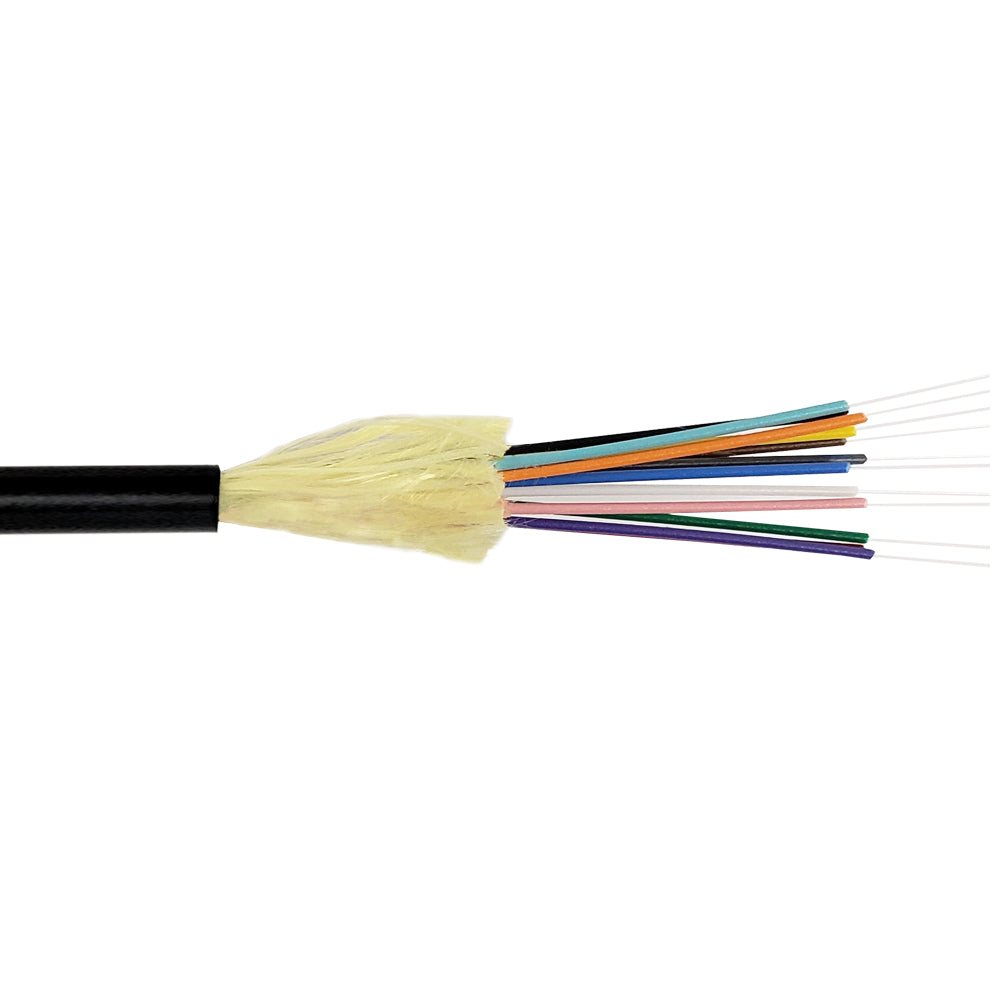

| Fiber Count |
2-Strand/ 6-Strand/ 12-Strand |
| Glass Fiber |
Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
2-Strand :Ā 4.4mm 6-Strand : 4.8mmĀ 12-Strand : 5.8mmĀ |
| Bending Radius (Installation) |
2-Strand : 6.6cm 6-Strand : 7.2cm 12-Strand : 8.7cm |
| Bending Radius (Operation) |
2-Strand : 4.4cm 6-Strand : 4.8cm 12-Strand : 5.8cmĀ |
| Pulling tension |
300lbs |
| Operating Temperature | -40 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Performance | |
| Wavelength | 850nm / 1300nm |
| Attenuation Max. | 3.0dB/kmĀ @850nmĀ 1.0dB/kmĀ @1300nmĀ |
| Link Length |
550mĀ (10Gbps @850nm) |
| Bandwidth (EMB High Performance) | 4700MHz.km @850nm |
| Fire Rating | OFNP Plenum |
| Certification(s) | |
| UL | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USAĀ |
| Packaging Information | |
| Package Quantity | Per meter |
| 2-strand | 6-strand | 12-strand |
|---|---|---|
| 0.044 lbs/m | 0.051 lbs/m | 0.081 lbs/m |
