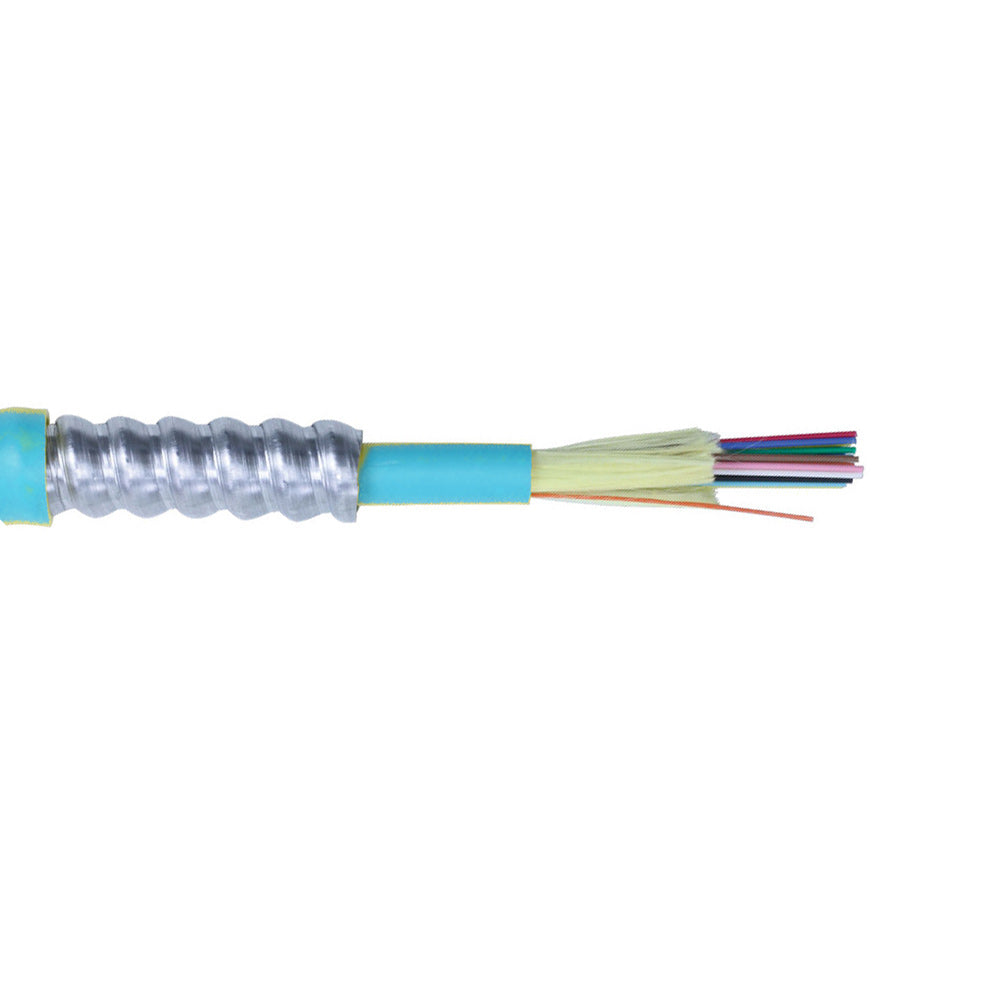

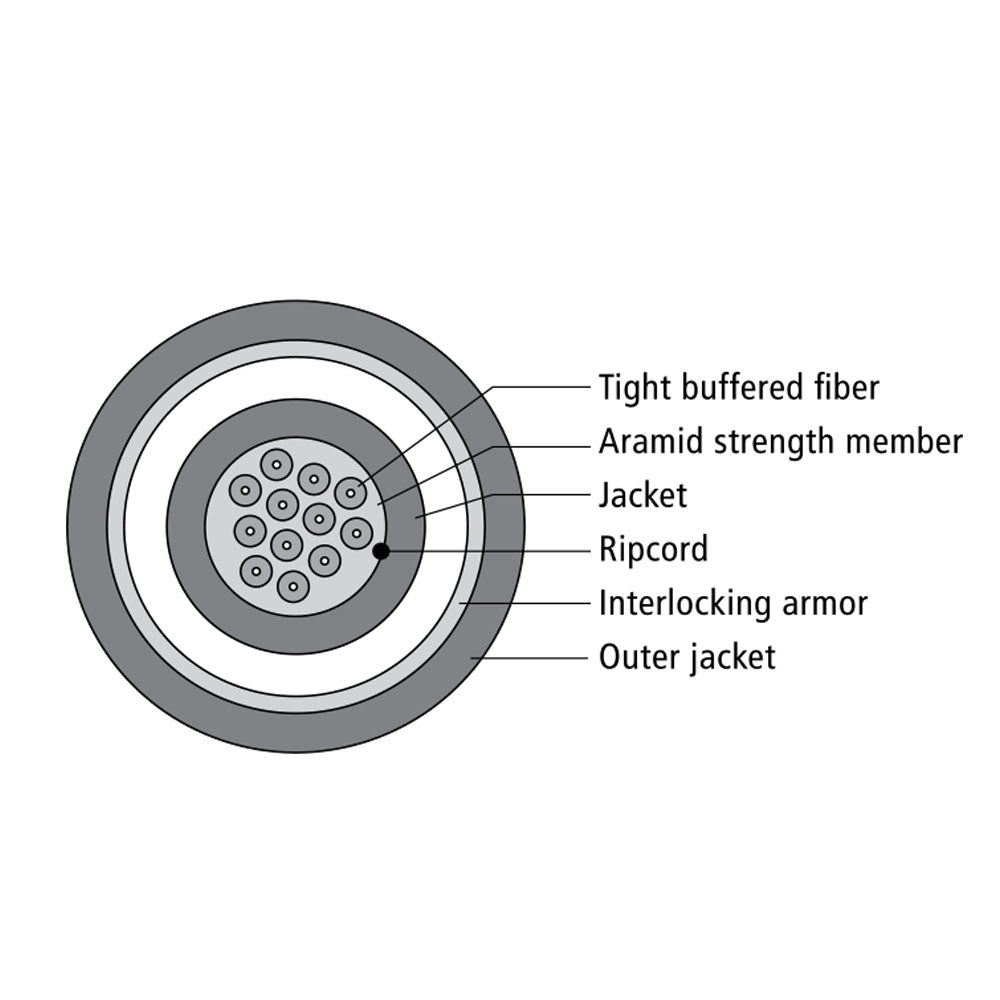

This bulk armored fiber cable is plenum rated and has a tight buffered, aluminum interlocking armored construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
Features
- Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
- Extra protection for fiber optic cables in harsh industrial environments.
- Approved for use in manufacturing plants.
- High-density routings in data center application.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50 micron Multimode Plenum Armored Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
6-Strand : 13.0mm 12-Strand : 14.7mm |
| Weight |
6-Strand : 344lbs/km 12-Strand : 434lbs/km |
| Bending Radius |
6-Strand : 26.0cm 12-Strand : 29.4mm |
| Operating Temperature | -0°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.0dB/km |
| Bandwidth Range | @850nm > 4700 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 550m |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 600m |
| Fire Rating | OFCP |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
| SKU | Options | Weight |
| BK-F6A-OM4-P-T | 6-Strand | 0.49 lb |
| BK-F12A-OM4-P-T | 12-Strand | 1.0 lb |
