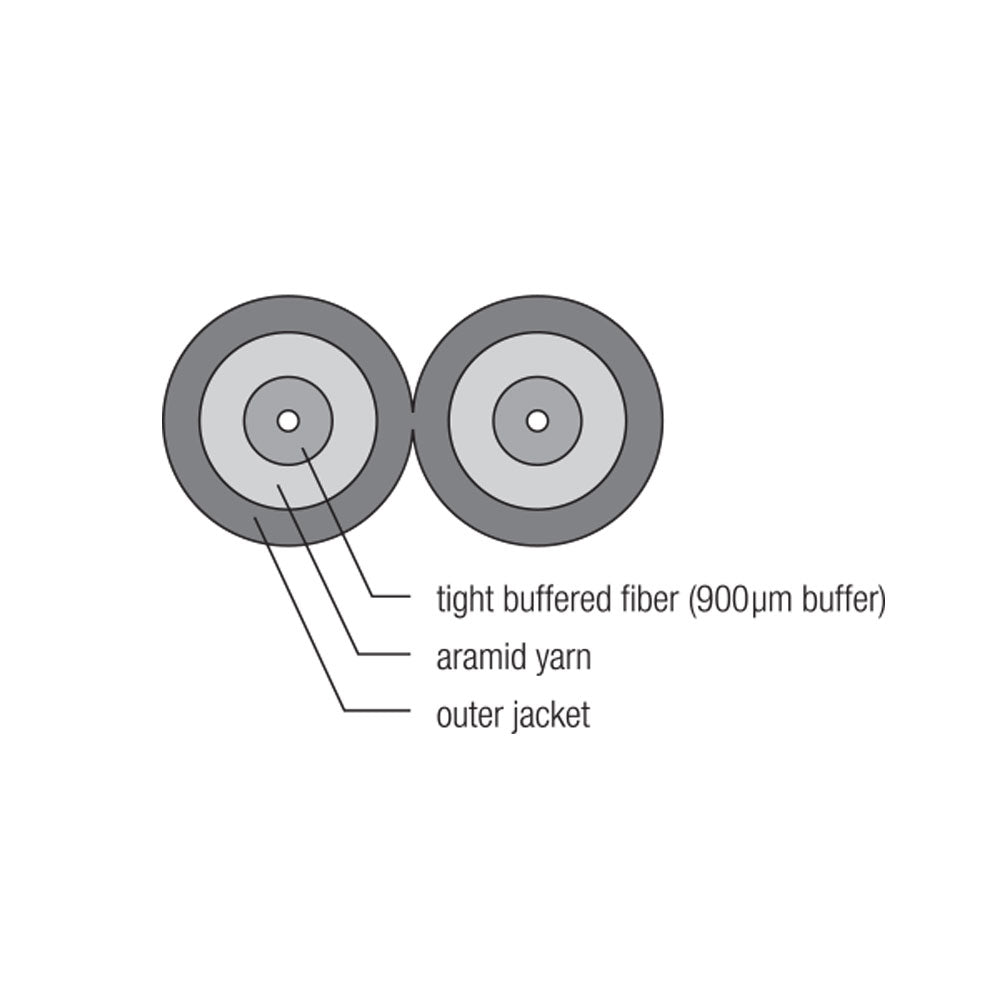

This bulk fiber optic cable is a OM3 multimode duplex 50 micron zip cord 2mm jacket LSZH. This cable is primarily used in the assembly of duplex fiber patch cords to provide links for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fiber Channel. It is sold in bulk (per meter).
This cable is primarily used in the assembly of duplex fiber patch cords. It is sold in bulk (per meter).
| Physical Characteristics |
|---|
| Color |
Aqua |
| Fiber Optic Type |
Zipcord 2.0 Multimode 50/125um |
| Fiber Core Diameter |
50.0 micron ± 3.0 micron |
| Bandwidth Range |
@850 (High Performance EMB) > 1500 MHz/km
@1310 > 500 MHz/km |
| Attenuation Range |
@850nm 2.3dB/km
@1310nm 0.6dB/km |
| Maximum Tensile Load |
Short Term, N 450
Long Term, N 200 |
| Minimum Bending Radius |
Load 40mm
Unload 20mm |
| Fiber Count |
2C |
| Tight Buffer Diameter |
0.9 micron ±0.05 |
| Cable Diameter |
2mm |
| Fire Rating |
LSZH/OFNR |
| Uniformly Distributed |
Aramid Yarn |
| Operating Temperature |
-40~+75 |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.03 lbs [0.01 kg] |
