AFL Corning OM3 Multimode Duplex 50 Micron Fiber Zip Cord 2Mm Jacket OFNP Per Meter - Aqua
AFL Corning OM3 Multimode Duplex 50 Micron Fiber Zip Cord 2Mm Jacket OFNP Per Meter - Aqua
AFL Corning OM3 Multimode Duplex 50 Micron Fiber Zip Cord 2Mm Jacket OFNP Per Meter - Aqua
AFL Corning OM3 Multimode Duplex 50 Micron Fiber Zip Cord 2Mm Jacket OFNP Per Meter - Aqua

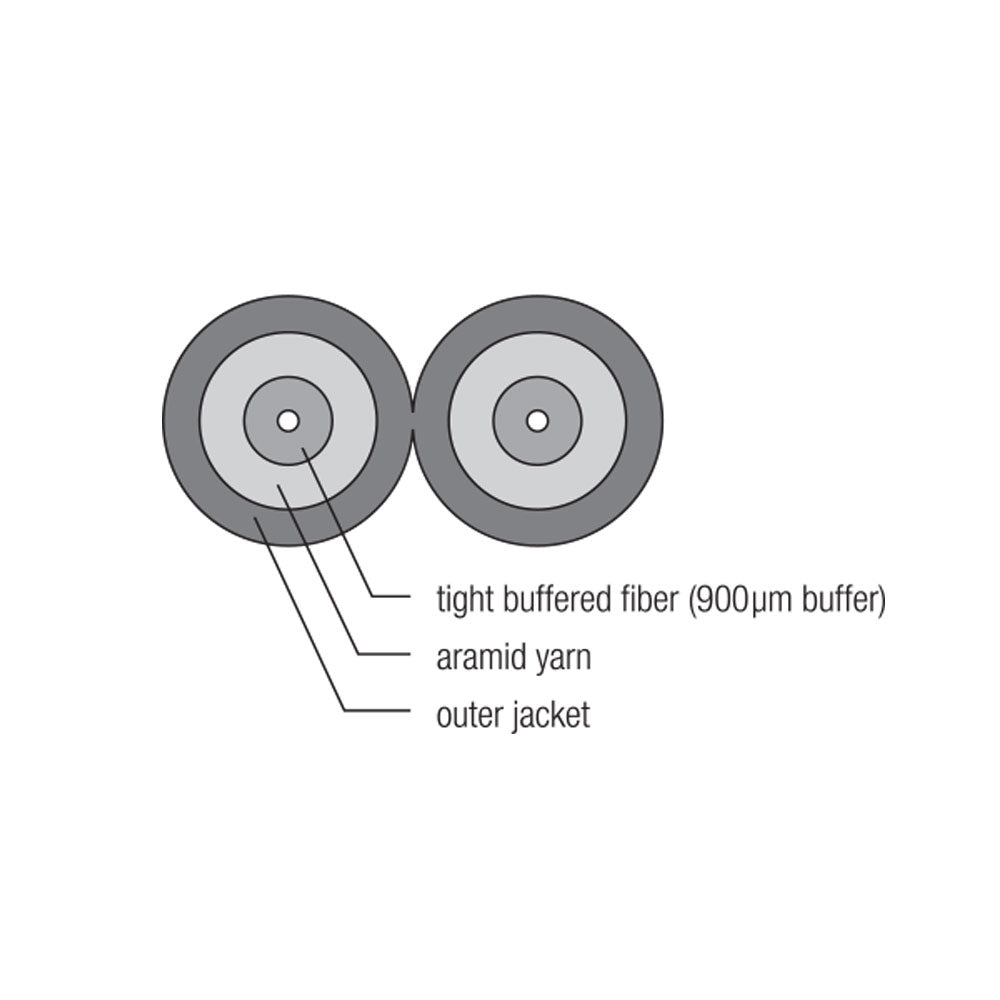

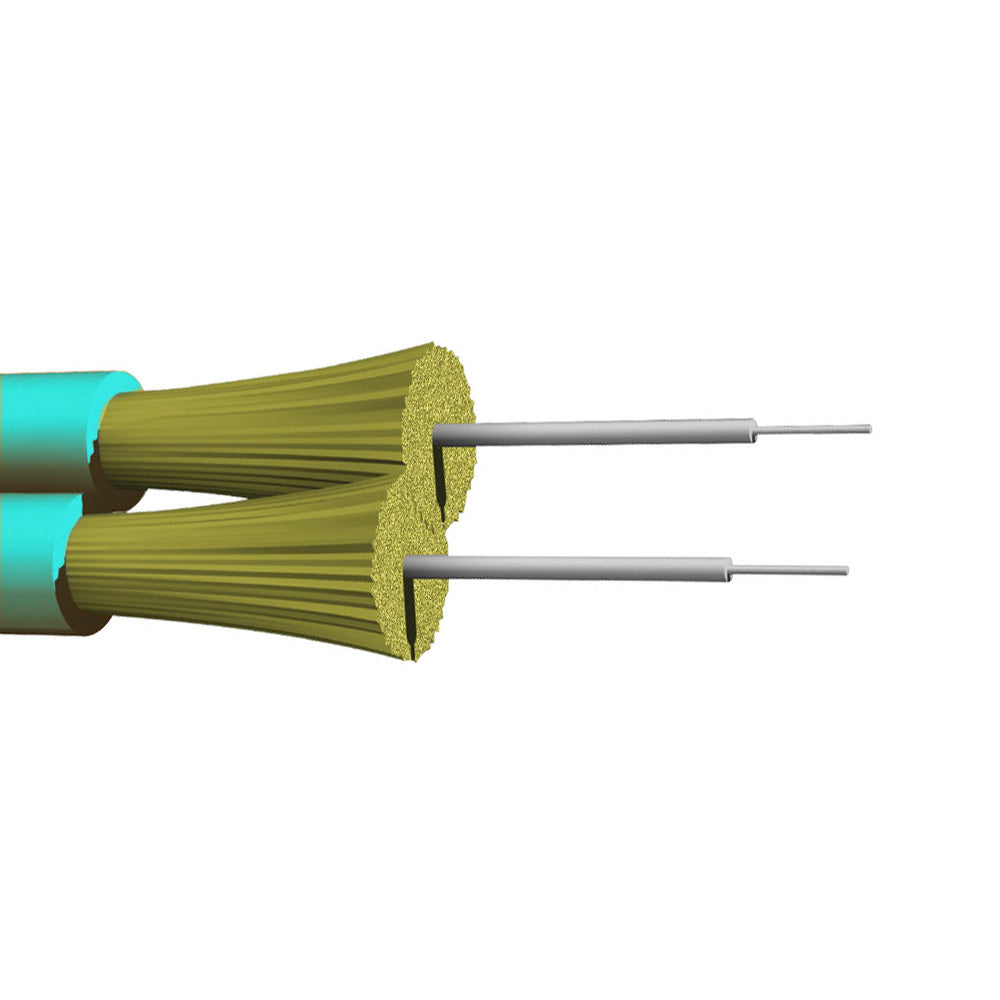

OM3 Multimode 50 Micron (Corning) Duplex Zip Cord - 1.6mm Jacket - OFNP Plenum Fiber Bulk Cable (per meter) - 2-strand

OM3 Multimode Bulk CableSKU: BK-F2Z-OM3A-P
Price:
$0.79 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

This bulk fiber optic cable is a multimode duplex 9 micron plenum zip cord 1.6mm jacket OFNP.  This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.

    Physical Characteristics
    Color Aqua
    Fiber Optic Type OM3 Plenum Zipcord 1.6 Multimode Duplex 50/125 micron
    Fiber Core Diameter 50 micron ± 2.5 micron
    Nominal Diameter 1.6mm x 3.4mm
    Tension(Installation) 27 lbs
    Tension(Long Term) 13.5 lbs
    Bending Radius(Installation) 2.0cm
    Bending Radius(Long Term) 1.0cm
    Operating Temperature -10℃ ~ +60℃
    Storage Temperature -20℃ ~ +70℃
    Attenuation Range

    03.5dB/km @850nm

    1.5dB/km @1300nm
    Bandwidth Range ≥ 1500 MHz/km @850nm
    ≥ 500 MHz/km @1300nm
    Effective Modal Bandwidth ≥2000MHz/km @850nm
    10 Gigabit Ethernet Min. Link Distance 300m @850nm
    Max. Crush Resistance 1000 N/100mm2
    Fire Rating OFNP
    Certification(s)
    c(UL)us Yes
    Product Support
    RoHS Yes
    Country of Origin China

    Download attachment

    SKU Weight
    BK-F2Z-OM3A-P 0.03 lb
