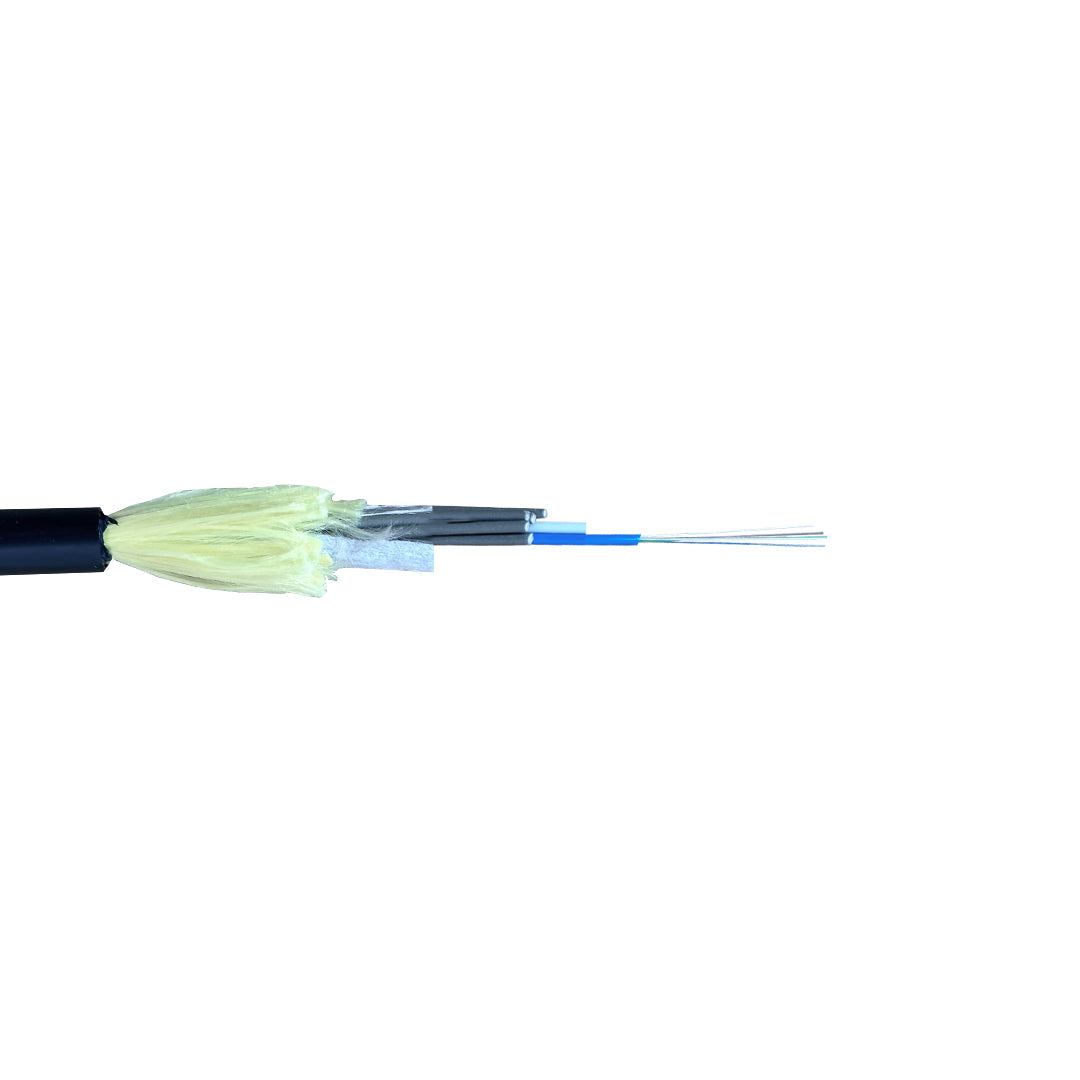

OM3 Multimode Loose Tube Outdoor Duct/Lashed Aerial Fiber Cable Fiber Bulk Cable (per meter)

Fiber Optic Bulk CableSKU: BK-F6O-OM3-LT

Fiber Count: 6-strand
Sale price$1.95 USD
In stock


This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, improves compressive strength and rodent protection, and speeds fiber access/cleanup.

Physical Characteristics
Color Black
Fiber Optic Type OM3 Loose Tube Outdoor Duct/Lashed Aerial Cable
Fiber Count 6-Strand, 12-Strand
Color Coating Fiber Dimension: 250µm±15µm
Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Jacket Material: PE
Outer Jacket Dimension: 11.7mm±0.5mm
Loose Tube Dimension: 2.0mm±0.10mm
Material: PBT
Color: Blue, Orange
Filler Dimension:2.0mm±0.10mm
Material: PP
Color: Natural
Central Strength Member Diameter: 2.0mm
Material: FRP
Strength Member Material Glass Yarn
Tension(Long Term) 890 N
Tension(Short Term) 2700 N
Crush (Long Term) 1000 N/10cm
Crush (Short Term) 3000 N/10cm
Min Bending Radius(Dynamic) 20D mm
Min Bending Radius(Static) 15D mm
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +70℃
Installation Temperature -30℃ ~ +70℃
Packaging Information
Product Weight 0.40 lbs - 6-Strand
0.80 lbs - 12-Strand
