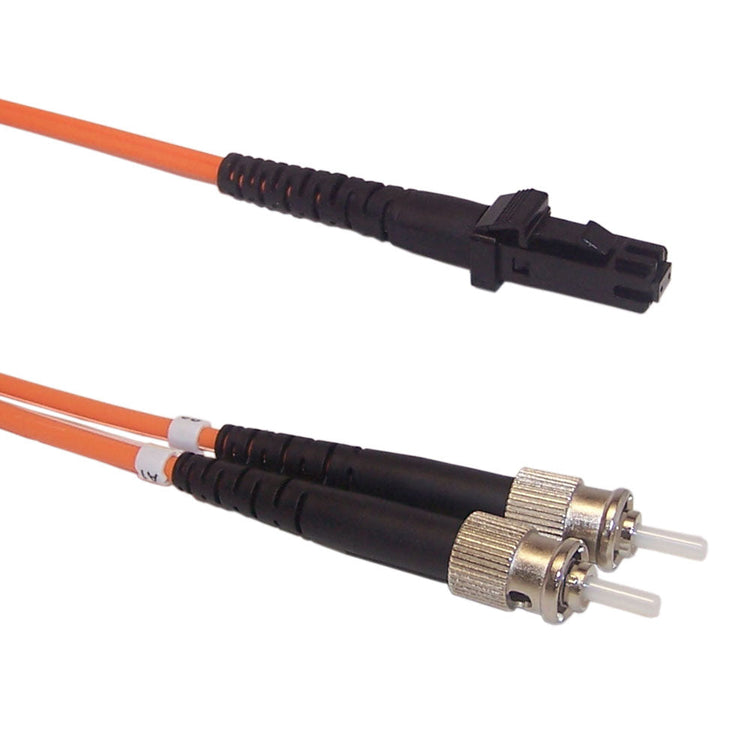

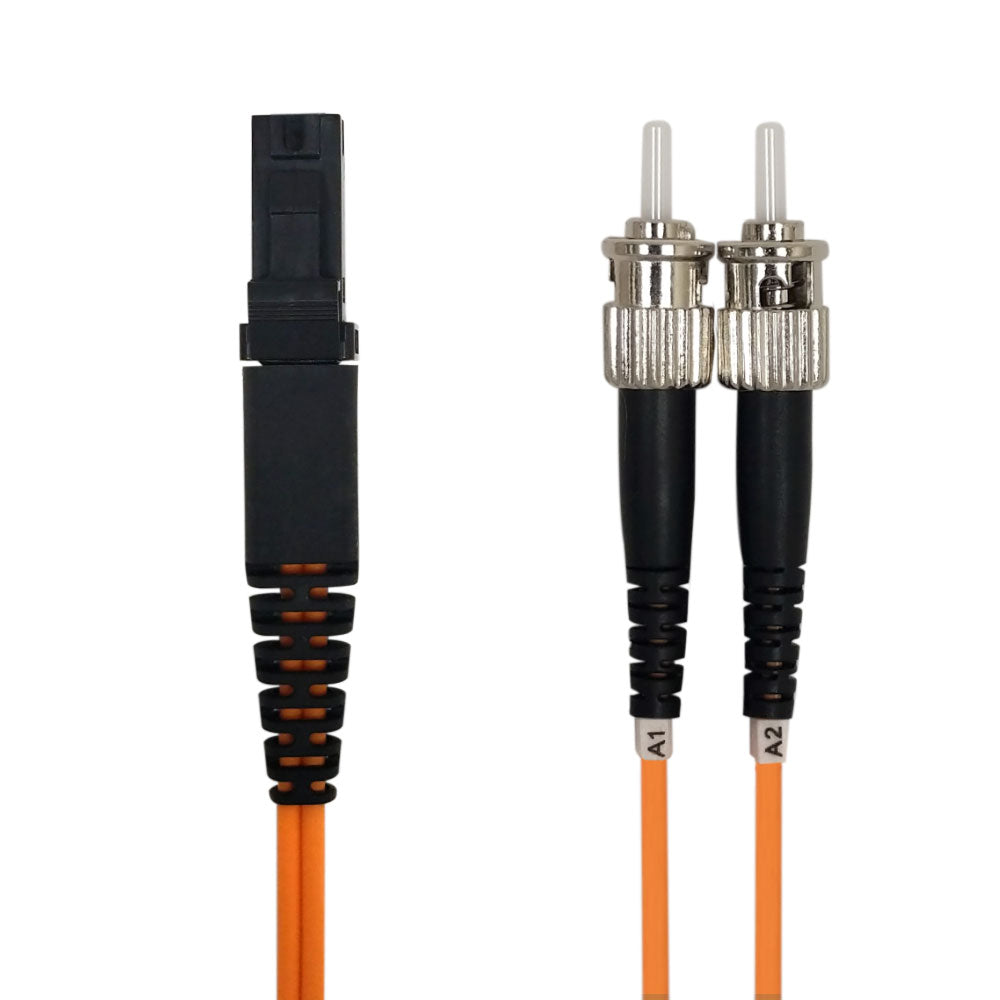

OM1 Multimode Duplex MTRJ/ST 62.5 Micron - Fiber Optic Patch Cable - 1.8mm Jacket - LSZH/OFNR

OM1 MultimodeSKU: FO-106-03

Length: 1m
Price:
Sale price$7.22 USD
Stock:
In stock

Description

Overview

This 62.5 micron (OM1) fiber optic cable is made with Corning glass fiber. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with CorningĀ® Glass Fibers

All of our fiber cables are made with CorningĀ® glass fiber for optimal performance and quality.

100% Fully Tested and Serialized

Our cables are 100% tested for insertion loss and interferometer tested for radius of curvature and come with a test report. Each cable is also individually serialized with cable labels at both ends which allows us to quickly access saved interferometer test reports, but also makes tracing quick and easy during installing.

Specifications

Physical Characteristics
Color Orange
Cable Diameter 1.8mm
Fiber Size 62.5/125 micron
Fiber Type Multimode
Connector Ferrules Ceramic
Fiber Classification OM1
Jacket Rating Riser (OFNR) & Low Smoke Zero Halogen (LSZH)
Operating Temperature -20Ā°C ~ +70Ā°C
Connector(s)
Connector A MTRJ Duplex (no guide pins)
Connector B ST Duplex Male
Performance
Insertion Loss <0.3db @ 1300nm
Speed 1 Gbps
Interferometer Tested 100% Tested
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
1.5ft - 0.5m 3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 30ft - 10m 40ft - 12m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m 131ft - 40m 164ft - 50m
0.05 lbs 0.08 lbs 0.09 lbs 0.13 lbs 0.20 lbs 0.29 lbs 0.38 lbs 0.44 lbs 0.52 lbs 0.77 lbs 0.86 lbs 1.03 lbs 1.39lbs 2.05 lbs

Product Weight

1m
FO-106-03
0.07 lb
2m
FO-106-06
0.1 lb
3m
FO-106-10
0.15 lb
5m
FO-106-15
0.2 lb
10m
FO-106-30
0.33 lb
