Description

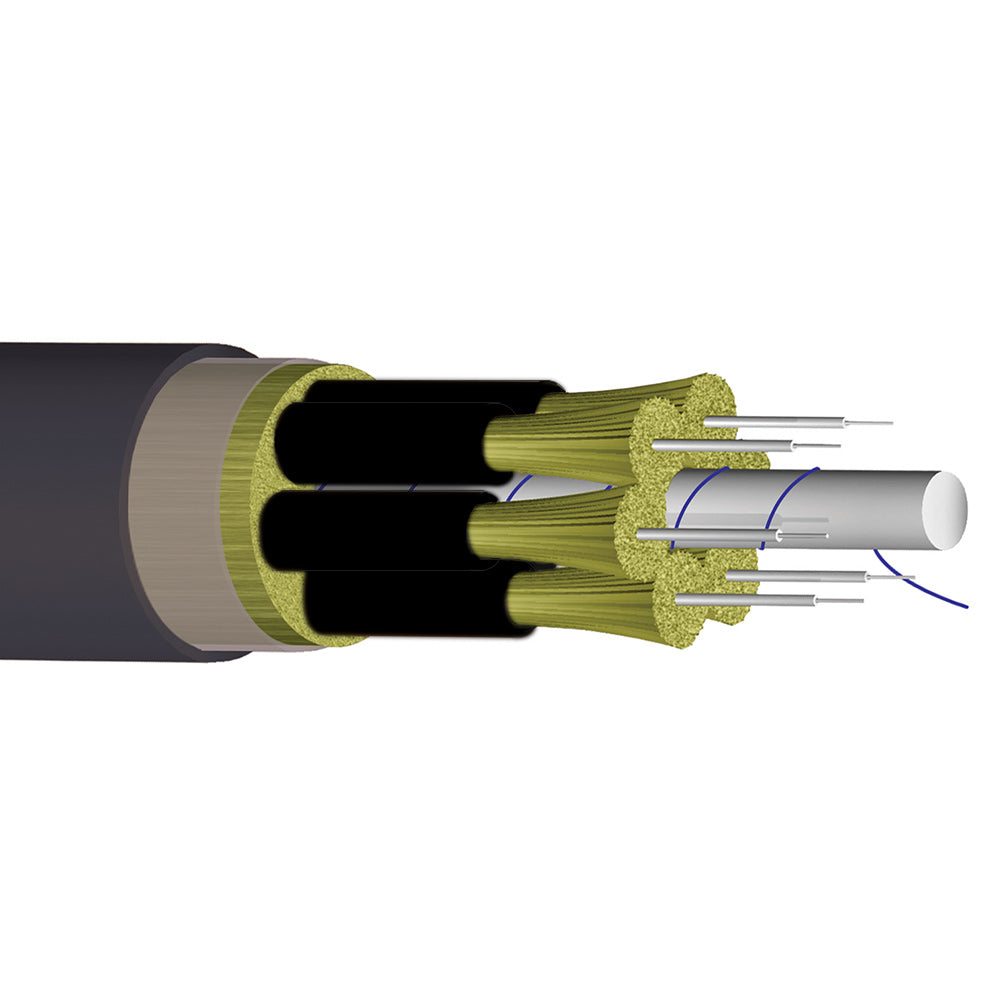

This bulk OM1 ruggedized fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications. Ideal for harsh environments such as mining and industrial locations.
Features
- Fungus, water and UV-resistant PVC jacket featuring SP extrusion technology.
- UL 1666 riser-rated with water-blocked sub-units.
- Approved for harsh and campus environment, as well as mining and industrial applications.
- Tested to meet or exceed GR-409-CORE and ICEA-S-104-696.
- RoHS/REACH Compliant.
| Physical Characteristics | |
|---|---|
| Color | Black |

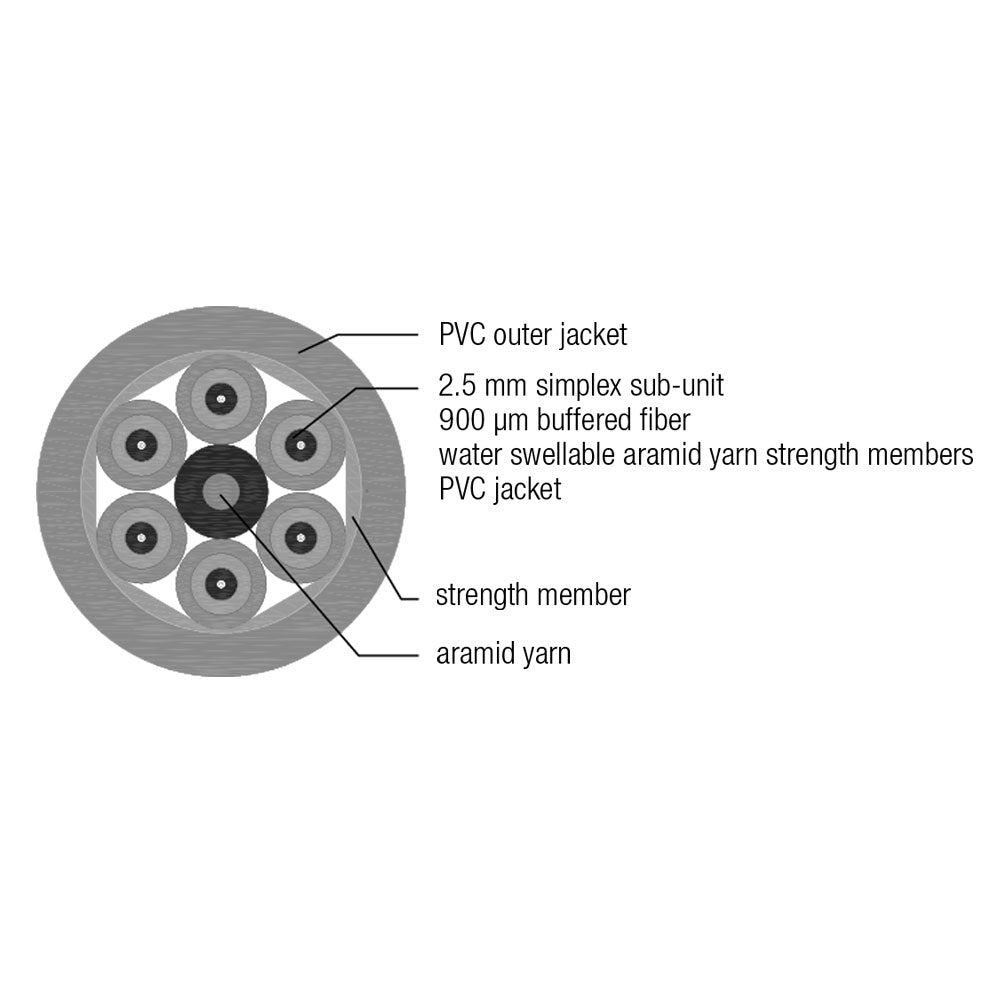

| Fiber Optic Type | OM1 62.5 micron Multimode Riser Indoor/Outdoor Ruggedized Breakout Cable |
| Fiber Count | 2-Strand/6-Strand |
| Glass Fiber | Corning InfiniCor |
| Micron Legs | 3mm |
| Nominal Diameter | 2-Strand: 8.4mm 6-Strand: 11.4mm |
| Tension(Installation) | 2-Strand: 300 lbs 6-Strand: 450 lbs |
| Tension(Long Term) | 2-Strand: 90 lbs 6-Strand: 120 lbs |
| Bending Radius(Installation) | 2-Strand: 12.7cm 6-Strand: 17.3cm |
| Bending Radius(Long Term) | 2-Strand: 8.6cm 6-Strand: 11.4cm |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +70℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 200 MHz/km @1300nm > 600 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 32 |
| Applications | Harsh Environment, Mining, Industrial, Campus Environment |
| Fire Rating | OFNR |
| MSHA | Compliant |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Enhanced Performance | |
| Weathering | 720 hours |
| Low/High Temp Bend | -20℃ ~ 70℃ |
| Cyclic Flex | 2000 cycles |
| Impact | 1500 impacts |
| Crush Resistance | 2200 N/cm |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-F2R-OM1-R | 2-Strand | 0.28 lb |
| BK-F6R-OM1-R | 6-Strand | 0.56 lb |
