Description

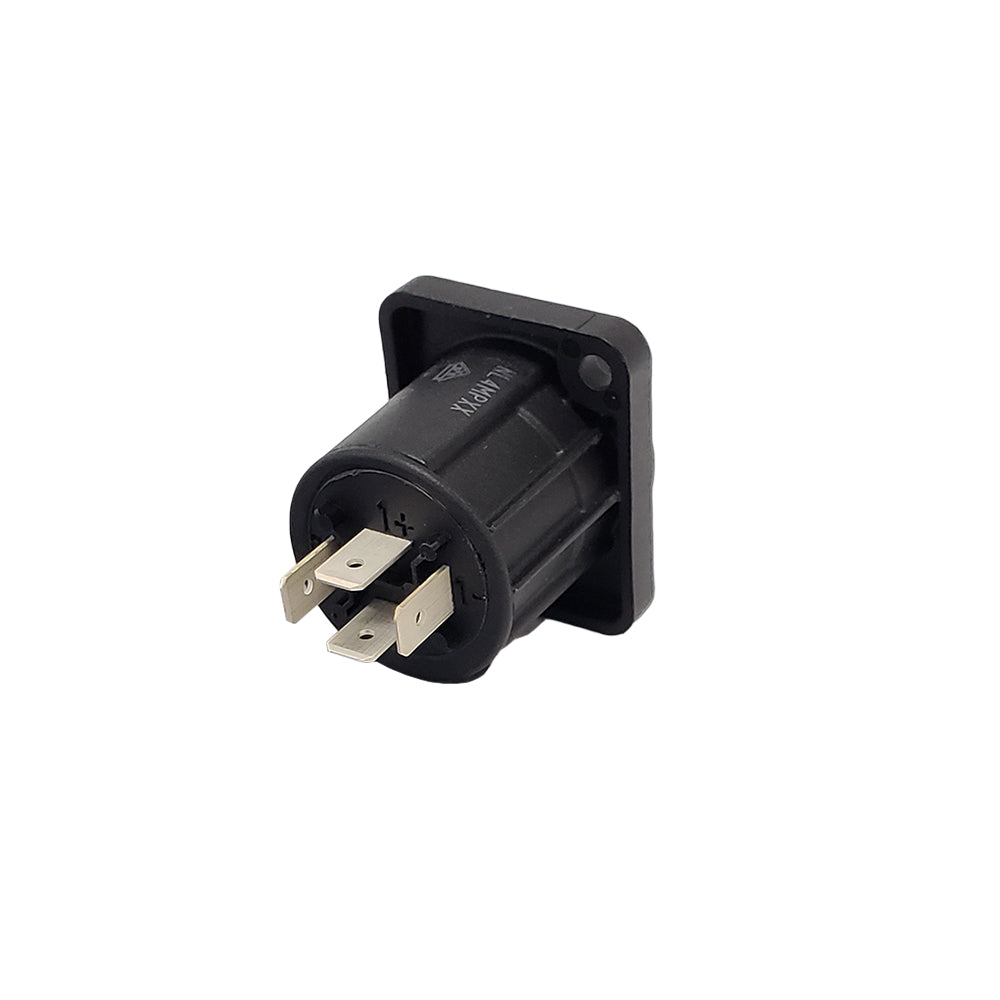

This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Type | speakON |
| Temperature Range | -30ā to +80ā |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Shell | Polyamide (PA 6.6) |
| Locking Element | Stainless Steel |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | ? 2 mā¦ |
| Dielectric Strength | 2.8 kVdc (peak) |
| Insulation Resistance | > 1 Gā¦ (after damp heat) |
| Rated Current Per Contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
| Chassis Shape | D |
| Layout | Standard Hole Position, Thru Holes |
| Environmental | |
| Flammability | UL 94 V-0 |
| Manufacturer Information | |
| Neutrik Part Number | NL4MPXX |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| NT-NL4MPXX | 0.02 lb |
