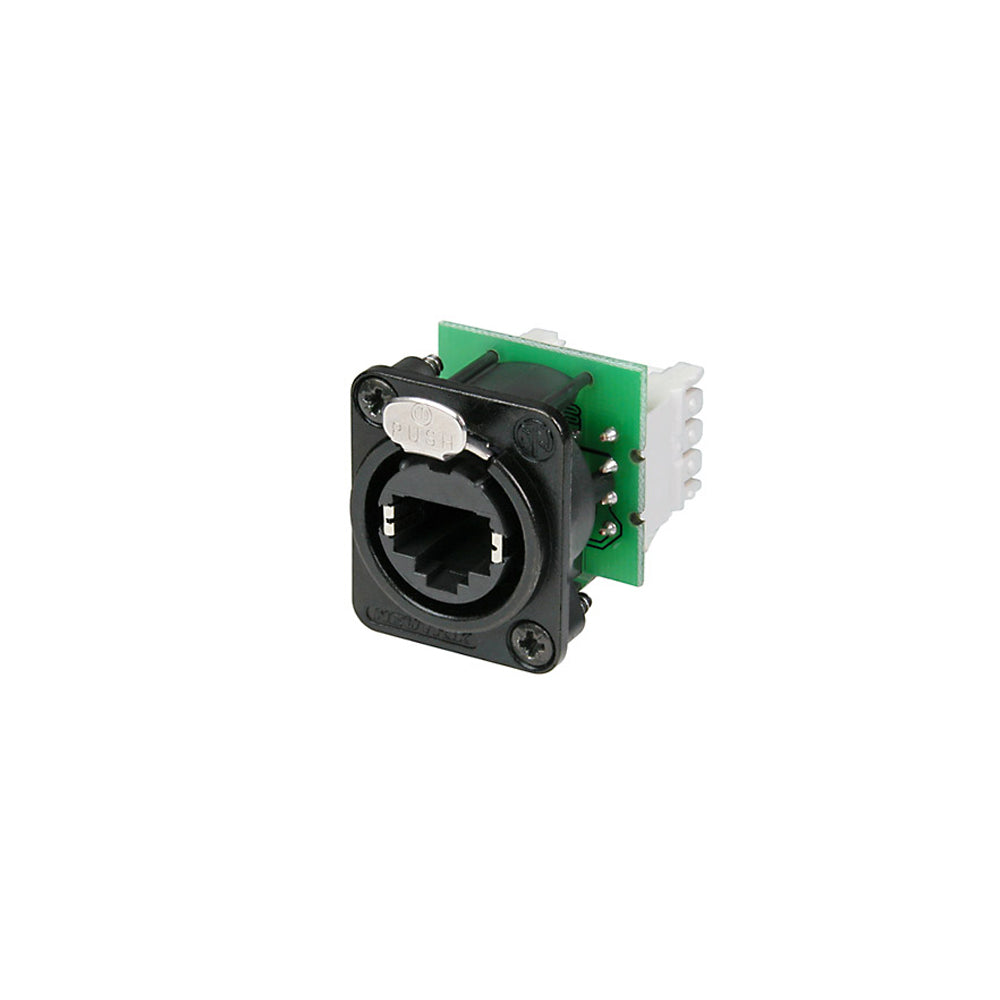

Neutrik Female Ethercon RJ45 Receptacle - 110 Punch Down - Black

Data ConnectorsSKU: NT-NE8FDV-Y110-B

In stock


This panel mount receptacle with IDC 110 punch down terminals is optimized for pro audio, video and lightning network applications.

Physical Characteristics
Color Black
Housing Nickel
Temperature Range -30℃ to +80℃
Boot Polyurethan
Contact Plating 0.2 µm Au over Ni Plating
Contacts Bronze
Insert PBTP 15% GR
Shell Zinc Diecast
Shell Plating Black Chromium
Strain Relief Tin Plated
Gender Female
Electrical Characteristics
Capacitance between Contacts ? 7 pF
Contact Resistance < 10 mΩ
Dielectric Strength 1 kVdc
Frequency Range 1 - 100 MHz
Insulation Resistance > 0.5 GΩ
Rated Current Per Contact 1,5 A
Rated Voltage < 50 V
Transmission Performance CAT5e
Standard Compliance TIA/EIA 586B, IEC11801
Mechanical Characteristics
Insertion Force ? 20 N
Withdrawal Force ? 20 N
Lifetime > 1000 mating cycles
Panel Thickness Max. 4mm 0.16 inches
Wire size 0.14 - 0.5 mm²
26 - 20 AWG
Wiring IDC 110 Punch Down Terminals
Locking Device Latch Lock
Chassis Shape D
Flammability UL 94 V-0
Manufacturer Information
Neutrik Part Number NE8FDV-Y110-B
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
