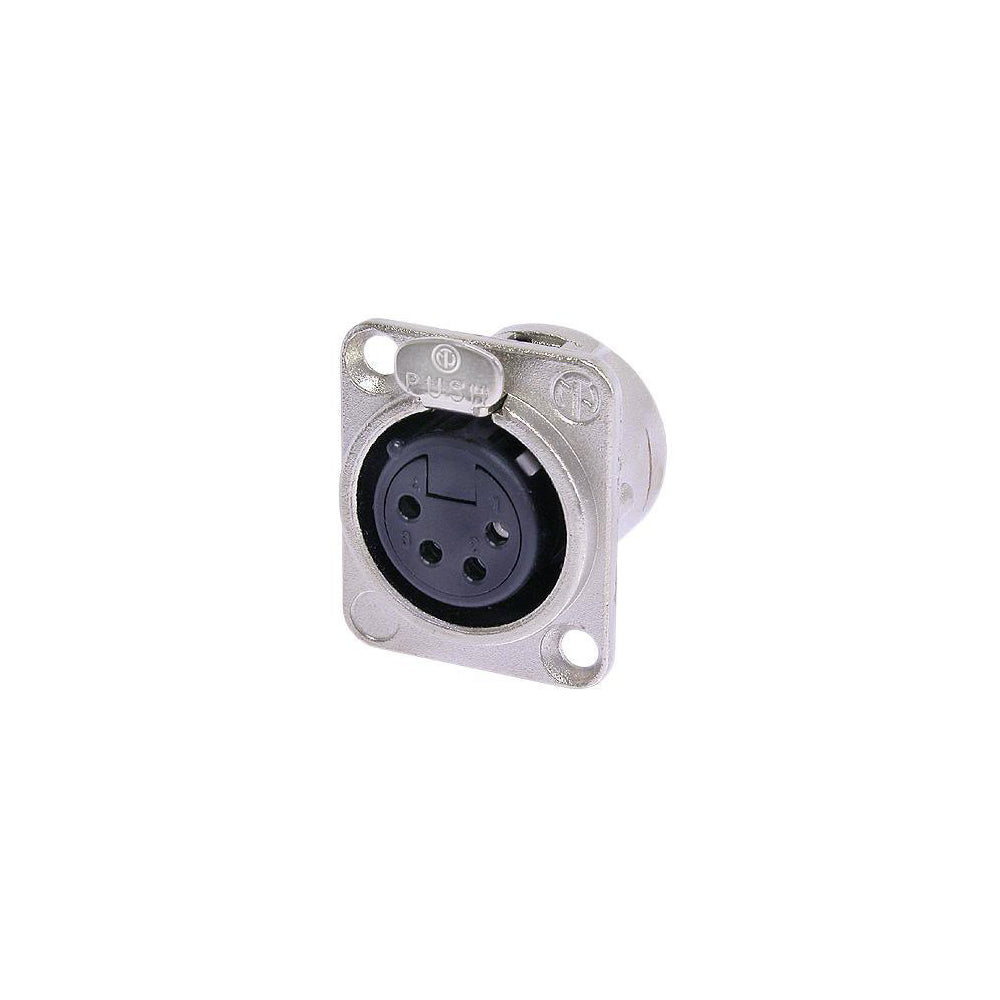

Neutrik DMX 4-pin Female to Solder D-Cut Receptacle

Audio ConnectorsSKU: NT-NC4FD-L-1

Price:
Sale price$9.52 USD
Stock:
In stock

Description

This connector is a 4-pin female receptacle with solder cups, nickel housing and silver contacts.

Physical Characteristics
Housing Nickel
Connector Type XLR
Temperature Range -30℃ to +80℃
Contact Plating 2 µm Au over 2 µm Ni
Contacts Brass
Insert Polyamide
Locking Element Steel Ck67
Shell Zinc Diecast
Shell Plating Nickel
Gender Female
Electrical Characteristics
Capacitance between Contacts ≤  7 pF
Contact Resistance ≤  5 mΩ
Dielectric Strength 1,5 kVdc
Insulation Resistance > 10 GΩ (initial)
Rated Current Per Contact 10 A
Rated Voltage < 50 V
Mechanical Characteristics
Insertion Force ≤  20 N
Withdrawal Force ≤  20 N
Lifetime > 1000 mating cycles
Wire size Max. 1.5 mm²
Max. 16 AWG
Wiring Solder contacts
Locking Device Latch Lock
Chassis Shape D
Approvals
UL Yes
Environmental
Flammability UL 94 HB
Standard Compliance IEC 61076-2-103
Protection Class IP 40
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NC4FD-L-1
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
