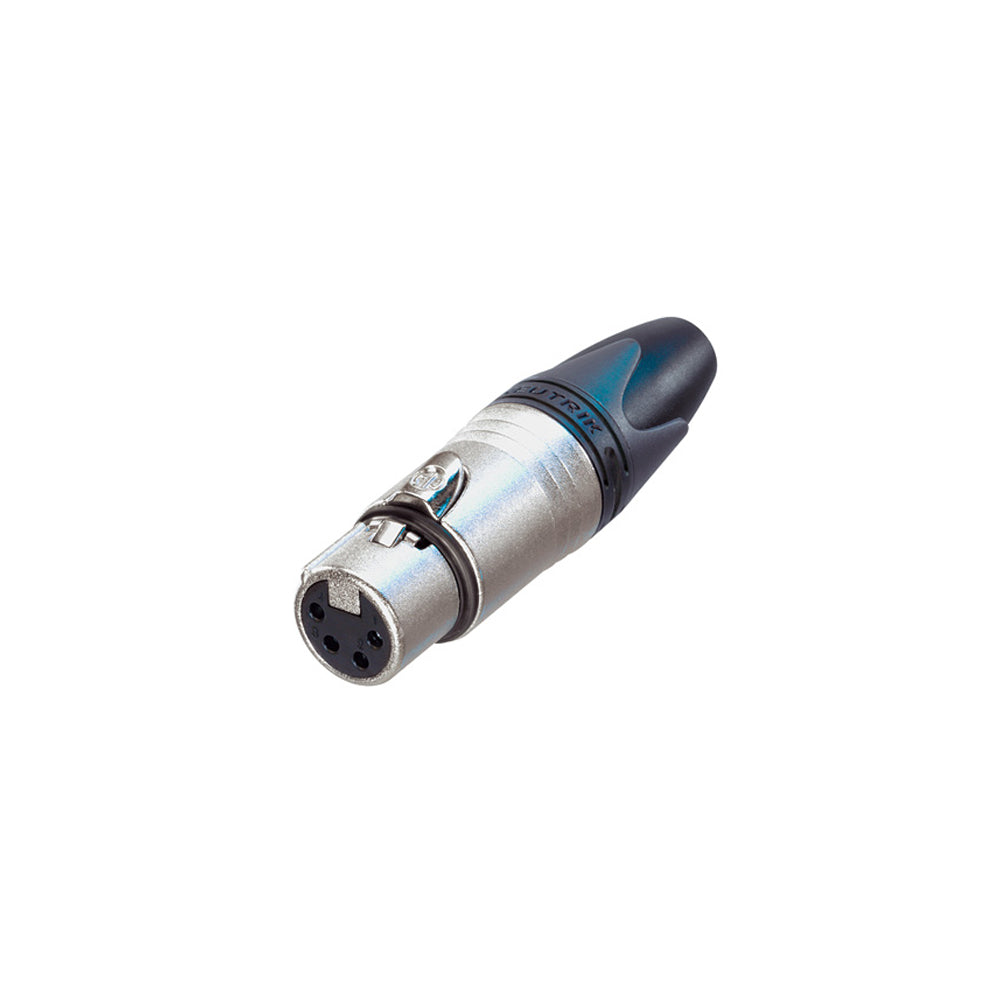

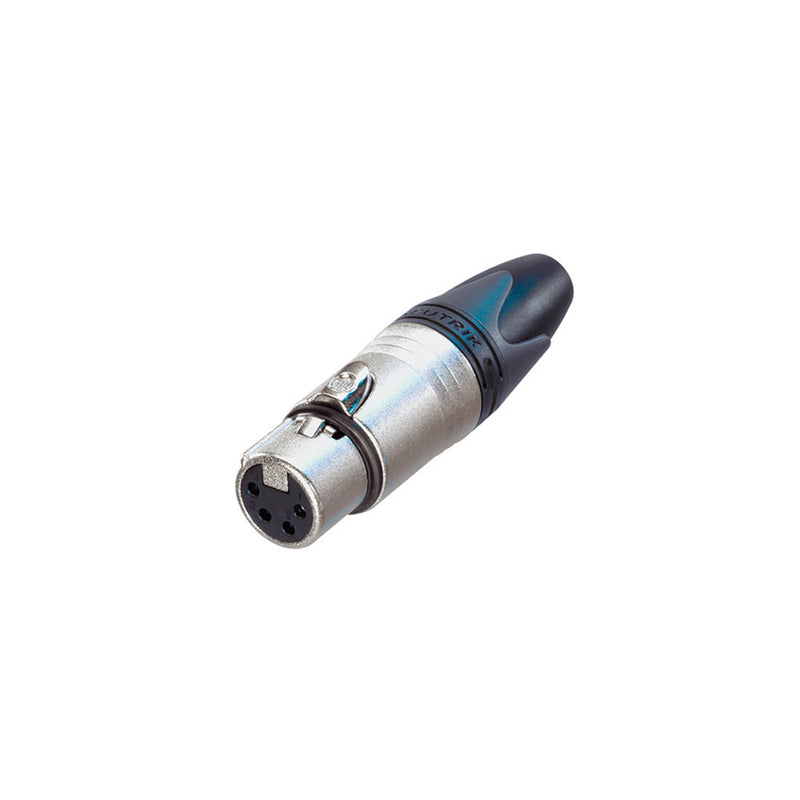

Neutrik 4-Pin XLR Female Inline Connector

Audio ConnectorsSKU: NT-NC4FXX

Sale price$8.11 USD
In stock


This connector is typically used to connect audio devices and is reliable, easy to assemble and improves contact integrity as well as cable strain relief.

Physical Characteristics
Color Black
Housing Nickel
Connector Type XLR
Temperature Range -30℃ to +80℃
Boot Polyurethan
Contact Plating 2 µm Au over 2 µm Ni
Contacts Brass
Insert Polyamide
Locking Element Zinc Diecast
Shell Zinc Diecast
Shell Plating Nickel
Strain Relief Polyacetal (POM)
Gender Female
Electrical Characteristics
Capacitance between Contacts 7 pF
Contact Resistance ≤ 3 mΩ
Dielectric Strength 1,5 kVdc
Insulation Resistance > 10 GΩ (initial)
Rated Current Per Contact 10 A
Rated Voltage < 50 V
Mechanical Characteristics
Cable O.D. 3.5 - 8.0 mm
Insertion Force 20 N
Withdrawal Force 20 N
Lifetime > 1000 mating cycles
Wire size Max. 1.5 mm²
Max. 16 AWG
Wiring Solder contacts
Locking Device Latch Lock
Flammability UL 94 HB
Standard Compliance IEC 61076-2-103
Protection Class IP 40
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NC4FXX
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
