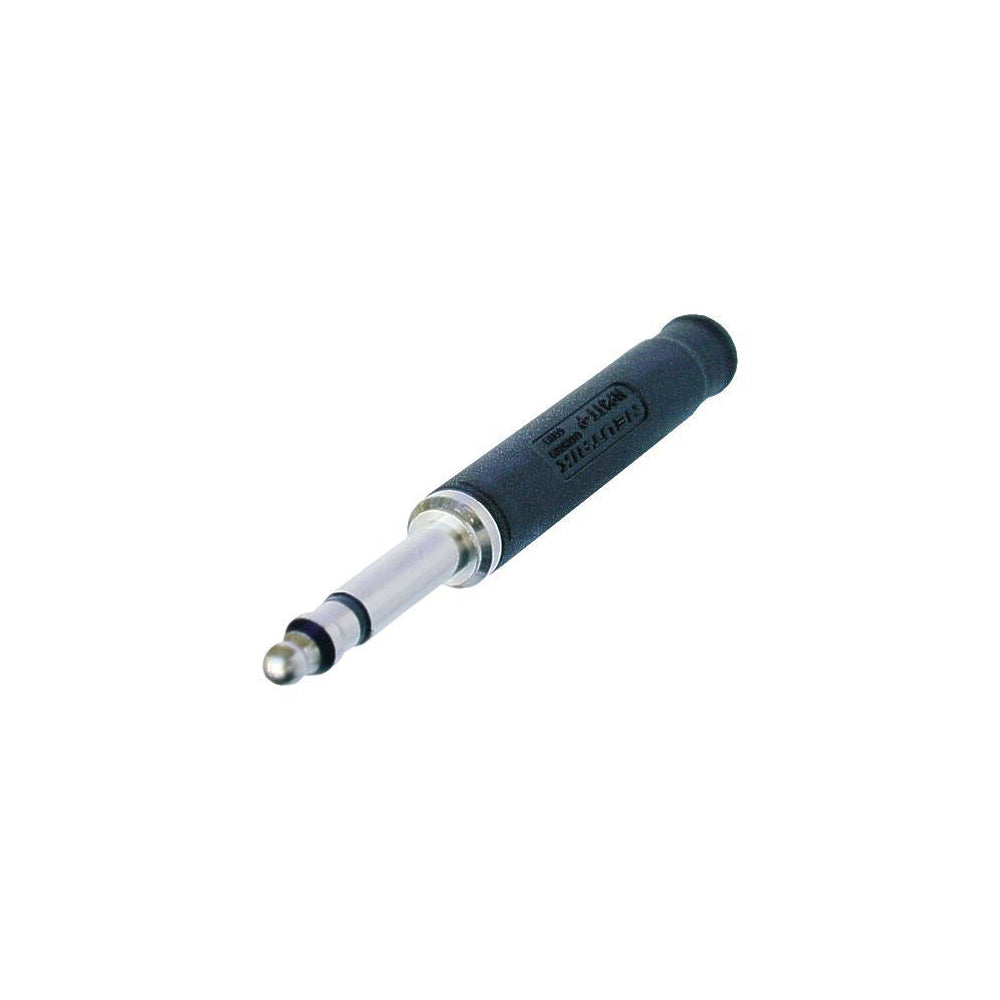

Neutrik 4.4mm Bantam Plug (Solder + Crimp) - Black

Audio ConnectorsSKU: NT-NP3TT-P-B

Price:
Sale price$9.23 USD
Stock:
In stock

Description

This 4.4mm plug is designed for pro audio applications and is ideal for the usage of Bantam patch panels. It has a robust ergonomic design that is long-lasting and dependable.

Physical Characteristics
Color Black
Housing Plastic
Temperature Range -20℃ to +65℃
Contact Plating 2 µm Ni
Contacts Bronze
Shell Polyamide
Insulation Polyamide
Gender Male
Electrical Characteristics
Contact Resistance Depending on Mating Connector mΩ
Dielectric Strength 1 kVdc
Insulation Resistance > 2 GΩ (initial)
Rated Current Per Contact Depends on Mating Connector A
Rated Voltage < 50 V
Mechanical Characteristics
Cable O.D. 4 - 4.8 mm
Crimp Size 5,41 Hex Crimp (Shield) acc. IEC 60803 (Die Designation D)
Lifetime > 1000 mating cycles
Wire size 0,25 mm²
24 AWG
Wiring Solder contacts
Environmental
Standard Compliance MIL-P-642/13
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NP3TT-P-B
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
