Description

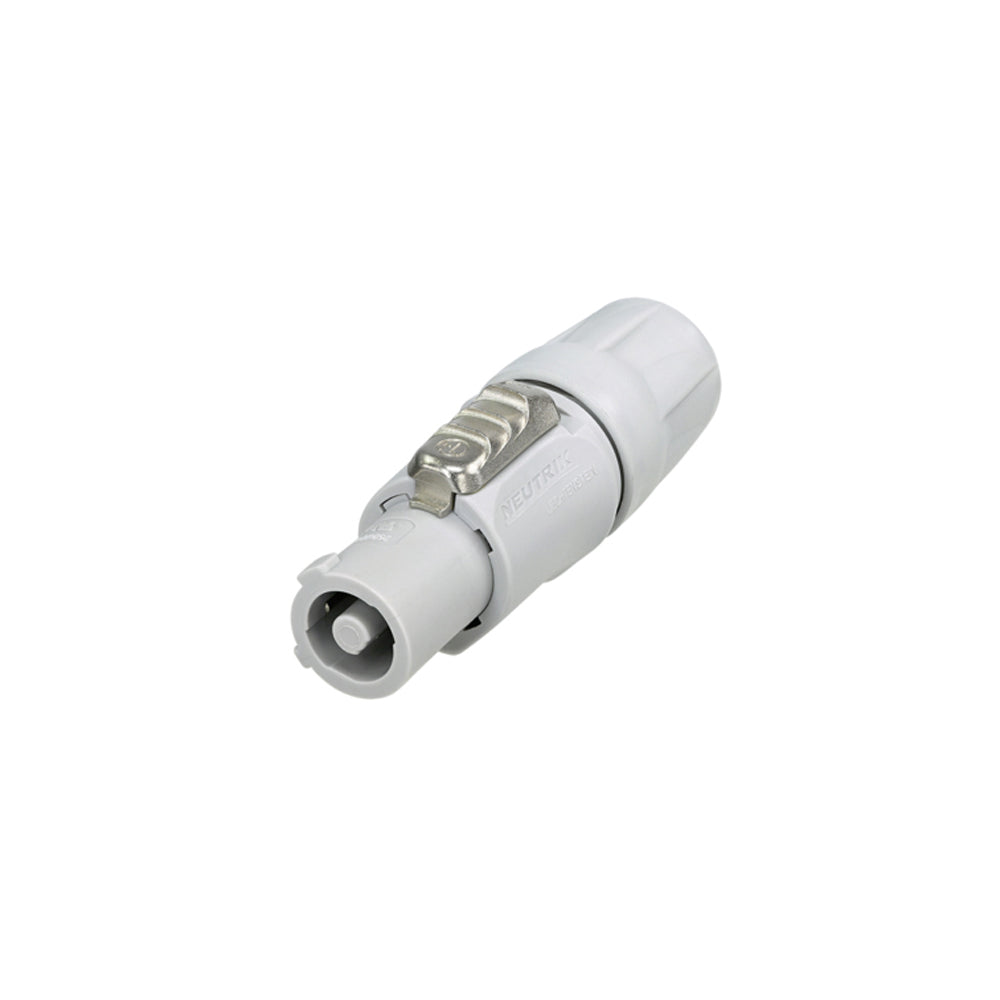

This locking 3 Wires equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | 4 µm Ag |
| Contacts | Bronze |
| Insert | Polyamide |
| Locking Element | Zinc Diecast |
| Shell | Polyamide |
| Strain Relief | Polyacetal |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | ? 3 mΩ |
| Dielectric Strength | 4 kVdc / 2.8 kVac |
| Insulation Resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of Electronical Contacts | 2 + PE |
| Rated Current Per Contact | 20 A rms |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Cable O.D. | 6 - 15 mm (Cable O.D. range limited to 6 mm - 14 mm acc. VDE) |
| Lifetime | > 1000 mating cycles |
| Wire size | 2,5 mm² 12 AWG |
| Locking Device | Quick Lock |
| Approvals | |
| UL, cUL, SEV | Compliant |
| Certifications | |
| VDE | Compliant |
| Manufacturer Information | |
| Neutrik Part Number | NAC3FCB |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| NT-NAC3FCB | 0.02 lb |
