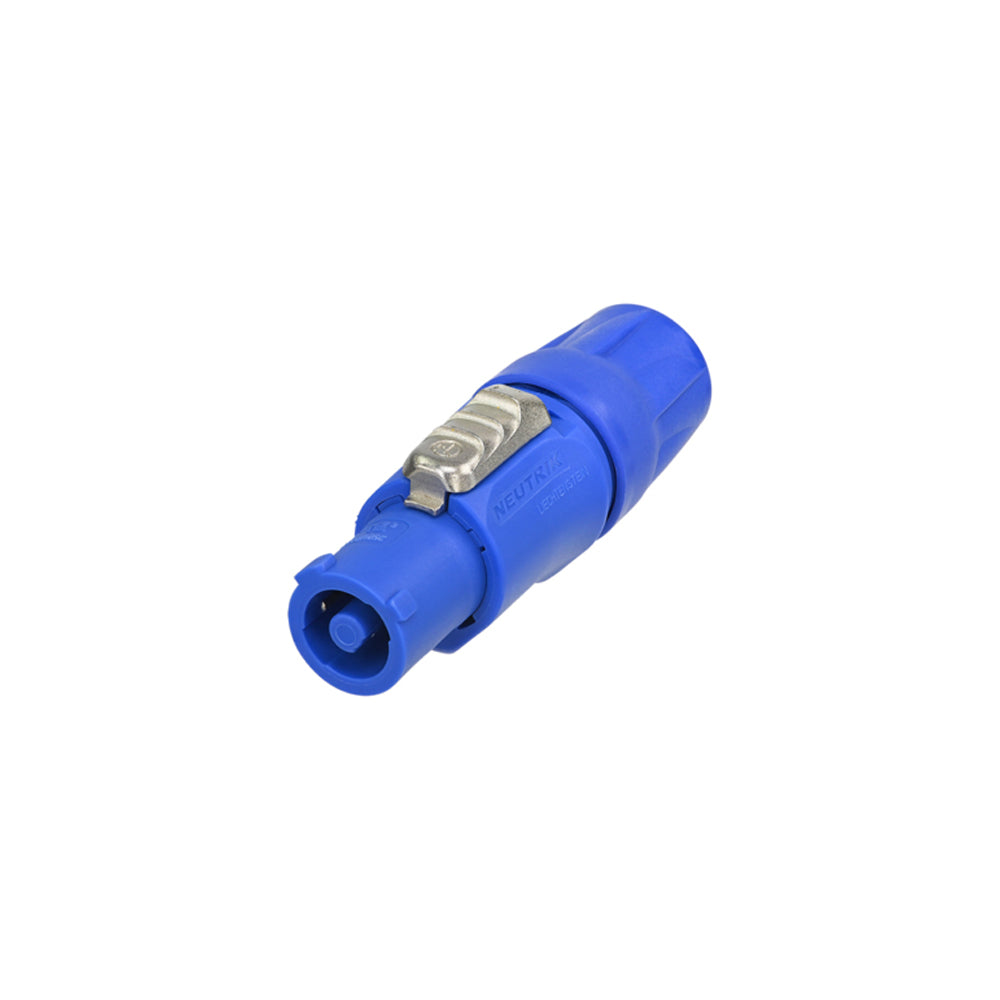

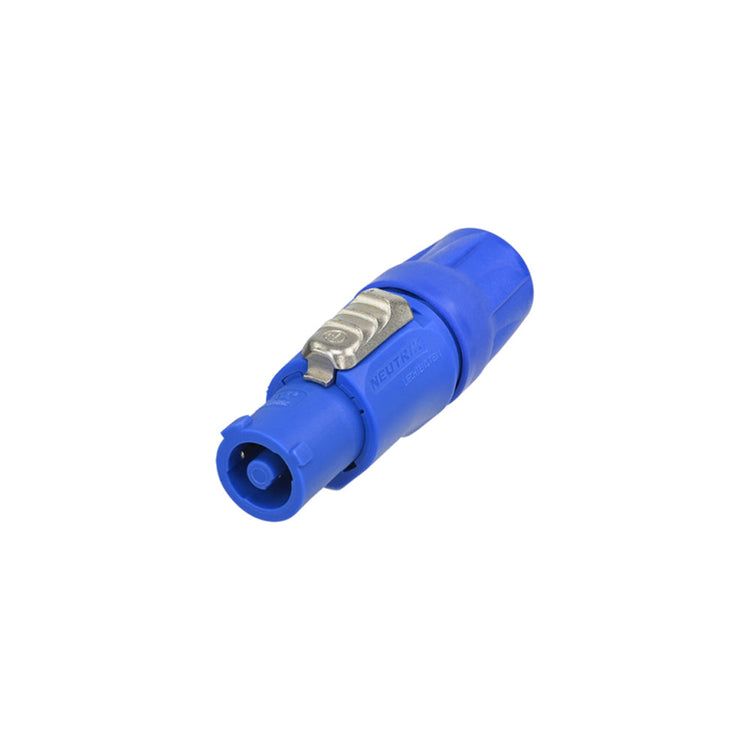

Neutrik 3 Pole AC Power-in Cable Connector - Blue

Power ConnectorsSKU: NT-NAC3FCA

Price:
Sale price$7.69 USD
Stock:
In stock

Description

This locking 3 conductor equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Physical Characteristics
Color Blue
Temperature Range -30℃ to +80℃
Contact Plating 4 µm Ag
Contacts Bronze
Insert Polyamide
Locking Element Zinc Diecast
Shell Polyamide
Strain Relief Polyacetal
Gender Female
Electrical Characteristics
Contact Resistance ? 3 mΩ
Dielectric Strength 4 kVdc / 2.8 kVac
Insulation Resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of Electronical Contacts 2 + PE
Rated Current Per Contact 20 A rms
Rated Voltage 250 V ac
Mechanical Characteristics
Cable O.D. 6 - 15 mm 6 - 15 mm (Cable O.D. range limited to 6 mm - 14 mm acc. VDE)
Lifetime > 1000 mating cycles
Wire size 2,5 mm²
12 AWG
Locking Device Quick Lock
Approvals
UL, cUL, SEV Yes
Certifications
VDE Yes
Manufacturer Information
Neutrik Part Number NAC3FCA
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
