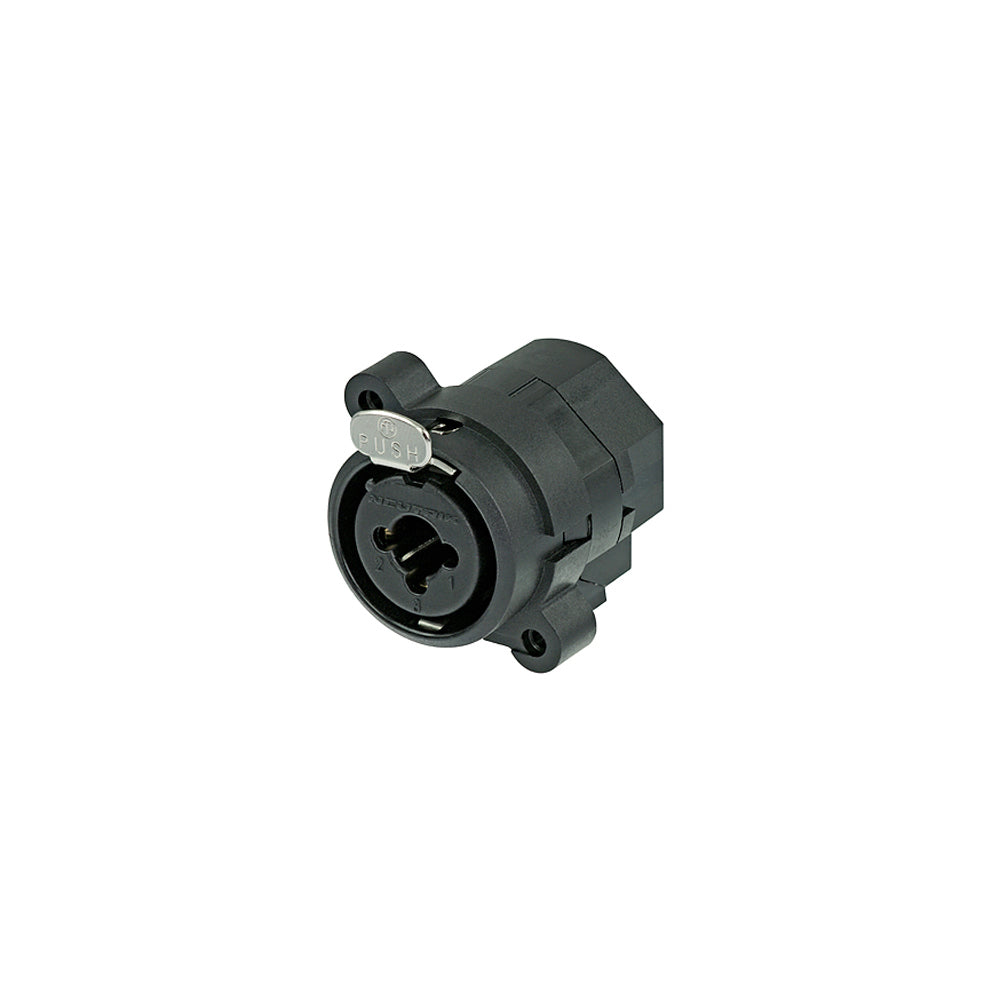

Neutrik 3-Pin XLR Female + 1/4 inch TRS Combo Panel Mount Connector

Audio ConnectorsSKU: NT-NCJ6FI-S

Price:
Sale price$5.07 USD
Stock:
In stock

Description

This connector is a XLR + jack hybrid chassis connector combining a 3-pole XLR receptacle and 1/4" jack. It is typically used for digital audio applications.

Physical Characteristics
Color Black
Housing Nickel
Connector Type Combo
Temperature Range -30℃ to +80℃
Contacts Bronze
Contact Plating 0.2 µm Au hard alloy over 2 µm Ni
Insert Polyamide
Locking Element Steel Ck67
Gender Female
Electrical Characteristics
Contact Resistance < 10 mΩ (XLR)
< 20 mΩ (Jack)
Dielectric Strength 1,5 kVdc
Insulation Resistance > 10 GΩ (initial)
Rated Current Per Contact 7,5 A (XLR)
7,5 A (Jack)
Rated Voltage < 50 V
Mechanical Characteristics
Insertion Force ? 25 N
Withdrawal Force ? 25 N
Lifetime > 1000 mating cycles
Panel Thickness Max. 7 mm 0.27 inches
Mounting Direction Rear Mounting
Environmental
Flammability UL 94 HB
Standard Compliance IEC 61076-2-103
Protection Class IP 40
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NCJ6FI-S
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
SKU Weight
NT-NCJ6FI-S 0.02 lb
