Description

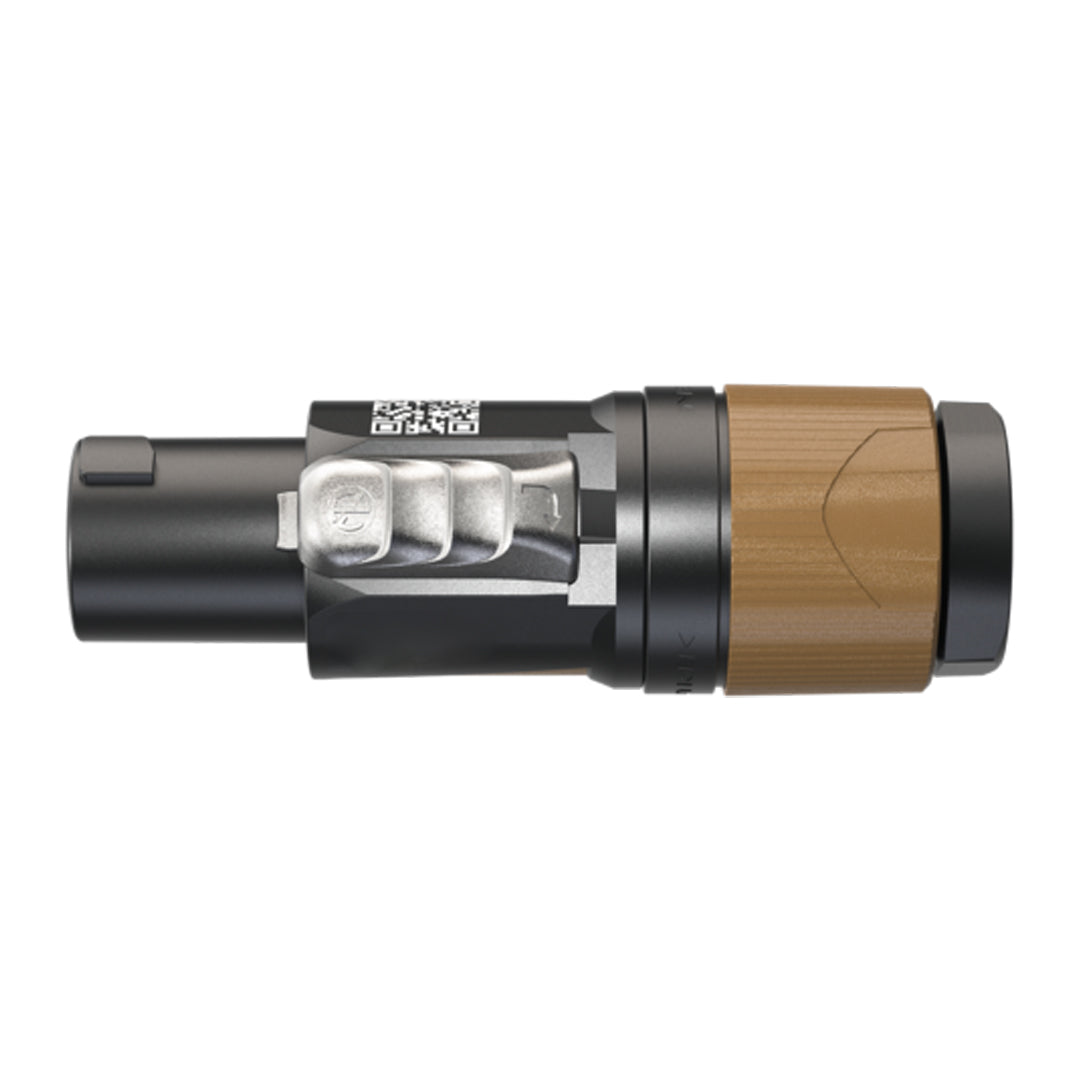

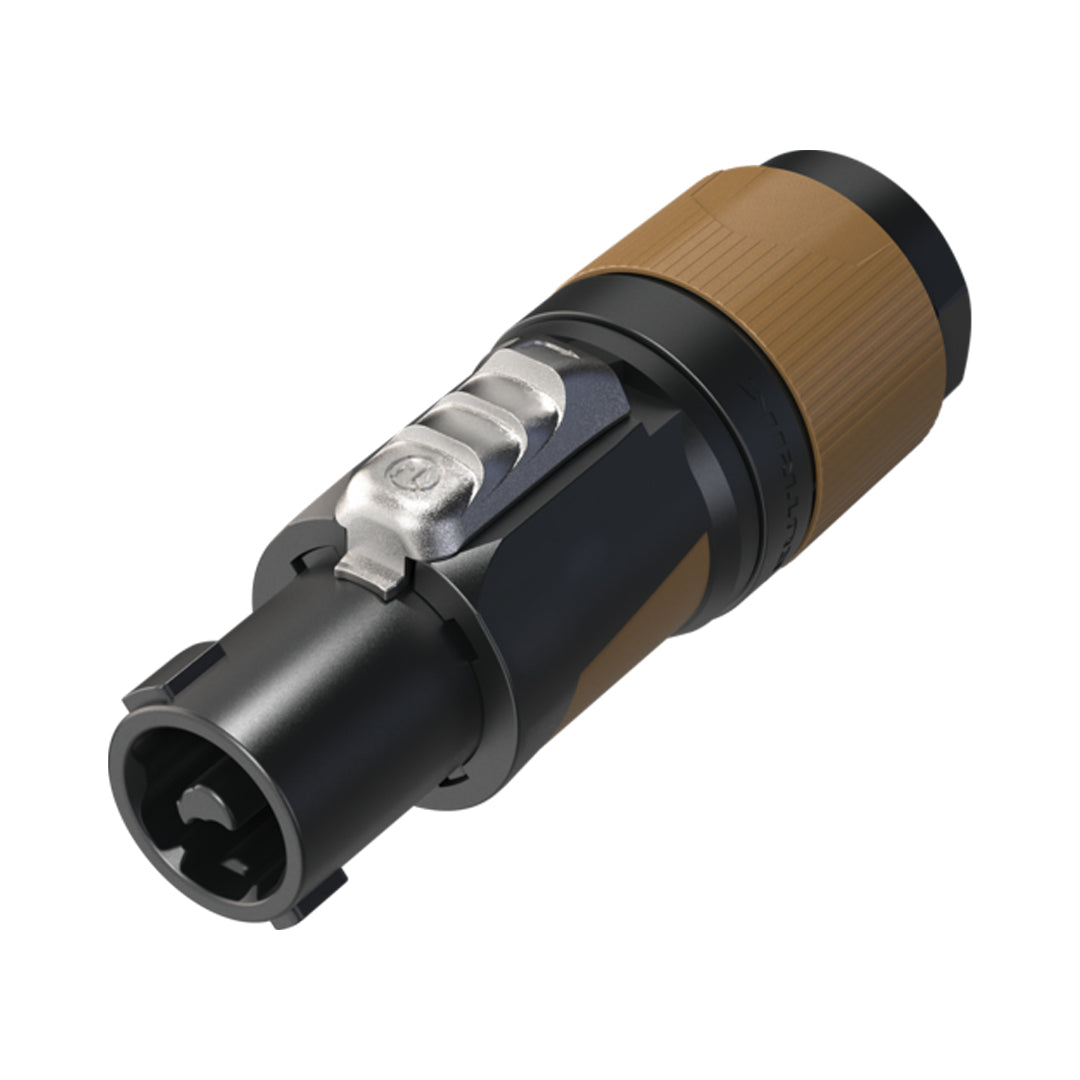

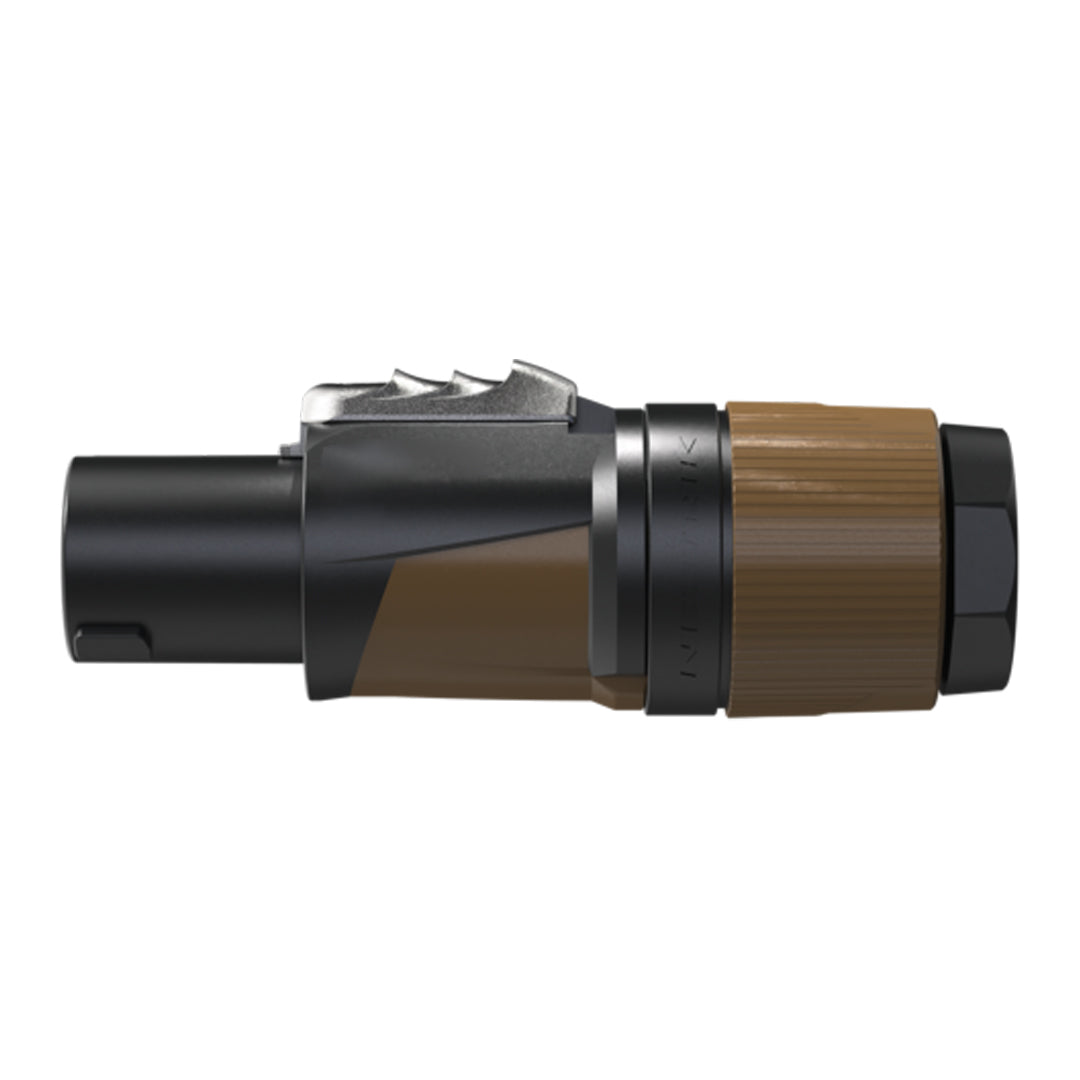

This connector is extremely robust and offers a reliable locking system as speaker cable terminations. It features solid contacts with screw-type terminals including a stranded wire protection which also offers solder termination.
Features:
- Up to 37 A rms current rating
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Ergonomic design with slip-proof two-component molded housing
- Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
| Physical Characteristics | |
|---|---|
| Color | Brown |
| Connector Type | speakON |
| Temperature Range | -33℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc Diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 2.8 kVac |
| Insulation Resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 2 |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Cable O.D. | 6 – 12 mm |
| Lifetime | > 5000 mating cycles |
| Wire size |
1.5 – 4 mm² 17 – 11 AWG |
| Wiring | Screw Type Terminals |
| Locking Device | Twist lock |
| Environmental | |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
| IEC | Yes |
| UL | Yes |
| CSA | Yes |
| Manufacturer Information | |
| Neutrik Part Number | NL2FXX-W-S |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Video
Product Weights
| SKU | Weight | |
| NT-NL2FXX-W-S | 0.02 lb |
