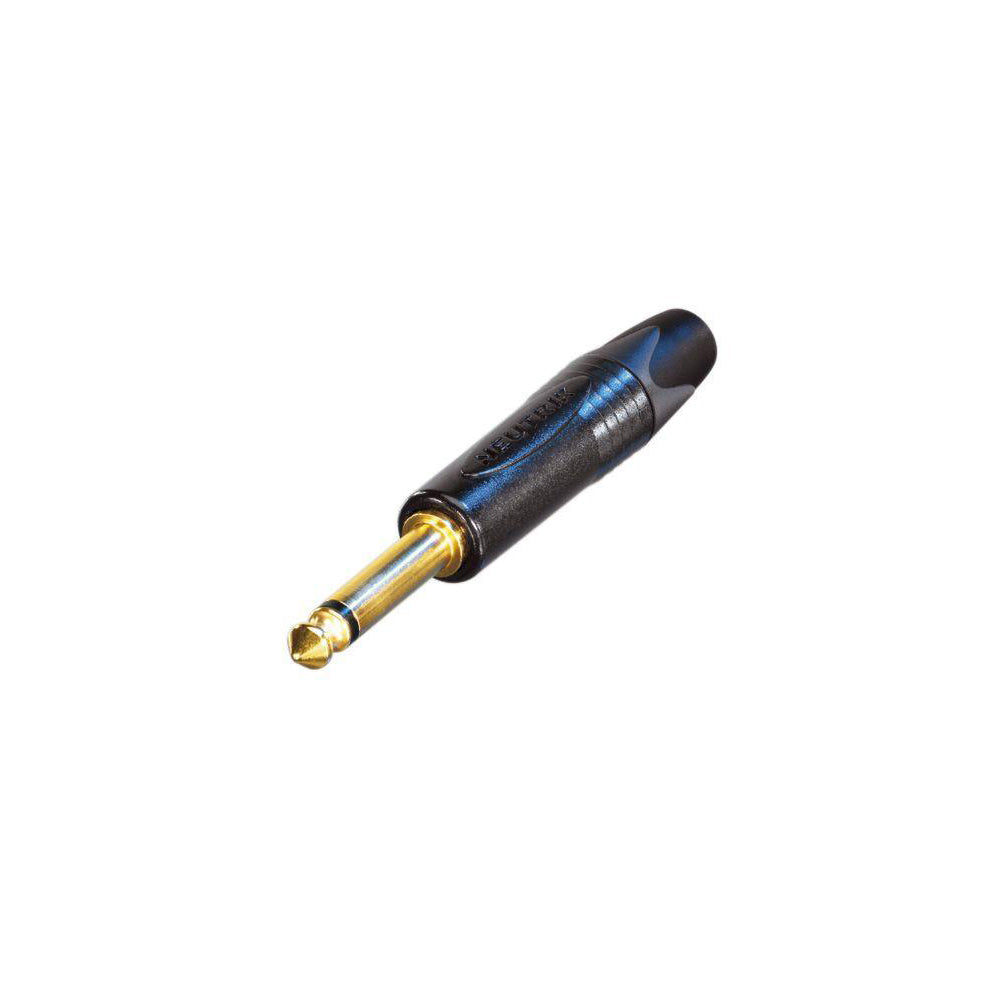

Neutrik 1/4 inch TS Male Slim Plug - Black with Gold Pins

Audio ConnectorsSKU: NT-NP2X-B

Price:
Sale price$5.23 USD
Stock:
In stock

Description

This heavy duty professional plug is typically used for guitar applications, audio cables, snakes, speakers, amplifiers and mixing decks.

Physical Characteristics
Color Black
Housing Metal
Temperature Range -20℃ to +65℃
Bushing Polyacetal (POM) + PU
Contact Plating 0.2 µm Au
Contacts Brass
Insert Polyamide
Shell Zinc Diecast
Shell Plating Black Chromium
Strain Relief Polyacetal (POM)
Gender Male
Electrical Characteristics
Contact Resistance Depending on Mating Connector mΩ
Dielectric Strength 1 kVdc
Insulation Resistance > 2 GΩ (initial)
Rated Current Per Contact Depends on Mating Connector A
Rated Voltage < 50 V
Mechanical Characteristics
Cable O.D. 4 - 7 mm
Lifetime > 1000 Mating Cycles
Wire size 1 mm²
18 AWG
Wiring Solder contacts
Environmental
Standard Compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NP2X-B
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
