Overview

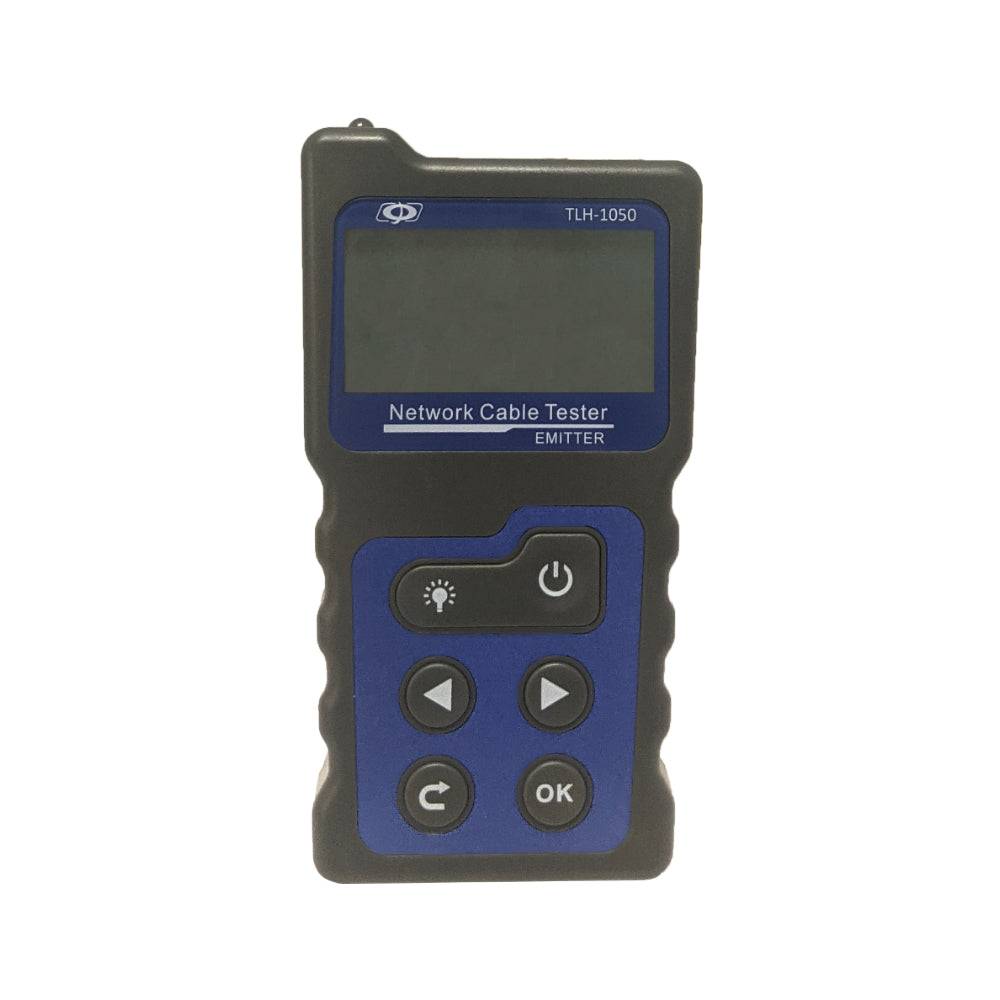

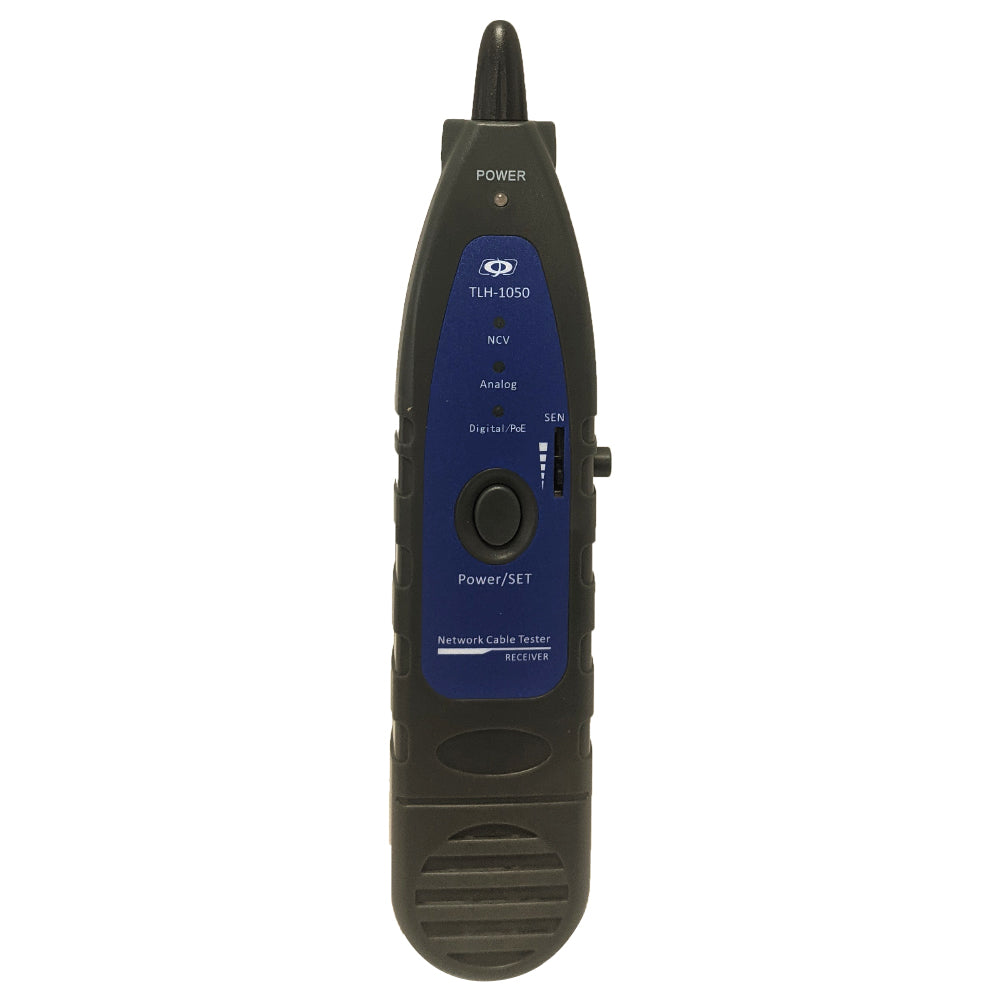

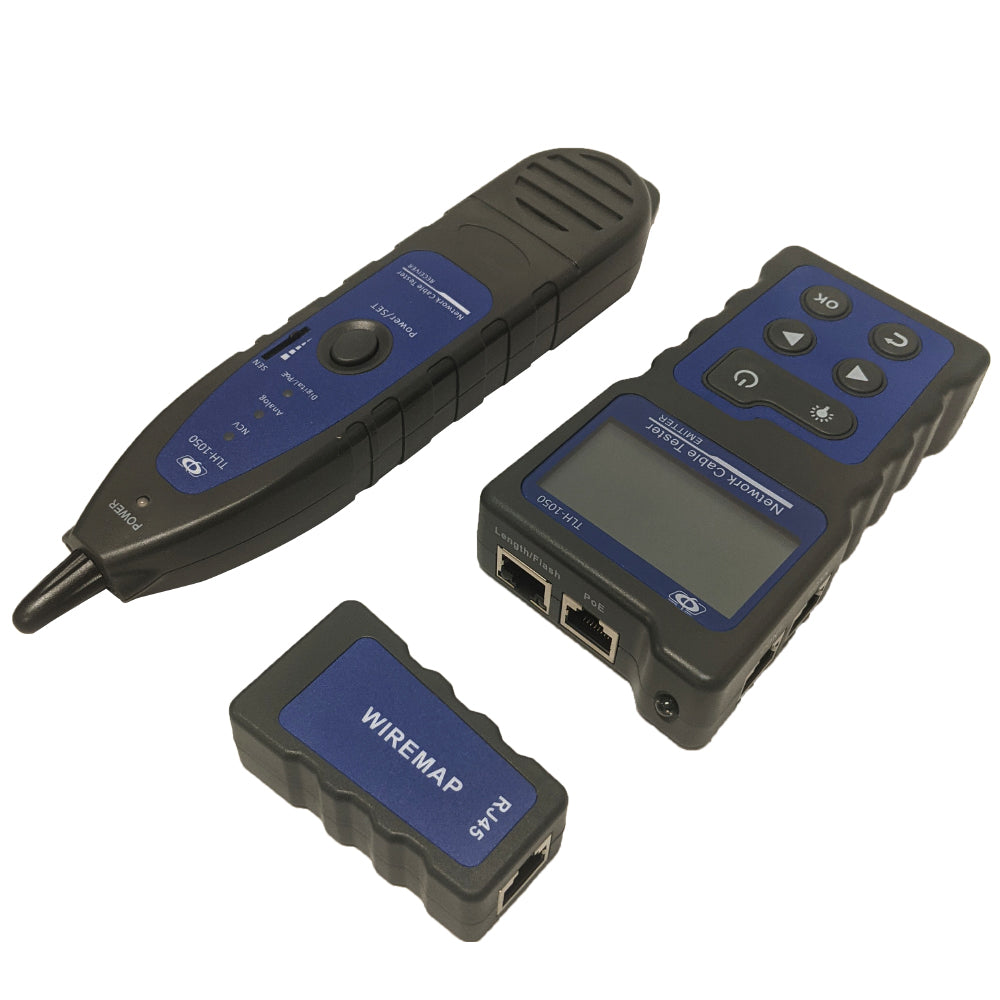

This network cable tester tests the pin assignments accurately of unshielded and shielded RJ45 cables. It allows you to determine if the cable is pinned correctly or if it is mis-wired, shorted or has open circuits. It also measures length, does tone and probe, measures PoE and port flashing.Ā The emitter is powered using 3x AAA batteries and the receiver is powered using 1x 9V battery (batteries not included).
Features
- Test open, short, cross and breaks for UTP/STP cables
- Measure length of LAN cables
- Scan analog/digital/PoE mode to locate LAN cables
- Works with standard or non-standard PoE switches
- Identify AT or AF standardĀ PSE types
- Network port location on switches and routers
 |
Inexpensive - Lightweight - ConvenientThis cable tester is reliable, inexpensive and simple to use. Comes in a compact, lightweight design. Ā Quick and Easy OperationThis tester is a quick and easy way to check the pin assignment of your cables. It tests for continuity, open, short, cross and breaks. Ā |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Grey/Blue |
| Dimensions (L x W x D) |
Emitter: 130x70x28mm Receiver: 130x43x27mm Remote: 65x37x23mm |
| Test Measurements | Test open, short, cross and breaks for UTP/STP (CAT5E, CAT6, CAT6A) cables |
| Wire Mapping | Yes |
| Max Range (Wiremap &Ā Scan) | 600m |
| Cable Length Test Range | 2.5m ~ 200m |
| Length Accuracy | +/- 1.6m |
| Cable Breakage Locator | Yes |
| Scan Max Signal Voltage | 9 +/- 1Vp-p |
| Scan Frequency | 130KHz |
| PoE Test Range | DC 5~60V |
| PoE Voltage Display | Yes |
| PSE Type | Standard IEEE 802.3af/at |
| Voltage Protection | DC48V 5mA |
| LCD Display | 128x64 Dot-matrix with backlight |
| Sensitivity Adjustable | Yes |
| AC Voltage Detection | Yes |
| Battery Types | Emitter: 3xĀ AAA batteries (Not Included) Receiver: 1x 9V battery (Not Included) |
| Max Working Current | Emitter: <150mA Receiver: <100mA |

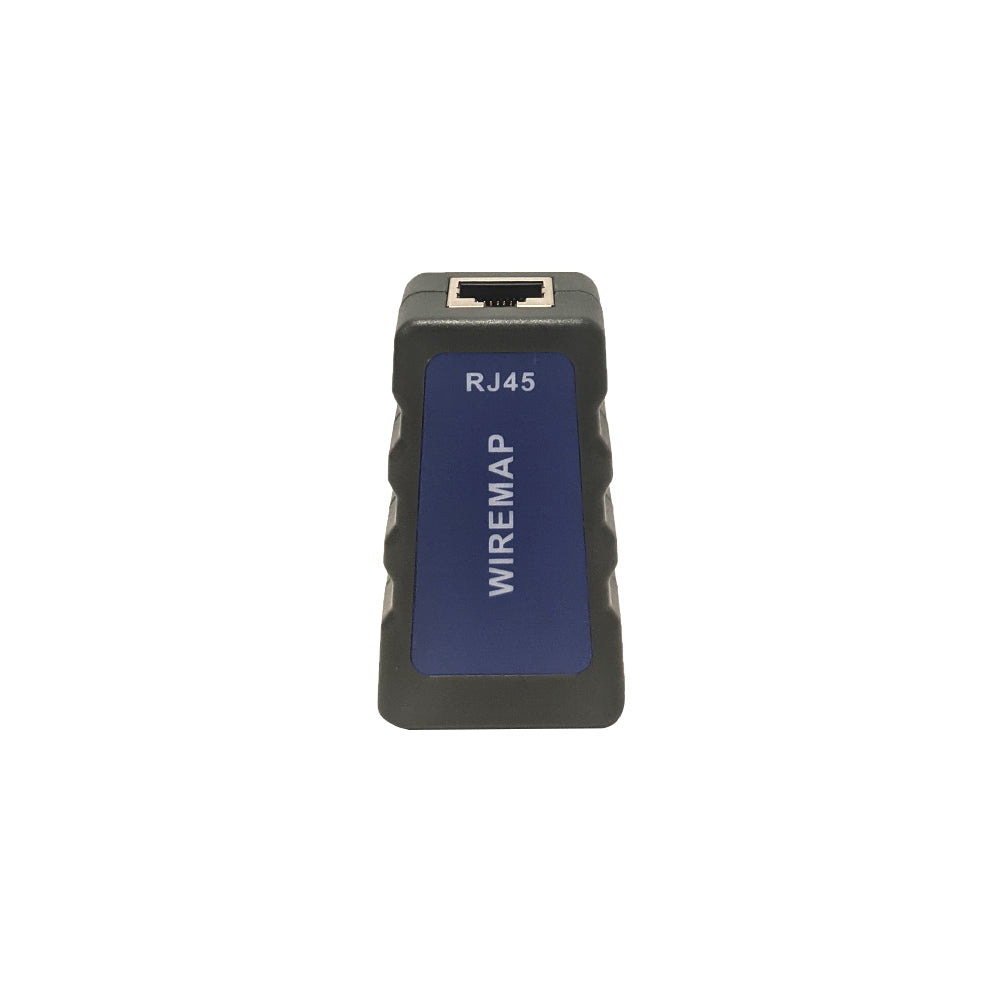

| Wire Mapping Port (Remote) | RJ45 |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.76 lbs |
| Contents | |

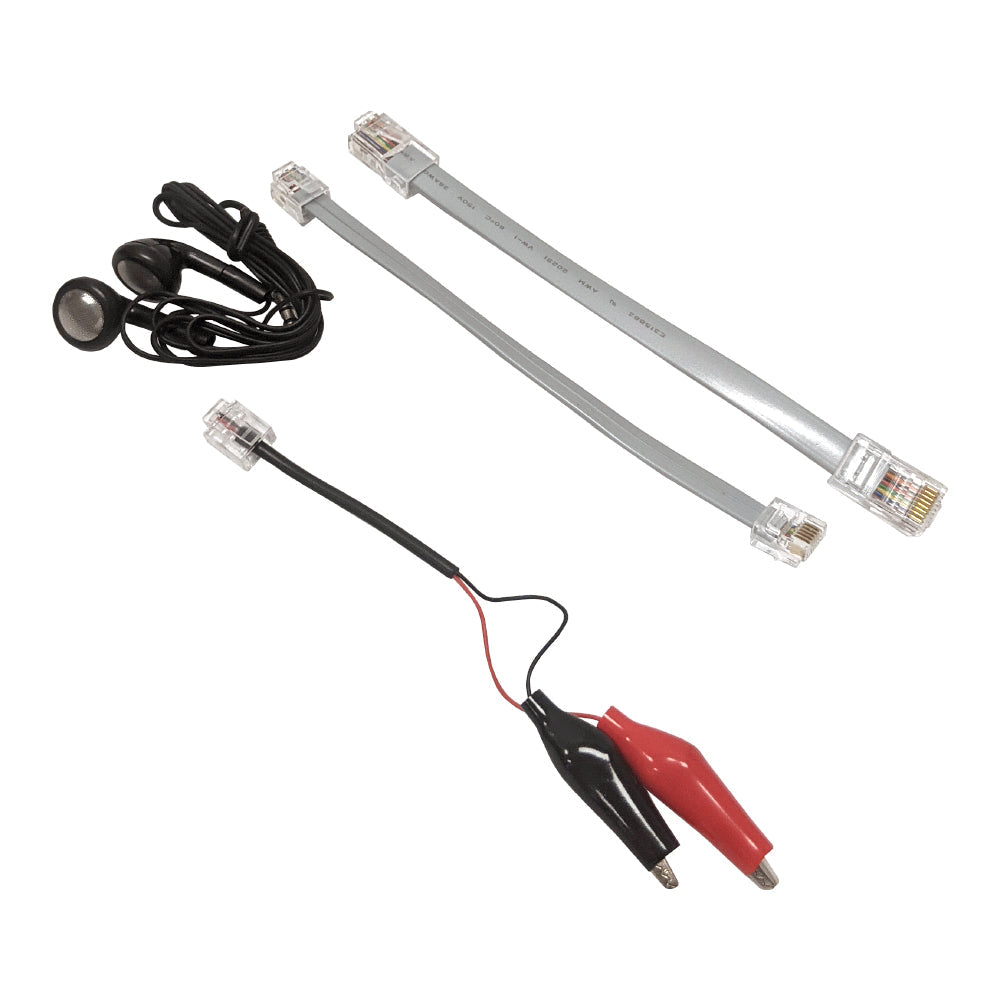

| Included in Package | 1 - Emitter 1 - Receiver 1 - Remote 1 - Earphone 1 - Cable Adapters (1 set) 1 - Carry Bag 1 - Quality Certificate 1 - User Manual |
Product Weights
| SKU | Weight | |
| TLH-1050 | 0.76 lb |
