Overview

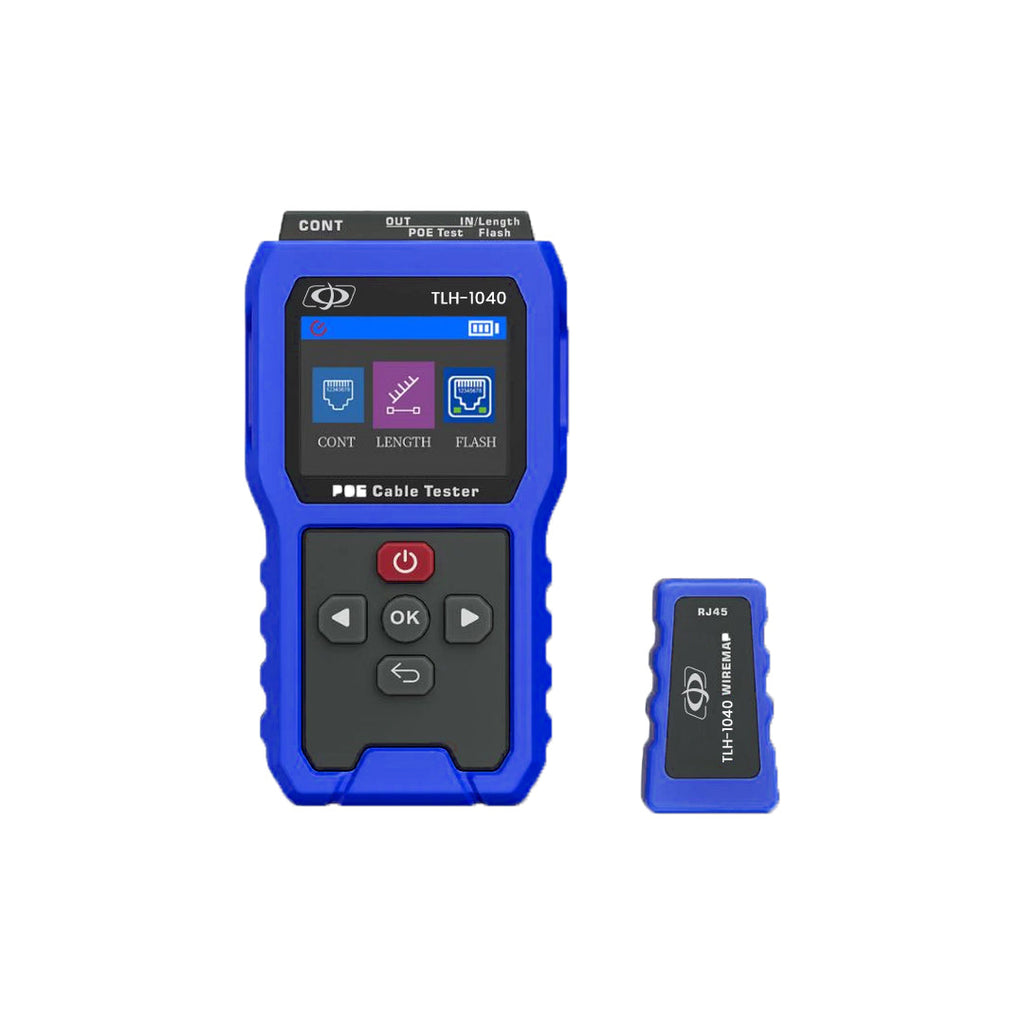

This network cable tester is a compact yet powerful network testing tool built for professionals and advanced DIYers. It combines cable continuity and wire-map diagnostics, cable length measurement, switch port identification (port flash), and full Power-over-Ethernet (PoE) testing — all on a bright 2.4″ full-colour LCD screen. Whether you're installing CAT5/CAT6 runs, testing wall jacks, debugging PoE switches or patch panels, this tester has the features to get it done quickly and reliably.
Features
-
2.4″ Full-Colour LCD Display – Clear, easy-to-read results with icons and graphics for all test modes (continuity, wire-map, length, PoE, port flash).
-
Cable Continuity & Wire-map Testing – For CAT5/CAT6 cables, it detects open circuits, short circuits, crossed or split pairs and mis-wiring quickly and visually.
-
Cable Length Measurement – Measures distance to fault (5-300 m) in your cable runs to locate breaks or bad segments.
-
Port Flash (10/100/1000 Mbps) – Connect to a switch port, trigger the LED to flash, instantly identify the port used. Useful in patch-panel/multi-switch environments.
-
PoE Testing (DC 5-60 V, IEEE 802.3af/at/bt) – Confirm PoE voltage, polarity and load-capability of your switches and connected devices. Built-in protection against live voltage up to 60 V.
-
Rechargeable Li-ion Battery (3.7 V/1500 mAh) with USB-C Charging – Long runtime and modern charging convenience.
-
Auto Switch-Off Feature – Set idle timeout (5/15/30/60 mins) to preserve battery life during jobs.
-
Compact & Job-site Ready – Includes remote unit (for wire-map testing behind walls/patch-panels), carry bag, and is built to handle field-conditions.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Blue |
| LCD Display | 2.4" Color Screen |
| Dimensions (L x W x D) |
Remote : 65x37x23mm Transmitter : 138.5x76x30mm |
| Cable Types | CAT5E, CAT6, UTP/STP |
| Connector Types | RJ45 UTP/STP |
| Cable Length Measurement Max Distance | up to 300m |
| Anti-burning Level | DC 60V |
| Auto Off | 15m/30m/60m/OFF |
| Wire Mapping | Yes |
| Length Measurement | Yes |
| Port Flashing Function | Yes |
| PoE Testing | Yes |
| Low Battery Indicator | Yes |
| Battery | 3.7V 1500mAh Lithium Battery |
| Environmental/Certifications | |
| CE | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Contents | |

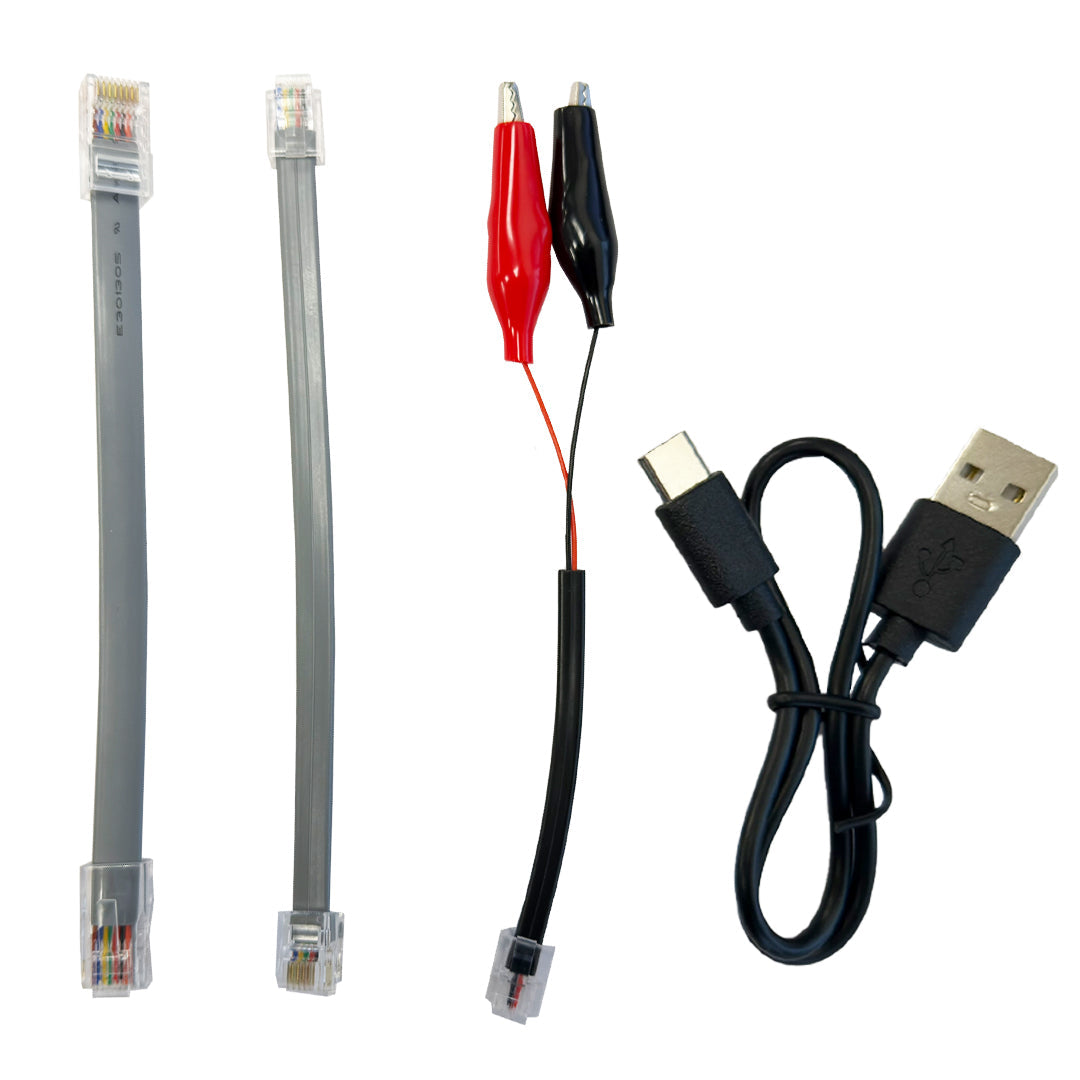

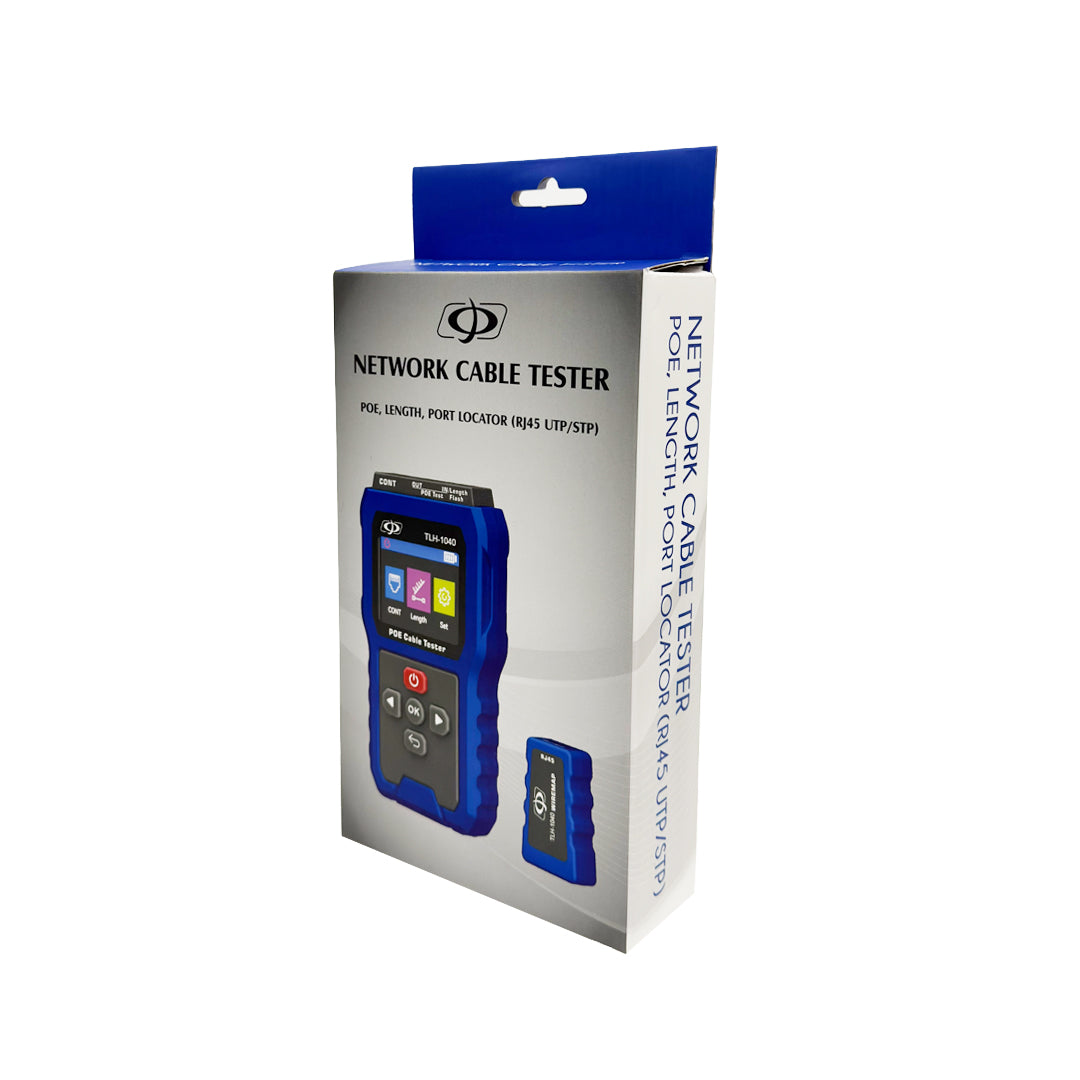

| Included in Package | 1 - PoE Cable Tester 1 - Remote 1 - RJ11 Cable 1 - RJ45 Cable 1 - USB Type-C Cable 1 - Carry Bag 1 - Gift Box 1 - Lithium Battery Precaution Card 1 - User Manual 1 - Certificate |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| TLH-1040 | 2.04 lb |
