NEMA L6-30P to 2x NEMA L6-30R Splitter - 10AWG (30A 250V) - SJT

Splitter Power CordsSKU: PW-267-02

Sale price$30.70 USD
In stock

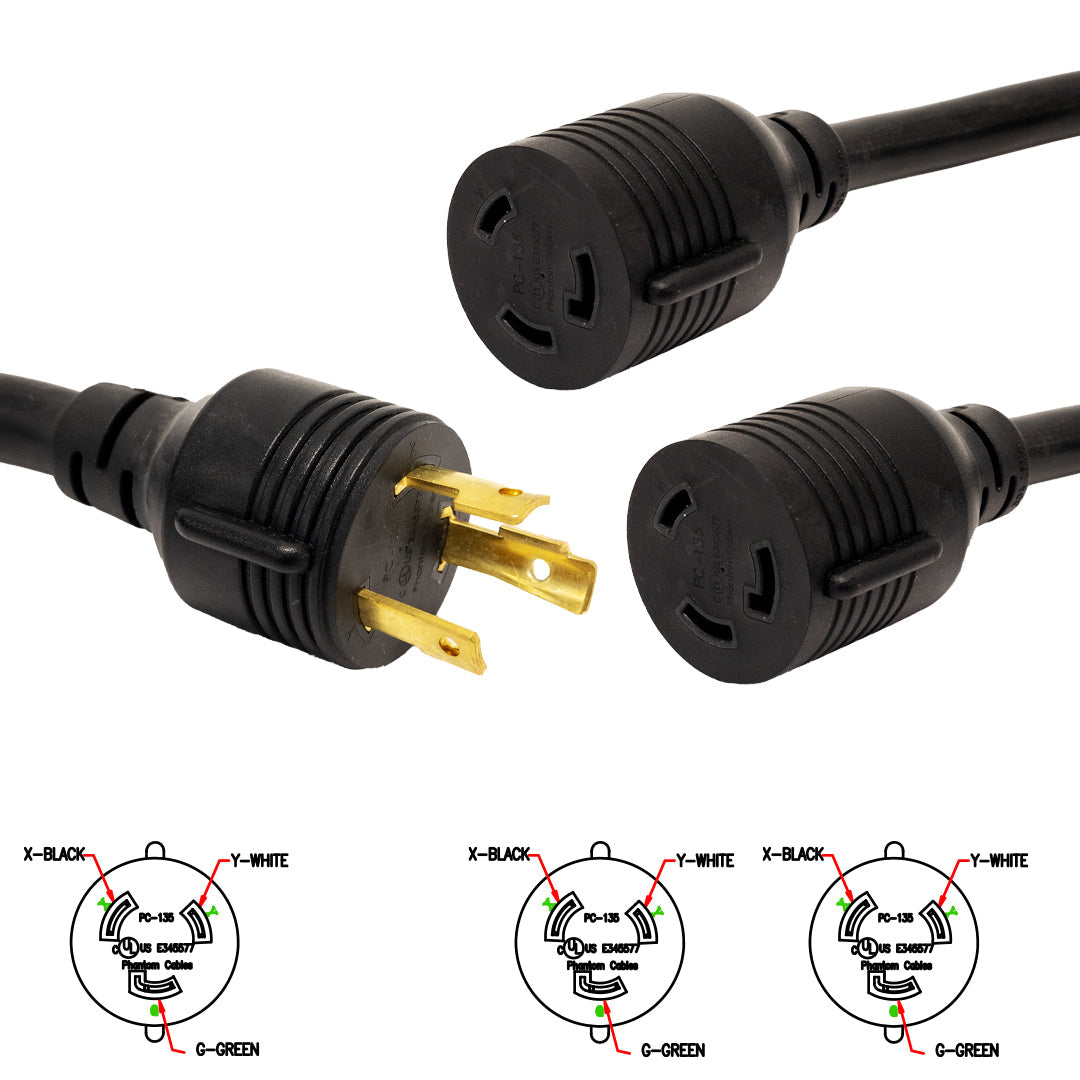

This power cord consists of a L6-30P male on one end and two L6-30R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Cable Length 2 foot [0.6m]
Color Black
Number of Conductors 3 Conductor
Wire Gauge 10AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20℃ to 105℃
Connector A NEMA L6-30P
Connector B NEMA L6-30R
Connector B NEMA L6-30R
Power Rating 30 Amp / 250 Volt
L6-30P c(UL)us, CSA
L6-30R c(UL)us, CSA
L6-30R c(UL)us, CSA
Cable c(UL)us, CSA
ISO ISO 9001:2000, ISO 14000
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 1.42 lbs [0.6kg]
Warranty Information
Warranty Limited Lifetime
