NEMA L5-30P to NEMA L5-30R Power Cable - SJT

AC Power CordsSKU: PW-157-15

Length: 15ft
Wire Gauge: 10AWG

Login to view price

In stock

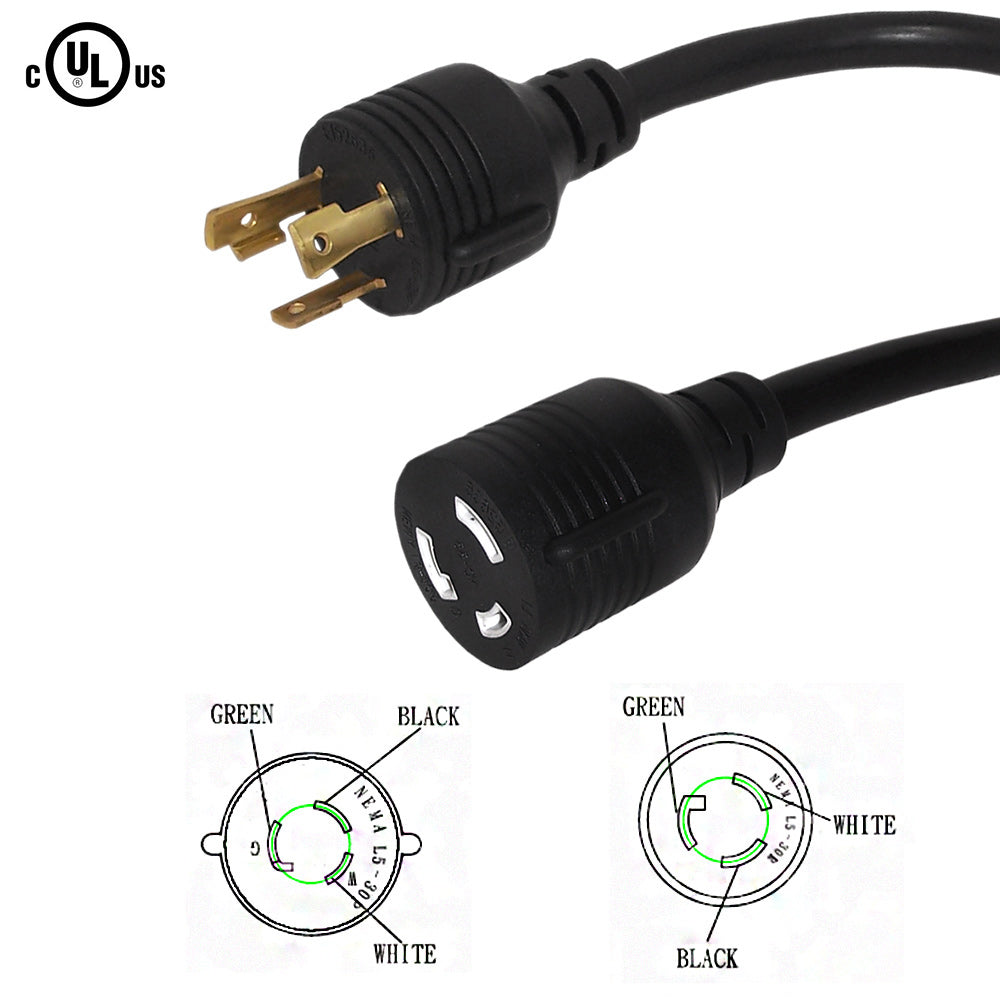

This power cord consists of a L5-30P male on one end and a L5-30R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Cable Length 15 foot [4.5m]
Color Black
Number of Conductors 3 Conductor
Wire Gauge 10 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20℃ to 105℃
Connector A NEMA L5-30P
Connector B NEMA L5-30R
Power Rating 30 Amp / 125 Volt
L5-30P c(UL)us
L5-30R c(UL)us
Cable c(UL)us, CSA
ISO ISO 9001:2000, ISO 14000
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 3.8 lbs [1.7kg]
Warranty Information
Warranty Limited Lifetime
